剑诀修炼模拟器——一起凡人修仙吧！（行空板K10+二哈识图2） 简单

头像 小含糊online 2025.09.29 187 0

9月30日 更新

上传了程序附件

--------------------------------------------------------------------

作为《凡人修仙传》的粉丝，动漫中的各种手诀真的是很喜欢，幻想着有一天能够修仙飞升（当然那是不可能滴），不过捏捏剑诀什么的自我满足一下还是可以滴，刚好用手头的二哈2和K10做一个剑诀修炼模拟器。

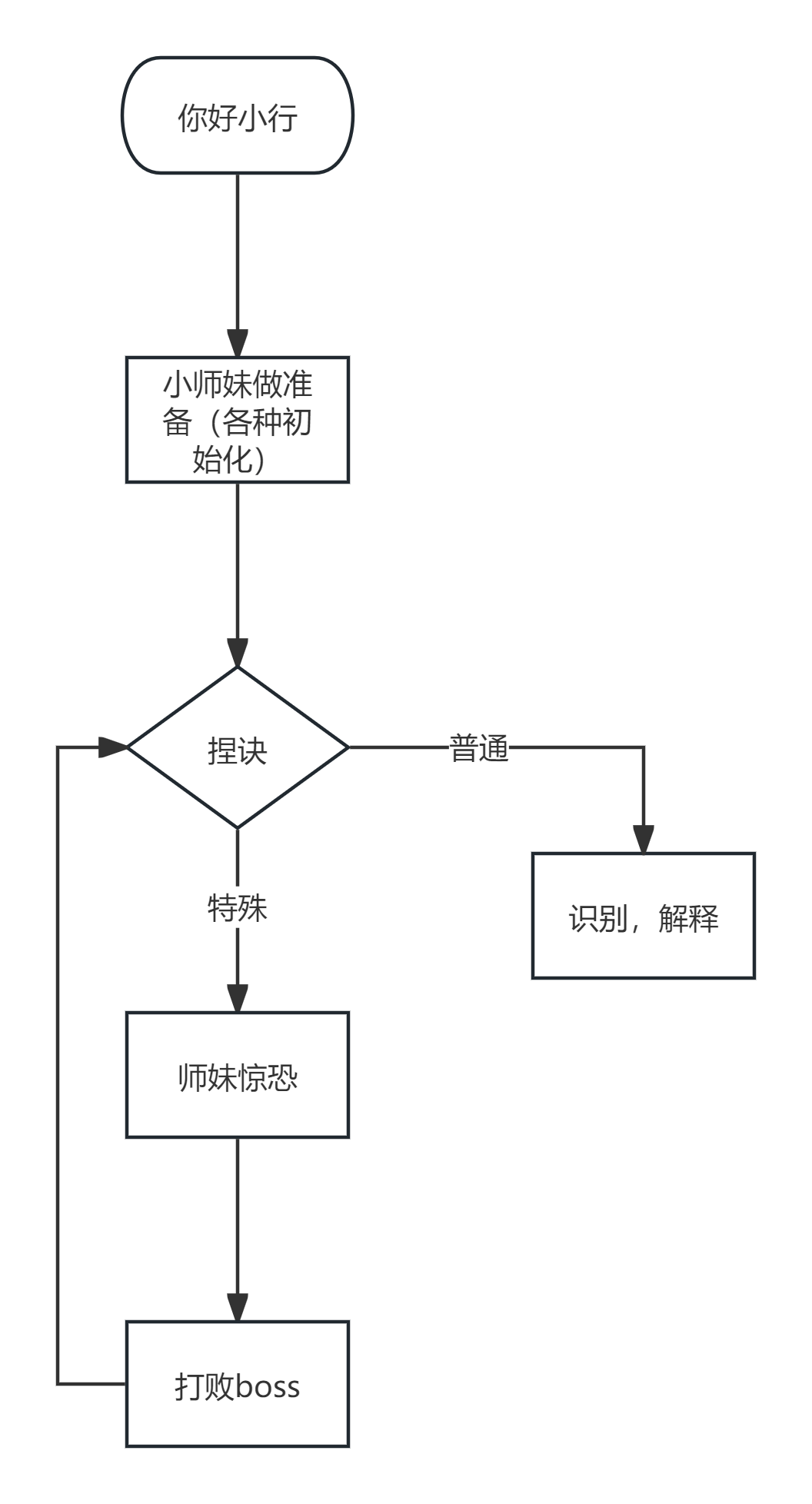

思路如下图


关于人物：

（作品中人物均取自动漫《凡人修仙转》人物造型）

小师妹——宋玉饰

邪祟——玄骨饰

材料清单

  • 行空板K10 X1
  • 二哈识图2 X1
  • 舵机 X7
  • 纸盒 X1
  • 垃圾袋 X1
  • 热熔胶枪 X1
  • 充电宝 X1

步骤1 确定主题，绘制流程图

主要一个是喜欢《凡人修仙传》，一个是新品二哈识图2要多用起来

其实很想研究二哈2的实例分割这个功能，但是贪多嚼不烂，先把手势识别多用用再说别的功能吧！

整个作品流程并不复杂，故事背景就是：

你扮演一个修仙的凡人，在一次跟师妹练习剑诀的时候不小心捏了一个禁忌剑诀，从而解除了某个邪祟的封印，然后你通过复杂的（其实就三个……）剑诀组合，以及坚持不懈（程序中大概不到5秒的时间）与邪祟抗衡，最终重新镇压邪祟的剧情。

步骤2 编写程序

程序写起来不难，主要是思路要清晰。分模块编写，测试，然后整合。

大致步骤如下：

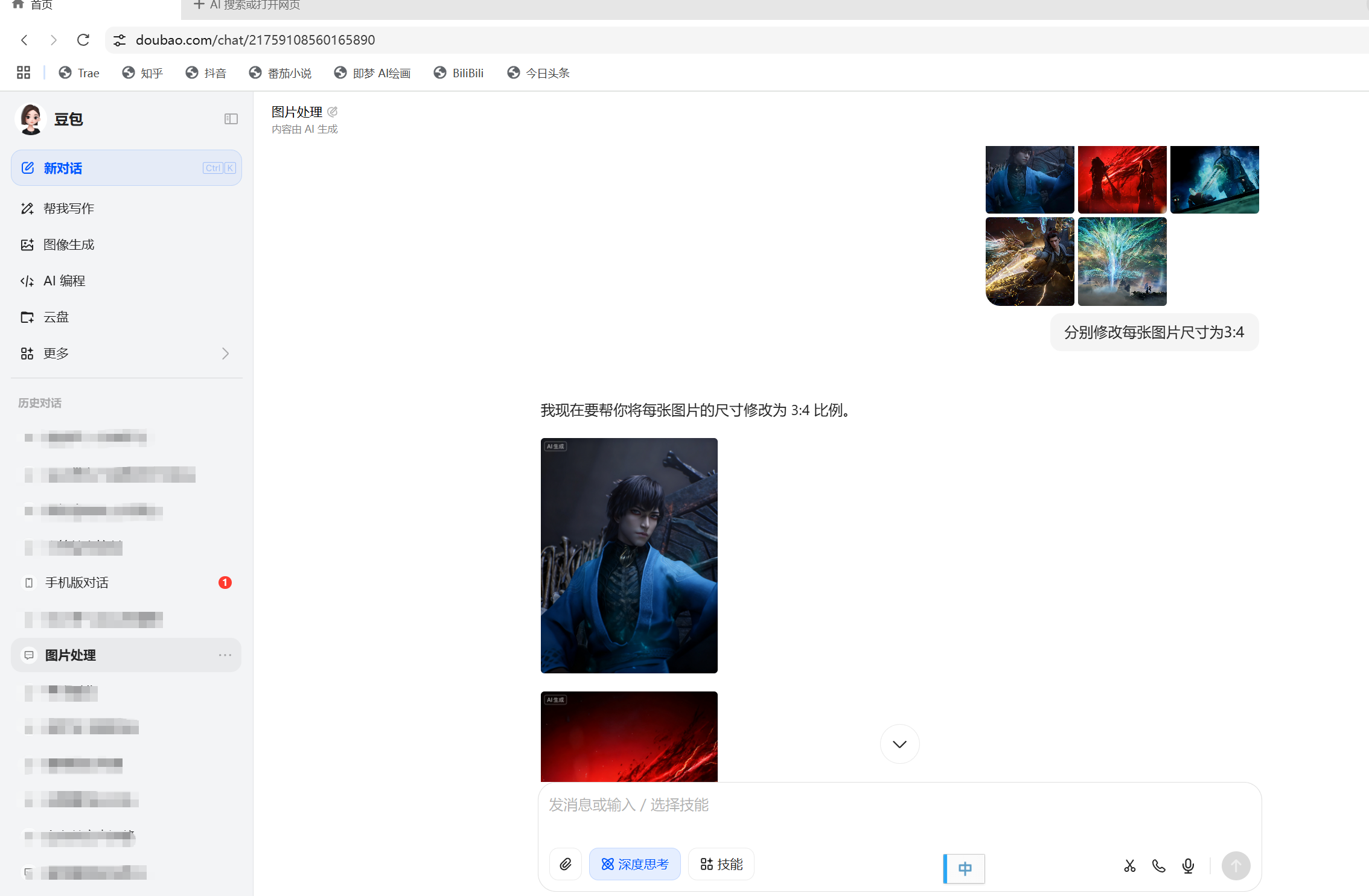

1.寻找合适的图片，使用豆包帮助改图；


2.编写纯软件部分程序，实现语音识别、简单的手势识别功能；

3.加入图片，建立函数，实现较复杂程序内容（能够识别不同剑诀，并且进行解读）；


4.进一步创建邪祟出现、灭杀等相关函数，借用串口调试等工具（也可以使用行空板屏幕调试）；


5.单独编写舵机控制程序；


6.整合程序，修改bug

步骤3 测试舵机

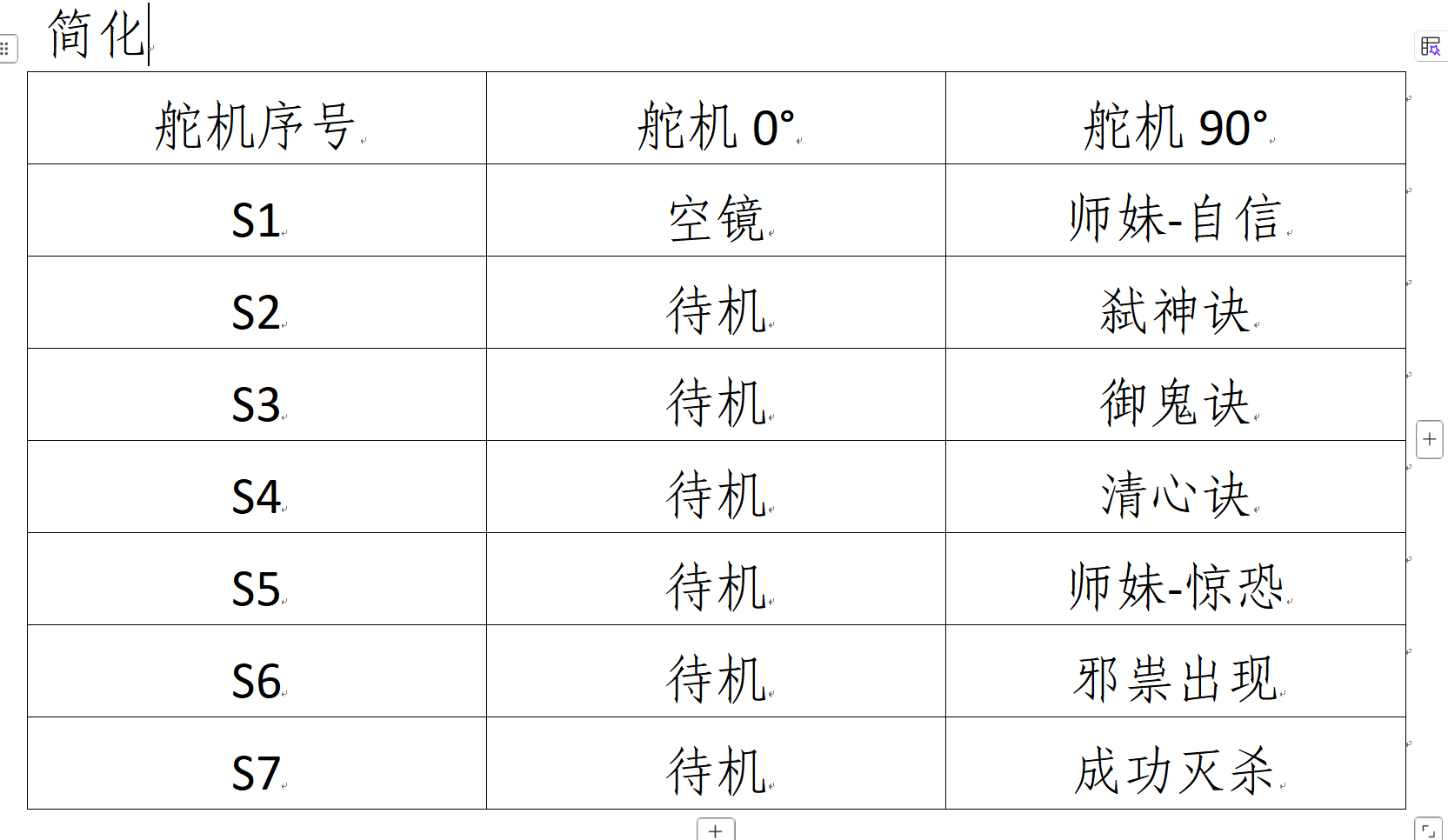

1.这里我分成了八种情况

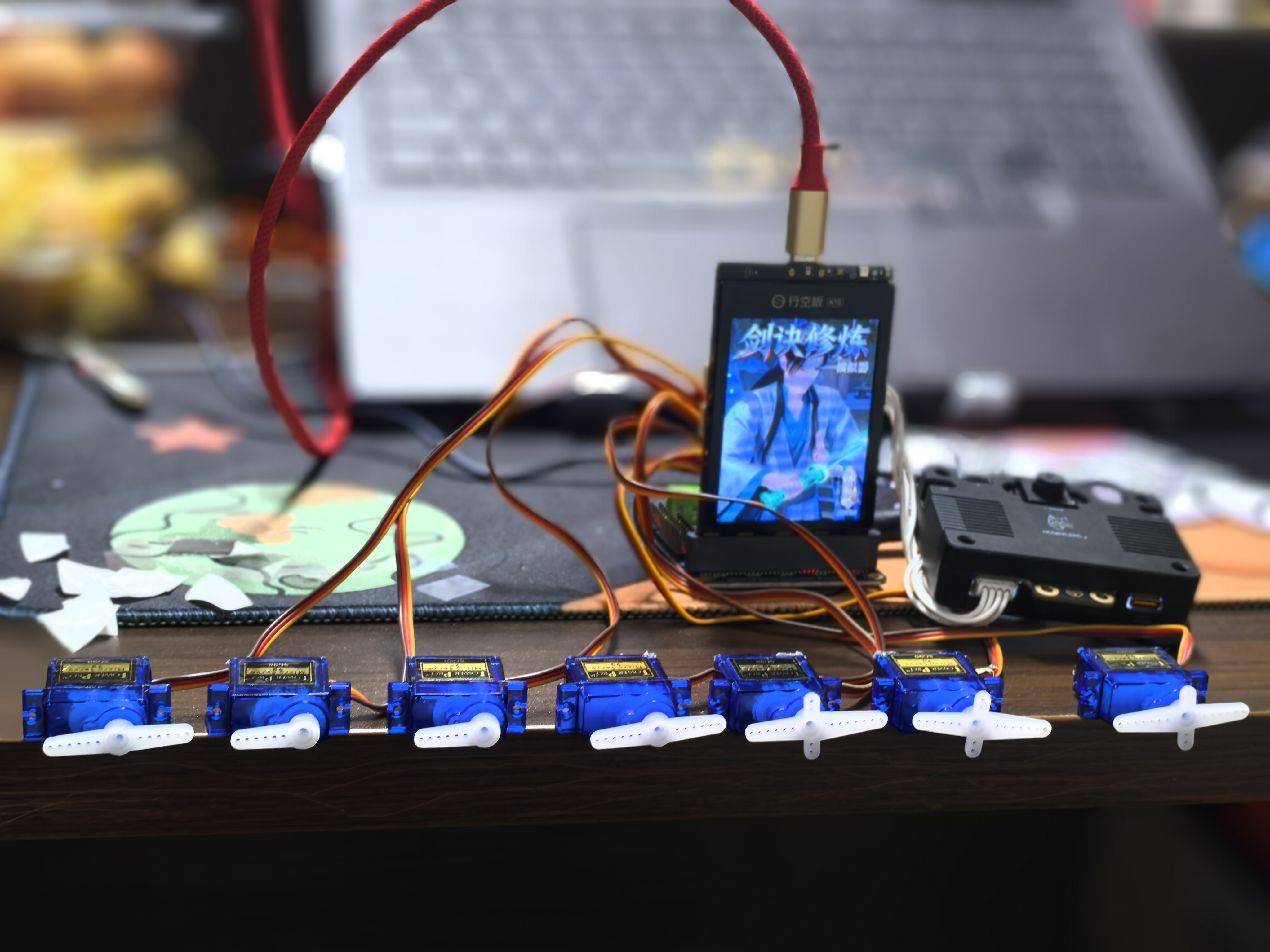

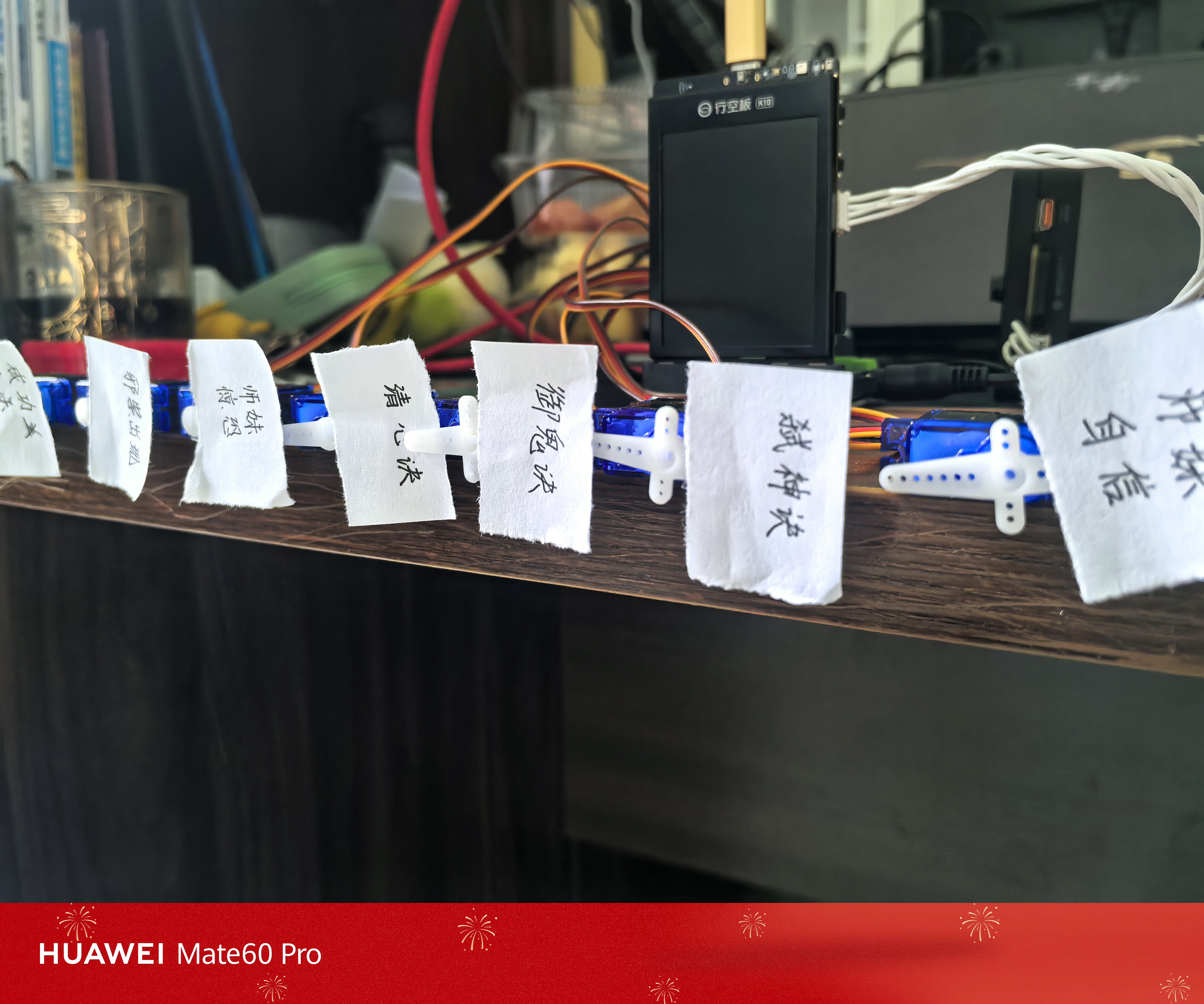

舵机0°认物卡片隐藏在盒子里面，舵机90°人物卡片出现在视野中。

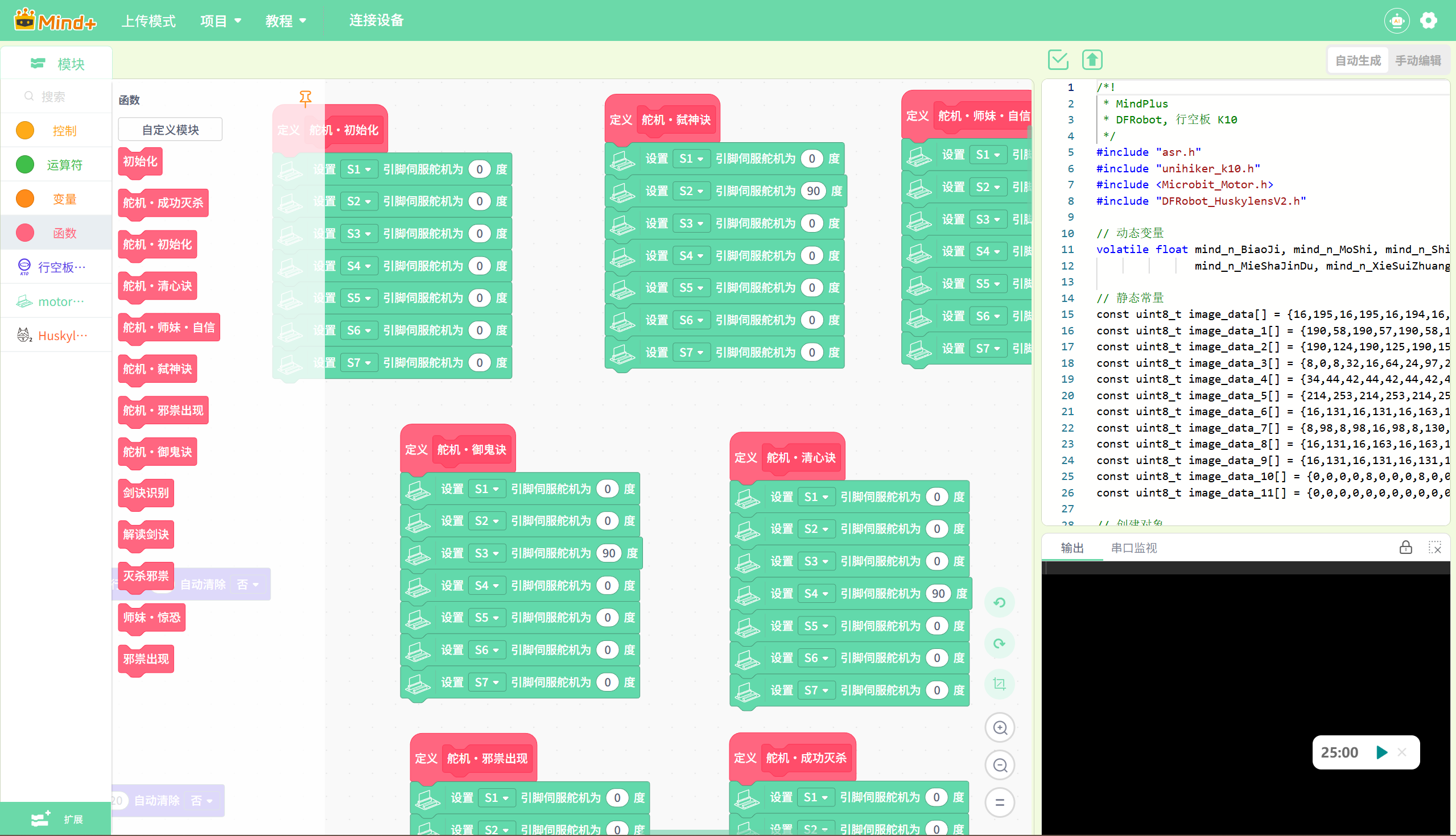

2.根据表格，创建函数并测试


注意：每个函数都是7个舵机绑定在一起作为一个整体的系统进行程序编写（特殊情况除外）


（哈哈哈，简陋的测试）

测试视频见分享视频2P

步骤4 制作人物卡片、舞台、连接硬件

1.制作人物卡片

使用WPS演示抠图排版，用相纸打印，最后裁剪好轮廓


2.舞台

2.1 安置舵机

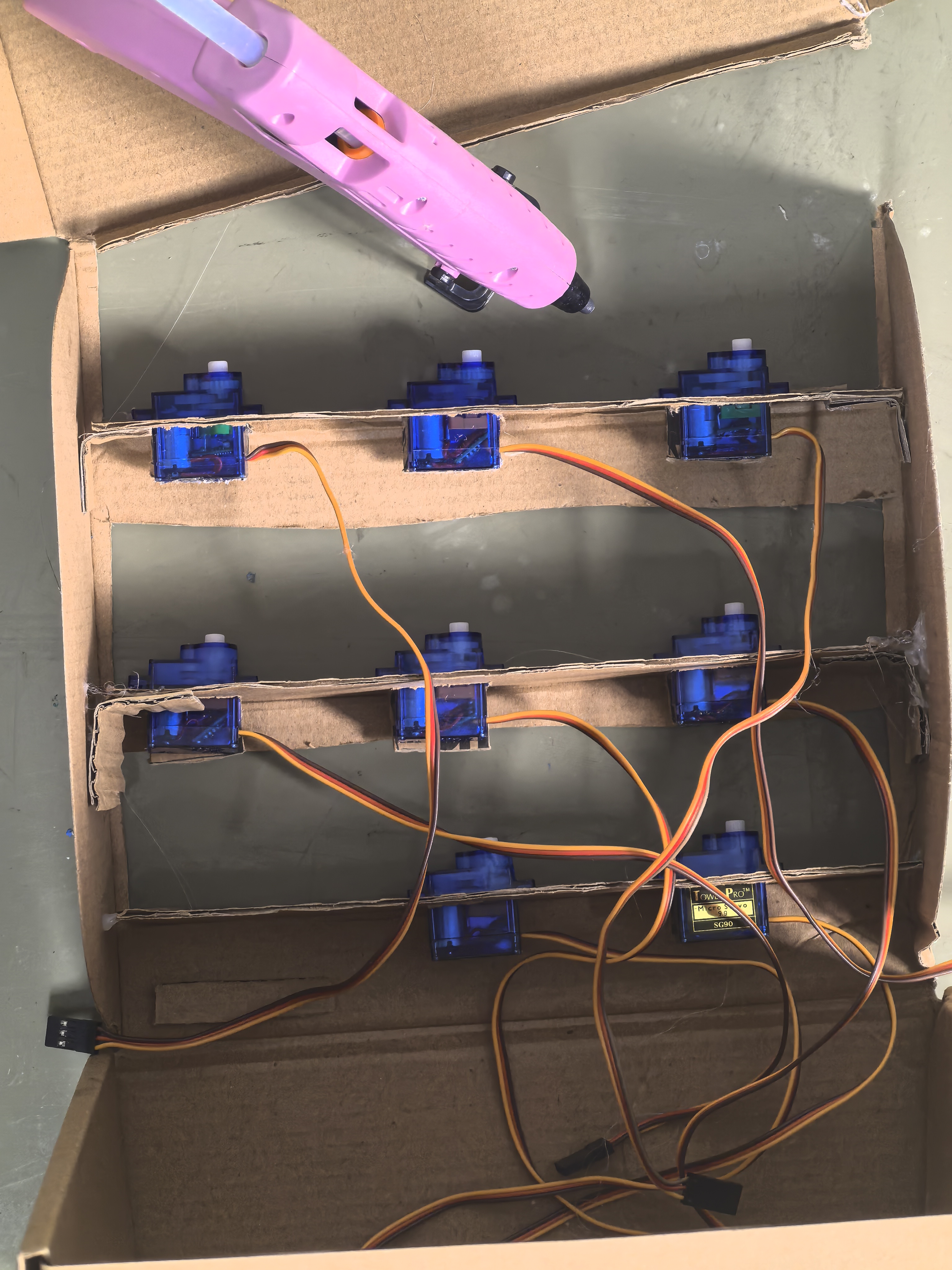

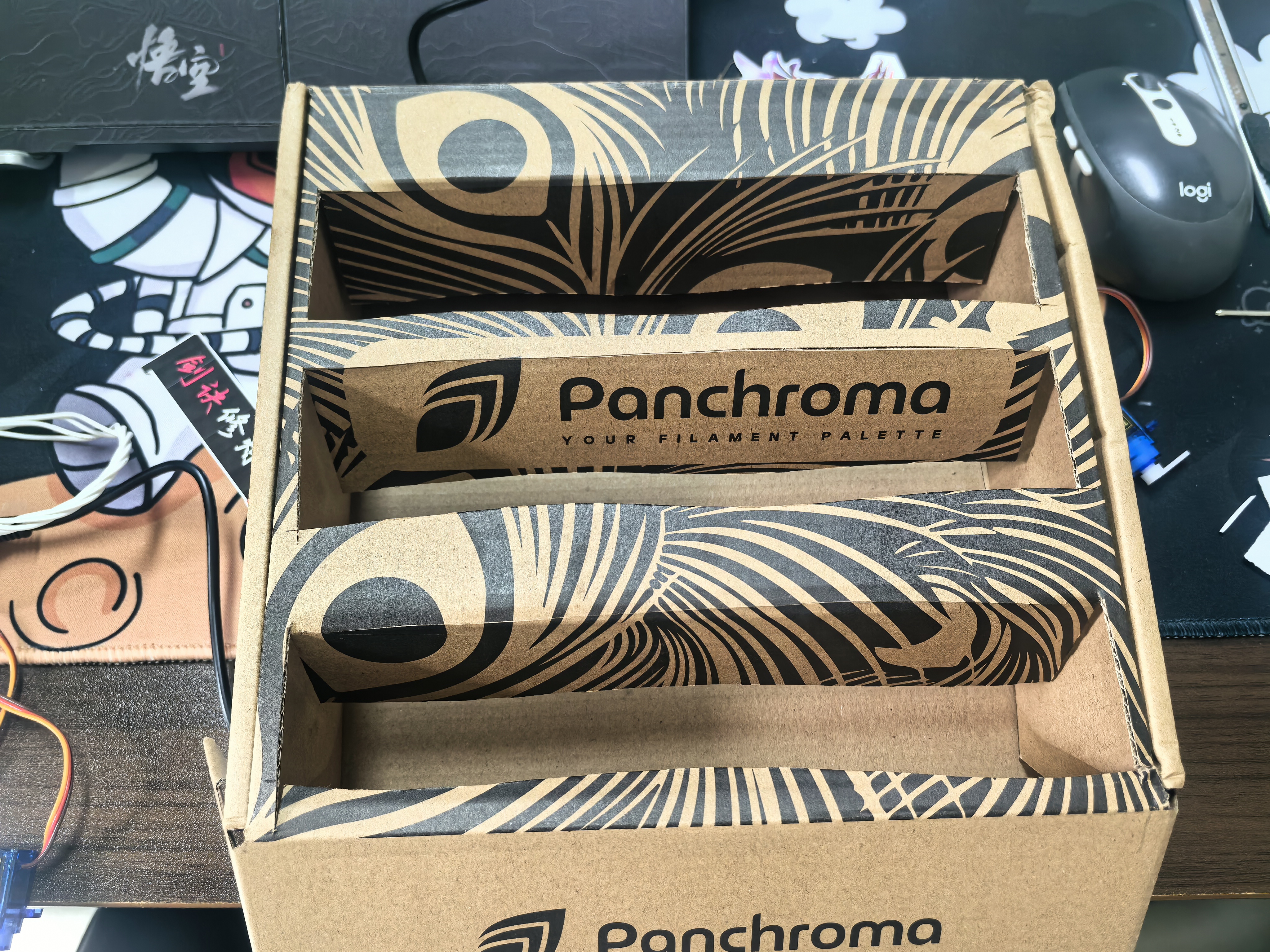

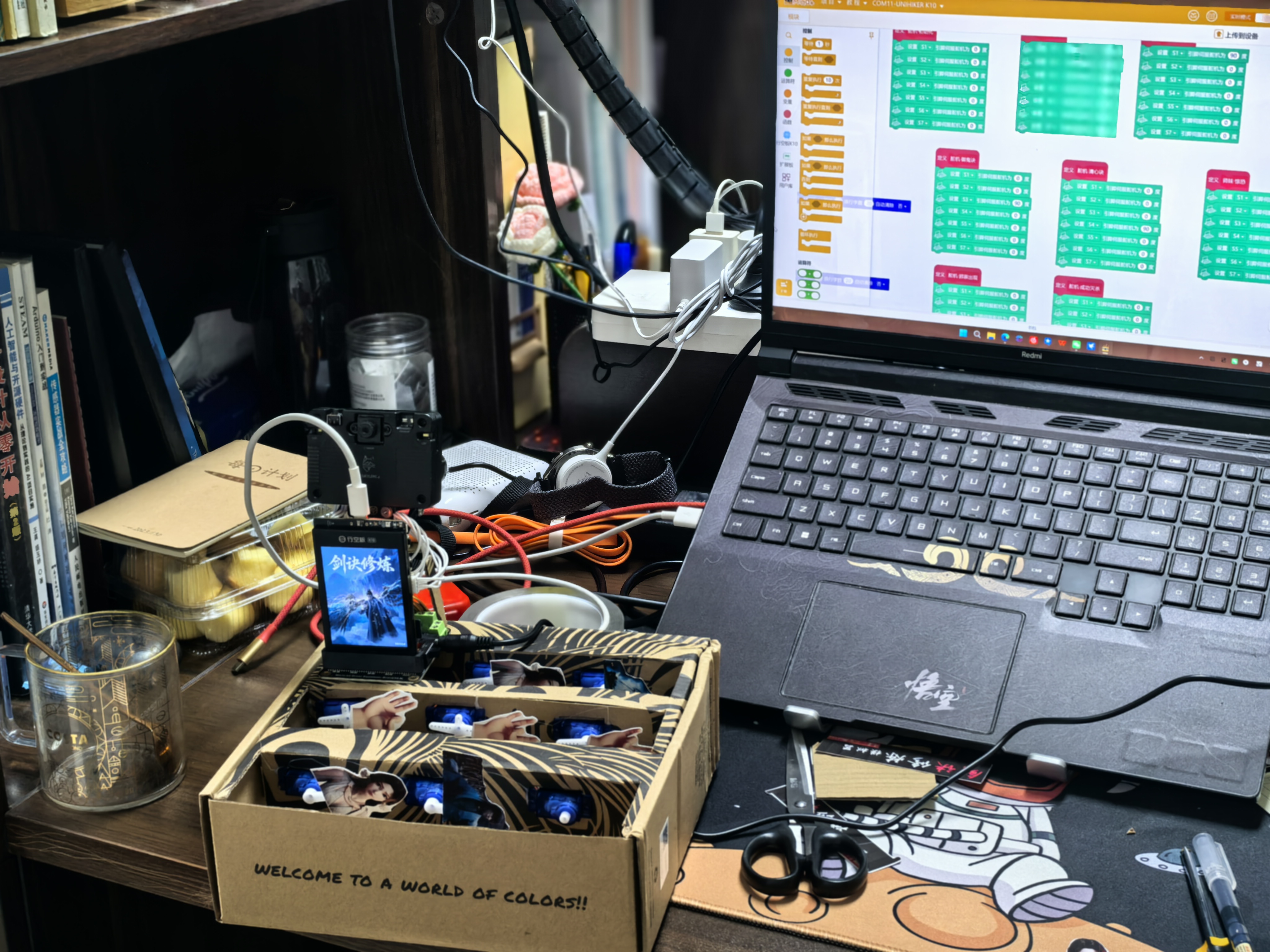

手边刚好有个纸盒，直接拿来做舞台，裁剪好舵机的位置，放置好舵机（热熔胶枪）

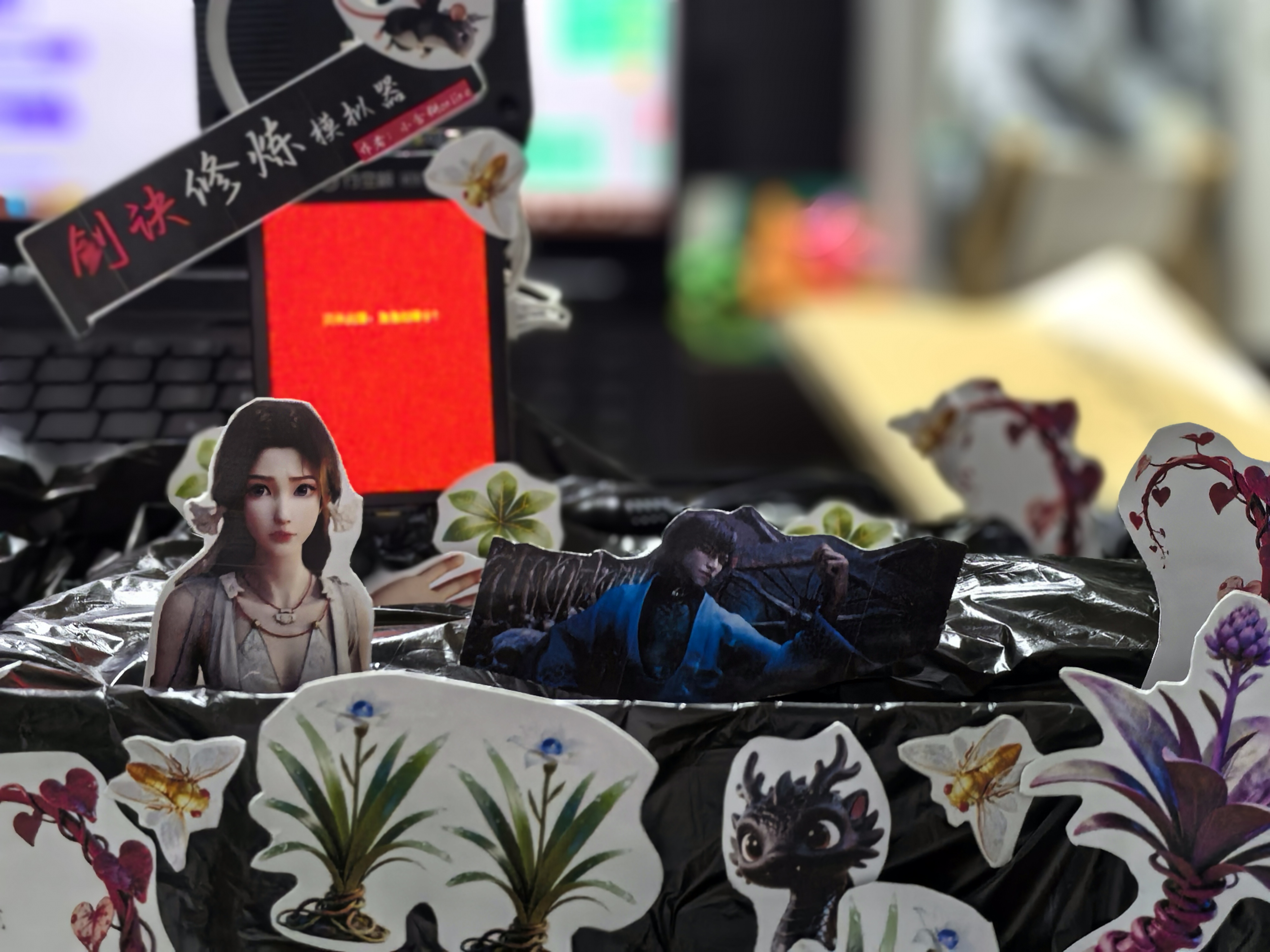

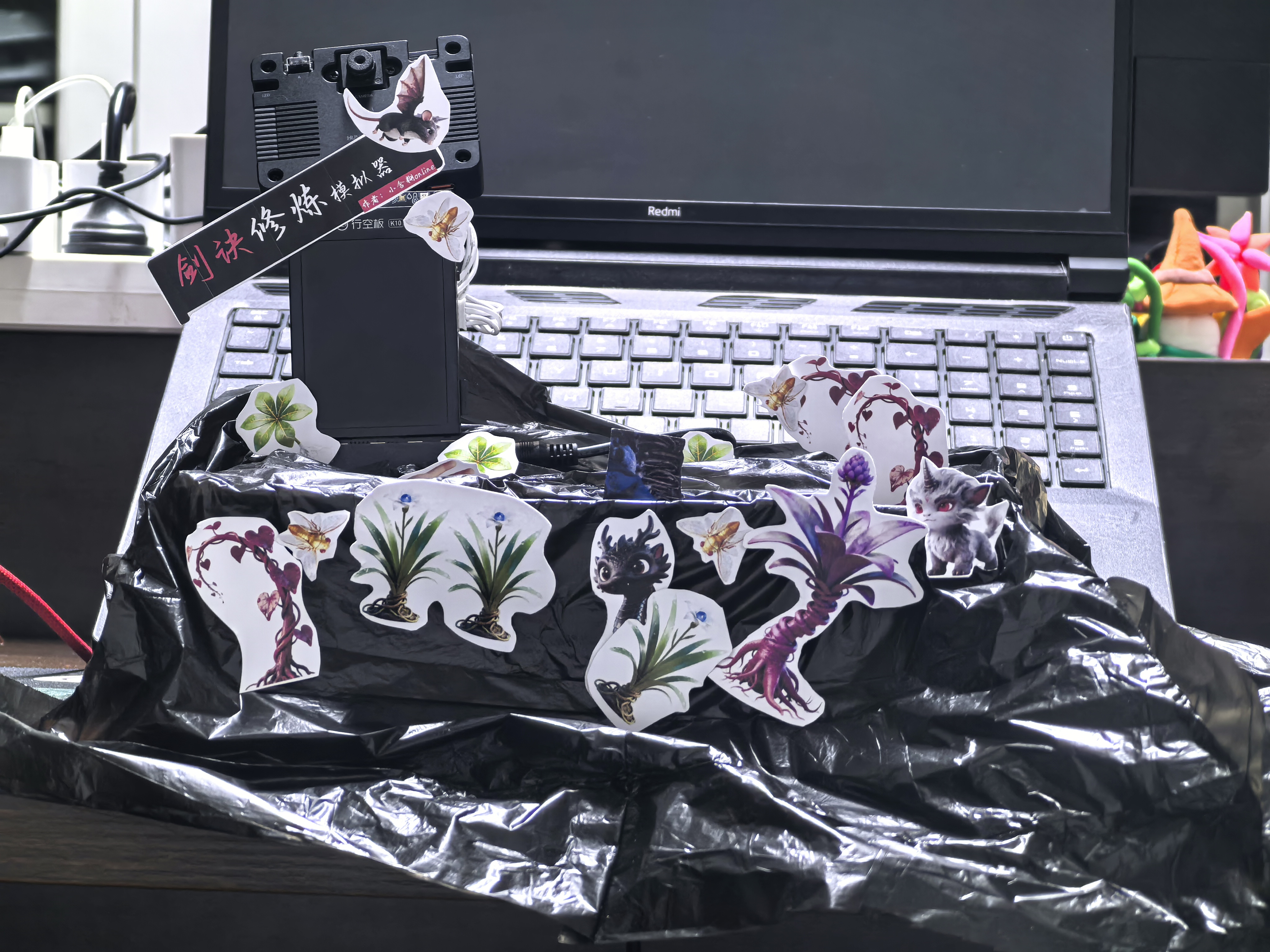

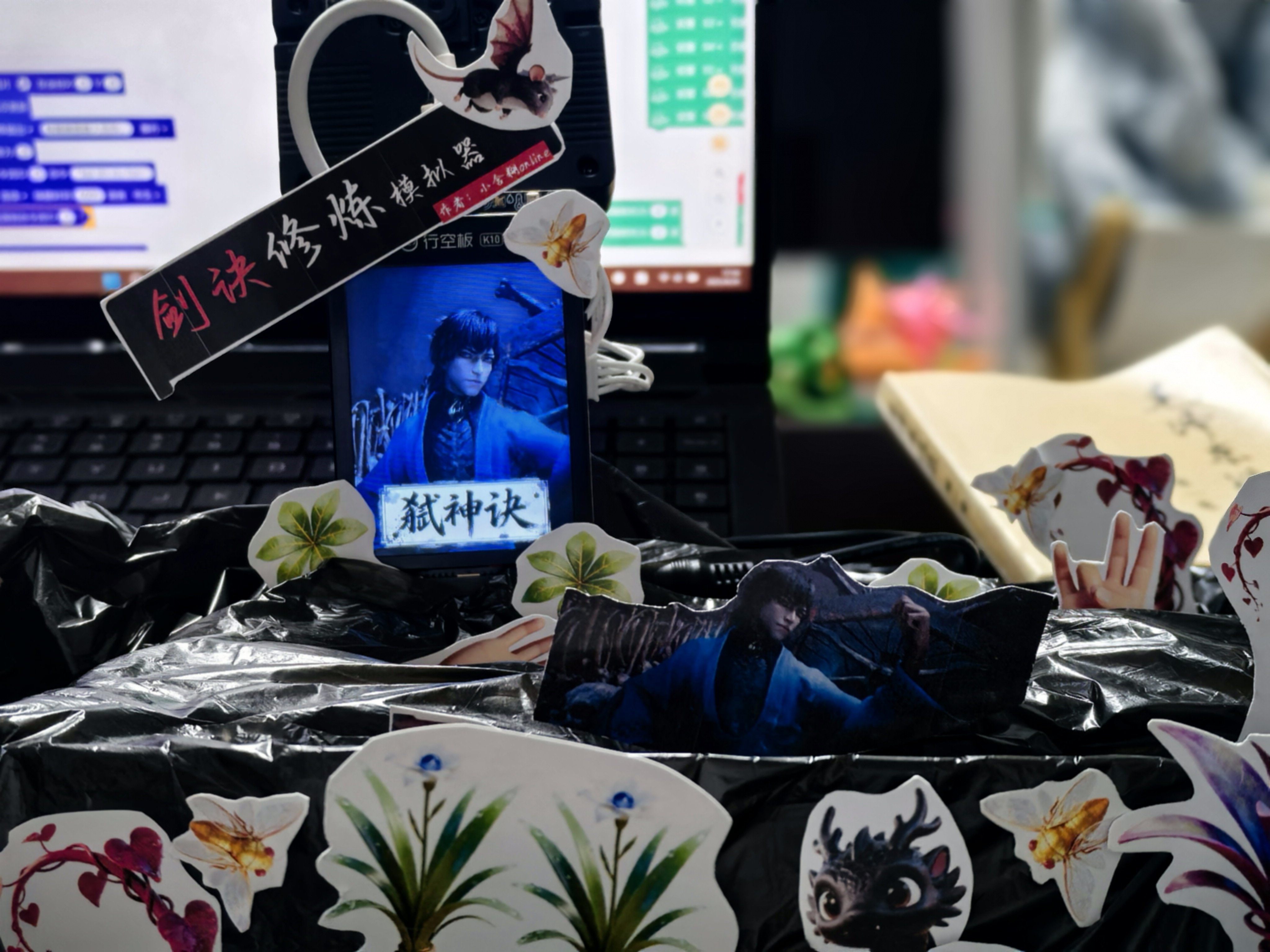

2.2 使用垃圾袋+卡片装饰舞台（没错，刚好看到了垃圾袋，就拿来用了……）

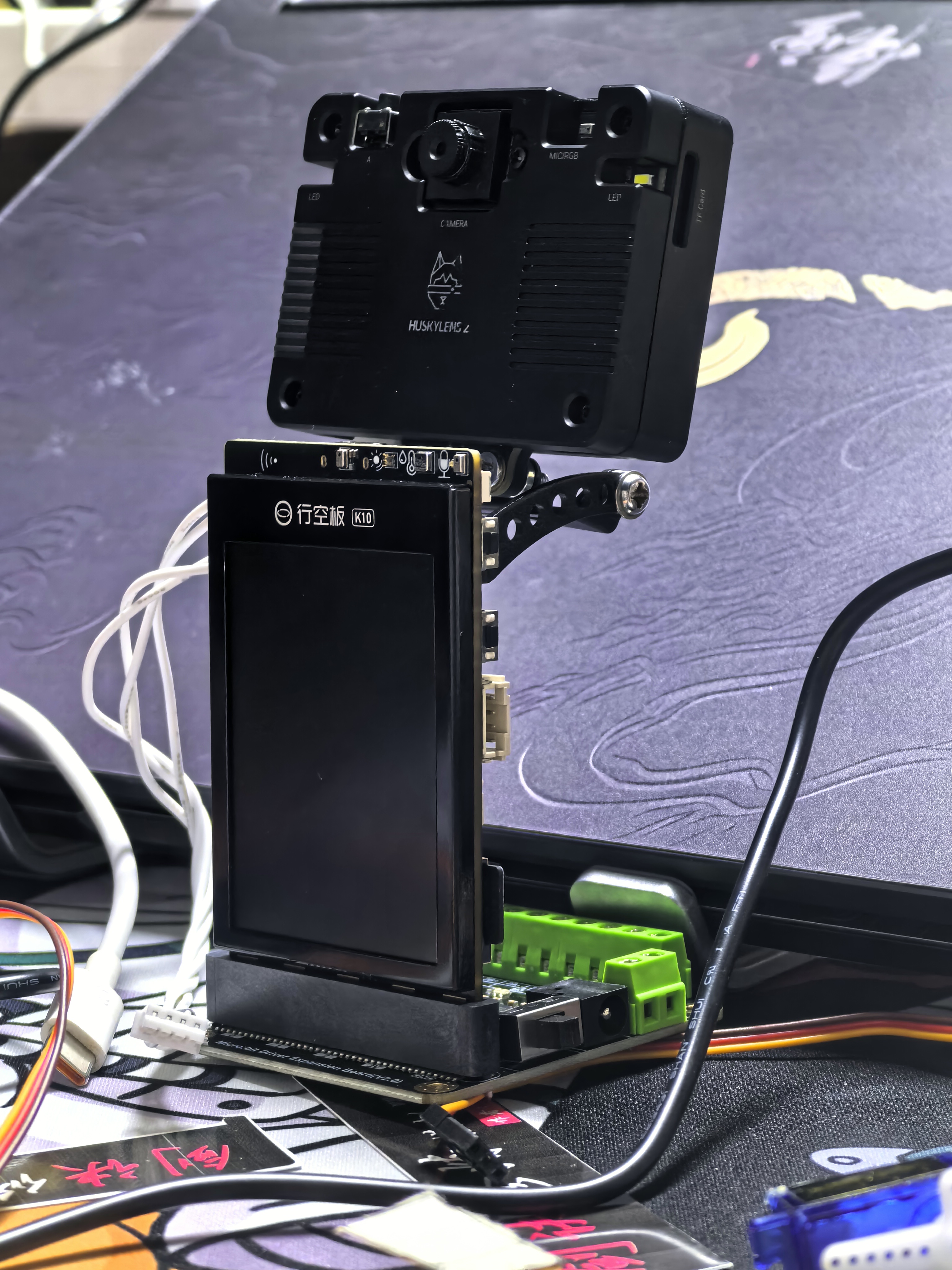

3.二哈2+K10

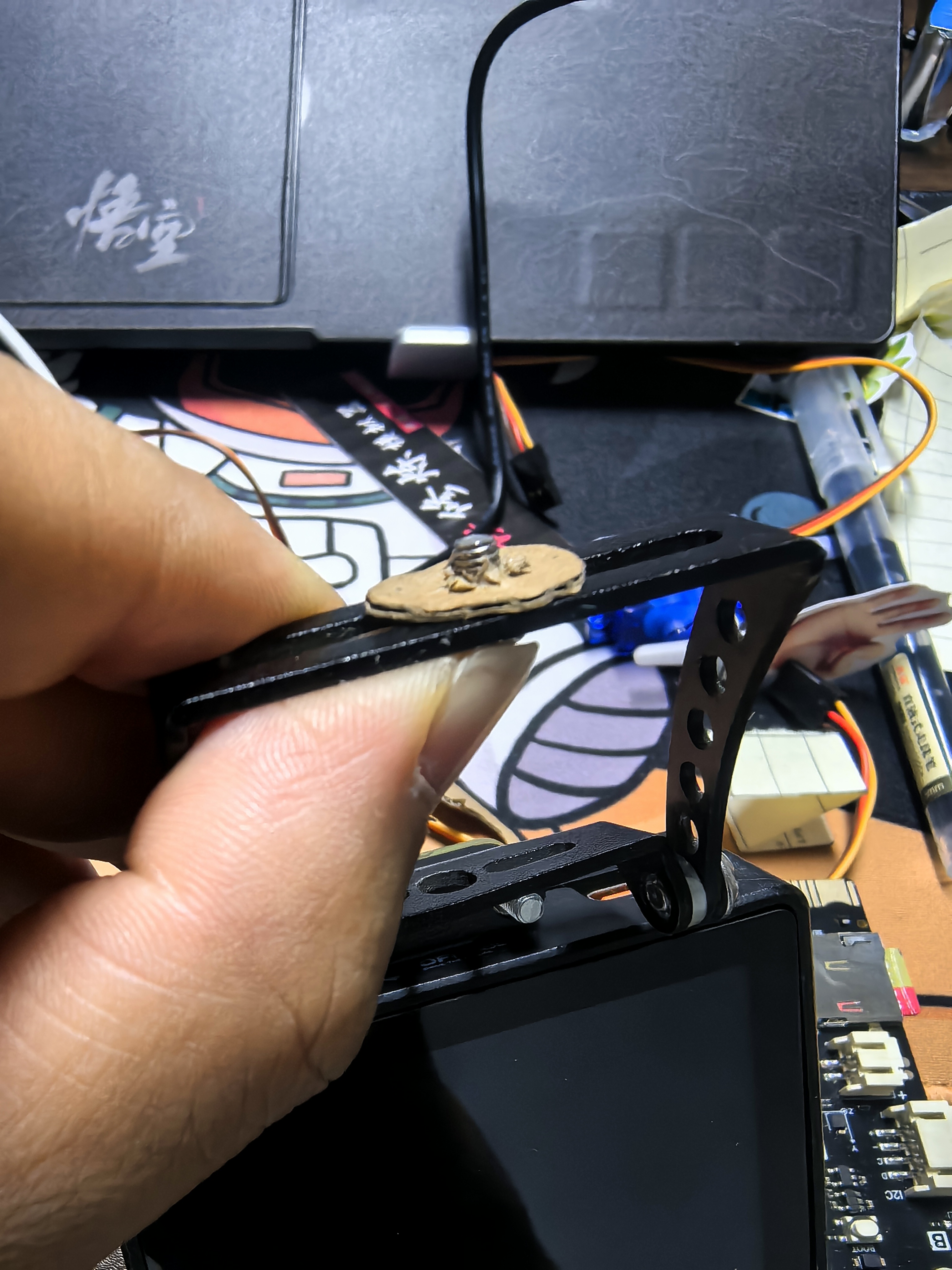

手头刚好有二哈一代的支架，拿来安装在K10上也勉强ok，就是螺丝不合适，上不紧，刚好手边有纸盒子，剪下来一点做一个应急垫片，妥妥的


步骤5 测试改bug，补细节

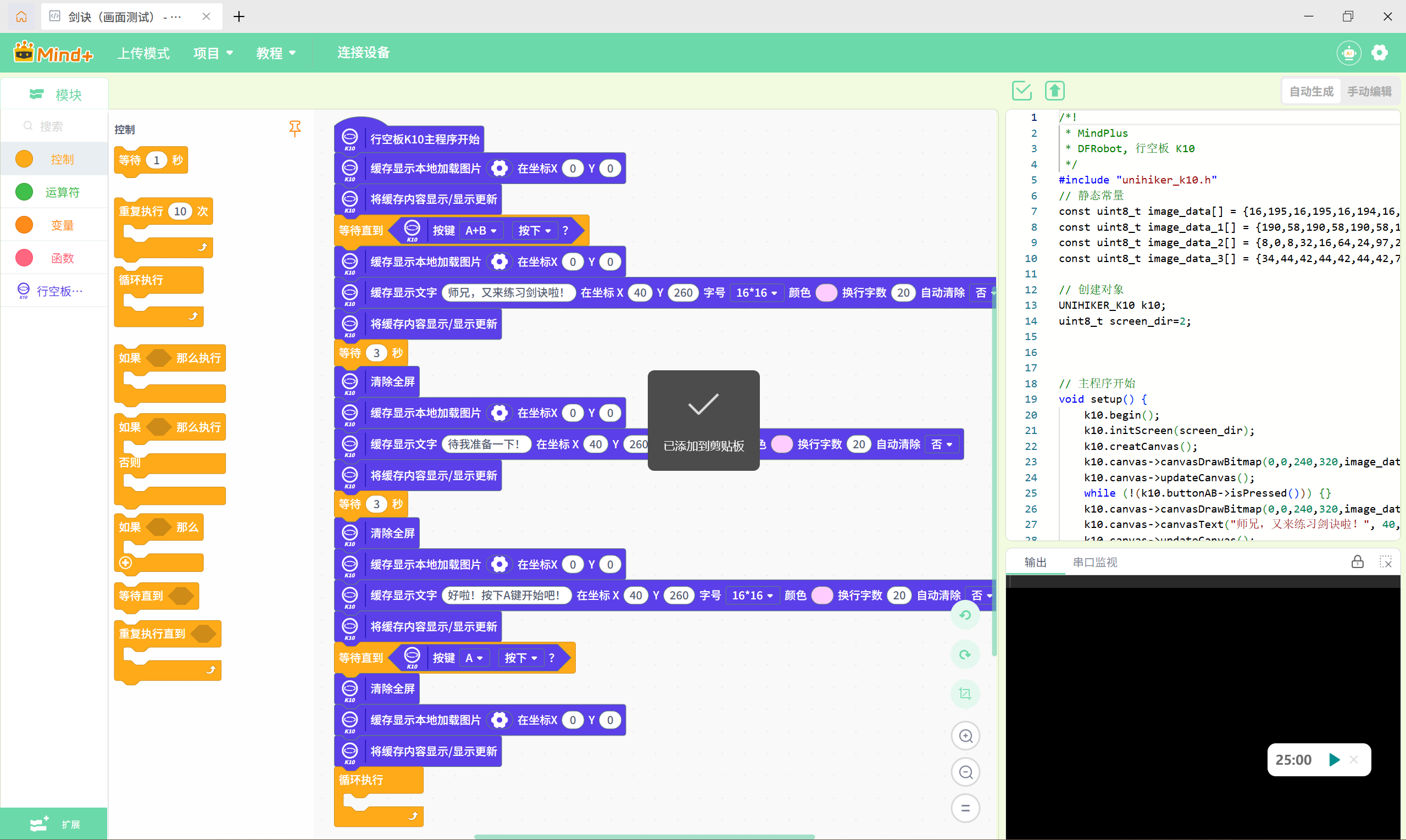

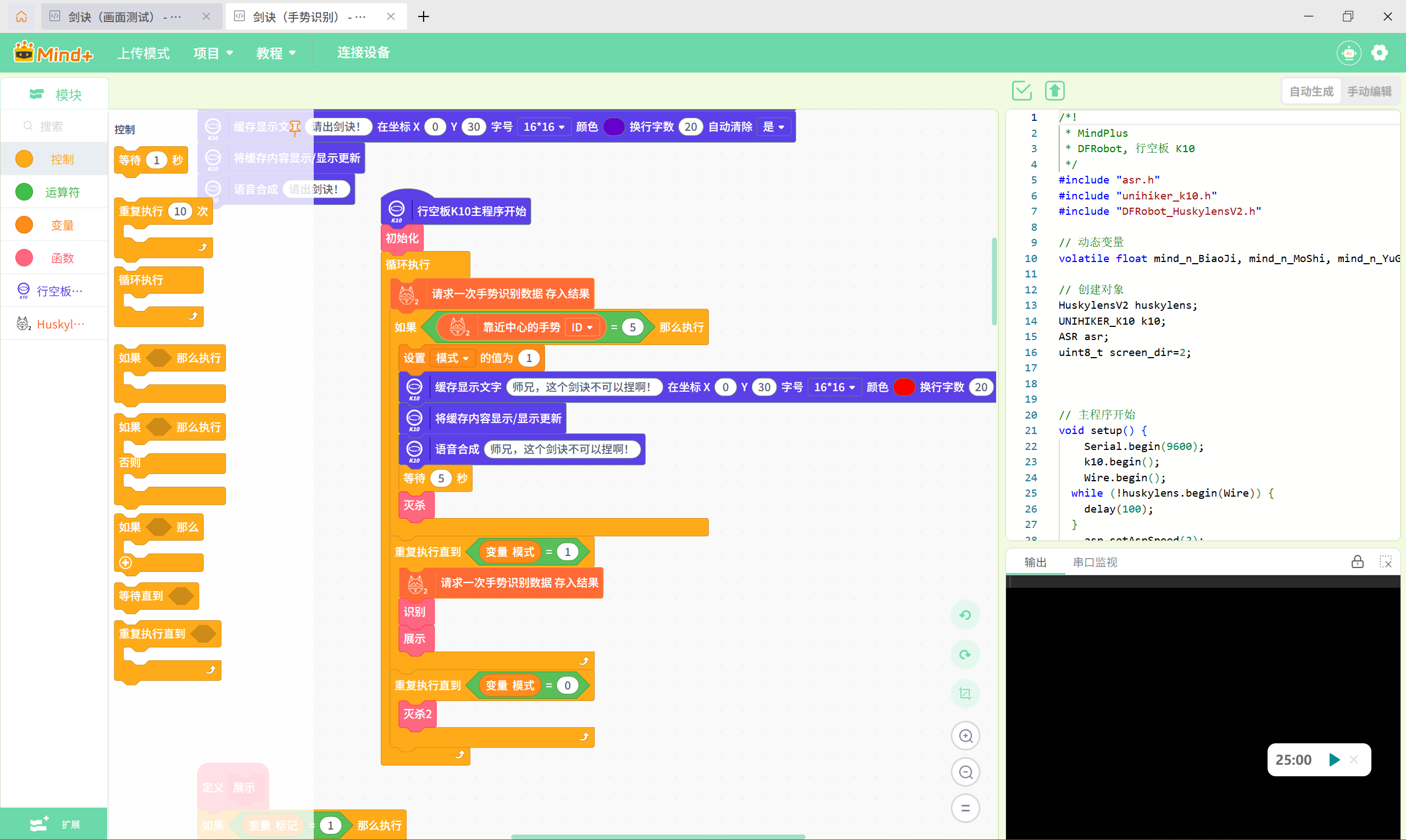

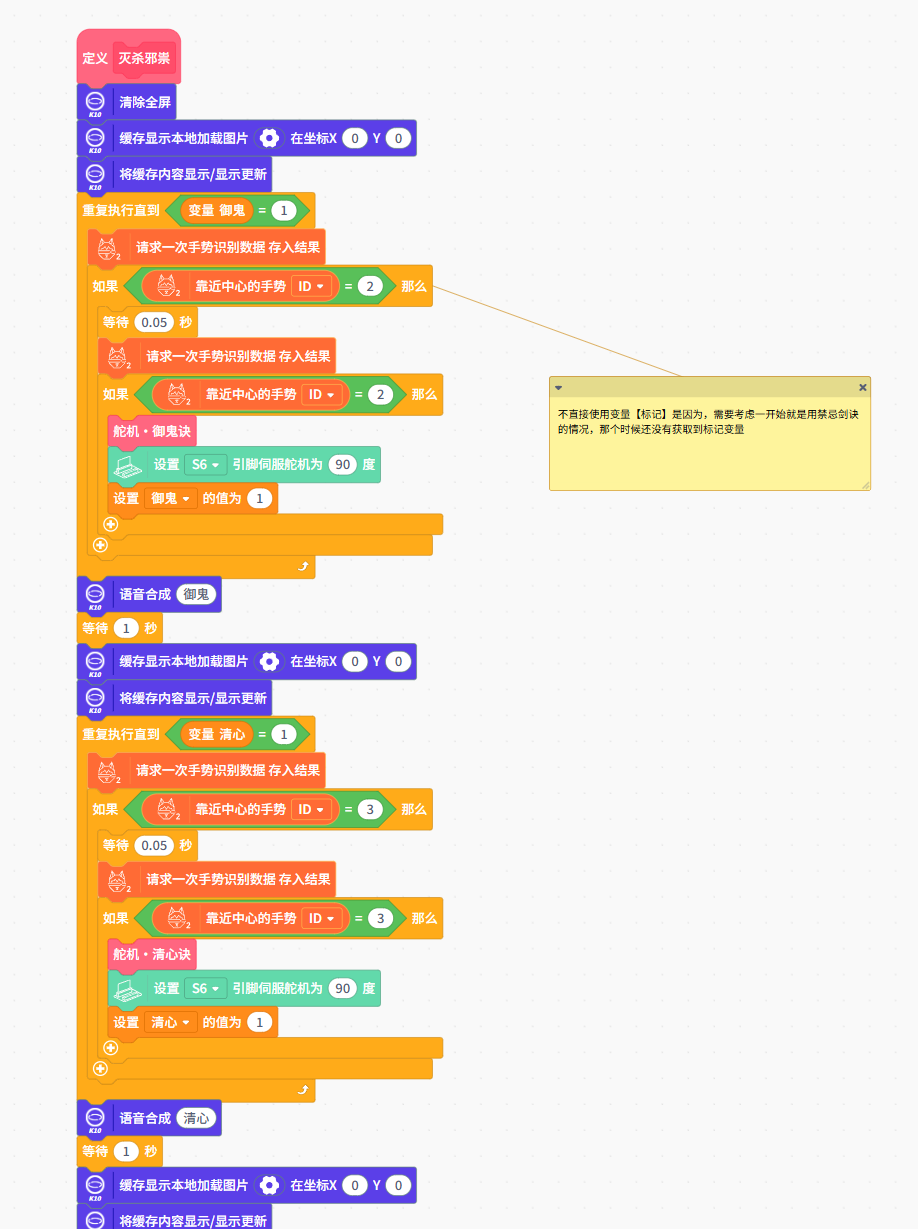

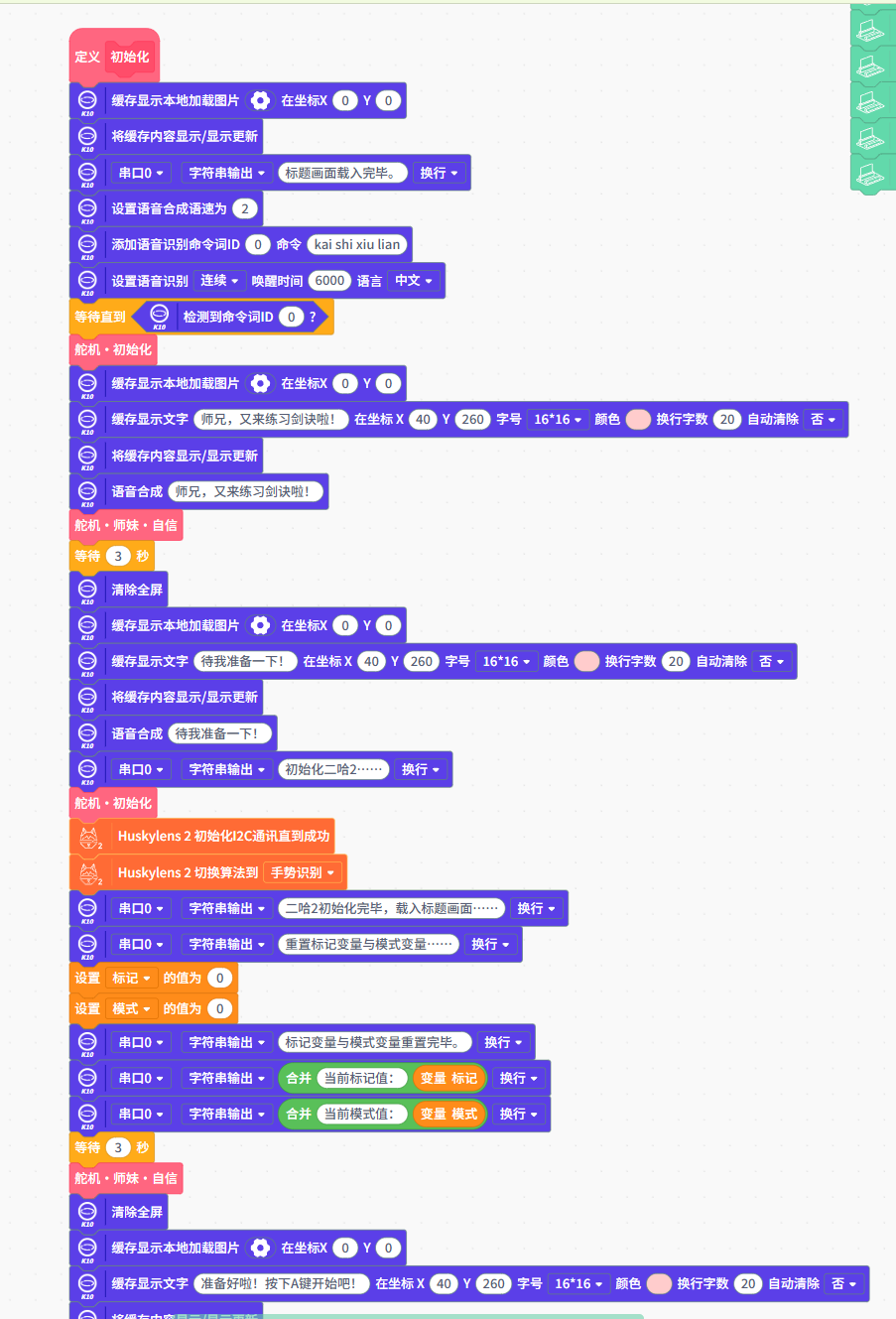

贴上部分程序截图（太长了，不好弄）

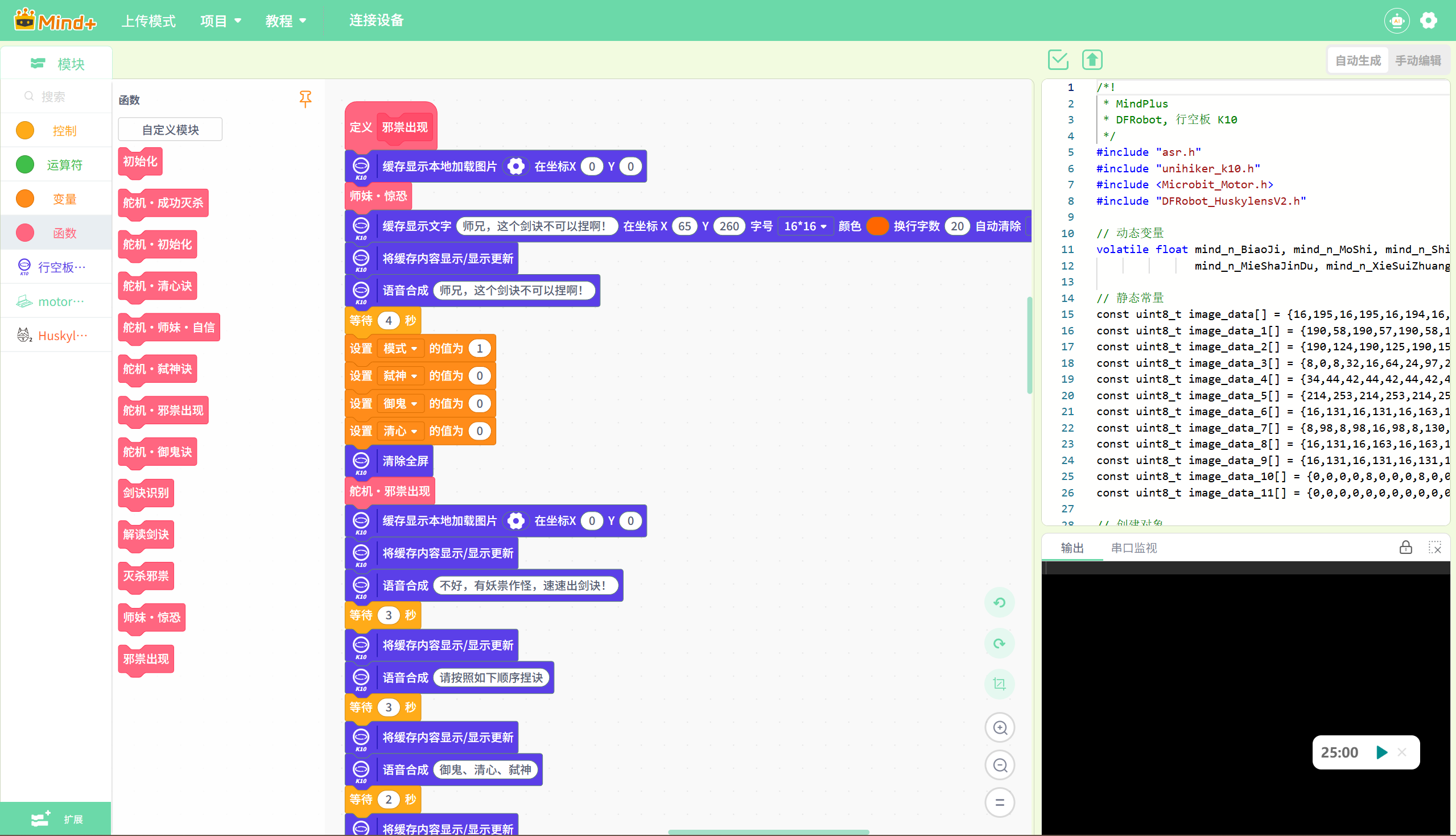

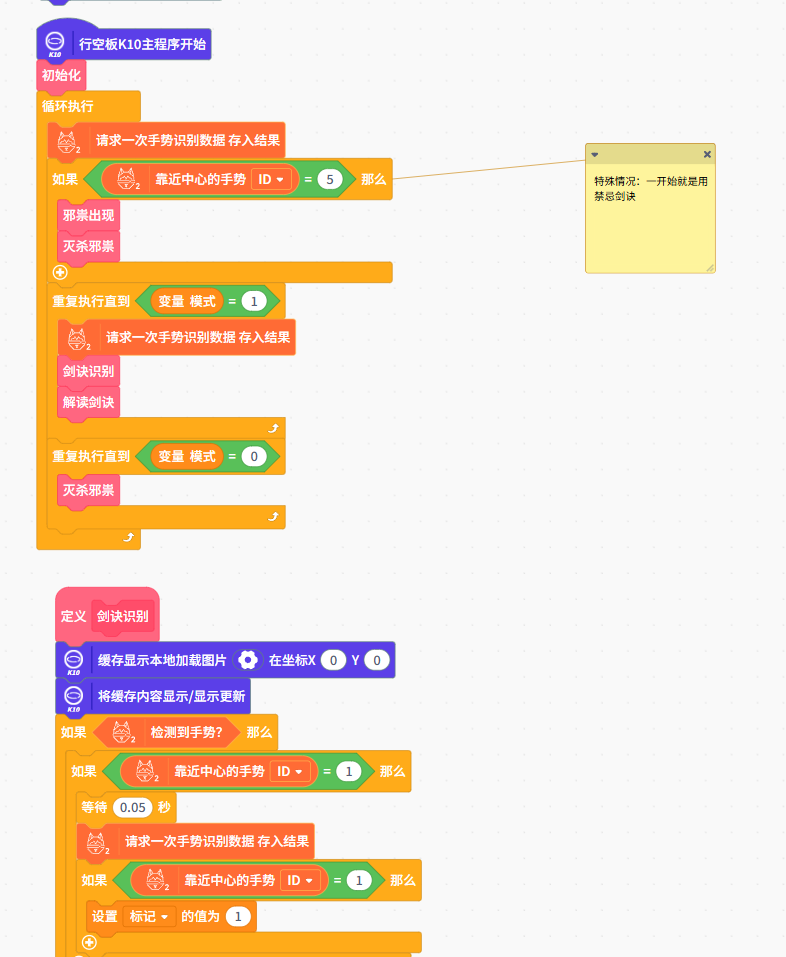

初始化


主循环


灭杀邪祟


代码
/*!
 * MindPlus
 * esp32s3bit
 *
 */
#include "asr.h"
#include "unihiker_k10.h"
#include <Microbit_Motor.h>
#include "arduino_image_cache.h"
#include "DFRobot_HuskylensV2.h"

// 动态变量
volatile float mind_n_BiaoJi, mind_n_MoShi, mind_n_ShiShen, mind_n_YuGui, mind_n_QingXin,
               mind_n_MieShaJinDu, mind_n_XieSuiZhuangTai;
// 函数声明
void DF_DuoJiChuShiHua();
void DF_DuoJiShiShenJue();
void DF_DuoJiShiMeiZiXin();
void DF_ChuShiHua();
void DF_DuoJiYuGuiJue();
void DF_DuoJiQingXinJue();
void DF_ShiMeiJingKong();
void DF_DuoJiXieSuiChuXian();
void DF_DuoJiChengGongMieSha();
void DF_XieSuiChuXian();
void DF_JianJueShiBie();
void DF_MieShaXieSui();
void DF_JieDuJianJue();
// 创建对象
Microbit_Motor motorbit;
UNIHIKER_K10   k10;
uint8_t        screen_dir=2;
ASR            asr;
HuskylensV2    huskylens;


// 主程序开始
void setup() {
	k10.begin();
	Serial.begin(9600);
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	asr.setAsrSpeed(2);
	asr.asrInit(CONTINUOUS, CN_MODE, 6000);
	while(asr._asrState == 0){delay(100);}
	Wire.begin();
  while (!huskylens.begin(Wire)) {
    delay(100);
  }
	DF_ChuShiHua();
}
void loop() {
	huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
	// 特殊情况：一开始就是用禁忌剑诀
	if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==5)) {
		DF_XieSuiChuXian();
		DF_MieShaXieSui();
	}
	while (!(mind_n_MoShi==1)) {
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		DF_JianJueShiBie();
		DF_JieDuJianJue();
	}
	while (!(mind_n_MoShi==0)) {
		DF_MieShaXieSui();
	}
}


// 自定义函数
void DF_DuoJiChuShiHua() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_DuoJiShiShenJue() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 90);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_DuoJiShiMeiZiXin() {
	motorbit.servo(S1, 90);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_ChuShiHua() {
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data1);
	k10.canvas->updateCanvas();
	Serial.println("标题画面载入完毕。");
	asr.addASRCommand(0+1, "kai shi xiu lian");
	while (!asr.isDetectCmdID(0+1)) {}
	DF_DuoJiChuShiHua();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data2);
	k10.canvas->canvasText("师兄，又来练习剑诀啦！", 40, 260, 0xFFCCCC, k10.canvas->eCNAndENFont16, 20, false);
	k10.canvas->updateCanvas();
	asr.speak("师兄，又来练习剑诀啦！");
	DF_DuoJiShiMeiZiXin();
	delay(3000);
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data3);
	k10.canvas->canvasText("待我准备一下！", 40, 260, 0xFFCCCC, k10.canvas->eCNAndENFont16, 20, false);
	k10.canvas->updateCanvas();
	asr.speak("待我准备一下！");
	Serial.println("初始化二哈2……");
	DF_DuoJiChuShiHua();
	huskylens.switchAlgorithm(ALGORITHM_HAND_RECOGNITION);
	Serial.println("二哈2初始化完毕，载入标题画面……");
	Serial.println("重置标记变量与模式变量……");
	mind_n_BiaoJi = 0;
	mind_n_MoShi = 0;
	Serial.println("标记变量与模式变量重置完毕。");
	Serial.println((String("当前标记值：") + String(mind_n_BiaoJi)));
	Serial.println((String("当前模式值：") + String(mind_n_MoShi)));
	delay(3000);
	DF_DuoJiShiMeiZiXin();
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data4);
	k10.canvas->canvasText("准备好啦！按下A键开始吧！", 40, 260, 0xFFCCCC, k10.canvas->eCNAndENFont16, 20, false);
	k10.canvas->updateCanvas();
	asr.speak("准备好啦！按下A键开始吧！");
	while (!(k10.buttonA->isPressed())) {}
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data5);
	k10.canvas->updateCanvas();
	asr.speak("请出剑诀！");
}
void DF_DuoJiYuGuiJue() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 90);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_DuoJiQingXinJue() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 90);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_ShiMeiJingKong() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 90);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 0);
}
void DF_DuoJiXieSuiChuXian() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 90);
	motorbit.servo(S7, 0);
}
void DF_DuoJiChengGongMieSha() {
	motorbit.servo(S1, 0);
	motorbit.servo(S2, 0);
	motorbit.servo(S3, 0);
	motorbit.servo(S4, 0);
	motorbit.servo(S5, 0);
	motorbit.servo(S6, 0);
	motorbit.servo(S7, 90);
}
void DF_XieSuiChuXian() {
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data6);
	DF_ShiMeiJingKong();
	k10.canvas->canvasText("师兄，这个剑诀不可以捏啊！", 65, 260, 0xFF6600, k10.canvas->eCNAndENFont16, 20, false);
	k10.canvas->updateCanvas();
	asr.speak("师兄，这个剑诀不可以捏啊！");
	delay(4000);
	mind_n_MoShi = 1;
	mind_n_ShiShen = 0;
	mind_n_YuGui = 0;
	mind_n_QingXin = 0;
	k10.canvas->canvasClear();
	DF_DuoJiXieSuiChuXian();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data7);
	k10.canvas->updateCanvas();
	asr.speak("不好，有妖祟作怪，速速出剑诀！");
	delay(3000);
	k10.canvas->updateCanvas();
	asr.speak("请按照如下顺序捏诀");
	delay(3000);
	k10.canvas->updateCanvas();
	asr.speak("御鬼、清心、弑神");
	delay(2000);
	k10.canvas->updateCanvas();
	asr.speak("速速灭杀了邪魔外道吧！");
	delay(1000);
}
void DF_JianJueShiBie() {
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data8);
	k10.canvas->updateCanvas();
	if ((huskylens.available(ALGORITHM_HAND_RECOGNITION))) {
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==1)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==1)) {
				mind_n_BiaoJi = 1;
			}
		}
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==2)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==2)) {
				mind_n_BiaoJi = 2;
			}
		}
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==3)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==3)) {
				mind_n_BiaoJi = 3;
			}
		}
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==5)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==5)) {
				mind_n_BiaoJi = 5;
			}
		}
	}
}
void DF_MieShaXieSui() {
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,319,image_data9);
	k10.canvas->updateCanvas();
	while (!(mind_n_YuGui==1)) {
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		// 不直接使用变量【标记】是因为，需要考虑一开始就是用禁忌剑诀的情况，那个时候还没有获取到标记变量
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==2)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==2)) {
				DF_DuoJiYuGuiJue();
				motorbit.servo(S6, 90);
				mind_n_YuGui = 1;
			}
		}
	}
	asr.speak("御鬼");
	delay(1000);
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data10);
	k10.canvas->updateCanvas();
	while (!(mind_n_QingXin==1)) {
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==3)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==3)) {
				DF_DuoJiQingXinJue();
				motorbit.servo(S6, 90);
				mind_n_QingXin = 1;
			}
		}
	}
	asr.speak("清心");
	delay(1000);
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data11);
	k10.canvas->updateCanvas();
	while (!(mind_n_ShiShen==1)) {
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==1)) {
			delay(50);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==1)) {
				DF_DuoJiShiShenJue();
				motorbit.servo(S6, 90);
				mind_n_ShiShen = 1;
			}
		}
	}
	asr.speak("弑神");
	delay(1000);
	asr.speak("速速使用灭杀剑诀！");
	while (!((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==4)) {
		k10.canvas->canvasDrawBitmap(0,0,240,320,image_data12);
		k10.canvas->updateCanvas();
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		delay(50);
	}
	k10.canvas->canvasClear();
	k10.setScreenBackground(0xFF0000);
	k10.canvas->canvasText("灭杀此獠，急急如律令！", 60, 120, 0xFFFF00, k10.canvas->eCNAndENFont16, 20, true);
	k10.canvas->updateCanvas();
	mind_n_MieShaJinDu = 0;
	mind_n_XieSuiZhuangTai = 90;
	while (!(((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==4) && (mind_n_MieShaJinDu==5))) {
		huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
		if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==4)) {
			delay(500);
			huskylens.getResult(ALGORITHM_HAND_RECOGNITION);
			if (((RET_ITEM_NUM(huskylens.getCachedCenterResult(ALGORITHM_HAND_RECOGNITION), Result, ID))==4)) {
				mind_n_MieShaJinDu += 1;
				mind_n_XieSuiZhuangTai -= 15;
				motorbit.servo(S6, mind_n_XieSuiZhuangTai);
				delay(100);
			}
			else {
				motorbit.servo(S5, 90);
				motorbit.servo(S6, 90);
				mind_n_MieShaJinDu = 0;
				mind_n_XieSuiZhuangTai = 90;
				asr.speak("师兄，坚持住！");
				delay(1000);
			}
		}
		DF_DuoJiChuShiHua();
	}
	mind_n_MoShi = 0;
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data13);
	DF_DuoJiChengGongMieSha();
	k10.canvas->updateCanvas();
	asr.speak("邪魔外道已经灭杀，师兄可以继续练习了！");
	delay(2000);
	DF_DuoJiChuShiHua();
	k10.setScreenBackground(0xFFFFFF);
	k10.canvas->canvasClear();
	k10.canvas->canvasDrawBitmap(0,0,240,320,image_data14);
	k10.canvas->updateCanvas();
	asr.speak("请出剑诀！");
}
void DF_JieDuJianJue() {
	if ((mind_n_BiaoJi==1)) {
		DF_DuoJiShiShenJue();
		k10.canvas->canvasText("弑神诀，威力强大！", 65, 260, 0xFF6600, k10.canvas->eCNAndENFont16, 20, false);
		k10.canvas->updateCanvas();
		asr.speak("弑神诀，威力强大！");
		delay(1500);
	}
	if ((mind_n_BiaoJi==2)) {
		DF_DuoJiYuGuiJue();
		k10.canvas->canvasText("御鬼诀，小心使用！", 65, 260, 0xFF6600, k10.canvas->eCNAndENFont16, 20, false);
		k10.canvas->updateCanvas();
		asr.speak("御鬼诀，小心使用！");
		delay(1500);
	}
	if ((mind_n_BiaoJi==3)) {
		DF_DuoJiQingXinJue();
		k10.canvas->canvasText("清心诀，回复精力！", 65, 260, 0xFF6600, k10.canvas->eCNAndENFont16, 20, false);
		k10.canvas->updateCanvas();
		asr.speak("清心诀，回复精力！");
		delay(1500);
	}
	if ((mind_n_BiaoJi==5)) {
		mind_n_MoShi = 1;
		DF_XieSuiChuXian();
		DF_MieShaXieSui();
	}
	mind_n_BiaoJi = 0;
	delay(1000);
}

写在最后：

程序虽然不难，但是中间弯弯绕绕的，改了好多次，还是有很多地方不尽人意，想修改好然后加上3D打印，做个2.0版本的，看什么时候有机会吧……

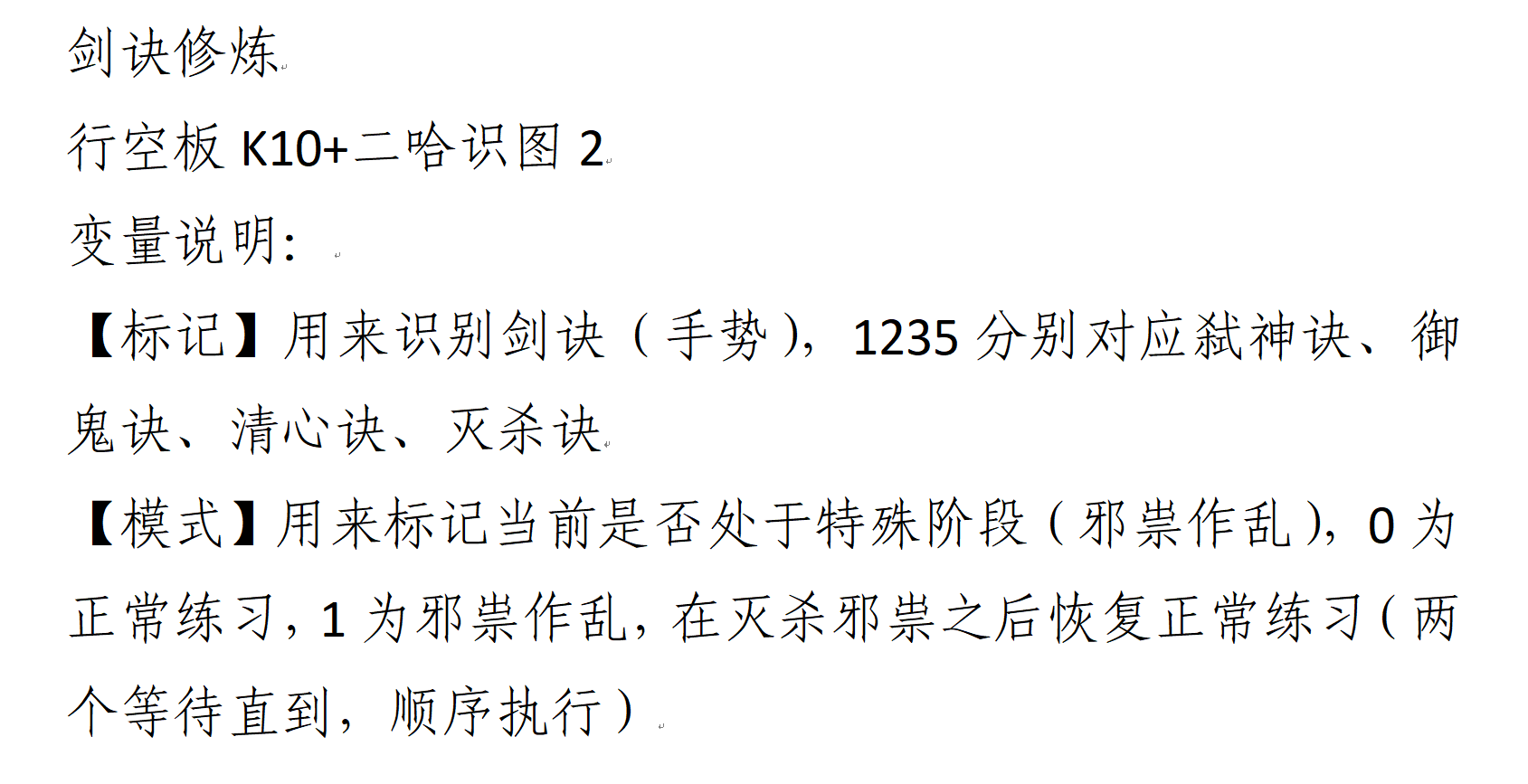

上图是我在创作过程中的小笔记，仅供参考

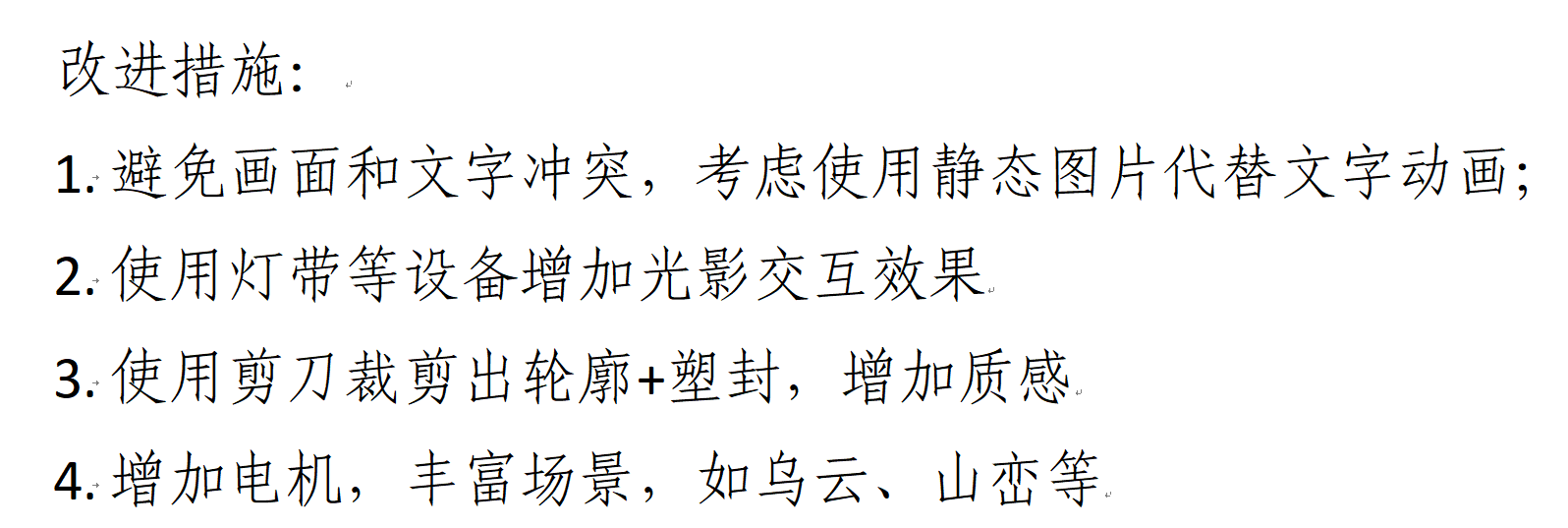

关于改进措施，我也想了好多


以上就是“剑诀修炼模拟器”的全部内容啦！欢迎讨论！！

附件

Makelog作者原创文章，未经授权禁止转载。
#行空板K10#二哈识图HUSKYLENS#人工智能#艺术

评论

user-avatar
小含糊online
小含糊online2019.06.06
icon
创造力4080
icon
项目文章24

中二中年……

icon 他的勋章
  • 探索者勋章icon
  • Python硬件入门icon
  • 编程萌新icon
  • 行空板icon
  • Arduinoicon
展开更多

你可能感兴趣的
