【Arduino 动手做】通过手势识别技术，实现残障人士对智能家居的无接触式便捷控制 简单

头像 驴友花雕 2025.07.25 16 0

使用基于手势的创新技术，使残疾人能够对智能家居设备进行非接触式控制。

智能家居辅助系统旨在通过赋予身体残疾者独立控制家庭设备的能力来增强他们的能力。这个项目的灵感来自于我对残疾人生活的研究。我发现的一个共同主题是减少日常任务对他人的依赖的强烈愿望。
在我的研究过程中，我看到了一段视频，视频中一名截瘫男子失去了手指。在视频中，他演示了如何在病情不佳的情况下使用手机。这引起了我的共鸣，并促使我开发一种设备，可以让他和其他处于类似情况的人更轻松地使用手机。

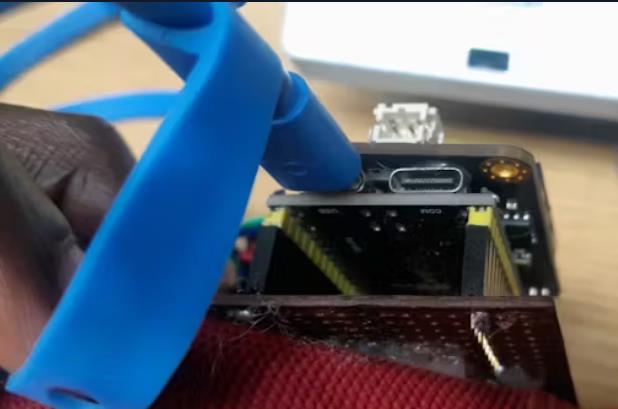

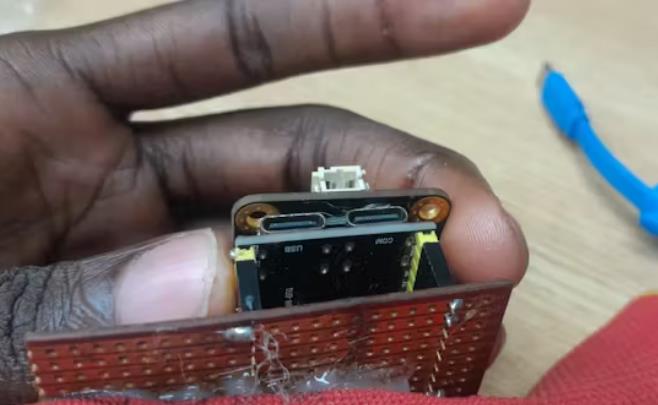

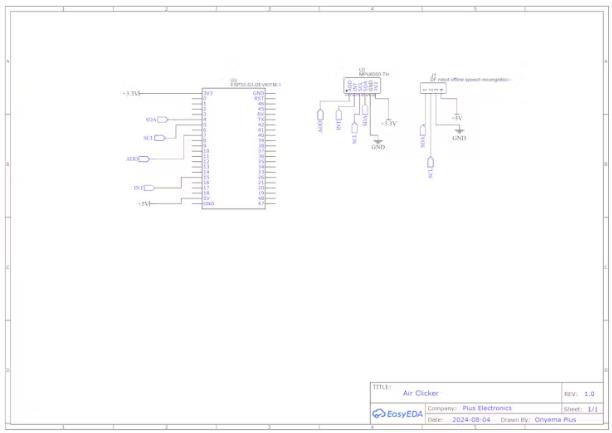

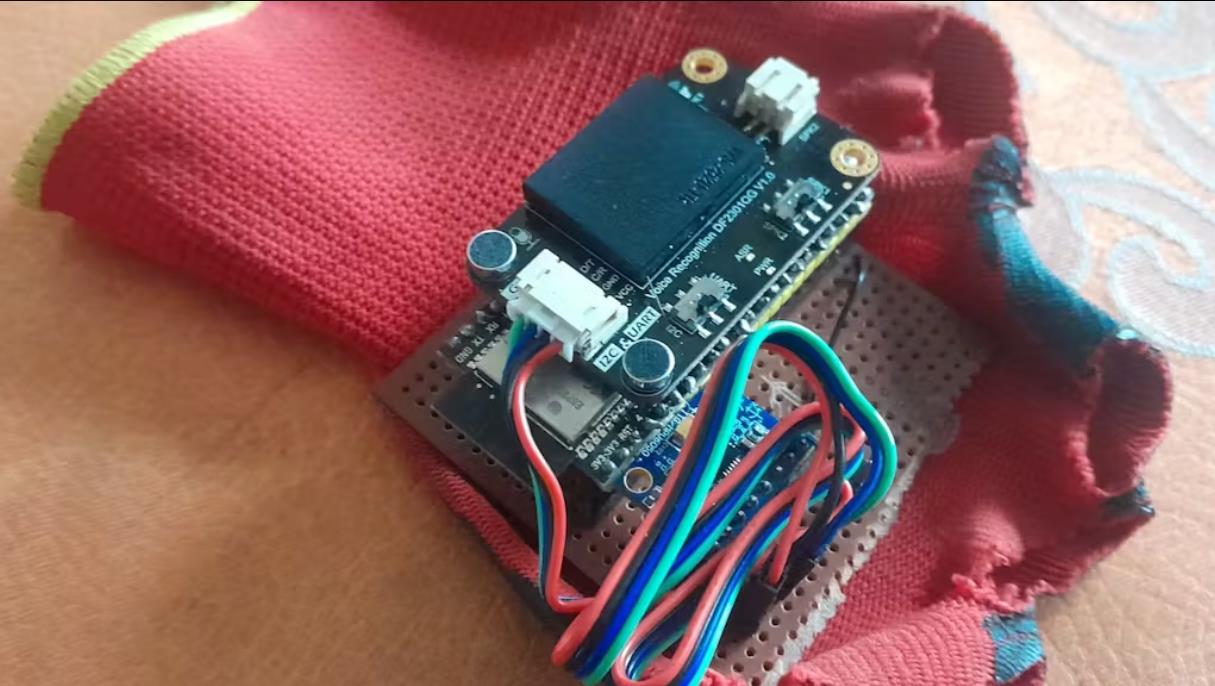

结果是 Air Clicker——一款像手套一样贴合的可穿戴鼠标。鼠标指针沿手部方向移动，单击是通过语音命令实现的。该设备可以通过USB连接到PC、手机或平板电脑，从而扩展其跨多个平台的可用性。
为了解决依赖性问题，Air Clicker 简化了与手机和 PC 的交互，从而促进了通过这些接口控制智能家居设备。这项创新可以帮助残疾人独立执行任务，例如查看门口的人、解锁门或打开和关闭电器。

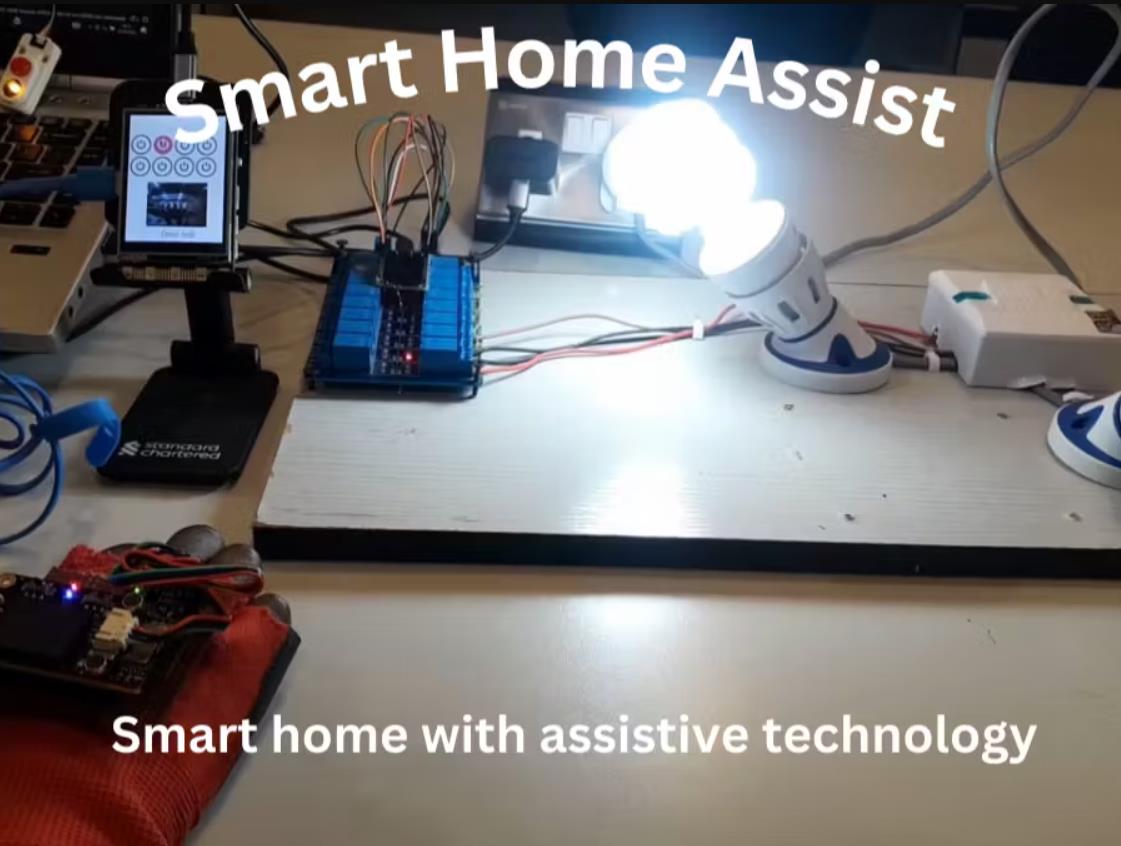

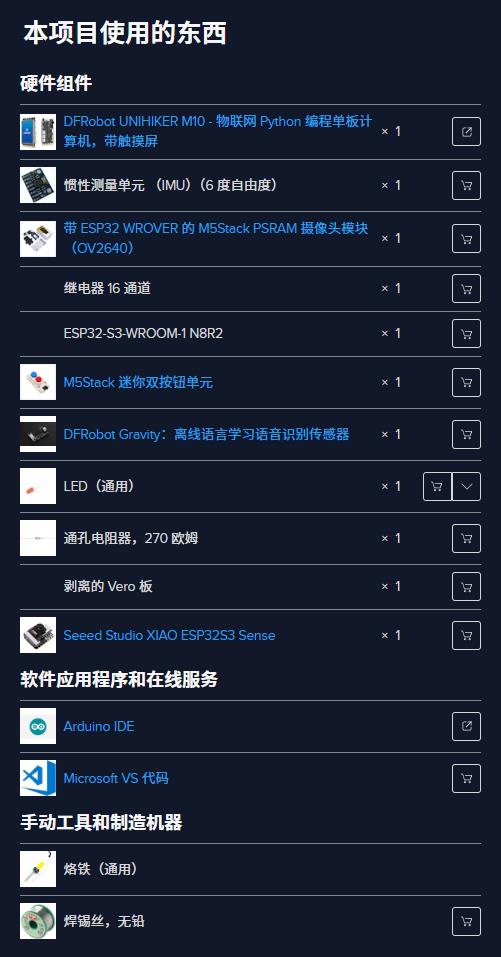

基于这个概念，我扩展了该项目，包括一个完整的智能家居系统，恰如其分地命名为 Smart Home Assist。除空气答题器外，该系统还包括三个主要组件：

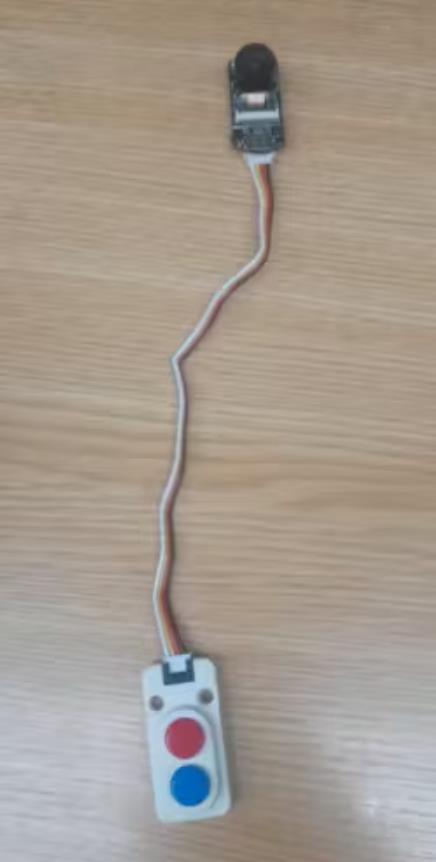

门摄像头：一种门铃摄像头，可在按下按钮时捕获图像并将其发送给房主。

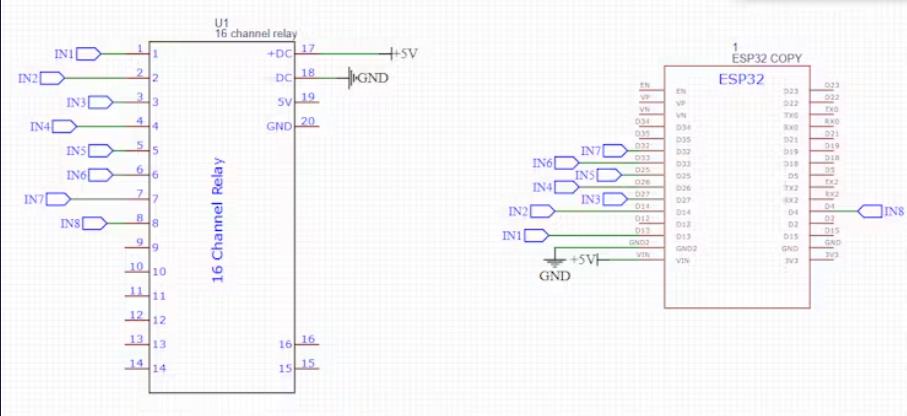

继电器控制器：管理各种家用电器和电子产品（例如灯泡和风扇）的设备。

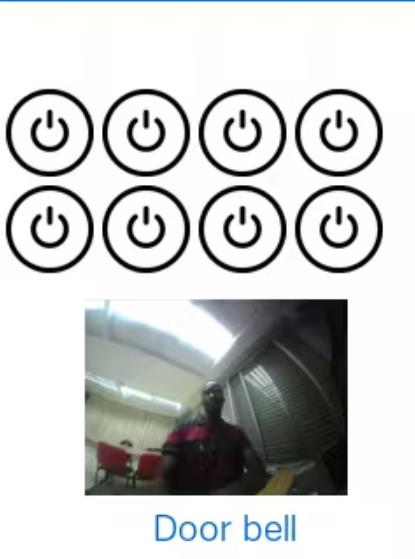

UniHiker 仪表板：智能家居系统的用户界面，允许用户控制设备并查看来自摄像头的图像。

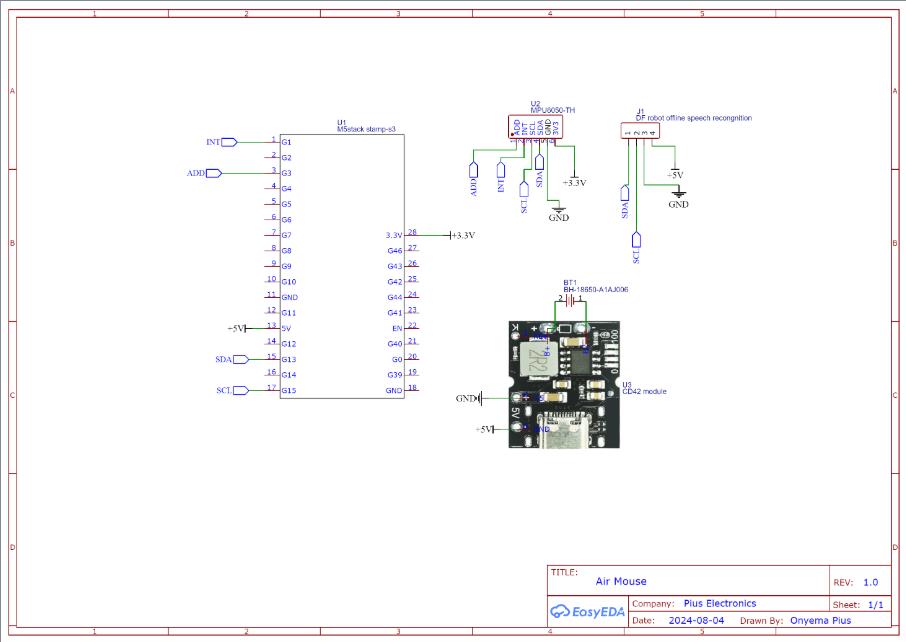

1、空中鼠标项目代码



代码
#include <MPU6050_light.h>
MPU6050 mpu(Wire);
unsigned long timer = 0;


#include "USB.h"
#include "USBHIDMouse.h"
USBHIDMouse Mouse;

#include "DFRobot_DF2301Q.h"

//I2C communication
DFRobot_DF2301Q_I2C DF2301Q;

#include <Wire.h>
#define SDA 4
#define SCL 5

#define AD0 7
#define INT 15
#define LED 48

#define DEBUG 1  // change to one to enable debugging

#if DEBUG == 1
#define debug(x) Serial.print(x)
#define debugln(x) Serial.println(x)
#define debugf(x, y) Serial.printf(x, y)

#else
#define debug(x)
#define debugln(x)
#define debugf(x, y)
#endif

void setup() {

  Serial.begin(115200);
  pinMode(INT, INPUT);  //int goes high when activity is detected(wakeup?)
  pinMode(AD0, OUTPUT);

  digitalWrite(AD0, LOW);  //sets I2C adress
  delay(50);

  Wire.begin(SDA, SCL);
  Mouse.begin();
  USB.begin();

  Serial.println("Starting mouse work!");

  //! Init voice recongintion module
  while (!(DF2301Q.begin())) {
    Serial.println("Communication with device failed, please check connection");
    delay(3000);
  }
  delay(5000);  //<! give enough time for voice recognition module to boot
  Serial.println("Voice recognition begin ok!");

  Mouse.begin();
  USB.begin();

  /**
   * @brief Set mute mode
   * @param mode - Mute mode; set value 1: mute, 0: unmute
   */
  DF2301Q.setMuteMode(0);

  /**
   * @brief Set wake-up duration
   * @param wakeTime - Wake-up duration (0-255)
   */
  DF2301Q.setWakeTime(15);

  byte status = mpu.begin();
  debug(F("MPU6050 status: "));
  debugln(status);
  while (status != 0) {}                                   // stop everything if could not connect to MPU6050
  neopixelWrite(48, 255, 0, 0);                            // Red, mouse in not ready stay still
  debugln(F("Calculating offsets, do not move MPU6050"));  // use rgb as indicator


  delay(2000);
  // mpu.upsideDownMounting = true; // uncomment this line if the MPU6050 is mounted upside-down
  mpu.calcOffsets();  // gyro and accelero
  debugln("Done!\n");
  neopixelWrite(LED, 0, 255, 0);  // Green, meaning mouse is ready
}


void loop() {

  mpu.update();
  int x = map(mpu.getAngleX(), -90, 90, 10, -10);
  int y = map(mpu.getAngleY(), -90, 90, -10, 10);
  int z = map(mpu.getAngleZ(), -90, 90, -10, 10);

  Mouse.move(x, y);


  if ((millis() - timer) > 10) {  // print data every 10ms
    debug("X : ");
    debug(mpu.getAngleX());
    debug(x);
    debug("\tY : ");
    debug(mpu.getAngleY());
    debug(y);
    debug("\tZ : ");
    debugln(mpu.getAngleZ());
    debug(z);

    timer = millis();
  }
  uint8_t CMDID = 0;
  CMDID = DF2301Q.getCMDID();
  if (0 != CMDID) {
    debug("CMDID = ");
    Serial.println(CMDID);
  }
  if (6 == CMDID) {
    neopixelWrite(LED, 255, 255, 0);  //purple
  }
  switch (CMDID) {
    case 5:
      Mouse.click();
      debugln("left click");
      neopixelWrite(LED, 0, 0, 0);
      neopixelWrite(LED, 255, 255, 0);  //purple
      break;

    case 6:
      Mouse.click(MOUSE_RIGHT);
      debugln("right click");
      neopixelWrite(LED, 0, 0, 0);
      neopixelWrite(LED, 0, 255, 255);  // yellow
      break;

    case 7:
      Mouse.click();
      delay(500);
      Mouse.click();
      debugln(" double left click");
      neopixelWrite(LED, 0, 0, 0);
      neopixelWrite(LED, 255, 255, 0);  //purple
      break;

    case 8:
      {
        //left click hold
        if (!Mouse.isPressed(MOUSE_LEFT)) {
          Mouse.press(MOUSE_LEFT);
          debugln("left click hold");
        }
        break;
      }

    case 9:
      {
        if (Mouse.isPressed(MOUSE_LEFT)) {
          Mouse.release(MOUSE_LEFT);
          debugln("mouse released");
        }
        break;
      }
    default:
      debugln("command not mapped to any function");
      break;
  }
}

2、视频门铃项目代码

调试

如果 LED 不亮，则表示与服务器的连接存在问题。它可能是以下之一

  • 相机与服务器不在同一个 WiFi 网络上
  • 服务器未运行
  • 用于创建网络的路由器未打开或不可用
  • 相机在连接到路由器时遇到问题

如果 LED 亮起并且图像未发送给独行者，则相机存在问题。问题可能是以下任何一种

  • 您使用的相机型号与我不同
  • 如果您与我使用相同的相机，您可能在板选项中选择了错误的板。板应该 ve M5unitcam

告诉用户记下 unihiker IP 地址 为 Unihiker 智能家居的所有组件提供单独的自述文件



代码
/* Author: Pius Onyema Ndukwu

code adapted from Rui santos tutorial on RandomNerd Tutorials

  Rui Santos
  Complete project details at:
  https://RandomNerdTutorials.com/esp32-cam-http-post-php-arduino/
  https://RandomNerdTutorials.com/esp32-cam-post-image-photo-server/

  Permission is hereby granted, free of charge, to any person obtaining a copy
  of this software and associated documentation files.

  The above copyright notice and this permission notice shall be included in all
  copies or substantial portions of the Software.
  */
#include <Arduino.h>
#include <WiFi.h>
#include "soc/soc.h"
#include "soc/rtc_cntl_reg.h"
#include "esp_camera.h"
#include <WiFiManager.h>  // https://github.com/tzapu/WiFiManager

bool connectedFlag = true;

String serverName = "192.168.0.187";  // REPLACE with flask server IP ADDRESS running on unihiker


String serverPath = "/upload";  // The default serverPath

const int serverPort = 5001; // unihiker flask server port

WiFiClient client;

// board: m5unitcam
// CAMERA_MODEL_M5STACK_V2_PSRAM
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 22
#define SIOC_GPIO_NUM 23

#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 32
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21



#define BELL_BUTTON 4
#define LED 13


void setup() {
  WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);
  Serial.begin(115200);

  WiFi.mode(WIFI_STA);

  WiFiManager wm;

  bool res;
  // res = wm.autoConnect(); // auto generated AP name from chipid

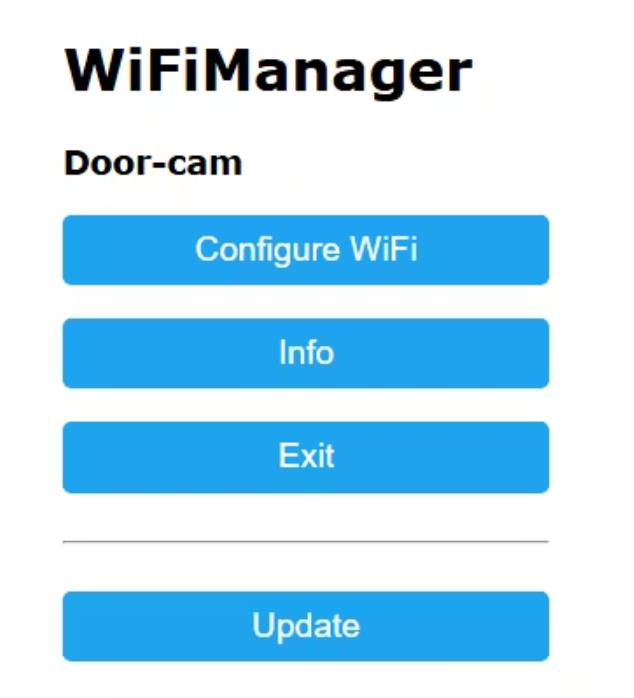

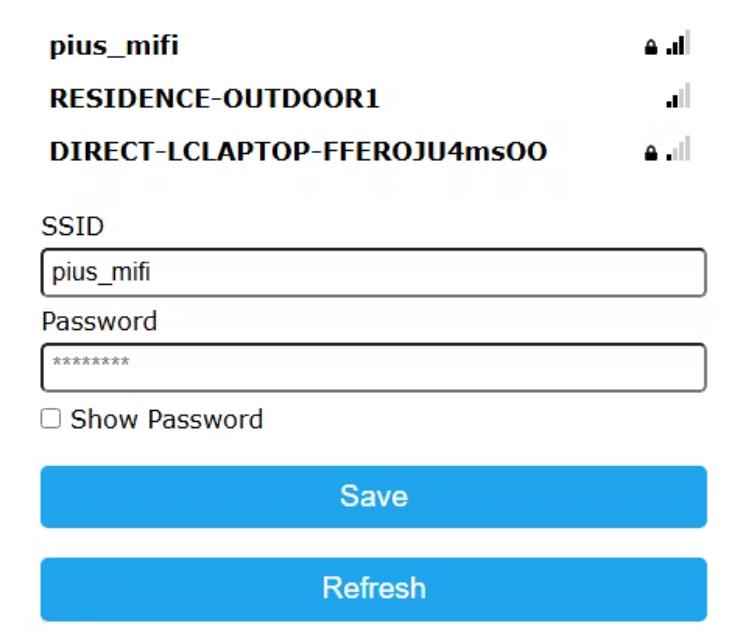

  res = wm.autoConnect("Door-cam");  // anonymous ap
  //res = wm.autoConnect("AutoConnectAP","password"); // password protected ap


  camera_config_t config;
  config.grab_mode = CAMERA_GRAB_LATEST; // get the latest image from the frame buffer
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sscb_sda = SIOD_GPIO_NUM;
  config.pin_sscb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;

  // init with high specs to pre-allocate larger buffers
  if (psramFound()) {
    config.frame_size = FRAMESIZE_SVGA;
    config.jpeg_quality = 10;  //0-63 lower number means higher quality
    config.fb_count = 2;
  } else {
    config.frame_size = FRAMESIZE_CIF;
    config.jpeg_quality = 12;  //0-63 lower number means higher quality
    config.fb_count = 1;
  }

  // camera init
  esp_err_t err = esp_camera_init(&config);
  if (err != ESP_OK) {
    Serial.printf("Camera init failed with error 0x%x", err);
    delay(1000);
    ESP.restart();
  }
  sensor_t *s = esp_camera_sensor_get();
  s->set_vflip(s, 1);  // flip it back
                       // sendPhoto();
  pinMode(BELL_BUTTON, INPUT_PULLUP);
  pinMode(LED,OUTPUT);
  digitalWrite(LED,1);// turn off LED, to indicate camera is not ready. LED is active low
  Serial.println("connecting to Server");
}

void loop() {



  while (!client.connect(serverName.c_str(), serverPort)) {
    Serial.print(".");
    digitalWrite(LED,1);// turn off LED, to indicate bot connected to server. LED is active low
  }
  if (connectedFlag) {
    //print connection successful once
    Serial.println("Connection successful!");
    digitalWrite(LED,0);// turn on LED, to indicate successful connection to server. LED is active low
    connectedFlag = false;
  }

  String head = "--doorCam\r\nContent-Disposition: form-data; name=\"file\"; filename=\"door-cam.jpg\"\r\nContent-Type: image/jpeg\r\n\r\n";
  String tail = "\r\n--doorCam--\r\n";

    if (digitalRead(BELL_BUTTON) == 0) {
      String getAll;
      String getBody;
      camera_fb_t *fb = NULL;
      fb = esp_camera_fb_get();


      Serial.println("Initializing camera.");
      while (!fb) {
        Serial.print(".");

      }
      Serial.println("Camera is ready");
      digitalWrite(LED,0);// turn on LED, to indicate camera is ready. LED is active low
      uint32_t imageLen = fb->len;
      uint32_t extraLen = head.length() + tail.length();
      uint32_t totalLen = imageLen + extraLen;

      client.println("POST " + serverPath + " HTTP/1.1");
      client.println("Host: " + serverName);
      client.println("Content-Length: " + String(totalLen));
      client.println("Content-Type: multipart/form-data; boundary=doorCam");
      client.println();
      client.print(head);

      uint8_t *fbBuf = fb->buf;
      size_t fbLen = fb->len;
      for (size_t n = 0; n < fbLen; n = n + 1024) {
        if (n + 1024 < fbLen) {
          client.write(fbBuf, 1024);
          fbBuf += 1024;
        } else if (fbLen % 1024 > 0) {
          size_t remainder = fbLen % 1024;
          client.write(fbBuf, remainder);
        }
      }
      client.print(tail);

      esp_camera_fb_return(fb);


      int timoutTimer = 10000;
      long startTimer = millis();
      boolean state = false;

      while ((startTimer + timoutTimer) > millis()) {
        Serial.print(".");
        delay(100);
        while (client.available()) {
          char c = client.read();
          if (c == '\n') {
            if (getAll.length() == 0) { state = true; }
            getAll = "";
          } else if (c != '\r') {
            getAll += String(c);
          }
          if (state == true) { getBody += String(c); }
          startTimer = millis();
        }
        if (getBody.length() > 0) { break; }
      }
      Serial.println();
      client.stop();
      Serial.println(getBody);
    }

}

3、智能家居控制中心项目代码



代码
/*
@brief
The code receives http request from a server containing a message.
based on the content of the message it turns on certain GPIO's
connected to relays.
*/
#include <WiFi.h>
#include <NetworkClient.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <WiFiManager.h>  // https://github.com/tzapu/WiFiManager



WebServer server(80);
const int led = 13;
const int outputs[] = { 13, 14, 27, 26, 5, 33, 32, 4 };


void handleNotFound() {
  digitalWrite(led, 1);
  String message = "File Not Found\n\n";
  message += "URI: ";
  message += server.uri();
  message += "\nMethod: ";
  message += (server.method() == HTTP_GET) ? "GET" : "POST";
  message += "\nArguments: ";
  message += server.args();
  message += "\n";
  for (uint8_t i = 0; i < server.args(); i++) {
    message += " " + server.argName(i) + ": " + server.arg(i) + "\n";
  }
  server.send(404, "text/plain", message);

}

void setup(void) {

  for (int i = 0; i < 8; i++) {
    pinMode(outputs[i], OUTPUT);
    digitalWrite(outputs[i],1);
  }

  Serial.begin(115200);

  WiFi.mode(WIFI_STA);

  WiFiManager wm;

  bool res;
  // res = wm.autoConnect(); // auto generated AP name from chipid
  res = wm.autoConnect("Relay Controller");  // anonymous ap
                                        //res = wm.autoConnect("AutoConnectAP","password"); // password protected ap

  if (!res) {
    Serial.println("Failed to connect");
    // ESP.restart();
  } else {
    //if you get here you have connected to the WiFi
    Serial.println("connected...yeey :)");
  }



  server.on("/pin", []() {
    String response = server.arg("plain");
    //Serial.println(response);
    Serial.print("index: ");
    Serial.println(response[0]);
    Serial.print("state: ");
    Serial.println(response[1]);

    int pinIndex= response[0] - '0';
    int pinState = response[1] - '0';
    digitalWrite(outputs[pinIndex],!pinState); //<! relay is active low
    server.send(200, "text/plain", "received with thanks");
  });

  server.onNotFound(handleNotFound);

  server.begin();
  Serial.println("HTTP server started");
}

void loop(void) {

  server.handleClient();
  delay(2);  //allow the cpu to switch to other tasks
}

4、UniHiker 仪表板：智能家居系统的用户界面，允许用户控制设备并查看来自摄像头的图像。



代码
from flask import Flask, request, redirect, url_for, send_from_directory
import os
from unihiker import GUI   # Import the package
from dataclasses import dataclass
import time
from pinpong.board import Board, Pin, Tone  # Import the Board, Pin, and Tone modules from the pinpong.board package
import requests

debug = True # allows me to turn of some print functions
Board().begin("UNIHIKER")  # Initialize the board, choose the board type and port number (auto-detection if not specified)
gui = GUI()  # Instantiate the GUI class

#esp32 node url
node_url= "http://192.168.0.134/pin"



@dataclass
class button:
    name:str     #button name
    state: bool  #button state
    image: gui   #button image
    cor: list    #coordinate of the button



def switch_clicked(button):
    gui.remove(button.image)

    if button.state:
        button.image= gui.draw_image(x=button.cor[0], y=button.cor[1], w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button))

    else:
        button.image= gui.draw_image(x=button.cor[0], y=button.cor[1], w=50, h=50, image='/root/my_codes/smart_home/images/power-button-on.png', onclick=lambda: switch_clicked(button))

    button.state=not button.state
    data = button.name+ (str(1) if button.state else str(0))

    response = requests.post(node_url, data)


    if debug:
        print(response.status_code)
        print(response.text)
        print(button.name,button.state)




tone = Tone(Pin(Pin.P26))  # Create a Tone object with Pin.P26 for analog output
tone.freq(200)  # Set the frequency to 200 for the tone playback

# button are named from 0-7
button1 = button(name="0",state=0,image=gui.draw_image(x=5, y=50, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button1)),cor=[5,50])
button2 = button(name="1", state=0, image=gui.draw_image(x=60, y=50, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button2)),cor=[60,50])
button3 = button(name="2", state=0, image=gui.draw_image(x=115, y=50, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button3)),cor=[115,50])
button4 = button(name="3", state=0, image=gui.draw_image(x=170, y=50, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button4)),cor=[170,50])
button5 = button(name="4", state=0, image=gui.draw_image(x=5, y=105, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button5)),cor=[5,105])
button6 = button(name="5", state=0, image=gui.draw_image(x=60, y=105, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button6)),cor=[60,105])
button7 = button(name="6", state=0, image=gui.draw_image(x=115, y=105, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button7)),cor=[115,105])
button8 = button(name="7", state=0, image=gui.draw_image(x=170, y=105, w=50, h=50, image='/root/my_codes/smart_home/images/power-button-off.png', onclick=lambda: switch_clicked(button8)),cor=[170,105])

#image of person at doorbell
door_bell= gui.draw_image(x=30, y=170, w=180, h=180, image='/root/my_codes/smart_home/images/person.jpg')
door_cam_text =gui.draw_text(text="Door bell",origin="center",x=130,y=300,color="#0066CC")

app = Flask(__name__)

# Define the folder to store uploaded files
UPLOAD_FOLDER = 'uploads'
if not os.path.exists(UPLOAD_FOLDER):
    os.makedirs(UPLOAD_FOLDER)

app.config['UPLOAD_FOLDER'] = UPLOAD_FOLDER
app.config['MAX_CONTENT_LENGTH'] = 16 * 1024 * 1024  # Max upload size is 16MB

@app.route('/')
def index():
    return '''
    <!doctype html>
    <title>Upload File</title>
    <h1>Upload a file</h1>
    <form action="/upload" method=post enctype=multipart/form-data>
      <input type=file name=file>
      <input type=submit value=Upload>
    </form>
    '''

@app.route('/upload', methods=['POST'])
def upload_file():
    global door_bell
    if 'file' not in request.files:
        return 'No file part', 400

    file = request.files['file']
    if file.filename == '':
        return 'No selected file', 400

    if file:
        filename = file.filename
        filepath = os.path.join(app.config['UPLOAD_FOLDER'], filename)
        gui.remove(door_bell)
        file.save(filepath)
        door_bell= gui.draw_image(x=50, y=170, w=150, h=150, image=filepath)
        tone.on()  # Turn on the tone output
        time.sleep(1.5)  # Delay for 1.5 seconds
        tone.off()  # Turn off the tone output
        file.close()
        os.remove(filepath)
        return f'File uploaded successfully: {filename}', 200

@app.route('/uploads/<filename>')
def uploaded_file(filename):
    return send_from_directory(app.config['UPLOAD_FOLDER'], filename)

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5001, debug=True)

【Arduino 动手做】通过手势识别技术，实现残障人士对智能家居的无接触式便捷控制
项目链接：https://www.hackster.io/pius4109/smart-assist-home-smart-home-for-disable-people-e31e34
项目作者：皮乌斯·奥涅马·恩杜库

项目视频 ：
https://www.youtube.com/watch?v=-BtSs9keBJQ
https://www.youtube.com/watch?v=kl-4lKPXUrc
项目代码：https://github.com/Pius171/Unihiker-Smart-Home




Makelog作者原创文章，未经授权禁止转载。
#行空板M10#物联网#智能家居无接触便捷控制#通过手势识别技术#Arduino 动手做

评论

user-avatar
驴友花雕
驴友花雕2019.05.06
icon
创造力69670
icon
项目文章1212

爱好中国极地探险，二次徒步穿越雅鲁藏布江大峡谷核心无人区域，成功穿越了中国三大沙漠、四大无人区及三江源等中国境内最困难的地方。攀登三座八千米级雪山，组织驼峰搜寻队二次深入高黎贡山核心无人区搜寻驼峰航线坠机，骑行美国66号公路徒步北极等。完成十余项极地摄影专题，累计拍摄相关照片近十万张，在重庆科技馆举办过《花雕中国极地摄影展》。中国探险协会理事，入选“中国国家旅游首席旅行家”、《中国十大徒步人物》和《中国当代徐霞客》。

icon 他的勋章
    展开更多

    你可能感兴趣的
