【FireBeetle 2 ESP32-C5】基于arduino的室内气压温度计- Makelog(造物记)

1. 我的硬件

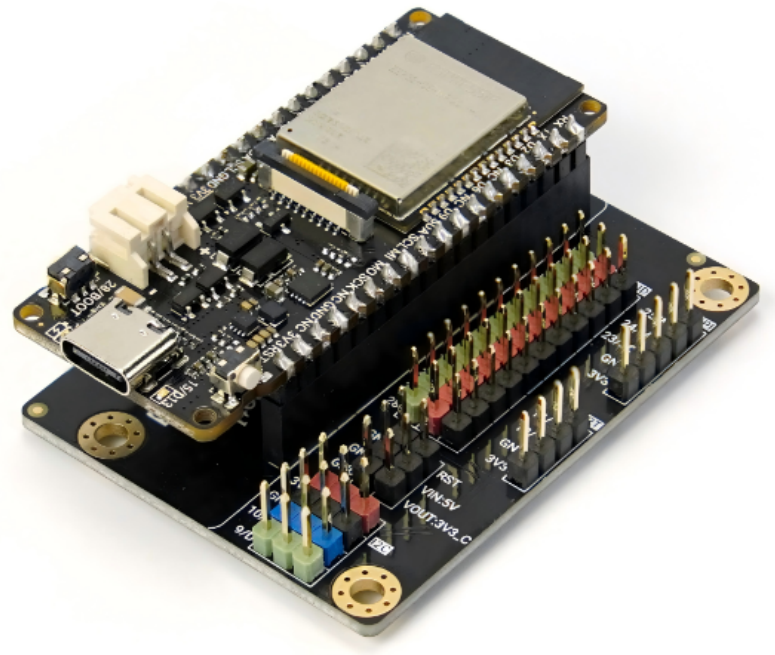

FireBeetle 2 ESP32-C5如下图所示：

ESP32-C5

1.1. 相关资源介绍

处理器：RISC-V单核处理器

时钟频率：240 MHz

内存：384 KB

电子模块： 320 KB

闪存：4 MB

LP SRAM：16 KB

数字 I/O x18

带 6 通道的 LED PWM 控制器

SPI x1

UART x3 （LP UART x1）

I2C x2 （LP I2C x1）

I2S x1

红外收发器：5个发射通道，5个接收通道

1 个 12 位 SAR ADC，带 7 个通道

DMA 控制器，具有 3 个接收通道和 3 个发射通道

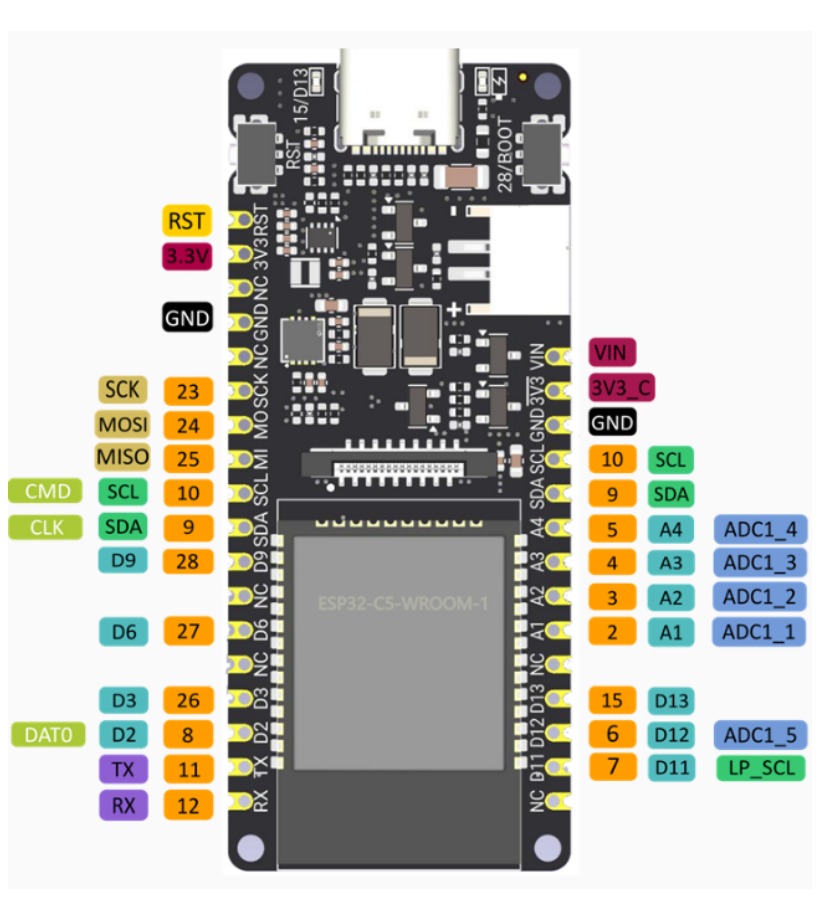

1.2. 接口

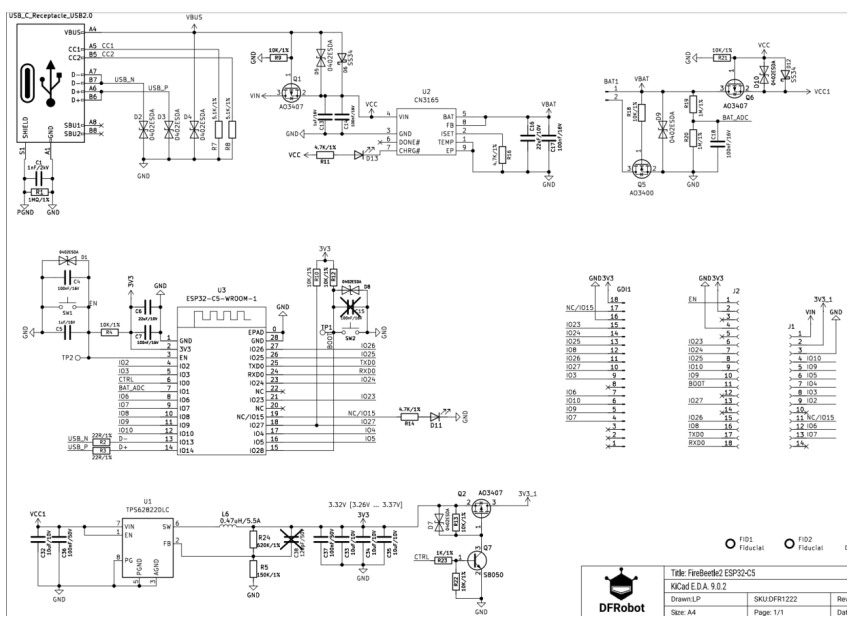

1.3. 原理图

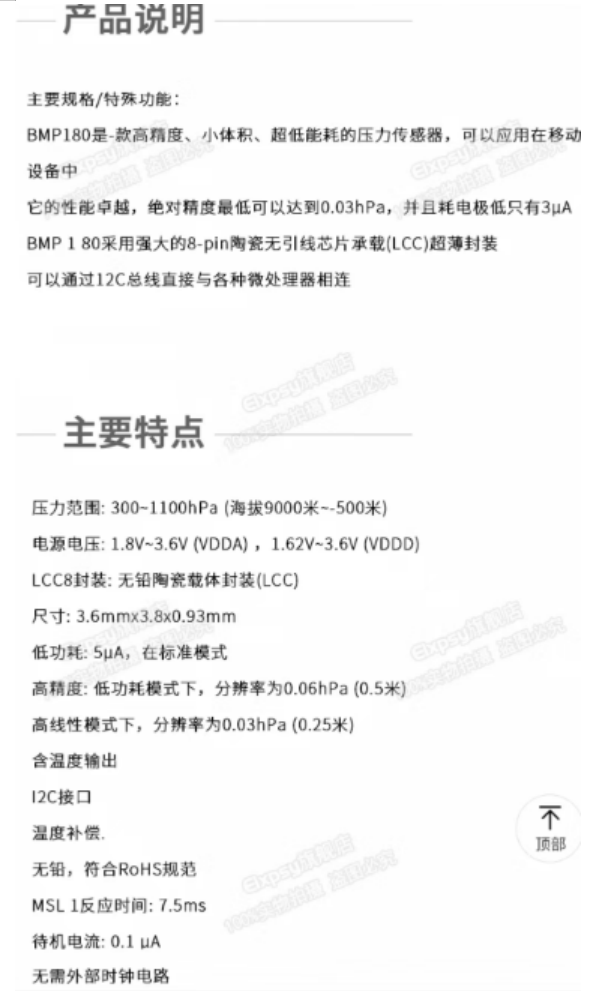

1.4. BMP180传感器模块

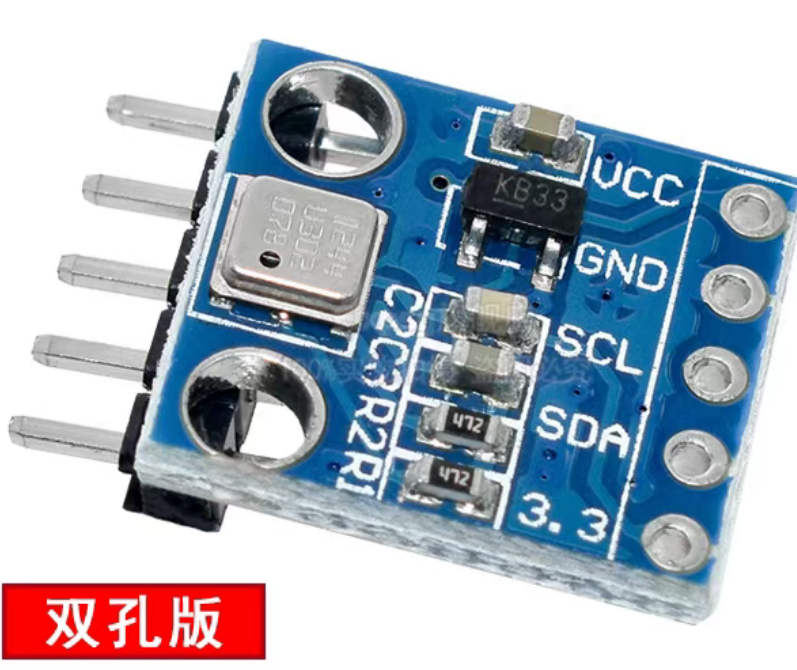

需要个人采购哦，可以从淘宝购买。

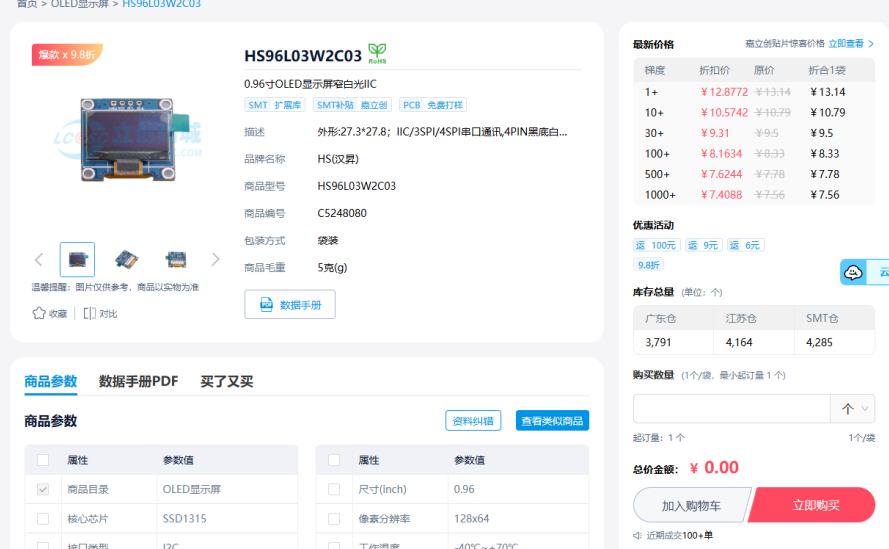

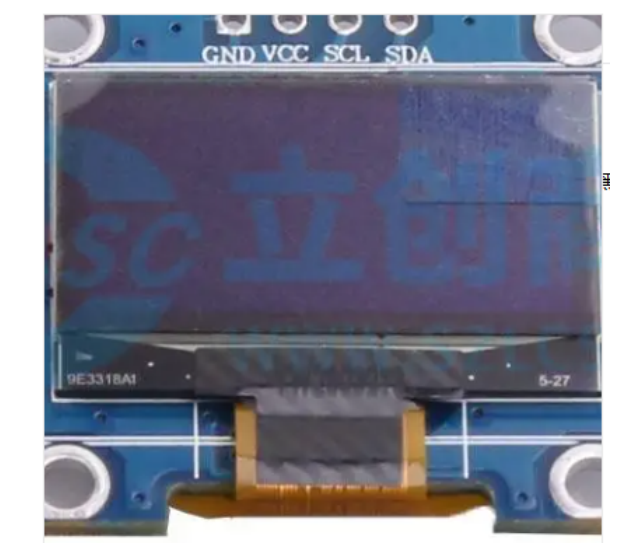

1.5. 显示模块0.96 128X64

可以在立创购买。

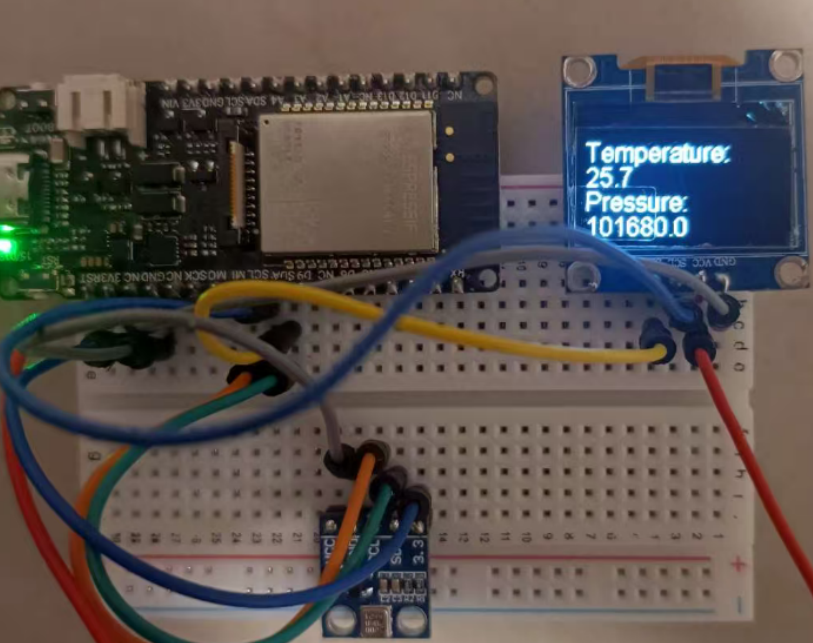

1.6. 硬件连接：

基于IIC进行连接。由于杜邦线连接不可靠，这里基于面包板进行连接。

1.7. IO使用

GND，3.3V，SDA，SCL。

2. 软件开发

采用arduino平台

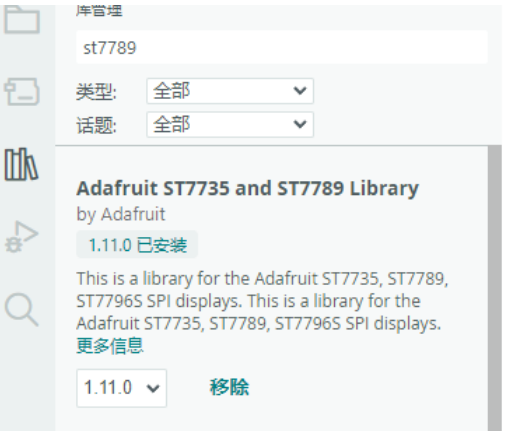

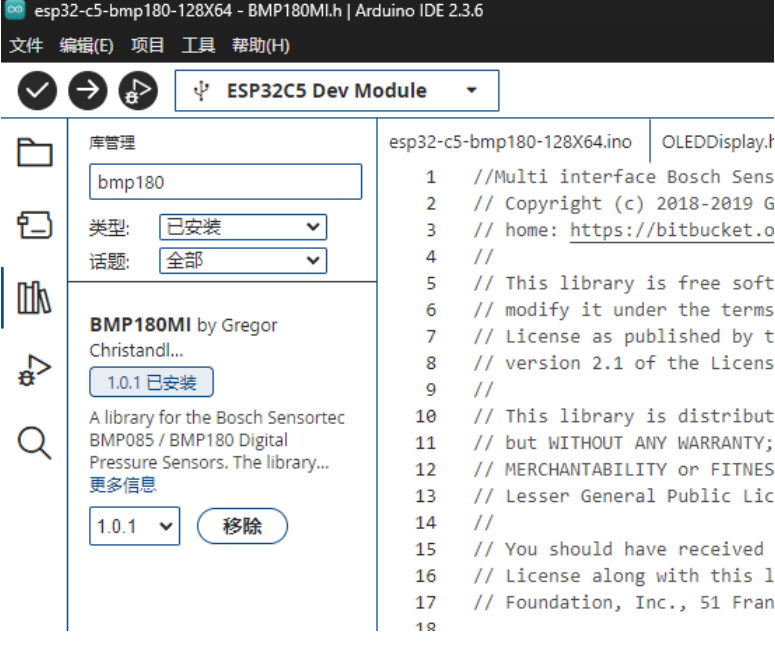

2.1. 库安装

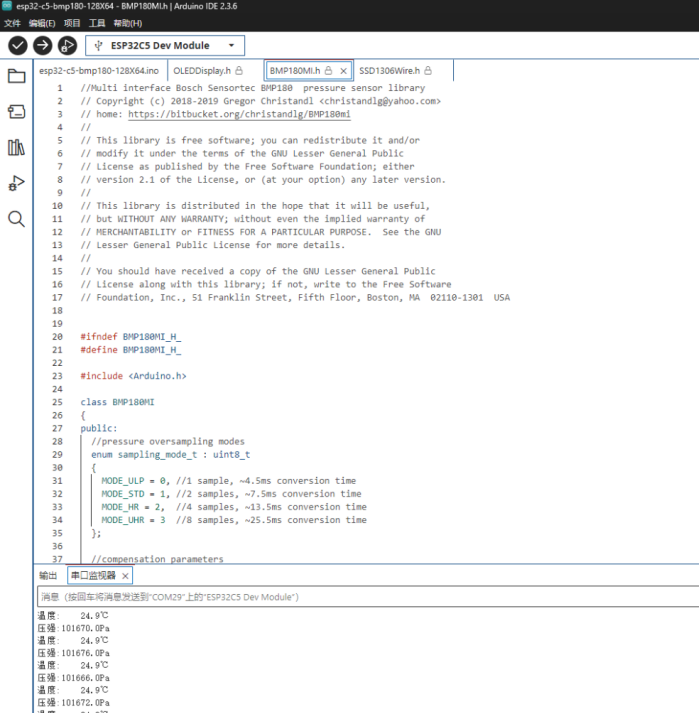

2.2. 代码实现

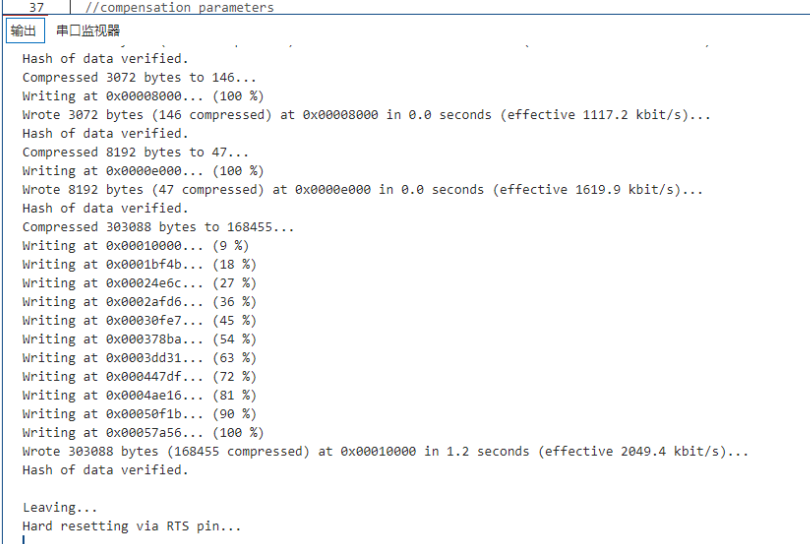

2.3. 编译和上传：

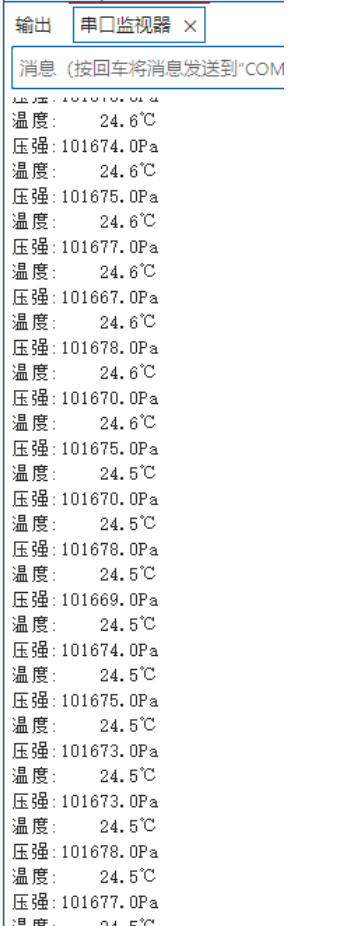

2.4. 串口数据接收

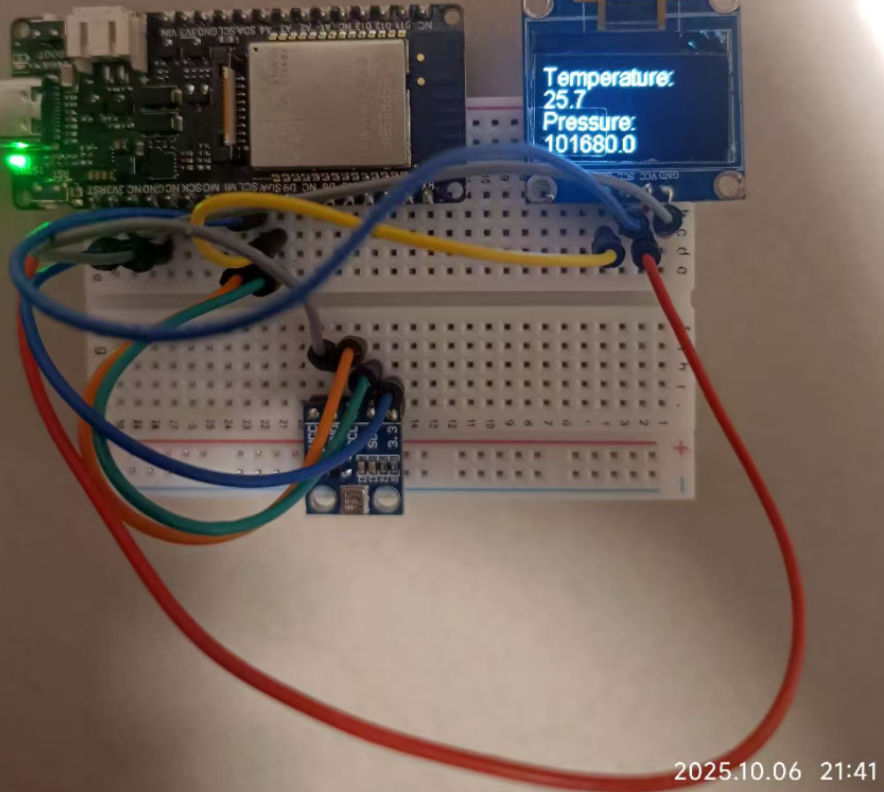

2.5. 验证效果：

视频链接如下：

【FireBeetle 2 ESP32-C5】基于arduino的室内气压温度计_哔哩哔哩_bilibili

代码


#include <Arduino.h>
#include <Wire.h>
#include <BMP180I2C.h>
#define I2C_ADDRESS 0x77

//create an BMP180 object using the I2C interface
BMP180I2C bmp180(I2C_ADDRESS);
#include "SSD1306Wire.h"  // legacy include: `#include "SSD1306.h"`

#define SDA 9
#define SCL 10
// Initialize the OLED display using Wire library
SSD1306Wire display(0x3c, SDA, SCL);  // ADDRESS, SDA, SCL  -  SDA and SCL usually populate automatically based on your board's pins_arduino.h e.g. https://github.com/esp8266/Arduino/blob/master/variants/nodemcu/pins_arduino.h

void setup() {

  display.init();

  // display.flipScreenVertically();
  display.setContrast(255);
  display.setFont(ArialMT_Plain_16);  // 16像素高字体
  Serial.begin(9600);
  //wait for serial connection to open (only necessary on some boards)
  while (!Serial)
    ;
  Wire.setPins(9, 10);
  Wire.begin();
  //begin() initializes the interface, checks the sensor ID and reads the calibration parameters.
  if (!bmp180.begin()) {
    Serial.println("begin() failed. check your BMP180 Interface and I2C Address.");
    while (1)
      ;
  }
  //reset sensor to default parameters.
  bmp180.resetToDefaults();
  //enable ultra high resolution mode for pressure measurements
  bmp180.setSamplingMode(BMP180MI::MODE_UHR);
}
float t, p;
void loop() {
  // put your main code here, to run repeatedly:

  delay(1000);

  //start a temperature measurement
  if (!bmp180.measureTemperature()) {
    Serial.println("could not start temperature measurement, is a measurement already running?");
    return;
  }

  //wait for the measurement to finish. proceed as soon as hasValue() returned true.
  do {
    delay(100);
  } while (!bmp180.hasValue());
  t = bmp180.getTemperature();

  //start a pressure measurement. pressure measurements depend on temperature measurement, you should only start a pressure
  //measurement immediately after a temperature measurement.
  if (!bmp180.measurePressure()) {
    Serial.println("could not start perssure measurement, is a measurement already running?");
    return;
  }

  //wait for the measurement to finish. proceed as soon as hasValue() returned true.
  do {
    delay(100);
  } while (!bmp180.hasValue());
  p = bmp180.getPressure();

  String t1 = String(t, 1);  // 保留两位小数
  String p1 = String(p, 1);  // 保留两位小数
  display.clear();
  display.setTextAlignment(TEXT_ALIGN_LEFT);

  display.drawString(0, 0, "Temperature:");
  display.drawString(0, 16, t1);
  display.drawString(0, 32, "Pressure:");
  display.drawString(0, 48, p1);
  display.display();

  Serial.printf("温度:%8.1f℃\r\n", t);
  Serial.printf("压强:%8.1fPa\r\n", p);
}
