ESP IDF+面包板小智AI+L298N双路H桥电机驱动+2电机=手搓智能小车 简单

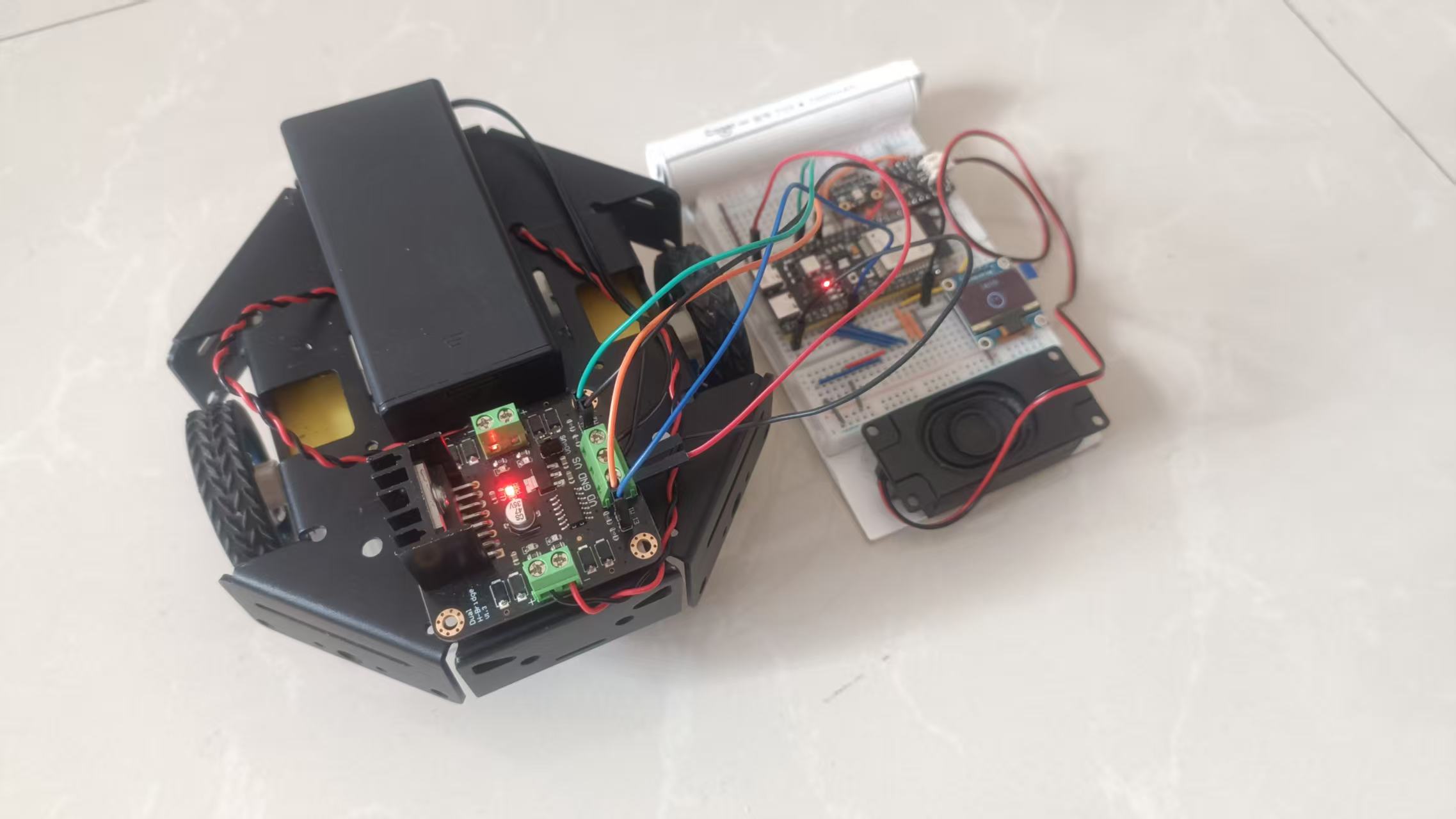

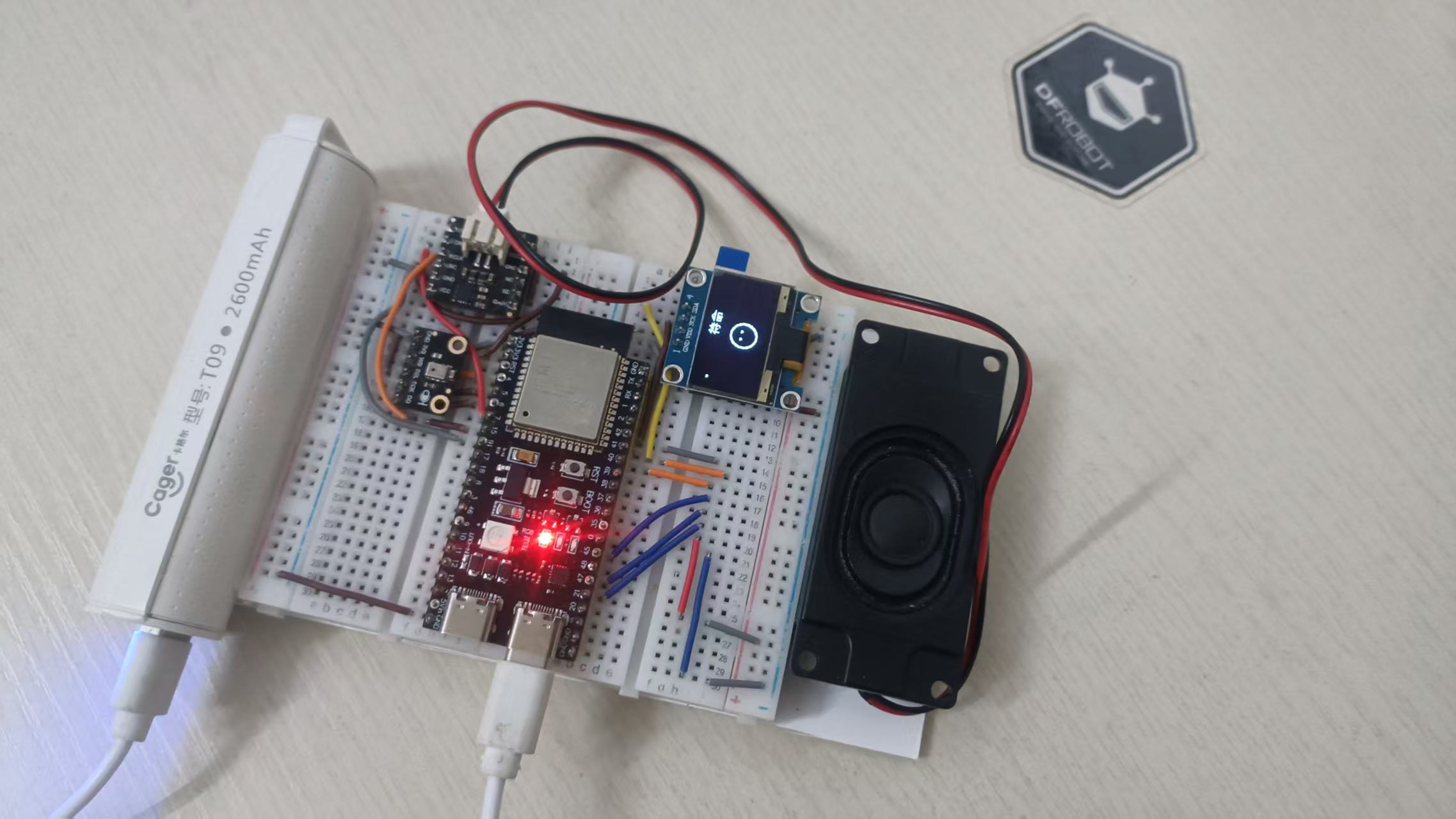

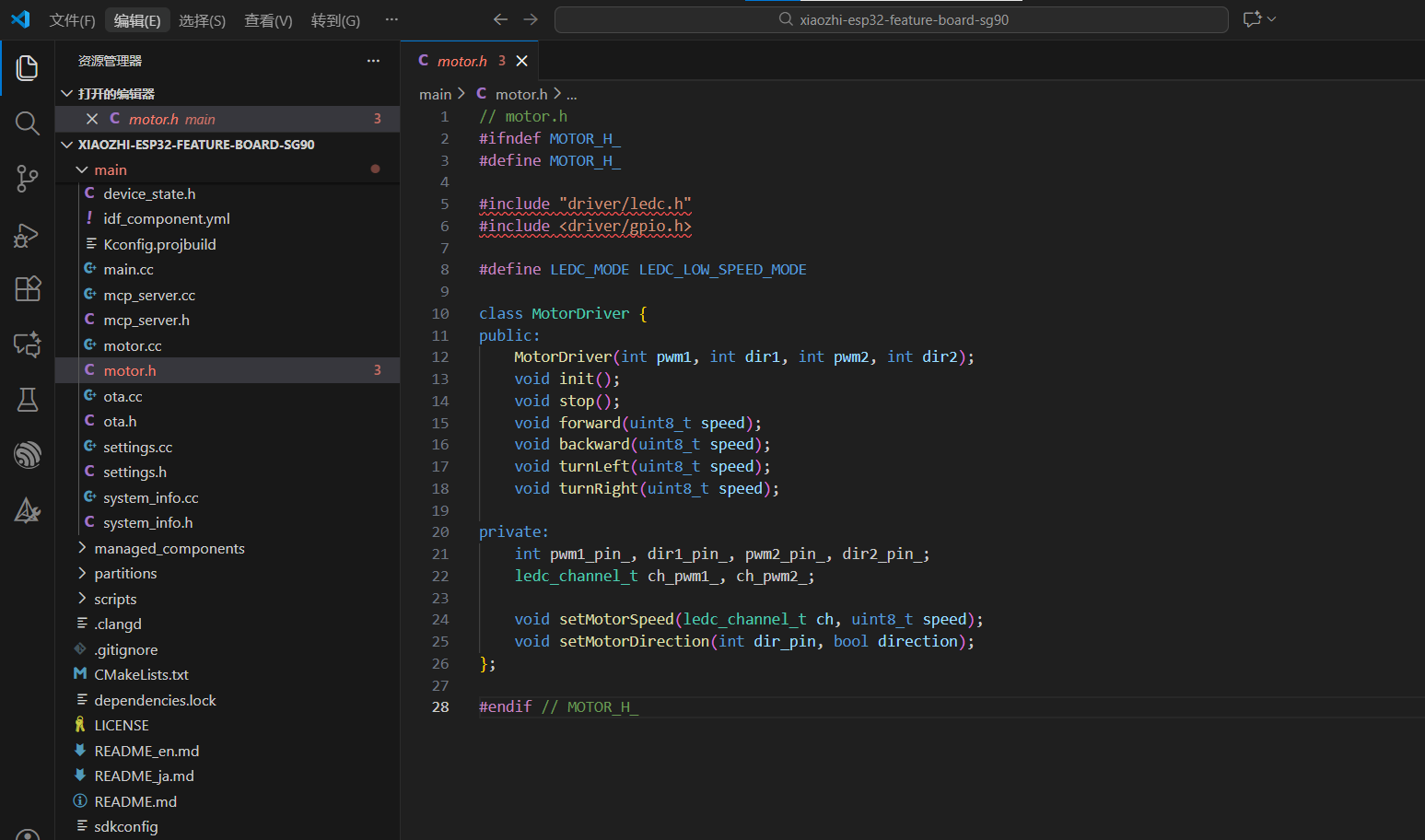

// motor.h
#ifndef MOTOR_H_
#define MOTOR_H_

#include "driver/ledc.h"
#include <driver/gpio.h>

#define LEDC_MODE LEDC_LOW_SPEED_MODE

class MotorDriver {
public:
    MotorDriver(int pwm1, int dir1, int pwm2, int dir2);
    void init();
    void stop();
    void forward(uint8_t speed);
    void backward(uint8_t speed);
    void turnLeft(uint8_t speed);
    void turnRight(uint8_t speed);

private:
    int pwm1_pin_, dir1_pin_, pwm2_pin_, dir2_pin_;
    ledc_channel_t ch_pwm1_, ch_pwm2_;

    void setMotorSpeed(ledc_channel_t ch, uint8_t speed);
    void setMotorDirection(int dir_pin, bool direction);
};

#endif // MOTOR_H_

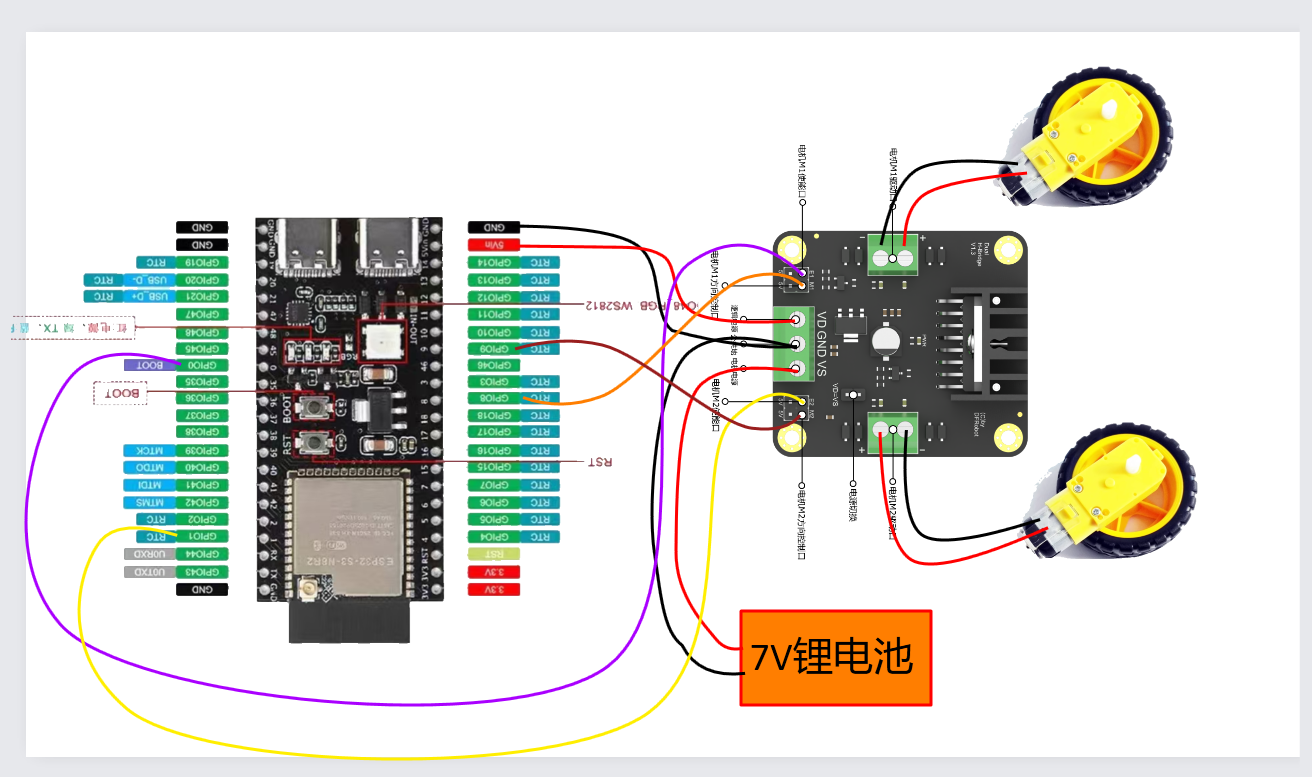

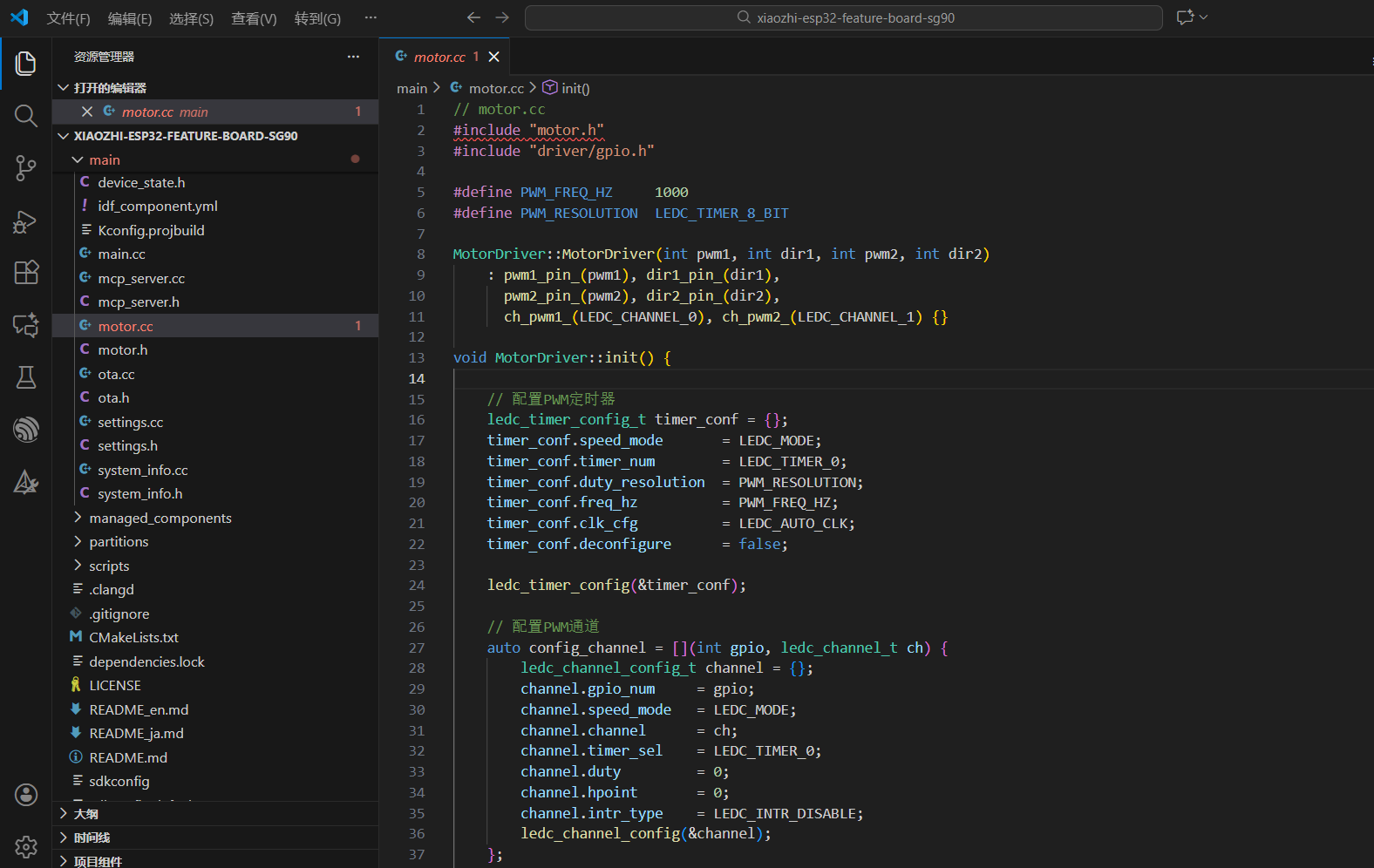

// motor.cc
#include "motor.h"
#include "driver/gpio.h"

#define PWM_FREQ_HZ     1000
#define PWM_RESOLUTION  LEDC_TIMER_8_BIT

MotorDriver::MotorDriver(int pwm1, int dir1, int pwm2, int dir2)
    : pwm1_pin_(pwm1), dir1_pin_(dir1),
      pwm2_pin_(pwm2), dir2_pin_(dir2),
      ch_pwm1_(LEDC_CHANNEL_0), ch_pwm2_(LEDC_CHANNEL_1) {}

void MotorDriver::init() {
    // 配置PWM定时器
    ledc_timer_config_t timer_conf = {};
    timer_conf.speed_mode       = LEDC_MODE;
    timer_conf.timer_num        = LEDC_TIMER_0;
    timer_conf.duty_resolution  = PWM_RESOLUTION;
    timer_conf.freq_hz          = PWM_FREQ_HZ;
    timer_conf.clk_cfg          = LEDC_AUTO_CLK;
    timer_conf.deconfigure      = false;

    ledc_timer_config(&timer_conf);

    // 配置PWM通道
    auto config_channel = [](int gpio, ledc_channel_t ch) {
        ledc_channel_config_t channel = {};
        channel.gpio_num     = gpio;
        channel.speed_mode   = LEDC_MODE;
        channel.channel      = ch;
        channel.timer_sel    = LEDC_TIMER_0;
        channel.duty         = 0;
        channel.hpoint       = 0;
        channel.intr_type    = LEDC_INTR_DISABLE;
        ledc_channel_config(&channel);
    };

    config_channel(pwm1_pin_, ch_pwm1_);
    config_channel(pwm2_pin_, ch_pwm2_);

    // 配置方向引脚为GPIO输出
    gpio_config_t io_conf = {};
    io_conf.intr_type = GPIO_INTR_DISABLE;
    io_conf.mode = GPIO_MODE_OUTPUT;
    io_conf.pin_bit_mask = (1ULL << dir1_pin_) | (1ULL << dir2_pin_);
    io_conf.pull_down_en = GPIO_PULLDOWN_DISABLE;
    io_conf.pull_up_en = GPIO_PULLUP_DISABLE;
    gpio_config(&io_conf);

    // 初始状态：停止
    stop();
}

void MotorDriver::setMotorSpeed(ledc_channel_t ch, uint8_t speed) {
    ledc_set_duty(LEDC_MODE, ch, speed);
    ledc_update_duty(LEDC_MODE, ch);
}

void MotorDriver::setMotorDirection(int dir_pin, bool direction) {
    gpio_set_level((gpio_num_t)dir_pin, direction ? 1 : 0);
}

void MotorDriver::stop() {
    setMotorSpeed(ch_pwm1_, 0);
    setMotorSpeed(ch_pwm2_, 0);
}

void MotorDriver::forward(uint8_t speed) {
    // DIR=1 正转
    setMotorDirection(dir1_pin_, true);   // 左电机正转
    setMotorDirection(dir2_pin_, true);   // 右电机正转
    setMotorSpeed(ch_pwm1_, speed);
    setMotorSpeed(ch_pwm2_, speed);
}

void MotorDriver::backward(uint8_t speed) {
    // DIR=0 反转
    setMotorDirection(dir1_pin_, false);  // 左电机反转
    setMotorDirection(dir2_pin_, false);  // 右电机反转
    setMotorSpeed(ch_pwm1_, speed);
    setMotorSpeed(ch_pwm2_, speed);
}

void MotorDriver::turnLeft(uint8_t speed) {
    // 左电机反转，右电机正转 - 原地左转
    setMotorDirection(dir1_pin_, false);  // 左电机反转
    setMotorDirection(dir2_pin_, true);   // 右电机正转
    setMotorSpeed(ch_pwm1_, speed);
    setMotorSpeed(ch_pwm2_, speed);
}

void MotorDriver::turnRight(uint8_t speed) {
    // 左电机正转，右电机反转 - 原地右转
    setMotorDirection(dir1_pin_, true);   // 左电机正转
    setMotorDirection(dir2_pin_, false);  // 右电机反转
    setMotorSpeed(ch_pwm1_, speed);
    setMotorSpeed(ch_pwm2_, speed);
}

#include "wifi_board.h"
#include "codecs/no_audio_codec.h"
#include "display/oled_display.h"
#include "system_reset.h"
#include "application.h"
#include "button.h"
#include "config.h"
#include "mcp_server.h"
#include "lamp_controller.h"
#include "led/single_led.h"
#include "assets/lang_config.h"

#include <wifi_station.h>
#include <esp_log.h>
#include <driver/i2c_master.h>
#include <esp_lcd_panel_ops.h>
#include <esp_lcd_panel_vendor.h>

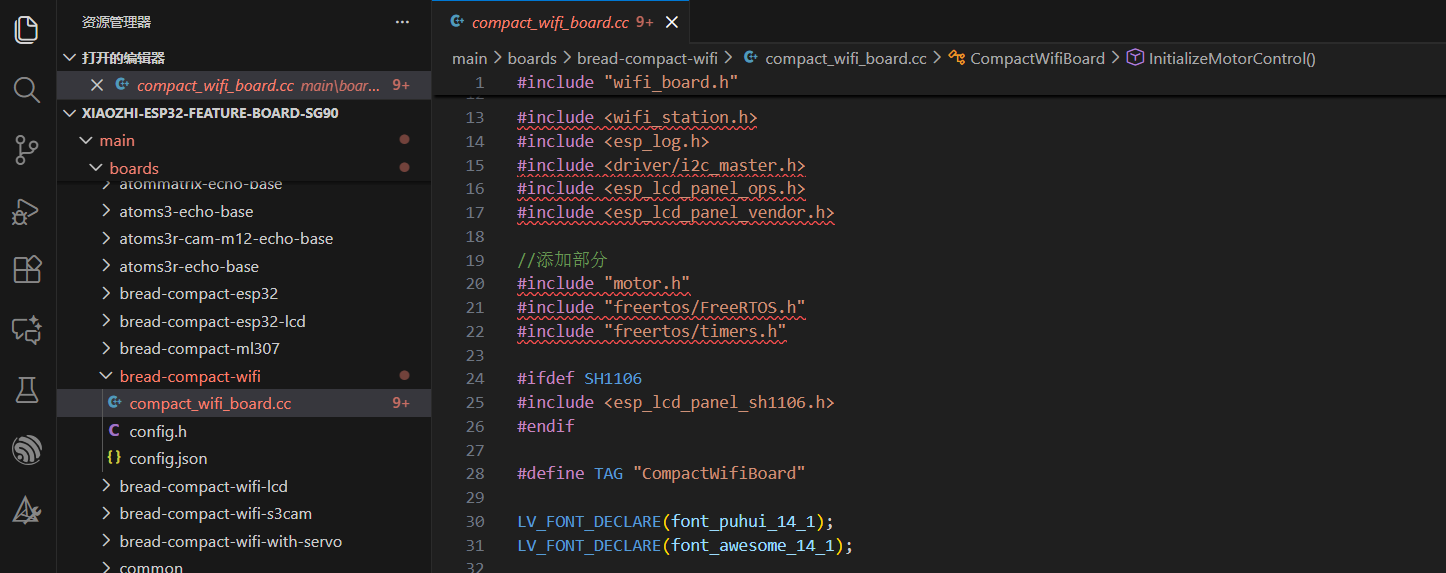

//添加部分
#include "motor.h"
#include "freertos/FreeRTOS.h"
#include "freertos/timers.h"

#ifdef SH1106
#include <esp_lcd_panel_sh1106.h>
#endif

#define TAG "CompactWifiBoard"

LV_FONT_DECLARE(font_puhui_14_1);
LV_FONT_DECLARE(font_awesome_14_1);

class CompactWifiBoard : public WifiBoard {
private:
    i2c_master_bus_handle_t display_i2c_bus_;
    esp_lcd_panel_io_handle_t panel_io_ = nullptr;
    esp_lcd_panel_handle_t panel_ = nullptr;
    Display* display_ = nullptr;
    Button boot_button_;
    Button touch_button_;
    Button volume_up_button_;
    Button volume_down_button_;

    void InitializeDisplayI2c() {
        i2c_master_bus_config_t bus_config = {
            .i2c_port = (i2c_port_t)0,
            .sda_io_num = DISPLAY_SDA_PIN,
            .scl_io_num = DISPLAY_SCL_PIN,
            .clk_source = I2C_CLK_SRC_DEFAULT,
            .glitch_ignore_cnt = 7,
            .intr_priority = 0,
            .trans_queue_depth = 0,
            .flags = {
                .enable_internal_pullup = 1,
            },
        };
        ESP_ERROR_CHECK(i2c_new_master_bus(&bus_config, &display_i2c_bus_));
    }

    void InitializeSsd1306Display() {
        // SSD1306 config
        esp_lcd_panel_io_i2c_config_t io_config = {
            .dev_addr = 0x3C,
            .on_color_trans_done = nullptr,
            .user_ctx = nullptr,
            .control_phase_bytes = 1,
            .dc_bit_offset = 6,
            .lcd_cmd_bits = 8,
            .lcd_param_bits = 8,
            .flags = {
                .dc_low_on_data = 0,
                .disable_control_phase = 0,
            },
            .scl_speed_hz = 400 * 1000,
        };

        ESP_ERROR_CHECK(esp_lcd_new_panel_io_i2c_v2(display_i2c_bus_, &io_config, &panel_io_));

        ESP_LOGI(TAG, "Install SSD1306 driver");
        esp_lcd_panel_dev_config_t panel_config = {};
        panel_config.reset_gpio_num = -1;
        panel_config.bits_per_pixel = 1;

        esp_lcd_panel_ssd1306_config_t ssd1306_config = {
            .height = static_cast<uint8_t>(DISPLAY_HEIGHT),
        };
        panel_config.vendor_config = &ssd1306_config;

#ifdef SH1106
        ESP_ERROR_CHECK(esp_lcd_new_panel_sh1106(panel_io_, &panel_config, &panel_));
#else
        ESP_ERROR_CHECK(esp_lcd_new_panel_ssd1306(panel_io_, &panel_config, &panel_));
#endif
        ESP_LOGI(TAG, "SSD1306 driver installed");

        // Reset the display
        ESP_ERROR_CHECK(esp_lcd_panel_reset(panel_));
        if (esp_lcd_panel_init(panel_) != ESP_OK) {
            ESP_LOGE(TAG, "Failed to initialize display");
            display_ = new NoDisplay();
            return;
        }
        ESP_ERROR_CHECK(esp_lcd_panel_invert_color(panel_, false));

        // Set the display to on
        ESP_LOGI(TAG, "Turning display on");
        ESP_ERROR_CHECK(esp_lcd_panel_disp_on_off(panel_, true));

        display_ = new OledDisplay(panel_io_, panel_, DISPLAY_WIDTH, DISPLAY_HEIGHT, DISPLAY_MIRROR_X, DISPLAY_MIRROR_Y,
            {&font_puhui_14_1, &font_awesome_14_1});
    }

    void InitializeButtons() {
        boot_button_.OnClick([this]() {
            auto& app = Application::GetInstance();
            if (app.GetDeviceState() == kDeviceStateStarting && !WifiStation::GetInstance().IsConnected()) {
                ResetWifiConfiguration();
            }
            app.ToggleChatState();
        });
        touch_button_.OnPressDown([this]() {
            Application::GetInstance().StartListening();
        });
        touch_button_.OnPressUp([this]() {
            Application::GetInstance().StopListening();
        });

        volume_up_button_.OnClick([this]() {
            auto codec = GetAudioCodec();
            auto volume = codec->output_volume() + 10;
            if (volume > 100) {
                volume = 100;
            }
            codec->SetOutputVolume(volume);
            GetDisplay()->ShowNotification(Lang::Strings::VOLUME + std::to_string(volume));
        });

        volume_up_button_.OnLongPress([this]() {
            GetAudioCodec()->SetOutputVolume(100);
            GetDisplay()->ShowNotification(Lang::Strings::MAX_VOLUME);
        });

        volume_down_button_.OnClick([this]() {
            auto codec = GetAudioCodec();
            auto volume = codec->output_volume() - 10;
            if (volume < 0) {
                volume = 0;
            }
            codec->SetOutputVolume(volume);
            GetDisplay()->ShowNotification(Lang::Strings::VOLUME + std::to_string(volume));
        });

        volume_down_button_.OnLongPress([this]() {
            GetAudioCodec()->SetOutputVolume(0);
            GetDisplay()->ShowNotification(Lang::Strings::MUTED);
        });
    }

    //新添加部分

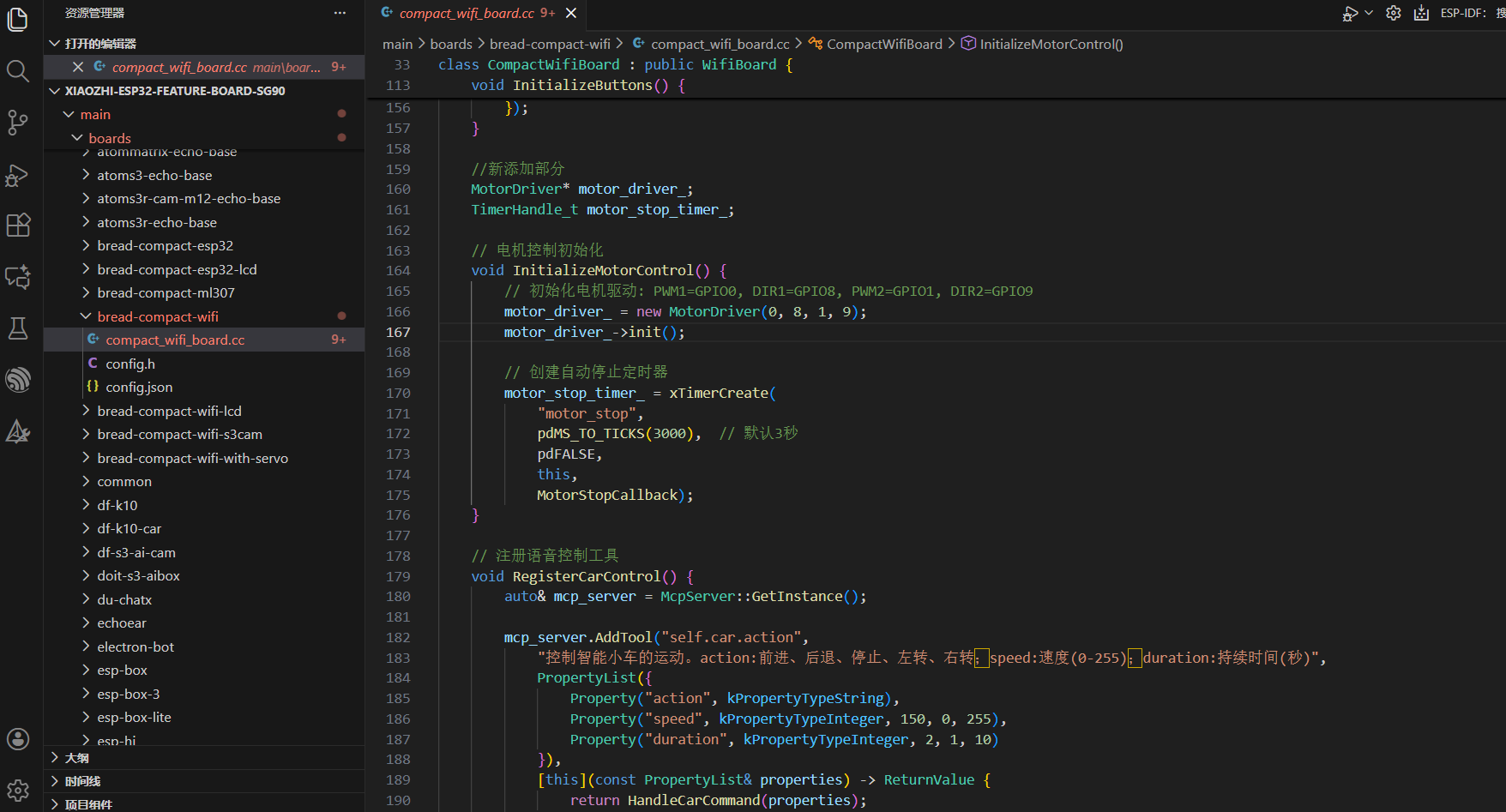

    MotorDriver* motor_driver_;
    TimerHandle_t motor_stop_timer_;

    // 电机控制初始化
    void InitializeMotorControl() {
        // 初始化电机驱动: PWM1=GPIO0, DIR1=GPIO8, PWM2=GPIO1, DIR2=GPIO9
        motor_driver_ = new MotorDriver(0, 8, 1, 9);
        motor_driver_->init();

        // 创建自动停止定时器
        motor_stop_timer_ = xTimerCreate(
            "motor_stop",
            pdMS_TO_TICKS(3000),  // 默认3秒
            pdFALSE,
            this,
            MotorStopCallback);
    }

    // 注册语音控制工具
    void RegisterCarControl() {
        auto& mcp_server = McpServer::GetInstance();

        mcp_server.AddTool("self.car.action",
            "控制智能小车的运动。action:前进、后退、停止、左转、右转；speed:速度(0-255)；duration:持续时间(秒)",
            PropertyList({
                Property("action", kPropertyTypeString),
                Property("speed", kPropertyTypeInteger, 150, 0, 255),
                Property("duration", kPropertyTypeInteger, 2, 1, 10)
            }),
            [this](const PropertyList& properties) -> ReturnValue {
                return HandleCarCommand(properties);
            });
    }

    ReturnValue HandleCarCommand(const PropertyList& properties) {
        std::string action = properties["action"].value<std::string>().c_str();
        int speed = properties["speed"].value<int>();
        int duration = properties["duration"].value<int>();

        ESP_LOGI("CarControl", "执行: %s, 速度: %d, 时间: %d秒",
                 action.c_str(), speed, duration);

        if (action == "前进") {
            motor_driver_->forward(speed);
            StartMotorTimer(duration);
            return ReturnValue("小车前进中");

        } else if (action == "后退") {
            motor_driver_->backward(speed);
            StartMotorTimer(duration);
            return ReturnValue("小车后退中");

        } else if (action == "左转") {
            motor_driver_->turnLeft(speed);
            StartMotorTimer(duration);
            return ReturnValue("小车左转中");

        } else if (action == "右转") {
            motor_driver_->turnRight(speed);
            StartMotorTimer(duration);
            return ReturnValue("小车右转中");

        } else if (action == "停止") {
            motor_driver_->stop();
            StopMotorTimer();
            return ReturnValue("小车已停止");

        } else {
            return ReturnValue("未知指令，请说前进、后退、左转、右转或停止");
        }
    }

    void StartMotorTimer(int duration_seconds) {
        if (motor_stop_timer_) {
            xTimerStop(motor_stop_timer_, 0);
            xTimerChangePeriod(motor_stop_timer_, pdMS_TO_TICKS(duration_seconds * 1000), 0);
            xTimerStart(motor_stop_timer_, 0);
        }
    }

    void StopMotorTimer() {
        if (motor_stop_timer_) {
            xTimerStop(motor_stop_timer_, 0);
        }
    }

    static void MotorStopCallback(TimerHandle_t xTimer) {
        CompactWifiBoard* board = static_cast<CompactWifiBoard*>(pvTimerGetTimerID(xTimer));
        board->motor_driver_->stop();
        ESP_LOGI("MotorControl", "自动停止");
    }//end

    // 物联网初始化，逐步迁移到 MCP 协议
    void InitializeTools() {
        static LampController lamp(LAMP_GPIO);
    }

public:

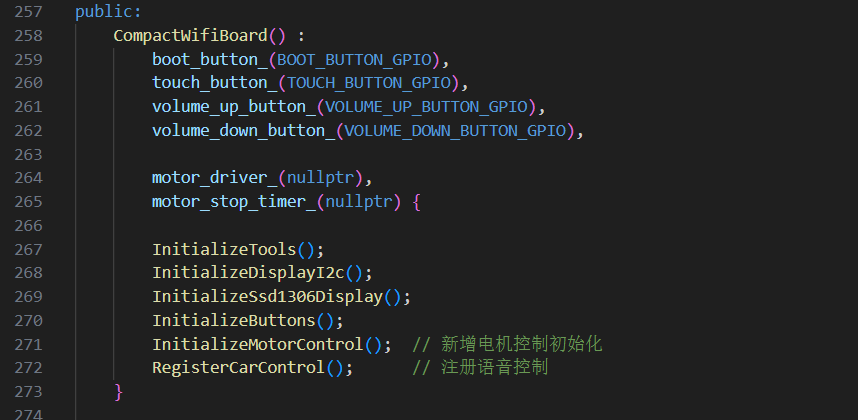

    CompactWifiBoard() :
        boot_button_(BOOT_BUTTON_GPIO),
        touch_button_(TOUCH_BUTTON_GPIO),
        volume_up_button_(VOLUME_UP_BUTTON_GPIO),
        volume_down_button_(VOLUME_DOWN_BUTTON_GPIO),

        motor_driver_(nullptr),
        motor_stop_timer_(nullptr) {

        InitializeTools();
        InitializeDisplayI2c();
        InitializeSsd1306Display();
        InitializeButtons();
        InitializeMotorControl();  // 新增电机控制初始化
        RegisterCarControl();      // 注册语音控制
    }

    virtual Led* GetLed() override {
        static SingleLed led(BUILTIN_LED_GPIO);
        return &led;
    }

    virtual AudioCodec* GetAudioCodec() override {
#ifdef AUDIO_I2S_METHOD_SIMPLEX
        static NoAudioCodecSimplex audio_codec(AUDIO_INPUT_SAMPLE_RATE, AUDIO_OUTPUT_SAMPLE_RATE,
            AUDIO_I2S_SPK_GPIO_BCLK, AUDIO_I2S_SPK_GPIO_LRCK, AUDIO_I2S_SPK_GPIO_DOUT, AUDIO_I2S_MIC_GPIO_SCK, AUDIO_I2S_MIC_GPIO_WS, AUDIO_I2S_MIC_GPIO_DIN);
#else
        static NoAudioCodecDuplex audio_codec(AUDIO_INPUT_SAMPLE_RATE, AUDIO_OUTPUT_SAMPLE_RATE,
            AUDIO_I2S_GPIO_BCLK, AUDIO_I2S_GPIO_WS, AUDIO_I2S_GPIO_DOUT, AUDIO_I2S_GPIO_DIN);
#endif
        return &audio_codec;
    }

    virtual Display* GetDisplay() override {
        return display_;
    }
};

DECLARE_BOARD(CompactWifiBoard);

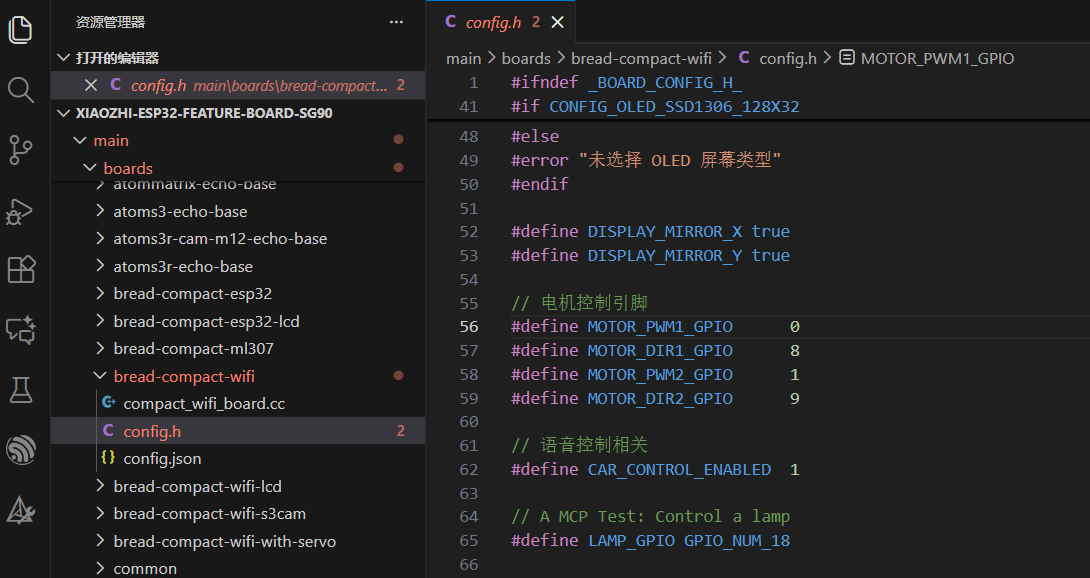

// config.h - 添加以下定义

// 电机控制引脚
#define MOTOR_PWM1_GPIO      0
#define MOTOR_DIR1_GPIO      8
#define MOTOR_PWM2_GPIO      1
#define MOTOR_DIR2_GPIO      9

// 语音控制相关
#define CAR_CONTROL_ENABLED  1

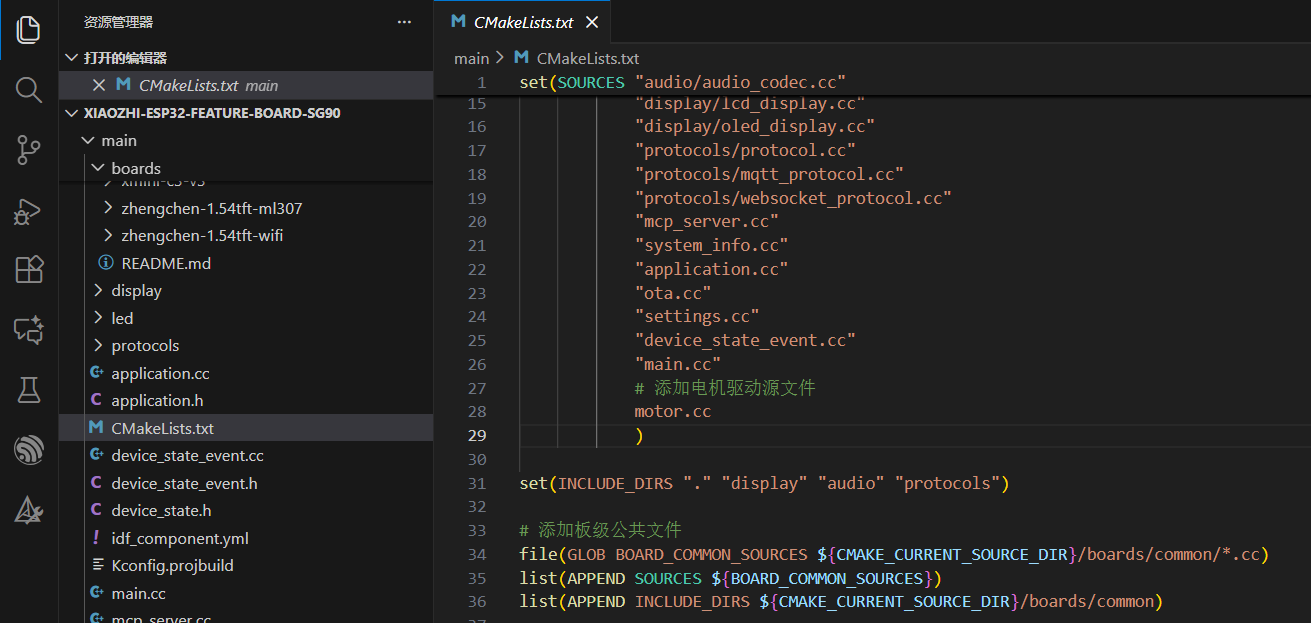

set(SOURCES
    # 添加电机驱动源文件
    motor.cc
    # ... 其他源文件 ...
)
