roco小智双电机小车+传感器，变身环境监测小车 简单

头像 rzyzzxw 2025.08.27 11 0

8.27



【写在前面】

这个帖子是roco小智和DF L298N驱动模块 双电机小车的故事- Makelog(造物记)的续集，小车部分上一帖子里完成了，可是还有不足，比如转向0.5秒，它就做不出来（需要修改库），所以这期就会想一个办法来曲线实现。更主要的是，要体验一下读取传感器的数据，DHT11，模拟光线传感器，模拟声音传感器的值，都集成到小车上，做成环境监测小车。


材料清单

  • ROCO面包板小智 X1
  • 双电机小车底盘 X1
  • L298N DF 电机驱动模块 X1

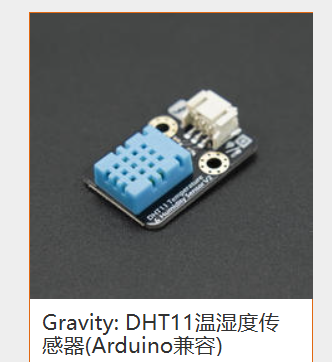

  • DHT11温湿度传感器 X1

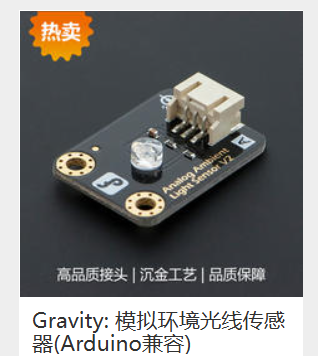

  • 模拟光线传感器 X1

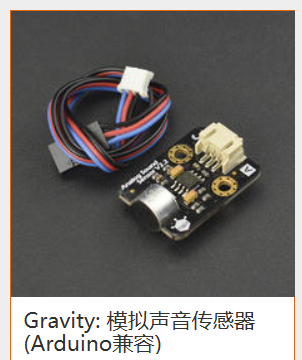

  • 模拟声音传感器 X1

步骤1 在ROCO小智双电机小车上增加传感器

正如上面所述，我增加了三个传感器：

DHT11温湿度传感器接到GPIO20。


模拟环境光线传感器接到GPIO7。


模拟声音传感器接到GPIO17。

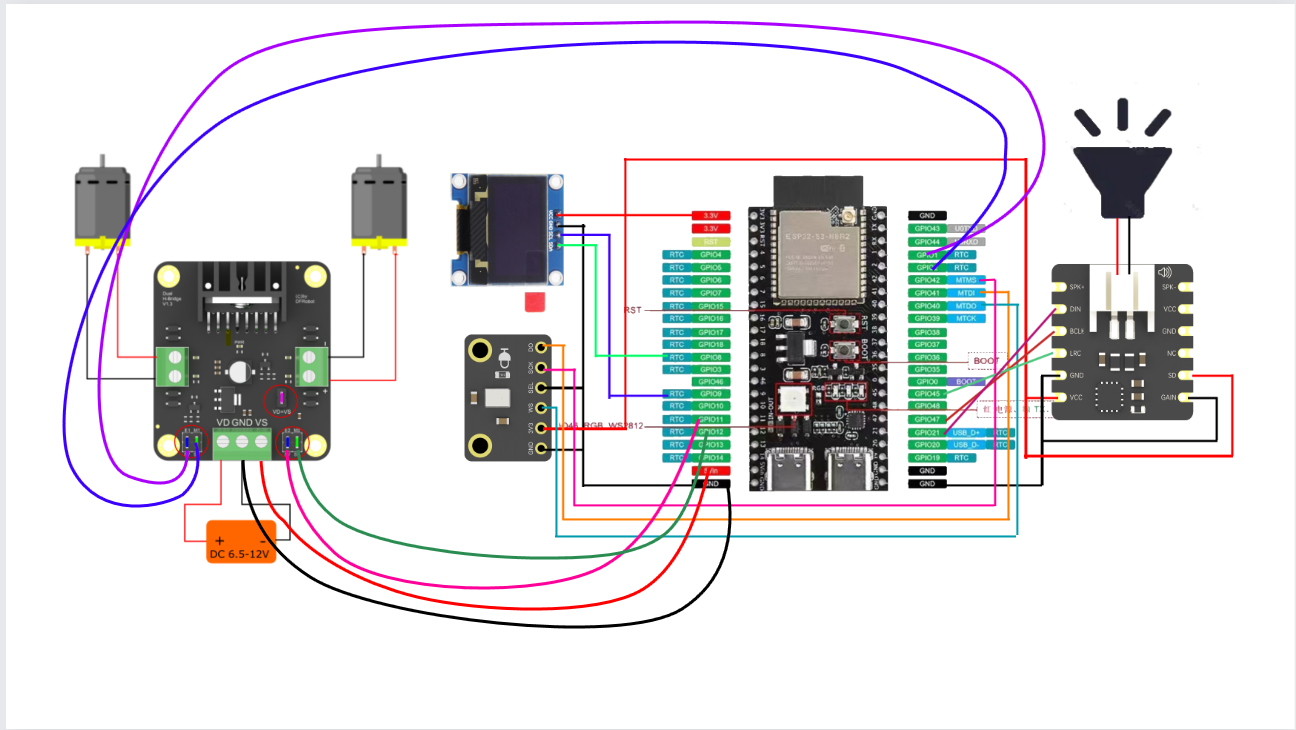

roco小智双轮小车的接线图：


这个图线已经够多了，这3个传感器就不向上面画了哈。

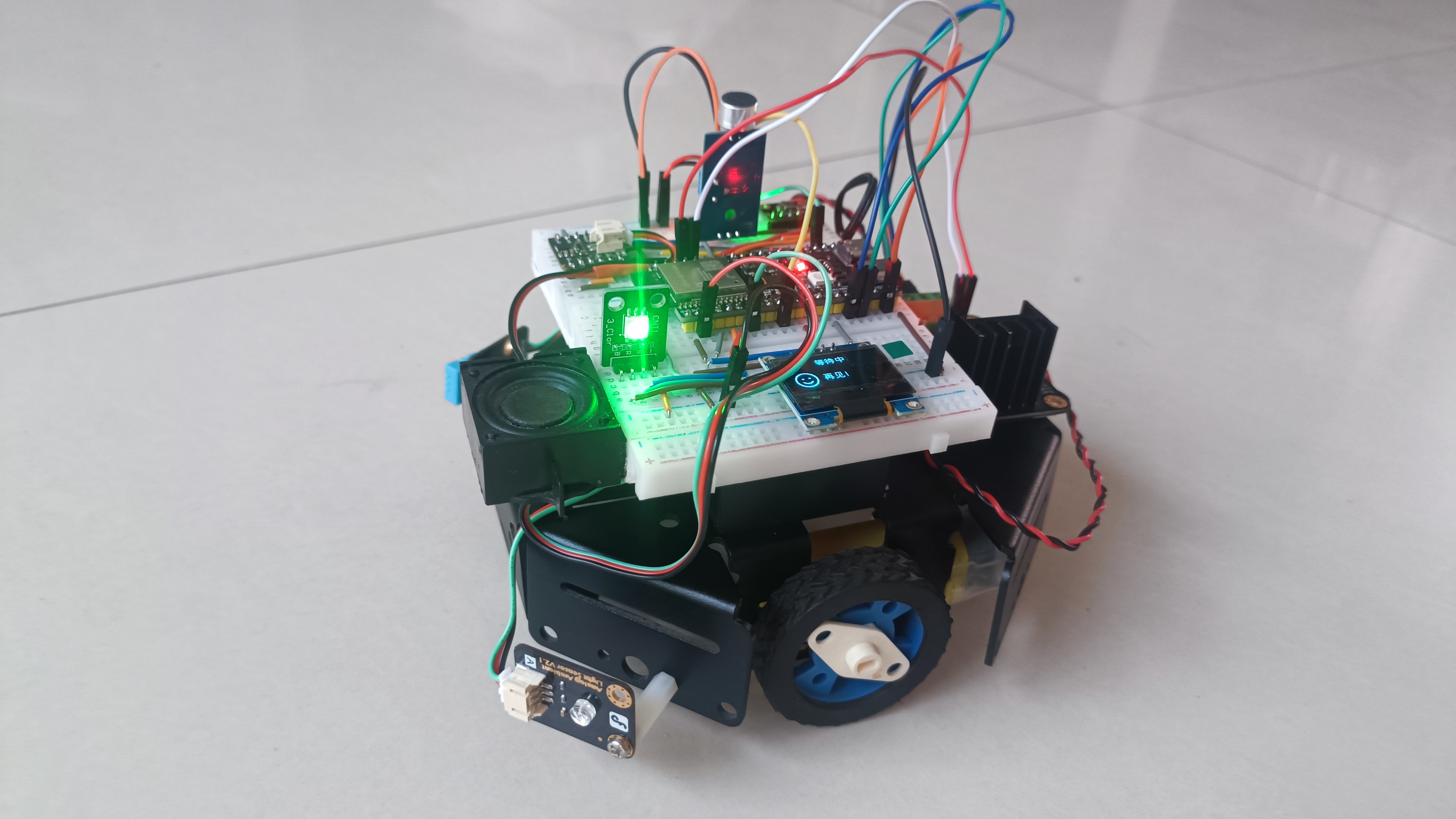

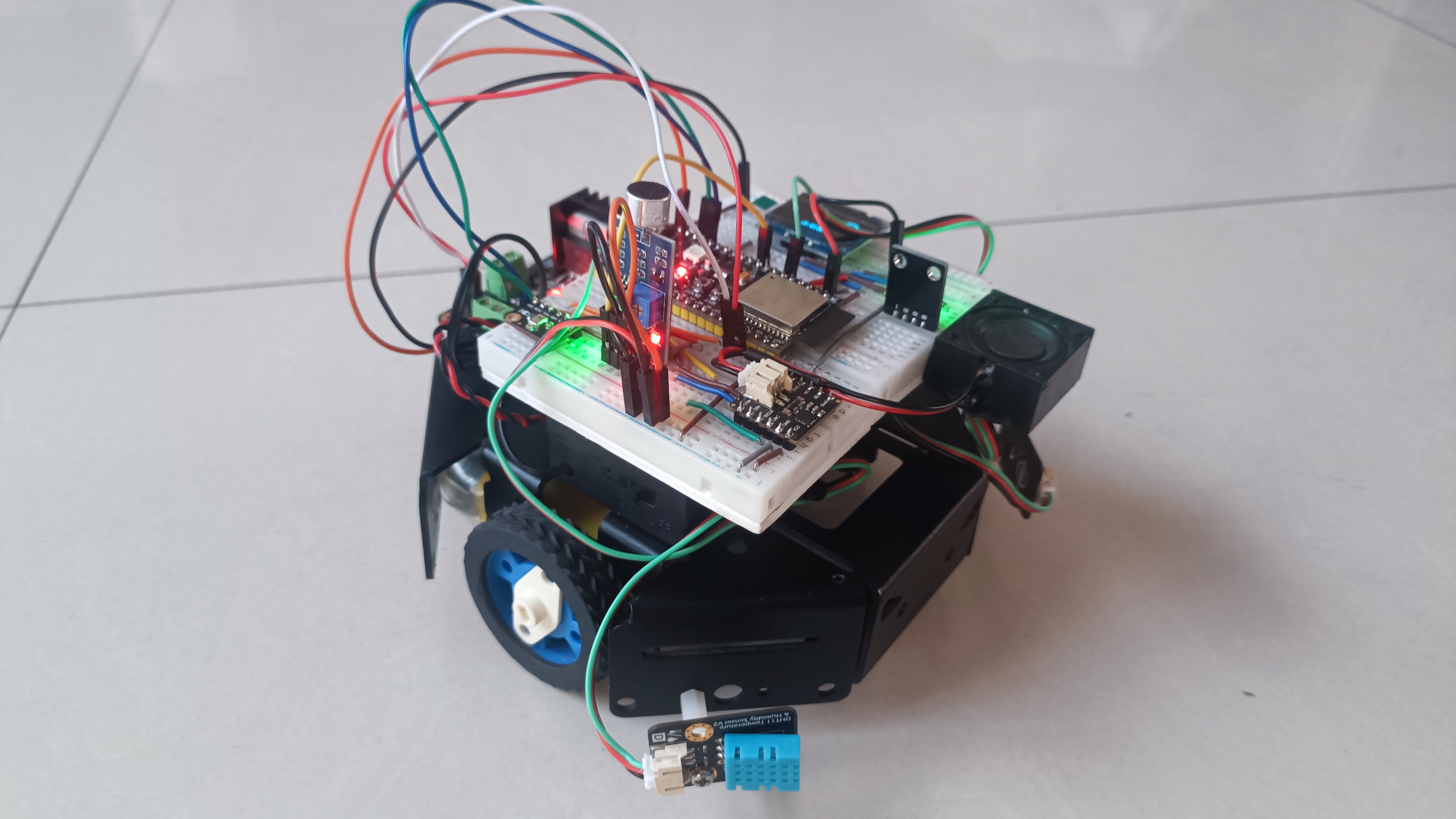

最终的成品是这样子的:


步骤2 程序编写

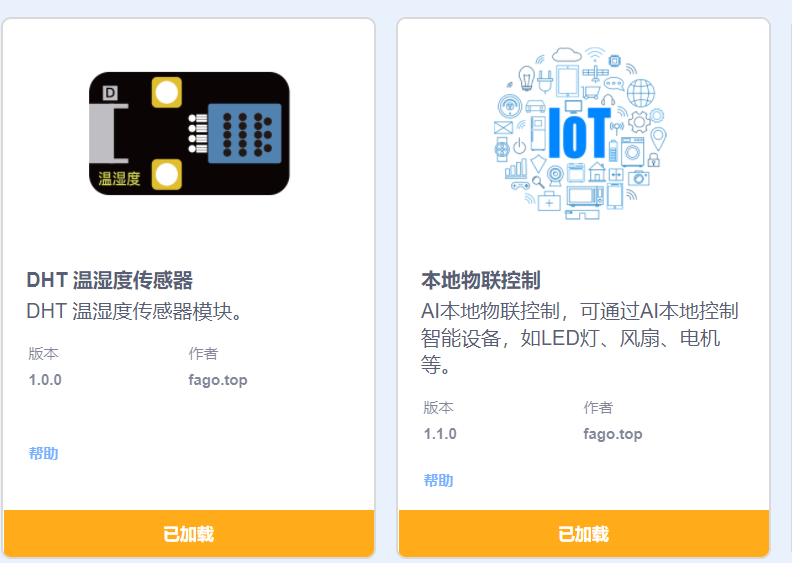

要加载DHT温湿度传感器和本地物联控制库。

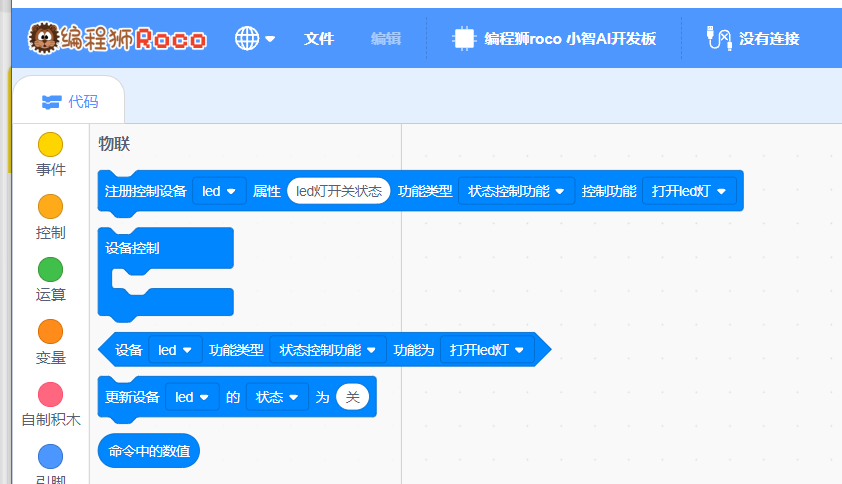

本地物联控制库的积木块：


写程序如下：

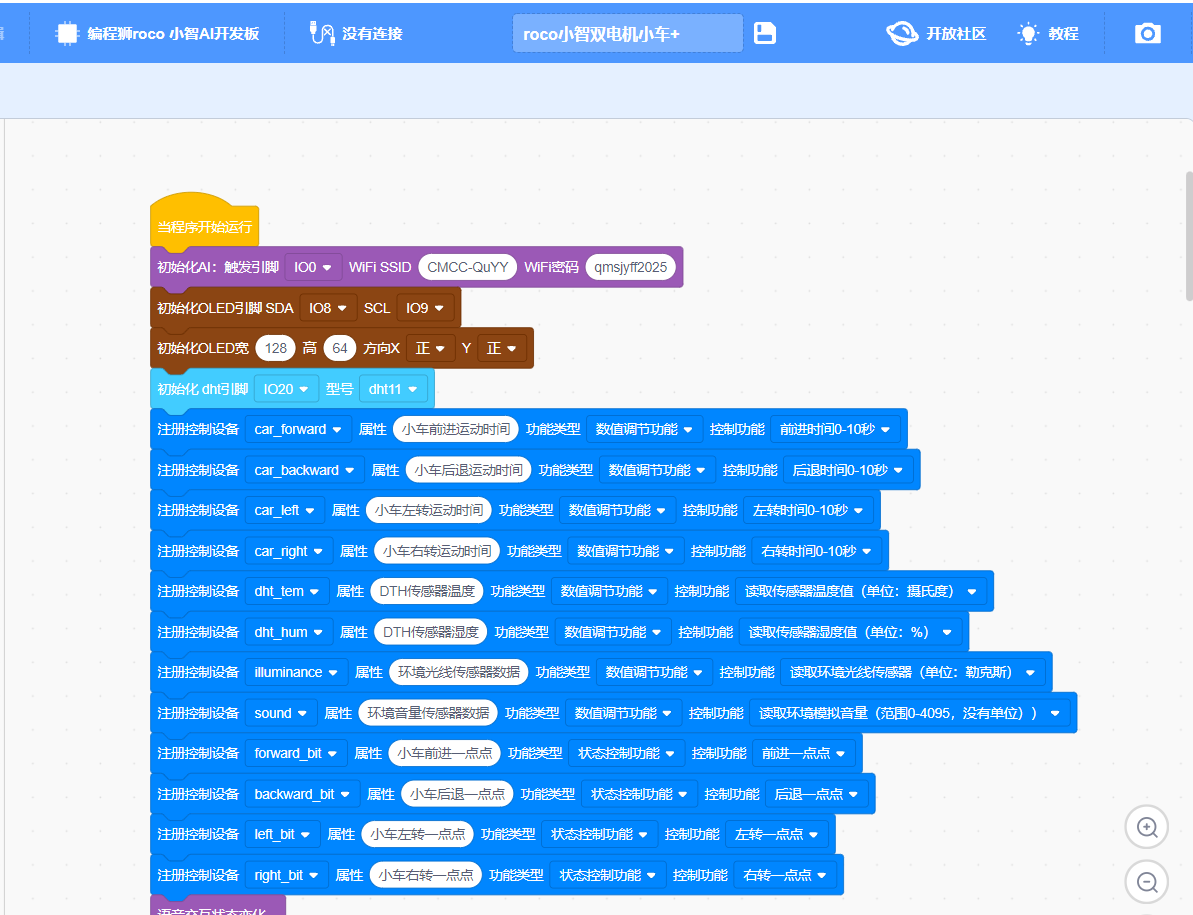

AI和硬件初始化及注册控制设备。

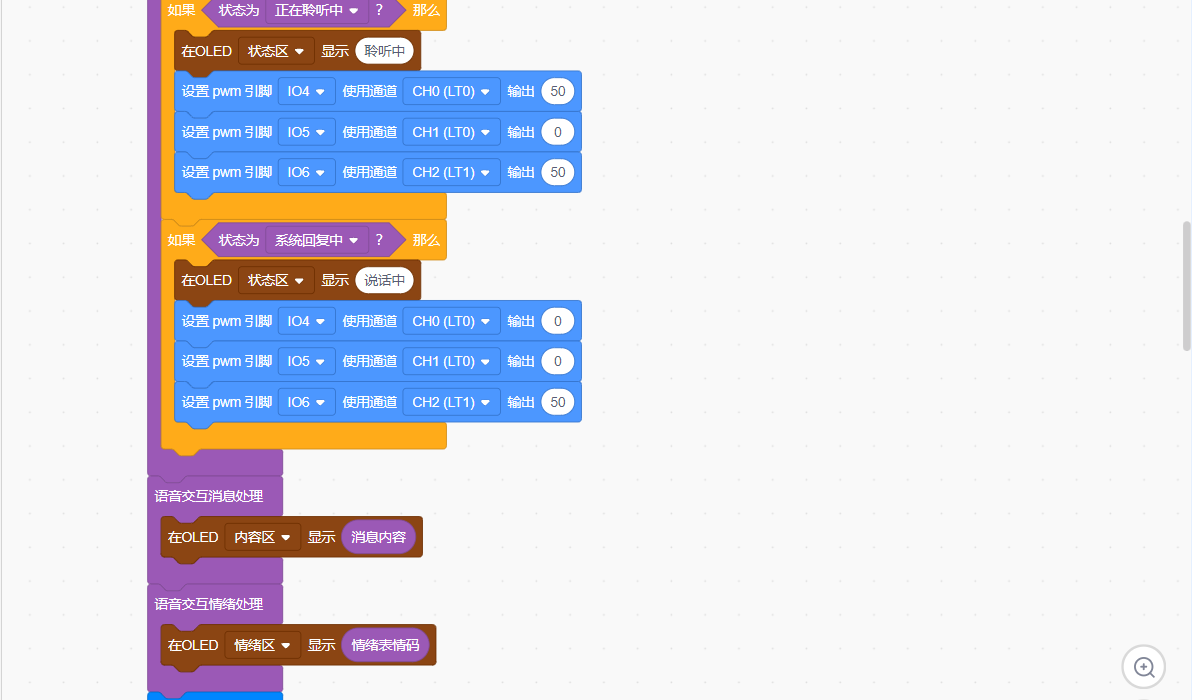

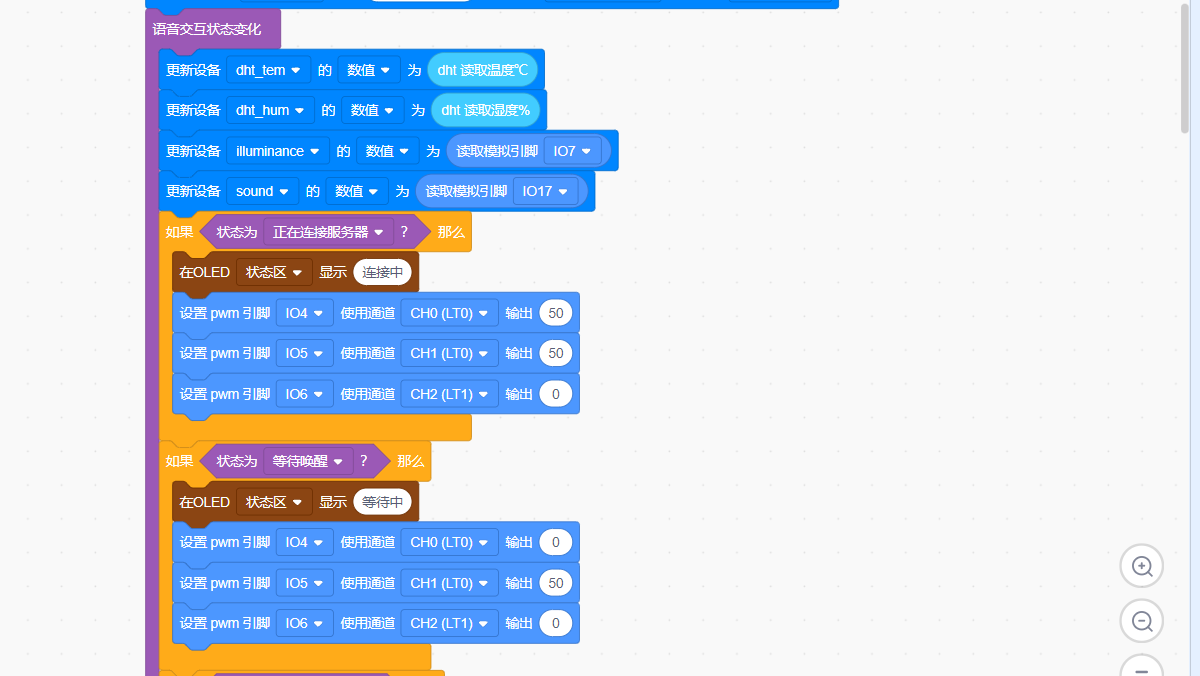

在语音交互中读取传感器数据、OLED显示和RGB指示灯

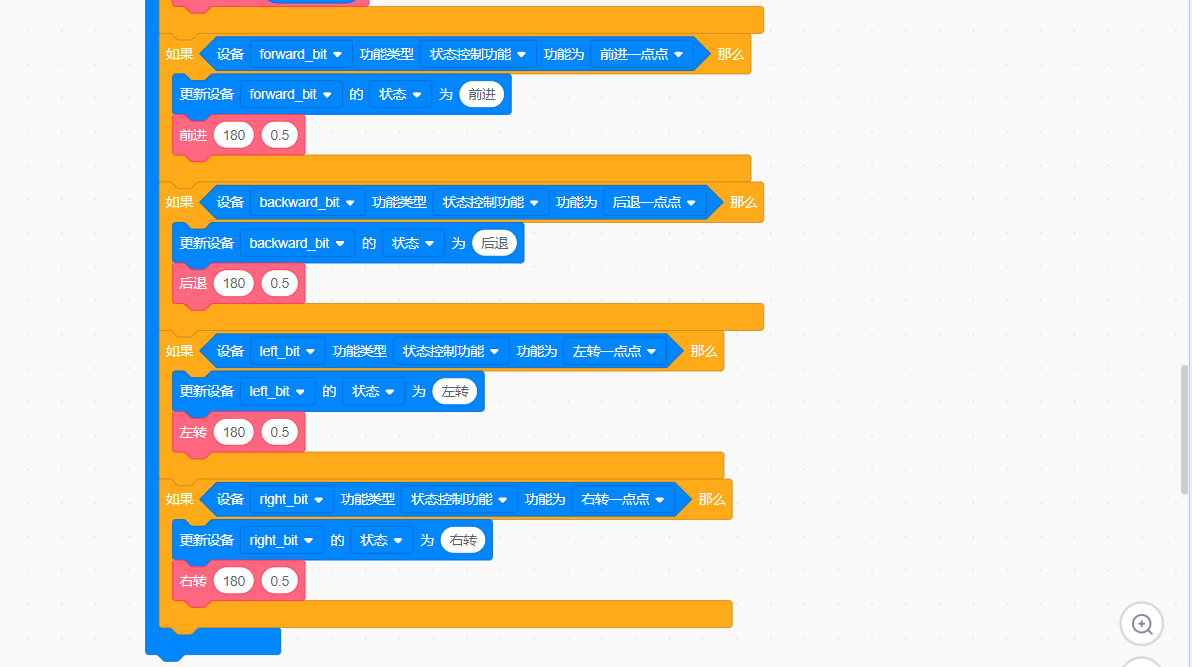

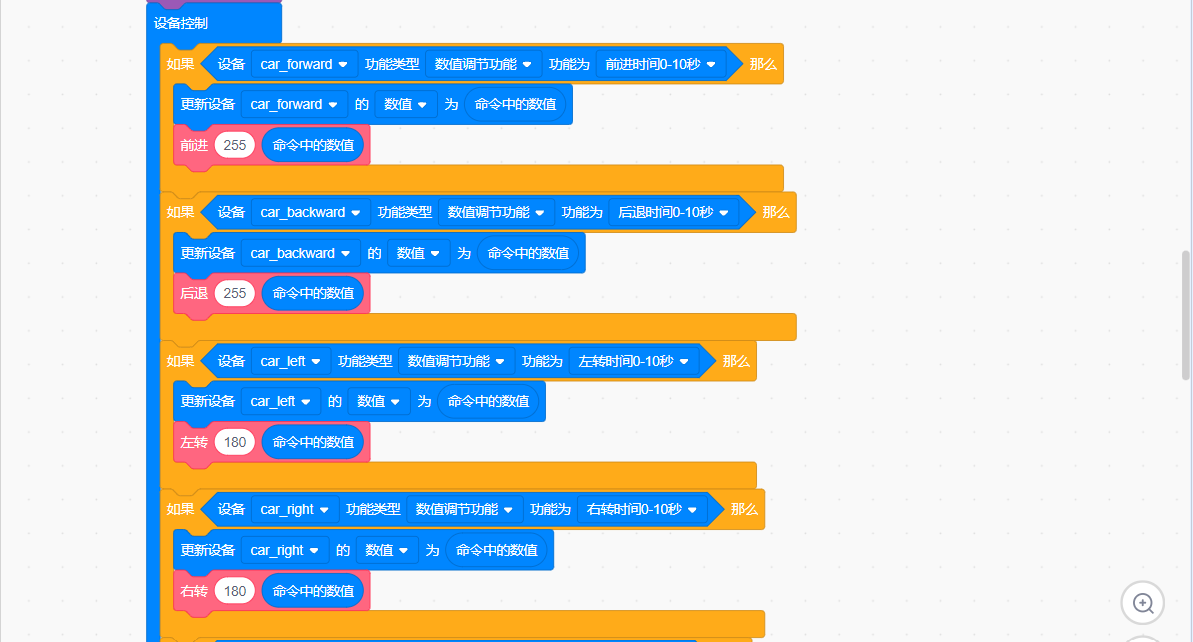

设备控制部分

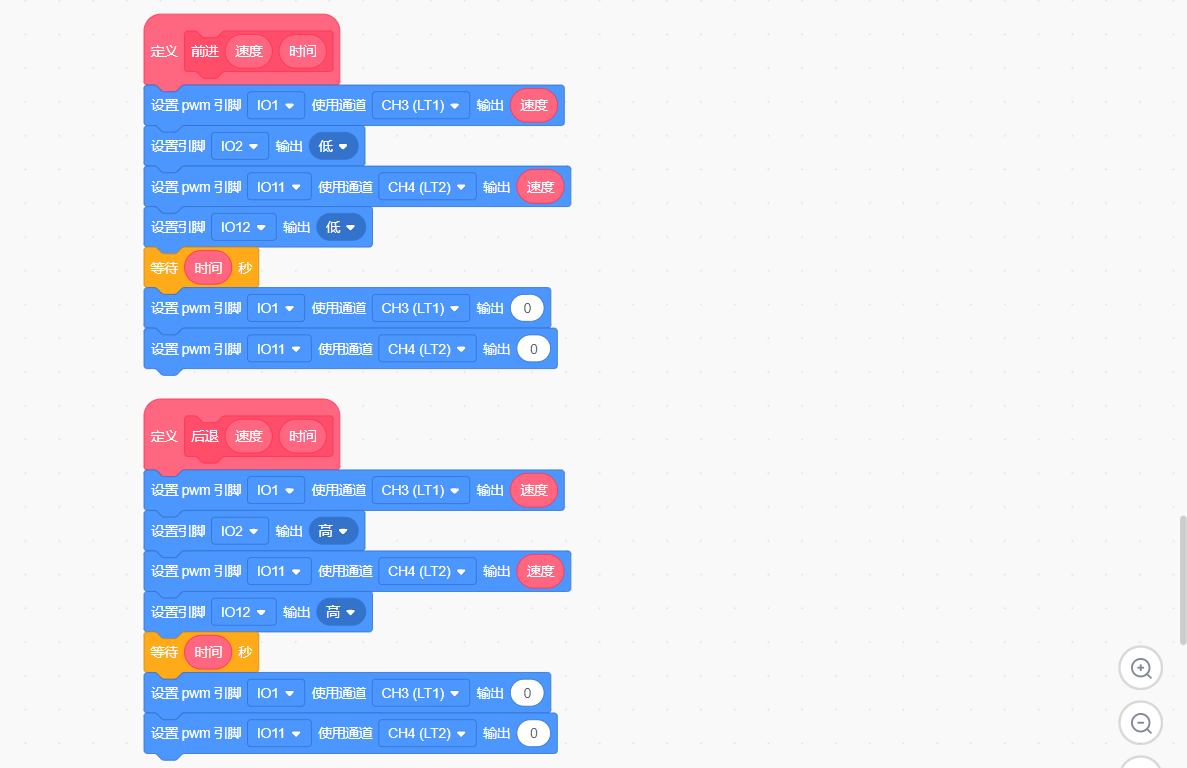

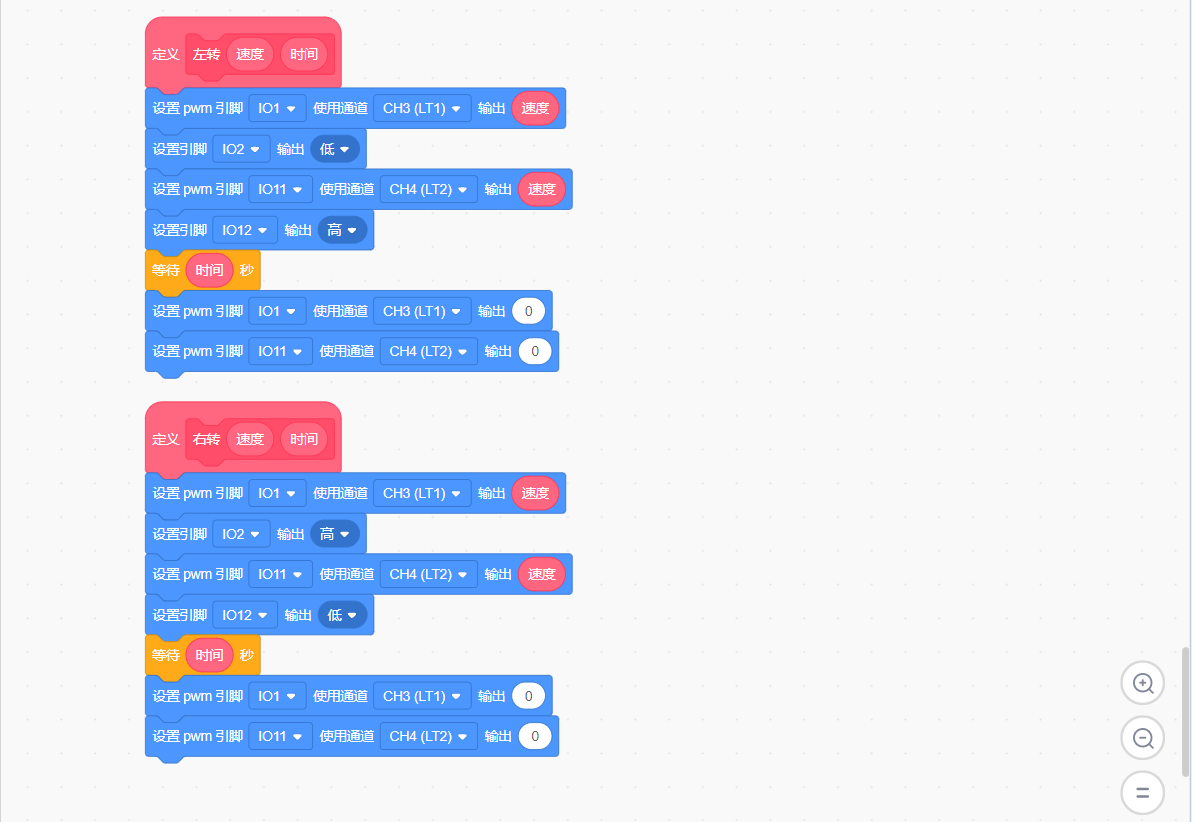

电机运动控制自定义积木


代码中修改IO48为IO45。




代码
//代码部分
#include <Arduino.h>
#include "RoCoAI.h"
#include "oleddisplay.h"
#include <dhtESP32-rmt.h>


  constexpr gpio_num_t kMicPinBclk = GPIO_NUM_42;
  constexpr gpio_num_t kMicPinWs = GPIO_NUM_40;
  constexpr gpio_num_t kMicPinDin = GPIO_NUM_41;
  constexpr gpio_num_t kSpeakerPinBclk = GPIO_NUM_47;
  constexpr gpio_num_t kSpeakerPinWs = GPIO_NUM_45;
  constexpr gpio_num_t kSpeakerPinDout = GPIO_NUM_21;
  constexpr gpio_num_t kTriggerPin = GPIO_NUM_0;
  const char* kWifiSsid ="CMCC-QuYY";
  const char* kWifiPassword ="qmsjyff2025";
  AiVoxCore* g_ai_vox = nullptr;


constexpr gpio_num_t kI2cPinSda = GPIO_NUM_8;
constexpr gpio_num_t kI2cPinScl = GPIO_NUM_9;


constexpr uint32_t kDisplayWidth = 128;
constexpr uint32_t kDisplayHeight = 64;
constexpr bool kDisplayMirrorX = true;
constexpr bool kDisplayMirrorY = true;
constexpr uint8_t kI2cAddress = 0x3C;

DHT dht(20, DHT11);
std::shared_ptr<ai_vox::iot::Entity> g_car_forward_entity;
std::shared_ptr<ai_vox::iot::Entity> g_car_backward_entity;
std::shared_ptr<ai_vox::iot::Entity> g_car_left_entity;
std::shared_ptr<ai_vox::iot::Entity> g_car_right_entity;
std::shared_ptr<ai_vox::iot::Entity> g_dht_tem_entity;
std::shared_ptr<ai_vox::iot::Entity> g_dht_hum_entity;
std::shared_ptr<ai_vox::iot::Entity> g_illuminance_entity;
std::shared_ptr<ai_vox::iot::Entity> g_sound_entity;
std::shared_ptr<ai_vox::iot::Entity> g_forward_bit_entity;
std::shared_ptr<ai_vox::iot::Entity> g_backward_bit_entity;
std::shared_ptr<ai_vox::iot::Entity> g_left_bit_entity;
std::shared_ptr<ai_vox::iot::Entity> g_right_bit_entity;
using ChatState = AiVoxCore::ChatState;
void handleStateChange(ChatState old_state, ChatState new_state) {
      g_dht_tem_entity->UpdateState("brightness", dht.readTemperature());
      g_dht_hum_entity->UpdateState("brightness", dht.readHumidity());
      g_illuminance_entity->UpdateState("brightness", analogRead(7));
      g_sound_entity->UpdateState("brightness", analogRead(17));
      if (new_state == ChatState::kConnecting) {
        OLEDDisplay::ShowStatus("连接中");
        ledcWrite(4, 50);
        ledcWrite(5, 50);
        ledcWrite(6, 0);
      }
      if (new_state == ChatState::kStandby) {
        OLEDDisplay::ShowStatus("等待中");
        ledcWrite(4, 0);
        ledcWrite(5, 50);
        ledcWrite(6, 0);
      }
      if (new_state == ChatState::kListening) {
        OLEDDisplay::ShowStatus("聆听中");
        ledcWrite(4, 50);
        ledcWrite(5, 0);
        ledcWrite(6, 50);
      }
      if (new_state == ChatState::kSpeaking) {
        OLEDDisplay::ShowStatus("说话中");
        ledcWrite(4, 0);
        ledcWrite(5, 0);
        ledcWrite(6, 50);
      }

    }
void handleChatMessage(const std::string& role, const std::string& content) {
      OLEDDisplay::SetChatMessage(content.c_str());

    }
void handleEmotion(const std::string& emotion) {
      OLEDDisplay::SetEmotion(emotion.c_str());

    }
void handleIotControl(const std::string& name,const std::string& function,const std::map<std::string, ai_vox::iot::Value>& params){
    if (name == "car_forward" && function == "前进时间0-10秒") {
    g_car_forward_entity->UpdateState("brightness", std::get<int64_t>(params.at("level")));
    _E5_89_8D_E8_BF_9B_N_N(255, std::get<int64_t>(params.at("level")));
    }
    if (name == "car_backward" && function == "后退时间0-10秒") {
    g_car_backward_entity->UpdateState("brightness", std::get<int64_t>(params.at("level")));
    _E5_90_8E_E9_80_80_N_N(255, std::get<int64_t>(params.at("level")));
    }
    if (name == "car_left" && function == "左转时间0-10秒") {
    g_car_left_entity->UpdateState("brightness", std::get<int64_t>(params.at("level")));
    _E5_B7_A6_E8_BD_AC_N_N(180, std::get<int64_t>(params.at("level")));
    }
    if (name == "car_right" && function == "右转时间0-10秒") {
    g_car_right_entity->UpdateState("brightness", std::get<int64_t>(params.at("level")));
    _E5_8F_B3_E8_BD_AC_N_N(180, std::get<int64_t>(params.at("level")));
    }
    if (name == "forward_bit" && function == "前进一点点") {
    g_forward_bit_entity->UpdateState("state", "前进");
    _E5_89_8D_E8_BF_9B_N_N(180, 0.5);
    }
    if (name == "backward_bit" && function == "后退一点点") {
    g_backward_bit_entity->UpdateState("state", "后退");
    _E5_90_8E_E9_80_80_N_N(180, 0.5);
    }
    if (name == "left_bit" && function == "左转一点点") {
    g_left_bit_entity->UpdateState("state", "左转");
    _E5_B7_A6_E8_BD_AC_N_N(180, 0.5);
    }
    if (name == "right_bit" && function == "右转一点点") {
    g_right_bit_entity->UpdateState("state", "右转");
    _E5_8F_B3_E8_BD_AC_N_N(180, 0.5);
    }
}

void _E5_89_8D_E8_BF_9B_N_N(float _E9_80_9F_E5_BA_A6, float _E6_97_B6_E9_97_B4) {
  ledcWrite(1, _E9_80_9F_E5_BA_A6);
  digitalWrite(2, LOW);
  ledcWrite(11, _E9_80_9F_E5_BA_A6);
  digitalWrite(12, LOW);
  delay(_E6_97_B6_E9_97_B4 * 1000);
  ledcWrite(1, 0);
  ledcWrite(11, 0);
}

void _E5_90_8E_E9_80_80_N_N(float _E9_80_9F_E5_BA_A6, float _E6_97_B6_E9_97_B4) {
  ledcWrite(1, _E9_80_9F_E5_BA_A6);
  digitalWrite(2, HIGH);
  ledcWrite(11, _E9_80_9F_E5_BA_A6);
  digitalWrite(12, HIGH);
  delay(_E6_97_B6_E9_97_B4 * 1000);
  ledcWrite(1, 0);
  ledcWrite(11, 0);
}

void _E5_B7_A6_E8_BD_AC_N_N(float _E9_80_9F_E5_BA_A6, float _E6_97_B6_E9_97_B4) {
  ledcWrite(1, _E9_80_9F_E5_BA_A6);
  digitalWrite(2, LOW);
  ledcWrite(11, _E9_80_9F_E5_BA_A6);
  digitalWrite(12, HIGH);
  delay(_E6_97_B6_E9_97_B4 * 1000);
  ledcWrite(1, 0);
  ledcWrite(11, 0);
}

void _E5_8F_B3_E8_BD_AC_N_N(float _E9_80_9F_E5_BA_A6, float _E6_97_B6_E9_97_B4) {
  ledcWrite(1, _E9_80_9F_E5_BA_A6);
  digitalWrite(2, HIGH);
  ledcWrite(11, _E9_80_9F_E5_BA_A6);
  digitalWrite(12, LOW);
  delay(_E6_97_B6_E9_97_B4 * 1000);
  ledcWrite(1, 0);
  ledcWrite(11, 0);
}

void setupIotDevices() {
  std::vector<ai_vox::iot::Property> car_forward_props{
          {"brightness", "小车前进运动时间", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> car_forward_funcs{
          {"前进时间0-10秒", "前进时间0-10秒", {
              {"level", "前进时间0-10秒", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_car_forward_entity = std::make_shared<ai_vox::iot::Entity>(
              "car_forward",
              "car_forward设备属性",
              car_forward_props,
              car_forward_funcs
          );

          g_car_forward_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_car_forward_entity);

  std::vector<ai_vox::iot::Property> car_backward_props{
          {"brightness", "小车后退运动时间", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> car_backward_funcs{
          {"后退时间0-10秒", "后退时间0-10秒", {
              {"level", "后退时间0-10秒", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_car_backward_entity = std::make_shared<ai_vox::iot::Entity>(
              "car_backward",
              "car_backward设备属性",
              car_backward_props,
              car_backward_funcs
          );

          g_car_backward_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_car_backward_entity);

  std::vector<ai_vox::iot::Property> car_left_props{
          {"brightness", "小车左转运动时间", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> car_left_funcs{
          {"左转时间0-10秒", "左转时间0-10秒", {
              {"level", "左转时间0-10秒", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_car_left_entity = std::make_shared<ai_vox::iot::Entity>(
              "car_left",
              "car_left设备属性",
              car_left_props,
              car_left_funcs
          );

          g_car_left_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_car_left_entity);

  std::vector<ai_vox::iot::Property> car_right_props{
          {"brightness", "小车右转运动时间", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> car_right_funcs{
          {"右转时间0-10秒", "右转时间0-10秒", {
              {"level", "右转时间0-10秒", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_car_right_entity = std::make_shared<ai_vox::iot::Entity>(
              "car_right",
              "car_right设备属性",
              car_right_props,
              car_right_funcs
          );

          g_car_right_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_car_right_entity);

  std::vector<ai_vox::iot::Property> dht_tem_props{
          {"brightness", "DTH传感器温度", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> dht_tem_funcs{
          {"读取传感器温度值（单位：摄氏度）", "读取传感器温度值（单位：摄氏度）", {
              {"level", "读取传感器温度值（单位：摄氏度）", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_dht_tem_entity = std::make_shared<ai_vox::iot::Entity>(
              "dht_tem",
              "dht_tem设备属性",
              dht_tem_props,
              dht_tem_funcs
          );

          g_dht_tem_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_dht_tem_entity);

  std::vector<ai_vox::iot::Property> dht_hum_props{
          {"brightness", "DTH传感器湿度", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> dht_hum_funcs{
          {"读取湿度值", "读取湿度值", {
              {"level", "读取湿度值", ai_vox::iot::ValueType::kNumber}
          }},
          {"读取传感器湿度值（单位：%）", "读取传感器湿度值（单位：%）", {
              {"level", "读取传感器湿度值（单位：%）", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_dht_hum_entity = std::make_shared<ai_vox::iot::Entity>(
              "dht_hum",
              "dht_hum设备属性",
              dht_hum_props,
              dht_hum_funcs
          );

          g_dht_hum_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_dht_hum_entity);

  std::vector<ai_vox::iot::Property> illuminance_props{
          {"brightness", "环境光线传感器数据", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> illuminance_funcs{
          {"读取环境光线传感器（单位：勒克斯）", "读取环境光线传感器（单位：勒克斯）", {
              {"level", "读取环境光线传感器（单位：勒克斯）", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_illuminance_entity = std::make_shared<ai_vox::iot::Entity>(
              "illuminance",
              "illuminance设备属性",
              illuminance_props,
              illuminance_funcs
          );

          g_illuminance_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_illuminance_entity);

  std::vector<ai_vox::iot::Property> sound_props{
          {"brightness", "环境音量传感器数据", ai_vox::iot::ValueType::kNumber}
          };

        std::vector<ai_vox::iot::Function> sound_funcs{
          {"读取环境模拟音量（范围0-4095，没有单位））", "读取环境模拟音量（范围0-4095，没有单位））", {
              {"level", "读取环境模拟音量（范围0-4095，没有单位））", ai_vox::iot::ValueType::kNumber}
          }}
          };

        g_sound_entity = std::make_shared<ai_vox::iot::Entity>(
              "sound",
              "sound设备属性",
              sound_props,
              sound_funcs
          );

          g_sound_entity->UpdateState("brightness", 0);
          g_ai_vox->registerIotDevice(g_sound_entity);

  std::vector<ai_vox::iot::Property> forward_bit_props{
          {"state", "小车前进一点点", ai_vox::iot::ValueType::kString}
          };

        std::vector<ai_vox::iot::Function> forward_bit_funcs{
          {"前进一点点", "前进一点点", {}}
          };

        g_forward_bit_entity = std::make_shared<ai_vox::iot::Entity>(
              "forward_bit",
              "forward_bit设备属性",
              forward_bit_props,
              forward_bit_funcs
          );
          g_forward_bit_entity->UpdateState("state", "close");

          g_ai_vox->registerIotDevice(g_forward_bit_entity);

  std::vector<ai_vox::iot::Property> backward_bit_props{
          {"state", "小车后退一点点", ai_vox::iot::ValueType::kString}
          };

        std::vector<ai_vox::iot::Function> backward_bit_funcs{
          {"后退一点点", "后退一点点", {}}
          };

        g_backward_bit_entity = std::make_shared<ai_vox::iot::Entity>(
              "backward_bit",
              "backward_bit设备属性",
              backward_bit_props,
              backward_bit_funcs
          );
          g_backward_bit_entity->UpdateState("state", "close");

          g_ai_vox->registerIotDevice(g_backward_bit_entity);

  std::vector<ai_vox::iot::Property> left_bit_props{
          {"state", "小车左转一点点", ai_vox::iot::ValueType::kString}
          };

        std::vector<ai_vox::iot::Function> left_bit_funcs{
          {"左转一点点", "左转一点点", {}}
          };

        g_left_bit_entity = std::make_shared<ai_vox::iot::Entity>(
              "left_bit",
              "left_bit设备属性",
              left_bit_props,
              left_bit_funcs
          );
          g_left_bit_entity->UpdateState("state", "close");

          g_ai_vox->registerIotDevice(g_left_bit_entity);

  std::vector<ai_vox::iot::Property> right_bit_props{
          {"state", "小车右转一点点", ai_vox::iot::ValueType::kString}
          };

        std::vector<ai_vox::iot::Function> right_bit_funcs{
          {"右转一点点", "右转一点点", {}}
          };

        g_right_bit_entity = std::make_shared<ai_vox::iot::Entity>(
              "right_bit",
              "right_bit设备属性",
              right_bit_props,
              right_bit_funcs
          );
          g_right_bit_entity->UpdateState("state", "close");

          g_ai_vox->registerIotDevice(g_right_bit_entity);
}

void setup() {
  AiVoxCore::AudioConfig audio_config{kMicPinBclk, kMicPinWs, kMicPinDin,kSpeakerPinBclk, kSpeakerPinWs, kSpeakerPinDout};
  g_ai_vox = new AiVoxCore(audio_config, kTriggerPin, kWifiSsid, kWifiPassword,true);
  OLEDDisplay::Init(kI2cPinSda, kI2cPinScl, kDisplayWidth, kDisplayHeight, kDisplayMirrorX, kDisplayMirrorY, kI2cAddress);
  ledcAttachChannel(4, 5000, 8, 0);
  ledcAttachChannel(5, 5000, 8, 1);
  ledcAttachChannel(6, 5000, 8, 2);
  g_ai_vox->onStateChange(handleStateChange);
  g_ai_vox->onChatMessage(handleChatMessage);
  g_ai_vox->onEmotion(handleEmotion);
  g_ai_vox->onIotControl(handleIotControl);
  ledcAttachChannel(1, 5000, 8, 3);
  pinMode(2, OUTPUT);
  ledcAttachChannel(11, 5000, 8, 4);
  pinMode(12, OUTPUT);
  setupIotDevices();
  g_ai_vox->begin();
}

void loop() {
  repeat();
}

void repeat() {
  g_ai_vox->update();
}

【小结】

读取传感器数据，数字和模拟传感器都可以的，需要库的传感器当前有DHT11/22。

在下一期，将会体验编程狮1.3.0的新增功能。

Makelog作者原创文章，未经授权禁止转载。
#Arduino#DFRobot#人工智能#物联网#环境

评论

user-avatar
rzyzzxw
rzyzzxw2018.06.05
icon
创造力52047
icon
项目文章193

Micro:bit Mind+ 掌控板

icon 他的勋章
    展开更多

    你可能感兴趣的
