本文介绍了 DFRobot FireBeetle 2 ESP32 P4 开发套件通过 API 接入 AI 模型实现与智能体对话的项目设计。
项目介绍
一般流程：流程图、代码、对话演示；
更换 AI 模型：结合小智开发者平台提供的云雾 API 解决方案，实现 AI 模型的快速切换与测试；
项目方案
包括流程图、工程代码、效果演示等。

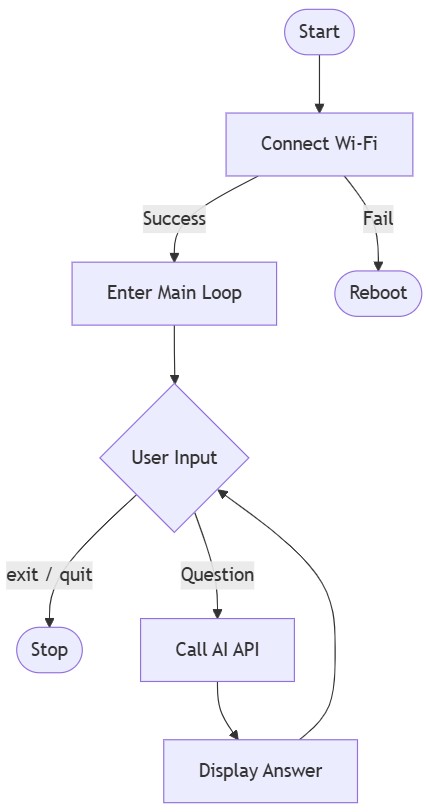

流程图
工程代码
运行 Thonny IDE 软件，配置解释器和设备端口，新建文件并添加如下代码
import network
import time
import urequests
import ujson
import micropython
import select
import sys
from machine import reset
# ====== 配置部分 ======
SSID = 'xxx'
PASSWORD = 'xxx'
API_URL = "https://api.siliconflow.cn/v1/chat/completions"
API_KEY = "sk-fzvjpoldzvxxxvdrvrjiadercddliahbfyohdrnfnnaedjmt" # 替换为实际API密钥
# ====== 系统状态 ======
class SystemStatus:
WIFI_CONNECTED = 1
WIFI_DISCONNECTED = 0
# ====== WiFi连接 ======
def connect_wifi(max_retries=3):
wlan = network.WLAN(network.STA_IF)
wlan.active(True)
retry_count = 0
while retry_count < max_retries:
if not wlan.isconnected():
print(f"尝试连接WiFi {SSID}... (尝试 {retry_count + 1}/{max_retries})")
wlan.connect(SSID, PASSWORD)
timeout = 20
while not wlan.isconnected() and timeout > 0:
print(".", end="")
time.sleep(1)
timeout -= 1
if wlan.isconnected():
print("\nWiFi连接成功!")
print("IP地址:", wlan.ifconfig()[0])
return SystemStatus.WIFI_CONNECTED
retry_count += 1
if retry_count < max_retries:
print("\n连接失败，5秒后重试...")
time.sleep(5)
print("\nWiFi连接失败，请检查配置后重启设备")
return SystemStatus.WIFI_DISCONNECTED
# ====== API请求处理 ======
def chat_with_ai(prompt):
headers = {
"Authorization": f"Bearer {API_KEY}",
"Content-Type": "application/json"
}
payload = {
"model": "Qwen/Qwen3-8B",
"messages": [
{"role": "system", "content": "你是我的AI助手小智，你必须用中文回答且字数不超过85个"},
{"role": "user", "content": prompt}
],
}
try:
response = urequests.post(
API_URL,
headers=headers,
data=ujson.dumps(payload).encode('utf-8'),
timeout=10
)
if response.status_code == 200:
json_resp = response.json()
return json_resp['choices'][0]['message']['content']
else:
return f"错误: API返回状态码 {response.status_code}"
except Exception as e:
return f"请求出错: {str(e)}"
finally:
if 'response' in locals():
response.close()
# ====== 主循环 ======
def main_loop():
print("\n=== 小智AI助手已就绪 ===")
print("输入您的问题后按回车，输入'退出'结束对话\n")
micropython.kbd_intr(-1) # 禁用键盘中断
while True:
# 检查WiFi连接
wlan = network.WLAN(network.STA_IF)
if not wlan.isconnected():
print("\nWiFi连接断开，尝试重新连接...")
if connect_wifi() == SystemStatus.WIFI_DISCONNECTED:
print("无法恢复WiFi连接，系统将在5秒后重启...")
time.sleep(5)
reset()
# 检查用户输入
if sys.stdin in select.select([sys.stdin], [], [], 0)[0]:
user_input = sys.stdin.readline().strip()
if user_input.lower() in ['退出', 'exit', 'quit']:
print("\n对话结束，再见!")
break
if user_input:
print("\n您:", user_input)
print("小智正在思考...")
start_time = time.time()
response = chat_with_ai(user_input)
response_time = time.time() - start_time
print(f"小智 (响应时间: {response_time:.1f}s):", response)
print("\n继续输入或输入'退出'结束对话:")
# ====== 系统启动 ======
print("=== 系统启动中 ===")
if connect_wifi() == SystemStatus.WIFI_CONNECTED:
try:
main_loop()
except KeyboardInterrupt:
print("\n用户中断，系统退出")
except Exception as e:
print(f"系统错误: {e}, 即将重启...")
time.sleep(3)
reset()
else:
print("系统将在5秒后重启...")
time.sleep(5)
reset()
修改配置信息，包括 WiFi 名称和密码、API Key、URL、模型名称等；
保存代码，运行程序；
输入问题并回车，实现对话；
输入 exit 退出程序。
效果演示
通过对话测试 AI 模型的接入效果。

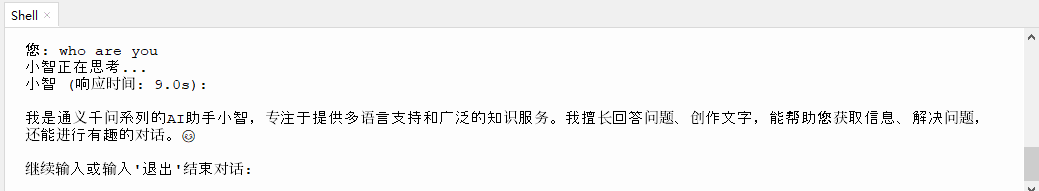

你是谁

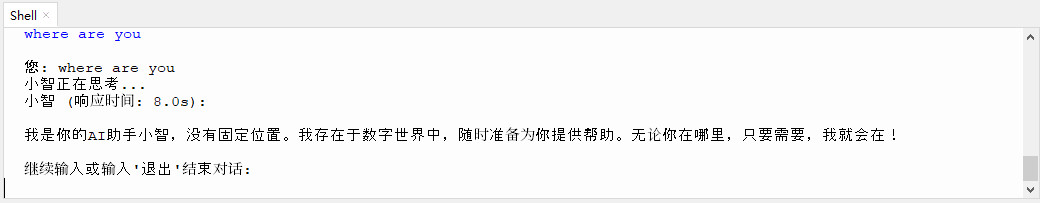

你在哪

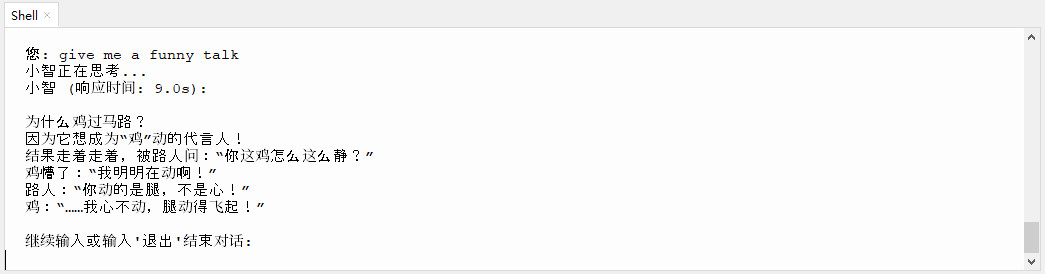

讲个笑话

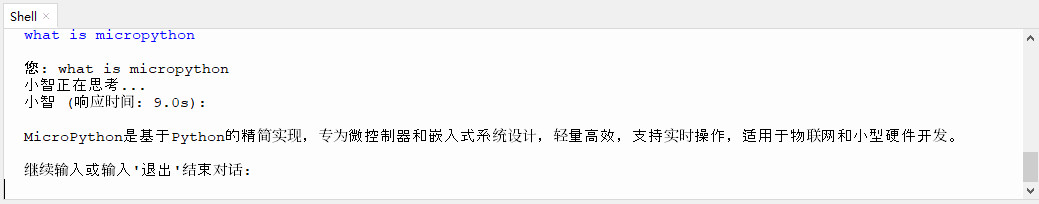

micropython

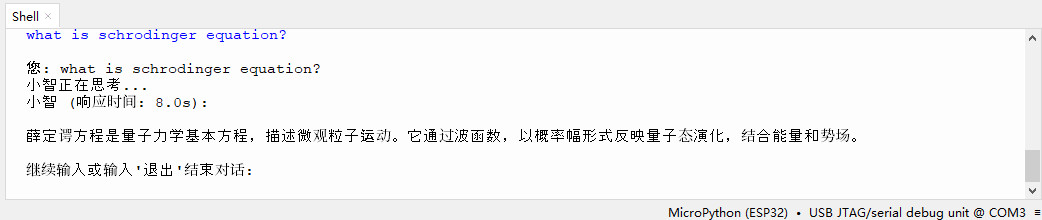

薛定谔方程

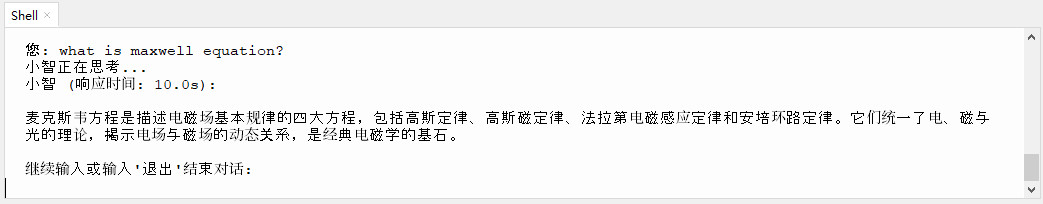

麦克斯韦方程

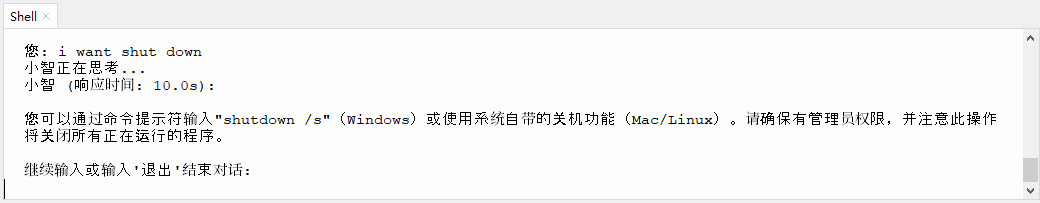

关机
更换模型
进入 小智 API 首页 的文档页面；
进入 发出请求 标签页，获取聊天智能体 URL https://aifuture.pw/v1/chat/completions ；
进入 中转站基本介绍 - API 快速开始指南 页面；
根据教程和提示完成 注册 ；

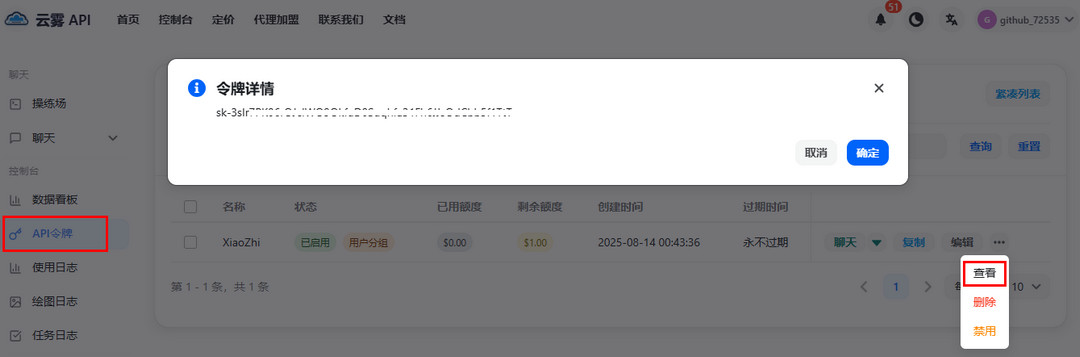

进入 API令牌 标签页，选择 添加令牌 ；
点击查看，复制 API Key .
代码
# ------------------------------------------------------------------------------
# MicroPython AI Chat Agent
# ------------------------------------------------------------------------------
import network
import time
import urequests
import ujson
import micropython
import select
import sys
from machine import reset
# ------------------------------------------------------------------------------
# CONFIGURATION
# ------------------------------------------------------------------------------
WIFI_SSID = "xxx"
WIFI_PASSWORD = "xxx"
API_ENDPOINT = "https://yunwu.ai/v1/chat/completions"
API_KEY = "sk-3sIrxxK0xxOJcIxx9Okfxx0xxqhfa31xxxxJsOdCxx5f1Txx"
# ------------------------------------------------------------------------------
# CONSTANTS
# ------------------------------------------------------------------------------
class SystemStatus:
WIFI_CONNECTED = 1
WIFI_DISCONNECTED = 0
# ------------------------------------------------------------------------------
# Wi-Fi CONNECTION
# ------------------------------------------------------------------------------
def connect_wifi(max_retries: int = 3) -> int:
sta = network.WLAN(network.STA_IF)
sta.active(True)
for attempt in range(1, max_retries + 1):
if not sta.isconnected():
print(f"Connecting to Wi-Fi '{WIFI_SSID}'... (attempt {attempt}/{max_retries})")
sta.connect(WIFI_SSID, WIFI_PASSWORD)
timeout = 20
while not sta.isconnected() and timeout:
print(".", end="")
time.sleep(1)
timeout -= 1
if sta.isconnected():
print("\nWi-Fi connected successfully!")
print("IP address:", sta.ifconfig()[0])
return SystemStatus.WIFI_CONNECTED
if attempt < max_retries:
print("\nConnection failed, retrying in 5 s...")
time.sleep(5)
print("\nUnable to connect to Wi-Fi. Please check credentials.")
return SystemStatus.WIFI_DISCONNECTED
# ------------------------------------------------------------------------------
# AI CHAT HELPERS
# ------------------------------------------------------------------------------
def chat_with_ai(prompt: str) -> str:
headers = {
"Authorization": f"Bearer {API_KEY}",
"Content-Type": "application/json"
}
payload = ujson.dumps({
"model": "gpt-3.5-turbo",
"messages": [{"role": "user", "content": prompt}],
"temperature": 0.7,
"max_tokens": 200
})
try:
resp = urequests.post(
API_ENDPOINT,
headers=headers,
data=payload.encode("utf-8"),
timeout=15
)
if resp.status_code == 200:
data = resp.json()
return data["choices"][0]["message"]["content"]
else:
return f"API error: HTTP {resp.status_code}\n{resp.text}"
except Exception as e:
return f"Request failed: {e}"
finally:
try:
resp.close()
except:
pass
# ------------------------------------------------------------------------------
# MAIN LOOP
# ------------------------------------------------------------------------------
def main_loop():
print("\n=== AI Agent Ready ===")
print("Type your question and press
micropython.kbd_intr(-1) # disable Ctrl-C
while True:
# Re-establish Wi-Fi if lost
sta = network.WLAN(network.STA_IF)
if not sta.isconnected():
print("\nWi-Fi lost, attempting to reconnect...")
if connect_wifi() == SystemStatus.WIFI_DISCONNECTED:
print("Cannot restore Wi-Fi. Rebooting in 5 s...")
time.sleep(5)
reset()
# Non-blocking keyboard check
if sys.stdin in select.select([sys.stdin], [], [], 0)[0]:
user_input = sys.stdin.readline().strip()
if user_input.lower() in {"exit", "quit"}:
print("\nGood-bye!")
break
if user_input:
print("\nYou:", user_input)
print("Thinking...")
t0 = time.time()
reply = chat_with_ai(user_input)
elapsed = time.time() - t0
print(f"AI ({elapsed:.1f} s): {reply}")
print("\nAsk another question or type 'exit' to leave.")
# ------------------------------------------------------------------------------
# ENTRY POINT
# ------------------------------------------------------------------------------
print("=== Booting System ===")
if connect_wifi() == SystemStatus.WIFI_CONNECTED:
try:
main_loop()
except KeyboardInterrupt:
print("\nInterrupted by user — shutting down")
except Exception as e:
print(f"Fatal error: {e} — rebooting in 3 s...")
time.sleep(3)
reset()
else:
print("Boot failed — rebooting in 5 s...")
time.sleep(5)
reset()
修改配置信息，包括 WiFi 名称和密码、API Key、URL、模型名称等；
保存代码，运行程序；
输入问题并回车，实现对话；
输入 exit 退出程序。
测试效果

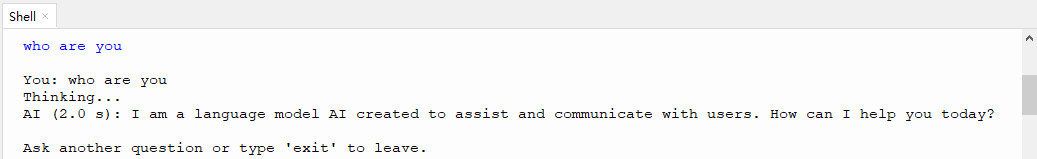

who are you
feeling

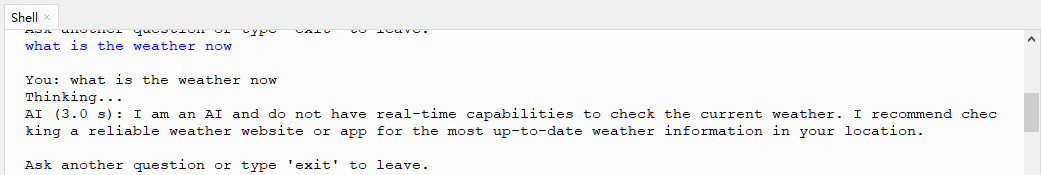

weather
总结
本文介绍了 DFRobot FireBeetle 2 ESP32 P4 开发套件通过 API 接入 AI 模型，实现与 AI 智能体对话的项目设计。包括项目介绍、项目方案、流程图、工程代码、效果演示、模型切换等，为该开发板在人工智能和边缘 AI 领域的应用提供了参考。
