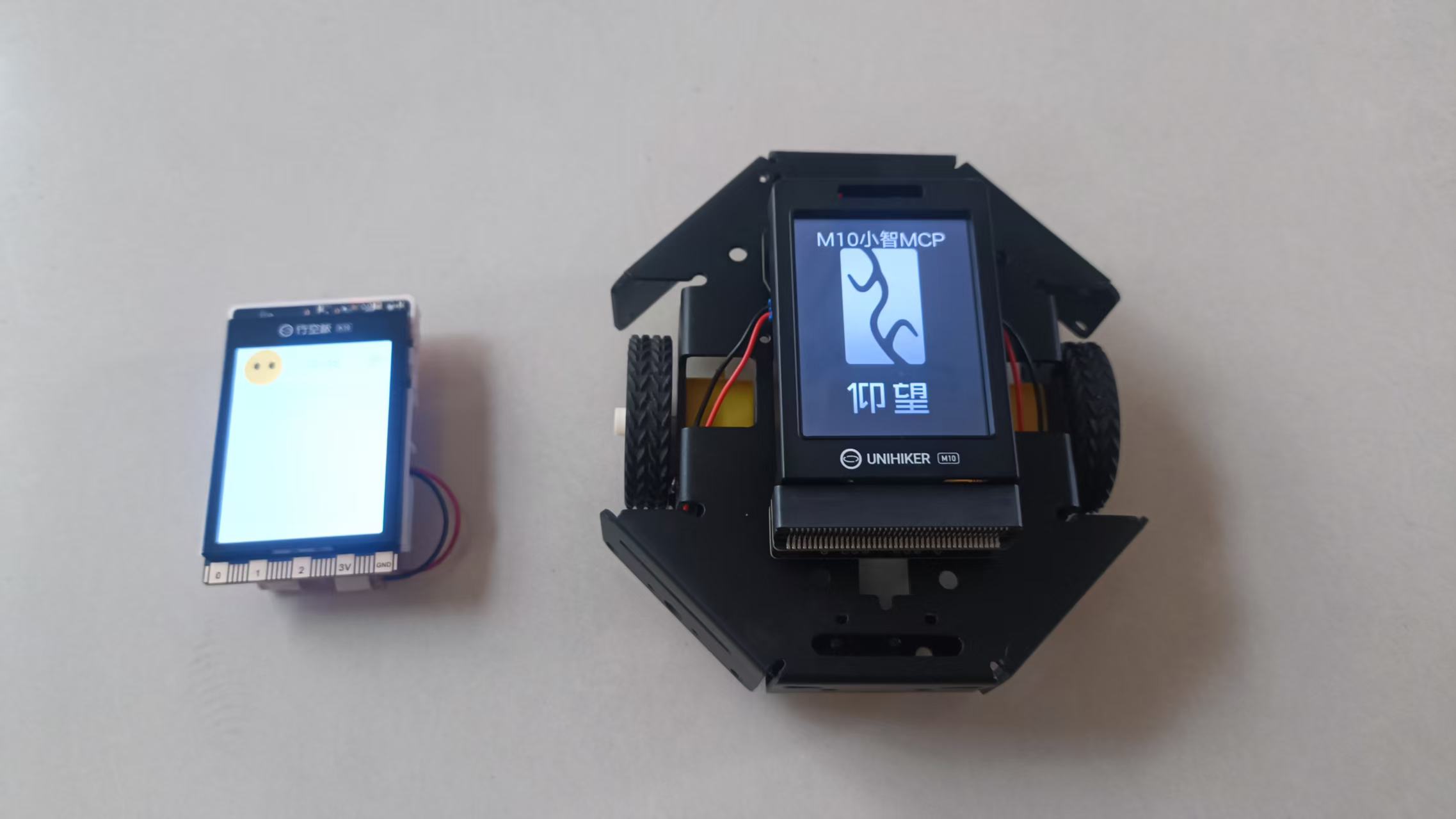

双电机组成的小智运载平台（MCP） 简单

"""
小智运动控制服务器
提供前进、后退、左转、右转、停止等基本运动控制功能
"""

from mcp.server.fastmcp import FastMCP
import sys
import logging

# 设置日志记录器
logger = logging.getLogger('MoveServer')

# 修复Windows控制台UTF-8编码问题
if sys.platform == 'win32':
    sys.stderr.reconfigure(encoding='utf-8')
    sys.stdout.reconfigure(encoding='utf-8')

# 创建MCP服务器实例
mcp = FastMCP("MoveServer")

@mcp.tool()
def forward() -> dict:
    """
    控制小智前进

    该函数将设置P5和P6引脚为低电平，P8和P16引脚为100%占空比的PWM输出，使小智前进。

    返回:
        dict: 包含操作结果的字典
    """
    result = "小智前进"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def back() -> dict:
    """
    控制小智后退

    该函数将设置P5和P6引脚为高电平，P8和P16引脚为100%占空比的PWM输出，使小智后退。

    返回:
        dict: 包含操作结果的字典
    """
    result = "小智后退"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def left() -> dict:
    """
    控制小智左转

    该函数将设置P5引脚为高电平和P6引脚为低电平，P8和P16引脚为100%占空比的PWM输出，使小智左转。

    返回:
        dict: 包含操作结果的字典
    """
    result = "小智左转"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def right() -> dict:
    """
    控制小智右转

    该函数将设置P5引脚为低电平和P6引脚为高电平，P8和P16引脚为100%占空比的PWM输出，使小智右转。

    返回:
        dict: 包含操作结果的字典
    """
    result = "小智右转"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def stop() -> dict:
    """
    控制小智停止

    该函数将设置P8和P16引脚的PWM输出为0，使小智停止。

    返回:
        dict: 包含操作结果的字典
    """
    result = "小智停止"
    logger.info(result)
    return {"success": True, "result": result}

# 启动服务器
if __name__ == "__main__":
    mcp.run(transport="stdio")

# -*- coding: UTF-8 -*-
"""
此脚本用于连接MCP服务器，并将输入输出通过WebSocket端点传输。
版本: 0.1.0

使用方法:
export MCP_ENDPOINT=
python mcp_pipe.py
"""

from unihiker import GUI
import asyncio
import websockets
import subprocess
import logging
import os
import signal
import sys
import random
import json
from pinpong.board import Board, Pin

# 初始化开发板
Board().begin()
# 创建GUI对象
u_gui = GUI()
# 初始化引脚
p_p5_out = Pin(Pin.P5, Pin.OUT)
p_p8_pwm = Pin(Pin.P8, Pin.PWM)
p_p6_out = Pin(Pin.P6, Pin.OUT)
p_p16_pwm = Pin(Pin.P16, Pin.PWM)

# 绘制UI界面
u_gui.draw_image(image="back.png", x=0, y=0)
u_gui.draw_text(text="M10小智MCP", x=30, y=10, font_size=20, color="#FFFFFF")

# 配置日志记录
logging.basicConfig(
    level=logging.INFO,
    format='%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
logger = logging.getLogger('MCP_PIPE')

# 重连设置
INITIAL_BACKOFF = 1  # 初始重连等待时间(秒)
MAX_BACKOFF = 600    # 最大重连等待时间(秒)
reconnect_attempt = 0  # 重连尝试次数
backoff = INITIAL_BACKOFF  # 当前重连等待时间

async def connect_with_retry(uri):
    """带重试机制的WebSocket连接"""
    global reconnect_attempt, backoff
    while True:  # 无限重连
        try:
            if reconnect_attempt > 0:
                # 添加随机抖动避免同时重连
                wait_time = backoff * (1 + random.random() * 0.1)
                logger.info(f"等待 {wait_time:.2f} 秒后尝试第 {reconnect_attempt} 次重连...")
                await asyncio.sleep(wait_time)

            # 尝试连接服务器
            await connect_to_server(uri)

        except Exception as e:
            reconnect_attempt += 1
            logger.warning(f"连接关闭 (尝试次数: {reconnect_attempt}): {e}")
            # 指数退避算法计算下次等待时间
            backoff = min(backoff * 2, MAX_BACKOFF)

async def connect_to_server(uri):
    """连接到WebSocket服务器并与move.py进程建立双向通信"""
    global reconnect_attempt, backoff
    try:
        logger.info(f"正在连接WebSocket服务器...")
        async with websockets.connect(uri) as websocket:
            logger.info(f"成功连接到WebSocket服务器")

            # 重置重连计数器
            reconnect_attempt = 0
            backoff = INITIAL_BACKOFF

            # 启动move.py进程
            process = subprocess.Popen(
                ['python', 'move.py'],
                stdin=subprocess.PIPE,
                stdout=subprocess.PIPE,
                stderr=subprocess.PIPE,
                encoding='utf-8',
                text=True  # 文本模式
            )
            logger.info(f"已启动 move.py 进程")

            # 创建并行任务：处理WebSocket和进程间的通信
            await asyncio.gather(
                pipe_websocket_to_process(websocket, process),
                pipe_process_to_websocket(process, websocket),
                pipe_process_stderr_to_terminal(process)
            )
    except websockets.exceptions.ConnectionClosed as e:
        logger.error(f"WebSocket连接关闭: {e}")
        raise  # 触发重连
    except Exception as e:
        logger.error(f"连接错误: {e}")
        raise
    finally:
        # 确保子进程正确终止
        if 'process' in locals():
            logger.info(f"终止 move.py 进程")
            try:
                process.terminate()
                process.wait(timeout=5)
            except subprocess.TimeoutExpired:
                process.kill()
            logger.info(f"move.py 进程已终止")

async def pipe_websocket_to_process(websocket, process):
    """从WebSocket读取数据并写入进程stdin"""
    try:
        while True:
            # 从WebSocket读取消息
            message = await websocket.recv()
            logger.debug(f"<< 收到消息: {message[:120]}...")

            # 写入进程stdin(文本模式)
            if isinstance(message, bytes):
                message = message.decode('utf-8')
            process.stdin.write(message + '\n')
            process.stdin.flush()
    except Exception as e:
        logger.error(f"WebSocket到进程管道错误: {e}")
        raise
    finally:
        # 关闭进程stdin
        if not process.stdin.closed:
            process.stdin.close()

async def pipe_process_to_websocket(process, websocket):
    """从进程stdout读取数据并发送到WebSocket"""
    try:
        while True:
            # 从进程stdout读取数据
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stdout.readline
            )

            if not data:  # 无数据表示进程可能已结束
                logger.info("进程已停止输出")
                break

            # 发送数据到WebSocket
            logger.debug(f">> 发送数据: {data[:120]}...")

            try:
                # 解析JSON数据
                json_data = json.loads(data)
                command_id = json_data.get('id', 0)

                # 处理有效命令
                if command_id > 1 and json_data.get('result', {}):
                    content = json_data['result']['content'][0]['text']
                    command_data = json.loads(content)

                    if command_data['success']:
                        result_text = command_data['result']
                        logger.info(f"收到命令: {result_text}")

                        # 根据命令文本执行相应动作
                        if "前进" in result_text:
                            logger.info("执行前进命令")
                            p_p5_out.write_digital(0)
                            p_p8_pwm.write_analog(1023)
                            p_p6_out.write_digital(0)
                            p_p16_pwm.write_analog(1023)
                        elif "后退" in result_text:
                            logger.info("执行后退命令")
                            p_p5_out.write_digital(1)
                            p_p8_pwm.write_analog(1023)
                            p_p6_out.write_digital(1)
                            p_p16_pwm.write_analog(1023)
                        elif "左转" in result_text:
                            logger.info("执行左转命令")
                            p_p5_out.write_digital(1)
                            p_p8_pwm.write_analog(1023)
                            p_p6_out.write_digital(0)
                            p_p16_pwm.write_analog(1023)
                        elif "右转" in result_text:
                            logger.info("执行右转命令")
                            p_p5_out.write_digital(0)
                            p_p8_pwm.write_analog(1023)
                            p_p6_out.write_digital(1)
                            p_p16_pwm.write_analog(1023)
                        elif "停止" in result_text:
                            logger.info("执行停止命令")
                            p_p8_pwm.write_analog(0)
                            p_p16_pwm.write_analog(0)
            except json.JSONDecodeError as e:
                logger.error(f"JSON解析错误: {e}")

            # 发送数据到WebSocket
            await websocket.send(data)
    except Exception as e:
        logger.error(f"进程到WebSocket管道错误: {e}")
        raise

async def pipe_process_stderr_to_terminal(process):
    """从进程stderr读取数据并打印到终端"""
    try:
        while True:
            # 从进程stderr读取数据
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stderr.readline
            )

            if not data:  # 无数据表示进程可能已结束
                logger.info("进程已停止stderr输出")
                break

            # 打印stderr数据到终端
            sys.stderr.write(data)
            sys.stderr.flush()
    except Exception as e:
        logger.error(f"进程stderr管道错误: {e}")
        raise

def signal_handler(sig, frame):
    """处理中断信号"""
    logger.info("收到中断信号，正在关闭...")
    # 停止所有电机
    p_p8_pwm.write_analog(0)
    p_p16_pwm.write_analog(0)
    sys.exit(0)

if __name__ == "__main__":
    # 注册信号处理器
    signal.signal(signal.SIGINT, signal_handler)

    # 设置WebSocket端点

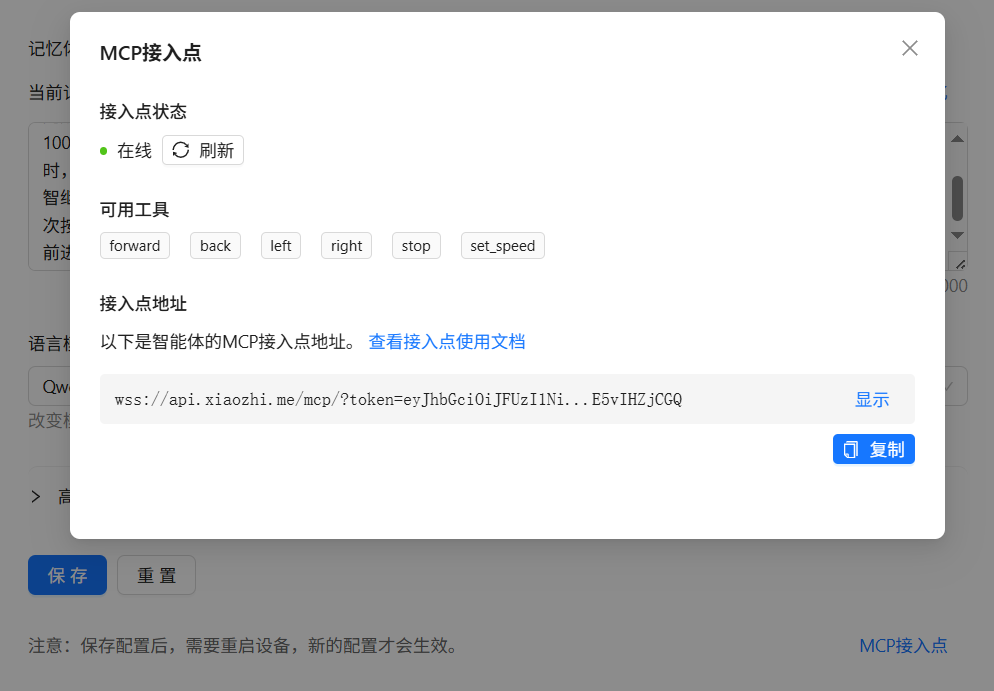

    endpoint_url = "wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjIxNjQzNywiYWdlbnRJZCI6MTQ5OTAyLCJlbmRwb2ludElkIjoiYWdlbnRfMTQ5OTAyIiwicHVycG9zZSI6Im1jcC1lbmRwb2ludCIsImlhdCI6MTc1MzUxOTM5M30.CrjLbJ46CDPWhu0raJm79IoO9VTATxb923XpoDjPzWY-33DcLrk6mr_3mtIQM60crOg9jYxkTmfOf6qQEFzC8Q"
    if not endpoint_url:
        logger.error("请设置 MCP_ENDPOINT 环境变量")
        sys.exit(1)

    # 启动主循环
    try:
        asyncio.run(connect_with_retry(endpoint_url))
    except KeyboardInterrupt:
        logger.info("用户中断程序")
    except Exception as e:
        logger.error(f"程序执行错误: {e}")

"""
小智运动控制服务器
提供前进、后退、左转、右转、停止等基本运动控制
"""

from mcp.server.fastmcp import FastMCP
import sys
import logging

# 配置日志记录器
logger = logging.getLogger('MoveServer')
logger.setLevel(logging.INFO)

# 解决Windows控制台编码问题
if sys.platform == 'win32':
    sys.stderr.reconfigure(encoding='utf-8')
    sys.stdout.reconfigure(encoding='utf-8')

# 创建MCP服务器实例
mcp = FastMCP("MoveServer")

@mcp.tool()
def forward() -> dict:
    """
    控制小智前进

    设置电机引脚状态使小车前进

    返回:
        dict: 操作结果
    """
    result = "小智前进"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def back() -> dict:
    """
    控制小智后退

    设置电机引脚状态使小车后退

    返回:
        dict: 操作结果
    """
    result = "小智后退"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def left() -> dict:
    """
    控制小智左转

    设置电机引脚状态使小车左转

    返回:
        dict: 操作结果
    """
    result = "小智左转"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def right() -> dict:
    """
    控制小智右转

    设置电机引脚状态使小车右转

    返回:
        dict: 操作结果
    """
    result = "小智右转"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def stop() -> dict:
    """
    控制小智停止

    停止所有电机

    返回:
        dict: 操作结果
    """
    result = "小智停止"
    logger.info(result)
    return {"success": True, "result": result}

# 服务器启动
if __name__ == "__main__":
    try:
        mcp.run(transport="stdio")
    except KeyboardInterrupt:
        logger.info("服务器已停止")
    except Exception as e:
        logger.error(f"服务器错误: {e}")

# -*- coding: UTF-8 -*-
"""
此脚本用于连接MCP服务器，并将输入输出通过WebSocket端点传输。
版本: 0.1.0

主要功能:
1. 建立WebSocket连接
2. 启动move.py进程并建立双向通信
3. 解析JSON命令并控制小智运动

使用方法:
export MCP_ENDPOINT=
python mcp_pipe.py
"""

import asyncio
import websockets
import subprocess
import logging
import signal
import sys
import random
import json
from unihiker import GUI
from pinpong.board import Board, Pin

# === 硬件初始化 ===
Board().begin()  # 初始化开发板

# 创建UI对象
ui = GUI()
# 绘制背景和标题
ui.draw_image(image="back.png", x=0, y=0)
ui.draw_text(text="M10小智MCP", x=30, y=10, font_size=20, color="#FFFFFF")

# 初始化电机控制引脚
motor_left_dir = Pin(Pin.P5, Pin.OUT)   # 左电机方向控制
motor_left_pwm = Pin(Pin.P8, Pin.PWM)   # 左电机PWM控制
motor_right_dir = Pin(Pin.P6, Pin.OUT)  # 右电机方向控制
motor_right_pwm = Pin(Pin.P16, Pin.PWM) # 右电机PWM控制

# === 日志配置 ===
logging.basicConfig(
    level=logging.INFO,
    format='%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
logger = logging.getLogger('MCP_PIPE')

# === 重连设置 ===
INITIAL_BACKOFF = 1  # 初始重连等待时间(秒)
MAX_BACKOFF = 600    # 最大重连等待时间(秒)
reconnect_attempt = 0  # 重连尝试次数
backoff = INITIAL_BACKOFF  # 当前重连等待时间

async def connect_with_retry(uri):
    """带重试机制的WebSocket连接"""
    global reconnect_attempt, backoff
    while True:  # 无限重连
        try:
            # 重连等待处理
            if reconnect_attempt > 0:
                wait_time = backoff * (1 + random.random() * 0.1)  # 添加随机抖动
                logger.info(f"等待 {wait_time:.2f}秒后尝试第 {reconnect_attempt}次重连...")
                await asyncio.sleep(wait_time)

            # 尝试连接服务器
            await connect_to_server(uri)

        except Exception as e:
            reconnect_attempt += 1
            logger.warning(f"连接关闭 (尝试次数: {reconnect_attempt}): {e}")
            # 指数退避算法
            backoff = min(backoff * 2, MAX_BACKOFF)

async def connect_to_server(uri):
    """连接到WebSocket服务器并与move.py进程建立双向通信"""
    global reconnect_attempt, backoff
    try:
        logger.info(f"正在连接WebSocket服务器...")
        async with websockets.connect(uri) as websocket:
            logger.info(f"成功连接到WebSocket服务器")

            # 重置重连计数器
            reconnect_attempt = 0
            backoff = INITIAL_BACKOFF

            # 启动move.py进程
            process = subprocess.Popen(
                ['python', 'move.py'],
                stdin=subprocess.PIPE,
                stdout=subprocess.PIPE,
                stderr=subprocess.PIPE,
                encoding='utf-8',
                text=True
            )
            logger.info(f"已启动move.py进程")

            # 创建并行任务处理通信
            await asyncio.gather(
                pipe_websocket_to_process(websocket, process),
                pipe_process_to_websocket(process, websocket),
                pipe_process_stderr_to_terminal(process)
            )
    except websockets.exceptions.ConnectionClosed as e:
        logger.error(f"WebSocket连接关闭: {e}")
        raise
    except Exception as e:
        logger.error(f"连接错误: {e}")
        raise
    finally:
        # 确保子进程终止
        if 'process' in locals():
            logger.info(f"终止move.py进程")
            try:
                process.terminate()
                process.wait(timeout=5)
            except subprocess.TimeoutExpired:
                process.kill()
            logger.info(f"move.py进程已终止")

async def pipe_websocket_to_process(websocket, process):
    """从WebSocket读取数据并写入进程stdin"""
    try:
        while True:
            # 读取WebSocket消息
            message = await websocket.recv()
            logger.debug(f"<< 收到消息: {message[:120]}...")

            # 写入进程stdin
            if isinstance(message, bytes):
                message = message.decode('utf-8')
            process.stdin.write(message + '\n')
            process.stdin.flush()
    except Exception as e:
        logger.error(f"WebSocket到进程管道错误: {e}")
        raise
    finally:
        # 安全关闭stdin
        if not process.stdin.closed:
            process.stdin.close()

async def pipe_process_to_websocket(process, websocket):
    """从进程stdout读取数据并发送到WebSocket"""
    try:
        while True:
            # 读取进程输出
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stdout.readline
            )

            if not data:  # 进程结束
                logger.info("进程输出结束")
                break

            logger.debug(f">> 发送数据: {data[:120]}...")

            try:
                # 解析JSON命令
                json_data = json.loads(data)
                command_id = json_data.get('id', 0)

                # 处理有效命令
                if command_id > 1 and json_data.get('result', {}):
                    content = json_data['result']['content'][0]['text']
                    command_data = json.loads(content)

                    if command_data['success']:
                        result_text = command_data['result']
                        logger.info(f"执行命令: {result_text}")

                        # 根据命令控制电机
                        if "前进" in result_text:
                            motor_left_dir.write_digital(0)
                            motor_right_dir.write_digital(0)
                            motor_left_pwm.write_analog(1023)
                            motor_right_pwm.write_analog(1023)
                        elif "后退" in result_text:
                            motor_left_dir.write_digital(1)
                            motor_right_dir.write_digital(1)
                            motor_left_pwm.write_analog(1023)
                            motor_right_pwm.write_analog(1023)
                        elif "左转" in result_text:
                            motor_left_dir.write_digital(1)
                            motor_right_dir.write_digital(0)
                            motor_left_pwm.write_analog(1023)
                            motor_right_pwm.write_analog(1023)
                        elif "右转" in result_text:
                            motor_left_dir.write_digital(0)
                            motor_right_dir.write_digital(1)
                            motor_left_pwm.write_analog(1023)
                            motor_right_pwm.write_analog(1023)
                        elif "停止" in result_text:
                            motor_left_pwm.write_analog(0)
                            motor_right_pwm.write_analog(0)
            except json.JSONDecodeError:
                logger.error("JSON解析失败")
            except KeyError:
                logger.error("命令格式错误")

            # 转发数据到WebSocket
            await websocket.send(data)
    except Exception as e:
        logger.error(f"进程到WebSocket管道错误: {e}")
        raise

async def pipe_process_stderr_to_terminal(process):
    """从进程stderr读取数据并打印到终端"""
    try:
        while True:
            # 读取错误输出
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stderr.readline
            )

            if not data:  # 进程结束
                logger.info("进程错误输出结束")
                break

            # 打印到终端
            sys.stderr.write(data)
            sys.stderr.flush()
    except Exception as e:
        logger.error(f"进程stderr管道错误: {e}")
        raise

def stop_motors():
    """停止所有电机"""
    motor_left_pwm.write_analog(0)
    motor_right_pwm.write_analog(0)
    logger.info("电机已停止")

def signal_handler(sig, frame):
    """处理中断信号"""
    logger.info("收到中断信号，正在关闭...")
    stop_motors()
    sys.exit(0)

if __name__ == "__main__":
    # 注册信号处理器
    signal.signal(signal.SIGINT, signal_handler)

    # WebSocket端点配置
    endpoint_url = "wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjIxNjQzNywiYWdlbnRJZCI6MTQ5OTAyLCJlbmRwb2ludElkIjoiYWdlbnRfMTQ5OTAyIiwicHVycG9zZSI6Im1jcC1lbmRwb2ludCIsImlhdCI6MTc1MzUxOTM5M30.CrjLbJ46CDPWhu0raJm79IoO9VTATxb923XpoDjPzWY-33DcLrk6mr_3mtIQM60crOg9jYxkTmfOf6qQEFzC8Q"

    # 启动主循环
    try:
        asyncio.run(connect_with_retry(endpoint_url))
    except KeyboardInterrupt:
        logger.info("用户中断程序")
        stop_motors()
    except Exception as e:
        logger.error(f"程序执行错误: {e}")
        stop_motors()

"""
小智运动控制服务器
功能:
1. 提供前进、后退、左转、右转、停止等基本运动控制
2. 支持速度调节(50%-100%)
3. 支持时间参数控制运动持续时间
"""

from mcp.server.fastmcp import FastMCP
import sys
import logging

logger = logging.getLogger('MoveServer')

# 修复Windows控制台UTF-8编码问题
if sys.platform == 'win32':
    sys.stderr.reconfigure(encoding='utf-8')
    sys.stdout.reconfigure(encoding='utf-8')

# 创建MCP服务器
mcp = FastMCP("MoveServer")

@mcp.tool()
def forward(speed: int = 80, duration: float = 0) -> dict:
    """
    控制小智前进

    参数:
    speed (int): 前进速度(50-100%)，默认80%
    duration (float): 前进持续时间(秒)，0表示持续前进直到停止命令

    返回:
    dict: 包含操作结果的字典
    """
    result = f"小智以{speed}%速度前进"
    if duration > 0:
        result += f" {duration}秒"
    logger.info(result)
    return {"success": True, "result": result, "speed": speed, "duration": duration}

@mcp.tool()
def back(speed: int = 80, duration: float = 0) -> dict:
    """
    控制小智后退

    参数:
    speed (int): 后退速度(50-100%)，默认80%
    duration (float): 后退持续时间(秒)，0表示持续后退直到停止命令

    返回:
    dict: 包含操作结果的字典
    """
    result = f"小智以{speed}%速度后退"
    if duration > 0:
        result += f" {duration}秒"
    logger.info(result)
    return {"success": True, "result": result, "speed": speed, "duration": duration}

@mcp.tool()
def left(speed: int = 80, duration: float = 0) -> dict:
    """
    控制小智左转

    参数:
    speed (int): 转向速度(50-100%)，默认80%
    duration (float): 转向持续时间(秒)，0表示持续转向直到停止命令

    返回:
    dict: 包含操作结果的字典
    """
    result = f"小智以{speed}%速度左转"
    if duration > 0:
        result += f" {duration}秒"
    logger.info(result)
    return {"success": True, "result": result, "speed": speed, "duration": duration}

@mcp.tool()
def right(speed: int = 80, duration: float = 0) -> dict:
    """
    控制小智右转

    参数:
    speed (int): 转向速度(50-100%)，默认80%
    duration (float): 转向持续时间(秒)，0表示持续转向直到停止命令

    返回:
    dict: 包含操作结果的字典
    """
    result = f"小智以{speed}%速度右转"
    if duration > 0:
        result += f" {duration}秒"
    logger.info(result)
    return {"success": True, "result": result, "speed": speed, "duration": duration}

@mcp.tool()
def stop() -> dict:
    """
    控制小智停止

    返回:
    dict: 包含操作结果的字典
    """
    result = "小智停止"
    logger.info(result)
    return {"success": True, "result": result}

@mcp.tool()
def set_speed(speed: int) -> dict:
    """
    设置默认运动速度

    参数:
    speed (int): 运动速度(50-100%)

    返回:
    dict: 包含操作结果的字典
    """
    if 50 <= speed <= 100:
        result = f"设置速度为{speed}%"
        logger.info(result)
        return {"success": True, "result": result}
    else:
        result = "速度值必须在50-100之间"
        logger.warning(result)
        return {"success": False, "result": result}

# 启动服务器
if __name__ == "__main__":
    mcp.run(transport="stdio")

# -*- coding: UTF-8 -*-
"""
此脚本用于连接MCP服务器，并将输入输出通过WebSocket端点传输。
版本: 0.1.4

主要修复:
1. 速度和时间参数解析冲突问题
2. 增强参数提取的准确性
"""

import asyncio
import websockets
import subprocess
import logging
import signal
import sys
import random
import json
import time
import re
from unihiker import GUI
from pinpong.board import Board, Pin

# === 硬件初始化 ===
Board().begin()  # 初始化开发板

# 创建UI对象
ui = GUI()
# 绘制背景和标题
ui.draw_image(image="back.png", x=0, y=0)
ui.draw_text(text="M10小智MCP", x=30, y=10, font_size=20, color="#FFFFFF")

# 初始化电机控制引脚
motor_left_dir = Pin(Pin.P5, Pin.OUT)   # 左电机方向控制
motor_left_pwm = Pin(Pin.P8, Pin.PWM)   # 左电机PWM控制
motor_right_dir = Pin(Pin.P6, Pin.OUT)  # 右电机方向控制
motor_right_pwm = Pin(Pin.P16, Pin.PWM) # 右电机PWM控制

# === 日志配置 ===
logging.basicConfig(
    level=logging.INFO,
    format='%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
logger = logging.getLogger('MCP_PIPE')

# === 全局状态 ===
CURRENT_SPEED = 80  # 默认速度(80%)
current_action_task = None  # 当前动作任务

# === 重连设置 ===
INITIAL_BACKOFF = 1  # 初始重连等待时间(秒)
MAX_BACKOFF = 600    # 最大重连等待时间(秒)
reconnect_attempt = 0  # 重连尝试次数
backoff = INITIAL_BACKOFF  # 当前重连等待时间

async def connect_with_retry(uri):
    """带重试机制的WebSocket连接"""
    global reconnect_attempt, backoff
    while True:  # 无限重连
        try:
            # 重连等待处理
            if reconnect_attempt > 0:
                wait_time = backoff * (1 + random.random() * 0.1)  # 添加随机抖动
                logger.info(f"等待 {wait_time:.2f}秒后尝试第 {reconnect_attempt}次重连...")
                await asyncio.sleep(wait_time)

            # 尝试连接服务器
            await connect_to_server(uri)

        except Exception as e:
            reconnect_attempt += 1
            logger.warning(f"连接关闭 (尝试次数: {reconnect_attempt}): {e}")
            # 指数退避算法
            backoff = min(backoff * 2, MAX_BACKOFF)

async def connect_to_server(uri):
    """连接到WebSocket服务器并与move.py进程建立双向通信"""
    global reconnect_attempt, backoff
    try:
        logger.info(f"正在连接WebSocket服务器...")
        async with websockets.connect(uri) as websocket:
            logger.info(f"成功连接到WebSocket服务器")

            # 重置重连计数器
            reconnect_attempt = 0
            backoff = INITIAL_BACKOFF

            # 启动move.py进程
            process = subprocess.Popen(
                ['python', 'move.py'],
                stdin=subprocess.PIPE,
                stdout=subprocess.PIPE,
                stderr=subprocess.PIPE,
                encoding='utf-8',
                text=True
            )
            logger.info(f"已启动move.py进程")

            # 创建并行任务处理通信
            await asyncio.gather(
                pipe_websocket_to_process(websocket, process),
                pipe_process_to_websocket(process, websocket),
                pipe_process_stderr_to_terminal(process)
            )
    except websockets.exceptions.ConnectionClosed as e:
        logger.error(f"WebSocket连接关闭: {e}")
        raise
    except Exception as e:
        logger.error(f"连接错误: {e}")
        raise
    finally:
        # 确保子进程终止
        if 'process' in locals():
            logger.info(f"终止move.py进程")
            try:
                process.terminate()
                process.wait(timeout=5)
            except subprocess.TimeoutExpired:
                process.kill()
            logger.info(f"move.py进程已终止")

async def pipe_websocket_to_process(websocket, process):
    """从WebSocket读取数据并写入进程stdin"""
    try:
        while True:
            # 读取WebSocket消息
            message = await websocket.recv()
            logger.debug(f"<< 收到消息: {message[:120]}...")

            # 写入进程stdin
            if isinstance(message, bytes):
                message = message.decode('utf-8')
            process.stdin.write(message + '\n')
            process.stdin.flush()
    except Exception as e:
        logger.error(f"WebSocket到进程管道错误: {e}")
        raise
    finally:
        # 安全关闭stdin
        if not process.stdin.closed:
            process.stdin.close()

async def stop_motors():
    """停止所有电机"""
    motor_left_pwm.write_analog(0)
    motor_right_pwm.write_analog(0)
    logger.info("电机已停止")

def calculate_speed(speed_percent):
    """计算实际PWM值(50%-100%对应512-1023)"""
    speed_percent = max(50, min(100, speed_percent))  # 限制在50-100%范围
    return int(512 + (speed_percent - 50) * (1023 - 512) / 50)

async def execute_action(action, speed_percent, duration):
    """执行动作并设置持续时间"""
    global current_action_task

    # 取消当前正在执行的动作任务
    if current_action_task and not current_action_task.done():
        current_action_task.cancel()
        logger.info("已取消当前动作")

    # 计算实际速度值
    actual_speed = calculate_speed(speed_percent)
    logger.info(f"执行动作: {action}, 速度: {speed_percent}% (PWM: {actual_speed}), 持续时间: {duration}秒")

    # 根据动作类型设置电机
    if action == "前进":
        motor_left_dir.write_digital(0)
        motor_right_dir.write_digital(0)
        motor_left_pwm.write_analog(actual_speed)
        motor_right_pwm.write_analog(actual_speed)
    elif action == "后退":
        motor_left_dir.write_digital(1)
        motor_right_dir.write_digital(1)
        motor_left_pwm.write_analog(actual_speed)
        motor_right_pwm.write_analog(actual_speed)
    elif action == "左转":
        motor_left_dir.write_digital(1)
        motor_right_dir.write_digital(0)
        motor_left_pwm.write_analog(actual_speed)
        motor_right_pwm.write_analog(actual_speed)
    elif action == "右转":
        motor_left_dir.write_digital(0)
        motor_right_dir.write_digital(1)
        motor_left_pwm.write_analog(actual_speed)
        motor_right_pwm.write_analog(actual_speed)
    elif action == "停止":
        await stop_motors()
        return

    # 如果有持续时间，设置定时停止
    if duration > 0:
        async def timed_stop():
            start = time.time()
            # 精确等待指定时间
            await asyncio.sleep(duration)
            # 检查是否应该停止（防止任务被取消后仍执行停止）
            if time.time() - start >= duration:
                await stop_motors()
                logger.info(f"动作完成，已停止电机")

        current_action_task = asyncio.create_task(timed_stop())

def extract_speed(text):
    """
    从文本中提取速度值(50-100%)
    使用正则表达式精确匹配速度模式
    """
    # 匹配"速度"前的数字（可能包含小数点）
    speed_pattern = r'(\d+)%速度'
    match = re.search(speed_pattern, text)
    if match:
        try:
            speed = int(match.group(1))
            if 50 <= speed <= 100:
                return speed
        except ValueError:
            return None

    # 匹配"设置速度"命令
    set_speed_pattern = r'设置速度[为]?(\d+)%'
    match = re.search(set_speed_pattern, text, re.IGNORECASE)
    if match:
        try:
            speed = int(match.group(1))
            if 50 <= speed <= 100:
                return speed
        except ValueError:
            return None

    # 匹配独立的百分数
    percent_pattern = r'(\d+)%'
    match = re.search(percent_pattern, text)
    if match:
        try:
            speed = int(match.group(1))
            if 50 <= speed <= 100:
                return speed
        except ValueError:
            return None

    return None

def extract_duration(text):
    """
    从文本中提取持续时间(秒)
    使用正则表达式精确匹配时间模式
    """
    # 匹配"秒"前的数字（可能包含小数点）
    seconds_pattern = r'(\d+\.?\d*)\s*秒'
    match = re.search(seconds_pattern, text)
    if match:
        try:
            duration = float(match.group(1))
            if duration > 0:
                return duration
        except ValueError:
            return None

    # 匹配"一点"或"一点儿"
    if "一点" in text or "点儿" in text:
        return 0.5

    # 匹配数字+时间单位（秒）
    time_pattern = r'(\d+\.?\d*)\s*(秒|s)'
    match = re.search(time_pattern, text, re.IGNORECASE)
    if match:
        try:
            duration = float(match.group(1))
            if duration > 0:
                return duration
        except ValueError:
            return None

    return 0  # 默认0秒（持续执行）

async def pipe_process_to_websocket(process, websocket):
    """从进程stdout读取数据并发送到WebSocket"""
    global CURRENT_SPEED

    try:
        while True:
            # 读取进程输出
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stdout.readline
            )

            if not data:  # 进程结束
                logger.info("进程输出结束")
                break

            logger.debug(f">> 发送数据: {data[:120]}...")

            try:
                # 解析JSON命令
                json_data = json.loads(data)
                command_id = json_data.get('id', 0)

                # 处理有效命令
                if command_id > 1 and json_data.get('result', {}):
                    content = json_data['result']['content'][0]['text']
                    command_data = json.loads(content)

                    if command_data['success']:
                        result_text = command_data.get('result', '')
                        logger.info(f"收到命令: {result_text}")

                        # 默认参数
                        action = "停止"
                        duration = 0
                        new_speed = None

                        # 解析动作
                        if "前进" in result_text:
                            action = "前进"
                        elif "后退" in result_text:
                            action = "后退"
                        elif "左转" in result_text:
                            action = "左转"
                        elif "右转" in result_text:
                            action = "右转"
                        elif "停止" in result_text:
                            action = "停止"

                        # 解析时间参数
                        duration = extract_duration(result_text)
                        if duration > 0:
                            logger.info(f"解析到持续时间: {duration}秒")

                        # 解析速度参数
                        speed_value = extract_speed(result_text)
                        if speed_value is not None:
                            if 50 <= speed_value <= 100:
                                CURRENT_SPEED = speed_value
                                logger.info(f"更新速度为: {CURRENT_SPEED}%")
                            else:
                                logger.warning(f"速度值 {speed_value}% 超出范围(50-100)")

                        # 执行动作
                        await execute_action(action, CURRENT_SPEED, duration)
            except json.JSONDecodeError:
                logger.error("JSON解析失败")
            except KeyError:
                logger.error("命令格式错误")
            except Exception as e:
                logger.error(f"命令处理错误: {e}")

            # 转发数据到WebSocket
            await websocket.send(data)
    except Exception as e:
        logger.error(f"进程到WebSocket管道错误: {e}")
        raise

async def pipe_process_stderr_to_terminal(process):
    """从进程stderr读取数据并打印到终端"""
    try:
        while True:
            # 读取错误输出
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stderr.readline
            )

            if not data:  # 进程结束
                logger.info("进程错误输出结束")
                break

            # 打印到终端
            sys.stderr.write(data)
            sys.stderr.flush()
    except Exception as e:
        logger.error(f"进程stderr管道错误: {e}")
        raise

def signal_handler(sig, frame):
    """处理中断信号"""
    logger.info("收到中断信号，正在关闭...")
    # 停止所有电机
    motor_left_pwm.write_analog(0)
    motor_right_pwm.write_analog(0)
    sys.exit(0)

if __name__ == "__main__":
    # 注册信号处理器
    signal.signal(signal.SIGINT, signal_handler)

    # WebSocket端点配置
    endpoint_url = "wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjIxNjQzNywiYWdlbnRJZCI6MTQ5OTAyLCJlbmRwb2ludElkIjoiYWdlbnRfMTQ5OTAyIiwicHVycG9zZSI6Im1jcC1lbmRwb2ludCIsImlhdCI6MTc1MzUxOTM5M30.CrjLbJ46CDPWhu0raJm79IoO9VTATxb923XpoDjPzWY-33DcLrk6mr_3mtIQM60crOg9jYxkTmfOf6qQEFzC8Q"

    # 启动主循环
    try:
        asyncio.run(connect_with_retry(endpoint_url))
    except KeyboardInterrupt:
        logger.info("用户中断程序")
        # 确保停止电机
        motor_left_pwm.write_analog(0)
        motor_right_pwm.write_analog(0)
    except Exception as e:
        logger.error(f"程序执行错误: {e}")
        # 确保停止电机
        motor_left_pwm.write_analog(0)
        motor_right_pwm.write_analog(0)
