乐动小智+M10智能小助手（MCP） 简单

"""
真实硬件版本：MCP服务器设备控制工具
版本: 0.3.0
"""

import sys
import logging
import time
from typing import Dict
from mcp.server.fastmcp import FastMCP
from pinpong.board import Board, Pin, DHT22, NeoPixel

# 配置日志系统
def setup_logger() -> logging.Logger:
    logger = logging.getLogger('MoveServer')
    logger.setLevel(logging.INFO)

    console_handler = logging.StreamHandler()
    console_handler.setLevel(logging.INFO)

    file_handler = logging.FileHandler('move_server.log')
    file_handler.setLevel(logging.DEBUG)

    formatter = logging.Formatter(
        '%(asctime)s - %(name)s - %(levelname)s - %(message)s'
    )
    console_handler.setFormatter(formatter)
    file_handler.setFormatter(formatter)

    logger.addHandler(console_handler)
    logger.addHandler(file_handler)

    return logger

# 修复Windows控制台UTF-8编码问题
if sys.platform == 'win32':
    try:
        sys.stderr.reconfigure(encoding='utf-8')
        sys.stdout.reconfigure(encoding='utf-8')
    except AttributeError:
        import io
        sys.stderr = io.TextIOWrapper(sys.stderr.detach(), encoding='utf-8')
        sys.stdout = io.TextIOWrapper(sys.stdout.detach(), encoding='utf-8')

# 创建日志记录器
logger = setup_logger()

# 创建MCP服务器
mcp = FastMCP("MoveServer")

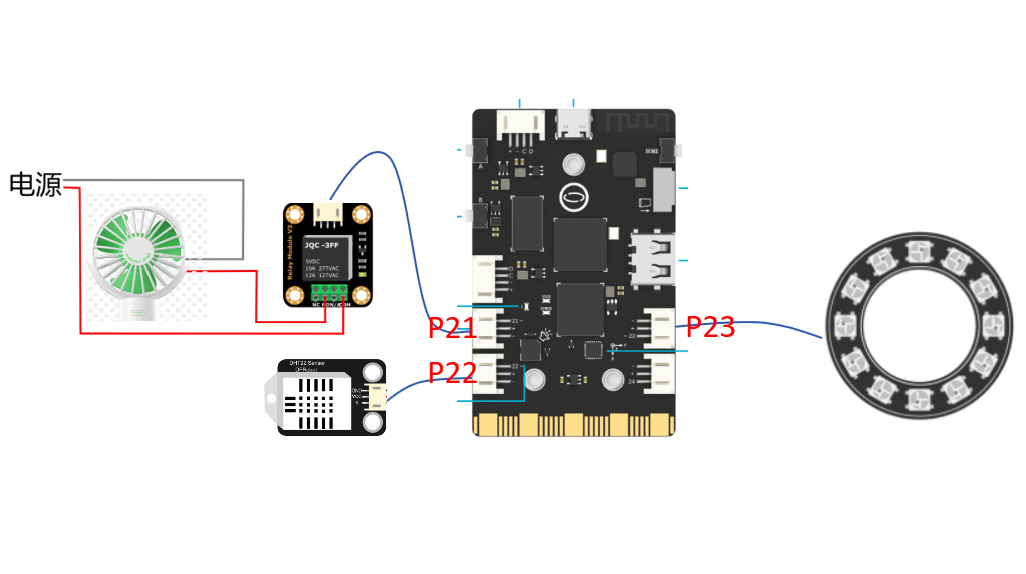

# ======================= 硬件配置 =======================
HARDWARE_CONFIG = {
    "FAN_PIN": 21,      # 风扇控制引脚
    "SENSOR_PIN": 22,   # 温湿度传感器引脚
    "LIGHT_PIN": 23,    # 灯带控制引脚
    "NUM_LEDS": 16      # LED数量
}

# ======================= 设备控制工具 =======================

class HardwareController:
    """真实硬件操作类"""

    def __init__(self, config: dict):
        """初始化真实硬件"""
        try:
            # 初始化开发板
            Board().begin()

            # 初始化风扇控制引脚
            self.fan_pin = Pin(config["FAN_PIN"], Pin.OUT)

            # 初始化温湿度传感器
            self.dht_sensor = DHT22(Pin(config["SENSOR_PIN"]))

            # 初始化灯带
            self.light_pin = NeoPixel(Pin(config["LIGHT_PIN"]), config["NUM_LEDS"])
            self.light_pin.brightness(100)

            logger.info("真实硬件初始化成功")
        except Exception as e:
            logger.critical(f"硬件初始化失败: {e}")
            raise

    def control_fan(self, state: bool) -> str:
        try:
            self.fan_pin.write_digital(1 if state else 0)
            return f"风扇已{'开启' if state else '关闭'}"
        except Exception as e:
            logger.error(f"风扇控制失败: {e}")
            return f"风扇控制失败: {str(e)}"

    def control_light(self, state: bool) -> str:
        try:
            if state:
                self.light_pin.range_color(0, self.light_pin.num, 0xFF0000)  # 红色
            else:
                self.light_pin.clear()
            return f"灯带已{'点亮' if state else '熄灭'}"
        except Exception as e:
            logger.error(f"灯带控制失败: {e}")
            return f"灯带控制失败: {str(e)}"

    def get_temperature(self) -> str:
        """获取真实温度数据"""
        try:
            # 尝试最多3次读取，防止偶尔读取失败
            for _ in range(3):
                try:
                    temp = self.dht_sensor.temp_c()
                    return f"当前温度: {temp}℃"
                except:
                    time.sleep(0.2)  # 短暂延迟后重试
            return "温度读取失败"
        except Exception as e:
            logger.error(f"温度读取失败: {e}")
            return f"温度读取失败: {str(e)}"

    def get_humidity(self) -> str:
        """获取真实湿度数据"""
        try:
            for _ in range(3):
                try:
                    humidity = self.dht_sensor.humidity()
                    return f"当前湿度: {humidity}%"
                except:
                    time.sleep(0.2)
            return "湿度读取失败"
        except Exception as e:
            logger.error(f"湿度读取失败: {e}")
            return f"湿度读取失败: {str(e)}"

def tool_response(success: bool, result: str) -> Dict[str, object]:
    return {
        "success": success,
        "result": result
    }

# 创建硬件控制器实例
try:
    hardware_controller = HardwareController(HARDWARE_CONFIG)
except Exception as e:
    logger.critical("硬件初始化失败，服务器无法启动")
    sys.exit(1)

@mcp.tool()
def open_fan() -> Dict[str, object]:
    logger.info("执行风扇开启命令")
    result = hardware_controller.control_fan(True)
    logger.info(result)
    return tool_response("失败" not in result, result)

@mcp.tool()
def close_fan() -> Dict[str, object]:
    logger.info("执行风扇关闭命令")
    result = hardware_controller.control_fan(False)
    logger.info(result)
    return tool_response("失败" not in result, result)

@mcp.tool()
def open_light() -> Dict[str, object]:
    logger.info("执行灯带开启命令")
    result = hardware_controller.control_light(True)
    logger.info(result)
    return tool_response("失败" not in result, result)

@mcp.tool()
def close_light() -> Dict[str, object]:
    logger.info("执行灯带关闭命令")
    result = hardware_controller.control_light(False)
    logger.info(result)
    return tool_response("失败" not in result, result)

@mcp.tool()
def get_temp() -> Dict[str, object]:
    logger.info("读取温度数据")
    result = hardware_controller.get_temperature()
    logger.info(result)
    return tool_response("失败" not in result, result)

@mcp.tool()
def get_humidity() -> Dict[str, object]:
    logger.info("读取湿度数据")
    result = hardware_controller.get_humidity()
    logger.info(result)
    return tool_response("失败" not in result, result)

# 启动服务器
if __name__ == "__main__":
    try:
        logger.info("启动MCP服务器...")
        logger.info(f"硬件配置: {HARDWARE_CONFIG}")
        mcp.run(transport="stdio")
        logger.info("MCP服务器已停止")
    except Exception as e:
        logger.critical(f"服务器运行失败: {e}")
        sys.exit(1)

"""
优化版本：连接MCP服务器并通过WebSocket传输输入输出
版本: 0.2.0

用法:
export MCP_ENDPOINT=
python mcp_pipe.py
"""

# -*- coding: UTF-8 -*-
import asyncio
import json
import logging
import signal
import sys
import random
import subprocess
from unihiker import GUI
import websockets
from pinpong.board import Board, Pin, DHT22, NeoPixel

# 全局常量
INITIAL_BACKOFF = 1  # 初始重连等待时间(秒)
MAX_BACKOFF = 600    # 最大重连等待时间(秒)
MCP_SCRIPT = "move.py"  # MCP脚本名称

# 配置日志系统
def setup_logger():
    """配置并返回日志记录器"""
    logger = logging.getLogger('MCP_PIPE_OPT')
    logger.setLevel(logging.INFO)

    # 创建控制台处理器
    console_handler = logging.StreamHandler()
    console_handler.setLevel(logging.INFO)

    # 创建文件处理器
    file_handler = logging.FileHandler('mcp_pipe.log')
    file_handler.setLevel(logging.DEBUG)

    # 创建日志格式
    formatter = logging.Formatter(
        '%(asctime)s - %(name)s - %(levelname)s - %(message)s'
    )
    console_handler.setFormatter(formatter)
    file_handler.setFormatter(formatter)

    # 添加处理器到日志记录器
    logger.addHandler(console_handler)
    logger.addHandler(file_handler)

    return logger

logger = setup_logger()

# 硬件初始化
def init_hardware():
    """初始化所有硬件设备并返回对象"""
    try:
        # 初始化开发板
        Board().begin()

        # 初始化GUI
        gui = GUI()
        gui.draw_image(image="back.png", x=0, y=0)
        gui.draw_text(
            text="M10智能助手",
            x=10,
            y=20,
            font_size=25,
            color="#FF00FF"
        )

        # 初始化引脚
        pin1 = Pin(Pin.P21, Pin.OUT)
        pin2 = Pin(Pin.P22, Pin.IN)
        pin3 = Pin(Pin.P23, Pin.PWM)

        # 初始化传感器
        dht = DHT22(pin2)

        # 初始化NeoPixel
        np = NeoPixel(pin3, 16)
        np.brightness(100)

        logger.info("硬件初始化成功")
        return {
            'gui': gui,
            'pin1': pin1,
            'pin2': pin2,
            'pin3': pin3,
            'dht': dht,
            'np': np
        }

    except Exception as e:
        logger.error(f"硬件初始化失败: {e}")
        raise

# 处理硬件控制命令
def handle_hardware_command(command: str, hardware: dict):
    """
    根据命令执行硬件操作

    参数:
        command: 接收到的命令字符串
        hardware: 包含所有硬件对象的字典
    """
    try:
        if "开启" in command:
            hardware['pin1'].write_digital(1)
            logger.info("设备已开启")
        elif "关闭" in command:
            hardware['pin1'].write_digital(0)
            logger.info("设备已关闭")
        elif "点亮" in command:
            hardware['np'].range_color(0, 15, 0xFF0000)
            logger.info("灯带已点亮")
        elif "熄灭" in command:
            hardware['np'].clear()
            logger.info("灯带已熄灭")
        elif "温度" in command:
            temp = hardware['dht'].temp_c()
            logger.info(f"当前温度: {temp}℃")
        elif "湿度" in command:
            humidity = hardware['dht'].humidity()
            logger.info(f"当前湿度: {humidity}%")
    except Exception as e:
        logger.error(f"执行硬件命令时出错: {command} - {e}")

# 处理JSON数据
def process_json_data(data: str, hardware: dict):
    """
    处理JSON数据并执行相应的硬件操作

    参数:
        data: JSON格式的字符串数据
        hardware: 包含所有硬件对象的字典
    """
    try:
        json_data = json.loads(data)
        message_id = json_data.get('id', 0)

        # 只处理ID大于1的消息
        if message_id <= 1:
            return

        result = json_data.get('result', {})
        if not result:
            return

        # 提取内容文本
        contents = result.get('content', [])
        if not contents:
            return

        first_content = contents[0]
        text_content = first_content.get('text', '')

        if not text_content:
            return

        # 尝试解析内部JSON
        try:
            inner_data = json.loads(text_content)
            if inner_data.get('success', False):
                command_result = inner_data.get('result', '')
                if command_result:
                    handle_hardware_command(command_result, hardware)
        except json.JSONDecodeError:
            # 如果不是JSON，直接作为命令处理
            handle_hardware_command(text_content, hardware)

    except Exception as e:
        logger.error(f"处理JSON数据时出错: {e}\n原始数据: {data[:200]}")

# WebSocket到进程的管道
async def pipe_websocket_to_process(websocket, process):
    """从WebSocket读取数据并写入进程的stdin"""
    try:
        while True:
            message = await websocket.recv()
            logger.debug(f"<< 收到消息: {message[:120]}...")

            if isinstance(message, bytes):
                message = message.decode('utf-8')

            try:
                process.stdin.write(message + '\n')
                process.stdin.flush()
            except BrokenPipeError:
                logger.error("进程stdin管道已断开")
                break

    except websockets.exceptions.ConnectionClosed:
        logger.warning("WebSocket连接已关闭")
    except Exception as e:
        logger.error(f"WebSocket到进程管道错误: {e}")
    finally:
        if not process.stdin.closed:
            process.stdin.close()

# 进程到WebSocket的管道
async def pipe_process_to_websocket(process, websocket, hardware):
    """从进程的stdout读取数据并发送到WebSocket"""
    try:
        while True:
            data = await asyncio.get_event_loop().run_in_executor(
                None, process.stdout.readline
            )

            if not data:
                logger.info("进程输出结束")
                break

            logger.debug(f">> 发送消息: {data[:120]}...")

            # 处理数据并控制硬件
            process_json_data(data, hardware)

            # 发送到WebSocket
            await websocket.send(data)

    except Exception as e:
        logger.error(f"进程到WebSocket管道错误: {e}")

# 进程stderr到终端的管道
async def pipe_process_stderr_to_terminal(process):
    """从进程的stderr读取数据并打印到终端"""
    try:
        while True:
            err_data = await asyncio.get_event_loop().run_in_executor(
                None, process.stderr.readline
            )

            if not err_data:
                logger.info("进程错误输出结束")
                break

            sys.stderr.write(err_data)
            sys.stderr.flush()

    except Exception as e:
        logger.error(f"进程stderr管道错误: {e}")

# 连接WebSocket服务器
async def connect_to_server(uri, hardware):
    """连接到WebSocket服务器并建立与MCP脚本的双向通信"""
    reconnect_attempt = 0
    backoff = INITIAL_BACKOFF

    while True:
        try:
            if reconnect_attempt > 0:
                wait_time = min(backoff * (1 + random.random() * 0.1), MAX_BACKOFF)
                logger.info(f"等待 {wait_time:.2f} 秒后尝试重新连接 #{reconnect_attempt}...")
                await asyncio.sleep(wait_time)

            logger.info(f"尝试连接到WebSocket服务器: {uri[:60]}...")

            async with websockets.connect(uri) as websocket:
                logger.info("成功连接到WebSocket服务器")

                # 重置重连计数器
                reconnect_attempt = 0
                backoff = INITIAL_BACKOFF

                # 启动MCP脚本进程
                process = subprocess.Popen(
                    ['python', MCP_SCRIPT],
                    stdin=subprocess.PIPE,
                    stdout=subprocess.PIPE,
                    stderr=subprocess.PIPE,
                    encoding='utf-8',
                    text=True
                )
                logger.info(f"已启动 {MCP_SCRIPT} 进程")

                # 创建通信任务
                try:
                    await asyncio.gather(
                        pipe_websocket_to_process(websocket, process),
                        pipe_process_to_websocket(process, websocket, hardware),
                        pipe_process_stderr_to_terminal(process)
                    )
                except Exception as e:
                    logger.error(f"通信任务出错: {e}")
                finally:
                    # 确保子进程正确终止
                    terminate_process(process)

        except websockets.exceptions.ConnectionClosed as e:
            reconnect_attempt += 1
            logger.warning(f"WebSocket连接关闭: {e}")
            backoff = min(backoff * 2, MAX_BACKOFF)
        except Exception as e:
            reconnect_attempt += 1
            logger.error(f"连接错误: {e}")
            backoff = min(backoff * 2, MAX_BACKOFF)

# 终止进程
def terminate_process(process):
    """安全终止子进程"""
    if process.poll() is None:  # 检查进程是否仍在运行
        logger.info(f"终止 {MCP_SCRIPT} 进程")
        try:
            process.terminate()
            process.wait(timeout=5)
        except subprocess.TimeoutExpired:
            logger.warning("进程未响应，强制终止")
            process.kill()
        logger.info(f"{MCP_SCRIPT} 进程已终止")

# 信号处理
def signal_handler(sig, frame):
    """处理中断信号"""
    logger.info("接收到中断信号，正在关闭...")
    sys.exit(0)

# 主函数
async def main():
    """主异步函数"""
    # 注册信号处理
    signal.signal(signal.SIGINT, signal_handler)

    # 初始化硬件
    try:
        hardware = init_hardware()
    except Exception as e:
        logger.critical(f"硬件初始化失败，程序终止: {e}")
        return

    # WebSocket端点URL

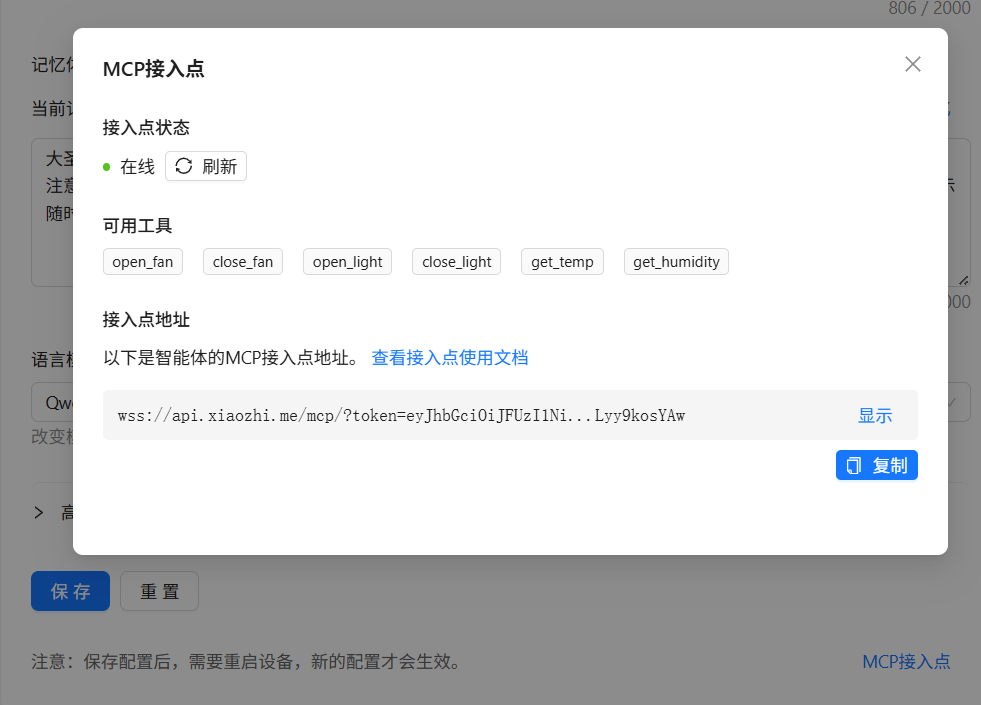

    endpoint_url = (
        "wss://api.xiaozhi.me/mcp/?token="
        "eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9."
        "eyJ1c2VySWQiOjIxNjQzNywiYWdlbnRJZCI6MTQ5OTAyLCJlbmRwb2ludElkIjoiYWdlbnRfMTQ5OTAyIiwicHVycG9zZSI6Im1jcC1lbmRwb2ludCIsImlhdCI6MTc1MTU0NjIzOH0."
        "ha8DI8RcXNCWntx22plEAtxd2ovVLEFS7H8V7TpED-6FfqYKcjQewWIFlEVfIjoE9UJNTQoytxdlQ5hJ4IsDHg"
    )

    # 启动主循环
    try:
        await connect_to_server(endpoint_url, hardware)
    except KeyboardInterrupt:
        logger.info("用户中断程序")
    except Exception as e:
        logger.error(f"程序执行错误: {e}")

if __name__ == "__main__":
    asyncio.run(main())
