【Arduino 动手做】Arduino触摸屏音乐播放器和闹钟项目 简单

头像 驴友花雕 2025.06.21 12 0

概述
主屏幕上有一个大时钟、日期和温度信息，以及音乐播放器和闹钟两个按钮。

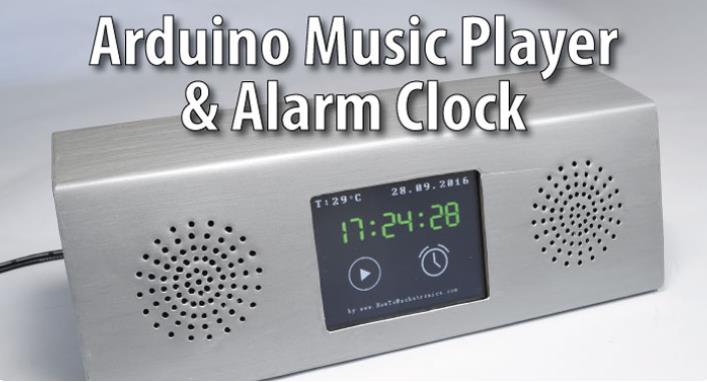

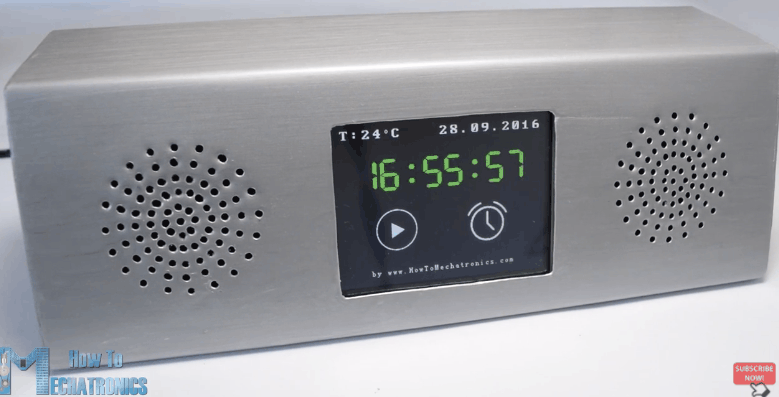

Arduino触摸屏音乐播放器主屏幕
进入音乐播放器后，点击屏幕中间的大“播放”按钮即可开始播放音乐。旁边还有两个按钮，分别用于播放上一首或下一首歌曲。

Arduino触摸屏音乐播放器屏幕
这些按钮上方是歌曲进度条，屏幕底部有一个音量条和两个用于降低和增加音量的按钮。右上角有一个时钟，左侧是“菜单”按钮，可返回主屏幕。

另一方面，如果我们进入闹钟，我们可以使用两个按钮来设置小时和分钟来设置闹钟。

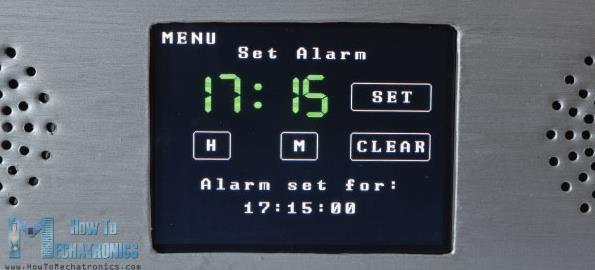

Arduino触摸屏闹钟屏幕
当闹钟响起时，一首歌曲将以更高的音量开始播放，并一直播放直到我们按下“关闭”按钮。

Arduino触摸屏闹钟激活
工作原理
现在让我们来看看这款设备的工作原理。它使用一块 Arduino Mega 开发板和一个 3.2 英寸 TFT 触摸屏，并配有合适的屏蔽罩，用于将屏幕连接到 Arduino 开发板。音乐播放使用 BY8001 MP3 播放器模块，闹钟使用 DS3231 实时时钟模块。

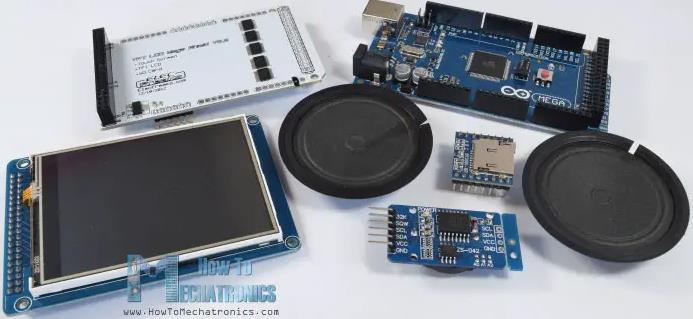

Arduino 音乐播放器和闹钟零件清单.jpg
您可以从以下链接获取此 Arduino 项目所需的组件：

BY8001-16P MP3 模块………亚马逊/全球速卖通
3.2 英寸 TFT 触摸显示屏……….… Amazon / Banggood / AliExpress
TFT 显示屏超级屏蔽………亚马逊 / Banggood / AliExpress
0.5W 扬声器 ……………………… Amazon / Banggood / AliExpress
DS3231 实时时钟…… Amazon / Banggood / AliExpress
Arduino Mega…………………………亚马逊/ Banggood / AliExpress
披露：这些是附属链接。作为亚马逊合作伙伴，我通过符合条件的购买赚取收益。

电路原理图
这是该项目的电路原理图：

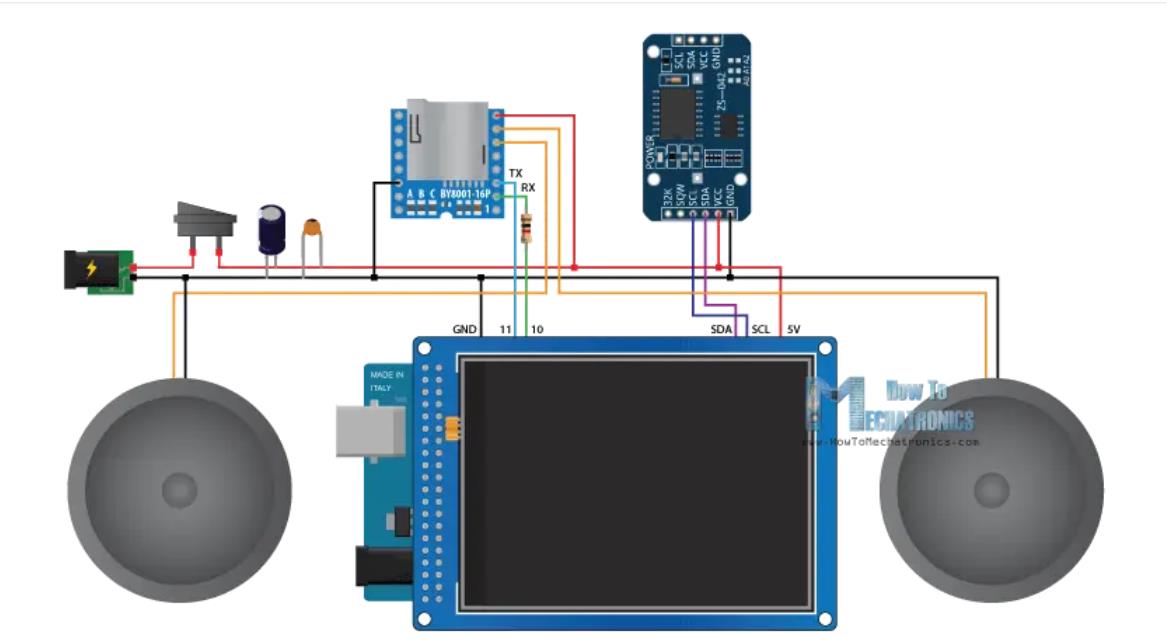

Arduino 音乐播放器和闹钟零件清单电路原理图
我们可以在这里注意到，TFT 屏蔽阻挡了 Arduino 板的空闲引脚，因此我们需要制作一个定制的引脚接头，以便能够将它们插入屏蔽和 Arduino 之间。

Arduino 和 TFT 屏幕的定制引脚头
还要注意，为了给 Arduino 供电，我们需要将额外的针头焊接到屏蔽上的 5 V 针脚，因为屏蔽已经使用了所有 Arduino VCC 针脚。

将所有东西连接好后，我们就可以开始对 Arduino 进行编程了。不过，在继续之前，我建议您先看看我之前关于TFT 触摸屏和DS3231 实时时钟模块的详细教程。至于 MP3 播放器模块，我会在本文中简单讲解一下。

BY8001-16P MP3播放器模块
BY8001-16P 是一款 MP3 模块，支持 MicroSD 卡播放，支持 MP3 和 WAV 音频格式。模块内置 3W 功放，可直接驱动单个 3W 扬声器。

BY8100-16P MP3播放器模块
MP3 播放器模块可以使用 5 个输入引脚进行按钮控制，也可以通过串行通信使用微控制器进行控制。

BY8100-16P MP3播放器模块单片机控制
请注意，模块的串口引脚工作电压为 3.3V，因此模块的 RX 引脚需要通过一个 1K 电阻连接到 Arduino 的 TX 引脚。另请注意，A、B 和 C 三个端口用于选择控制模式。如需使用微控制器控制模块，则需要移除这三个引脚上的电阻。引脚 6 和 7 可用于直接连接低功率扬声器，如果使用外部放大器，则可使用引脚 4 和 5。

至于 Arduino 部分，最简单的方法是使用BY8001 库，该库可从 GitHub 下载。打开一些演示示例，就能了解它的工作原理。因此，在设置部分初始化模块后，我们可以使用任何自定义函数来控制模块。

构建设备
我使用 Solidworks 进行了设计，它的外观如下。

Arduino触摸屏音乐播放器和闹钟外壳Solidworks模型
您可以下载此模型，以便在此处进行测量：

对于这个项目，我选择使用铝板，并用多功能工具将其切割成合适的尺寸。然后在桌子边缘，借助一些夹具和板条，我将铝板弯曲。

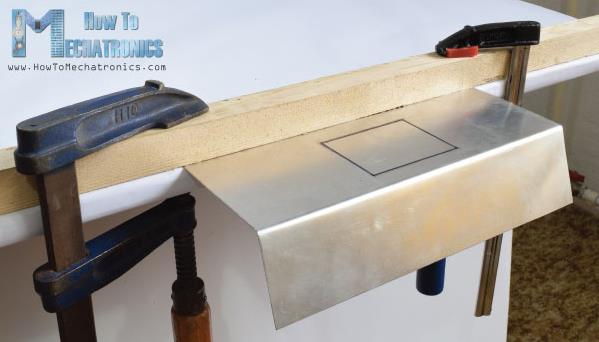

无需压力机即可折弯金属板
至于扬声器，我打印了一个圆形图案，将其固定到位，然后使用钻头钻出所有孔。

标记侧面
之后，我将侧面切割成适当的形状，并使用胶枪将它们固定到之前弯曲的金属板上。

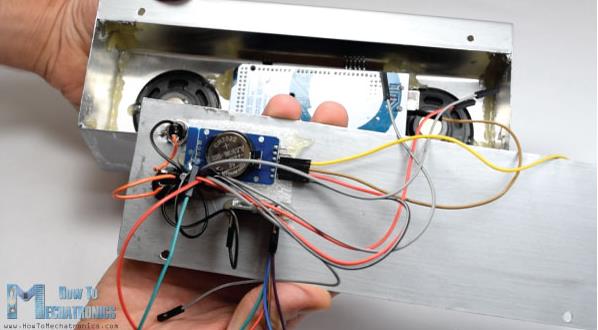

最后，我给金属板盒子涂了漆，准备安装电子元件了。同样，我用胶枪把所有元件固定好，然后把所有部件连接在一起，最后用两个螺栓固定了设备的后盖。

将电子元件安装到外壳上
就这样，欢迎在下面的评论部分提出任何问题。


项目代码

代码
/*
* Arduino Touch Screen MP3 Music Player and Alarm Clock
*
* Crated by Dejan Nedelkovski,
* www.HowToMechatronics.com
*
* UFTF, URTouch and DS3231 libraries made by Henning Karlsen which can be found and downloaded from his website, www.rinkydinkelectronics.com.
* BY8001 MP3 Player Library made by borland of Arduino forum, Released in public domain. Dowload link: https://github.com/r0ndL/BY8001
*/

#include <UTFT.h>
#include <URTouch.h>
#include <SoftwareSerial.h>
#include <BY8001.h>
#include <DS3231.h>

//==== Creating Objects
UTFT     myGLCD(SSD1289, 38, 39, 40, 41); //Parameters should be adjusted to your Display/Schield model
URTouch  myTouch( 6, 5, 4, 3, 2);


SoftwareSerial mp3Serial(11, 10);  // RX, TX
BY8001 mp3;  // creating an instance of class BY8001 and call it 'mp3'

DS3231  rtc(SDA, SCL);

//==== Defining Fonts
extern uint8_t SmallFont[];
extern uint8_t BigFont[];
extern uint8_t SevenSegNumFont[];

extern unsigned int MusicPlayerButton[0x1040];
extern unsigned int AlarmButton[0x1040];
extern unsigned int ButtonPlay[0x1AE9];
extern unsigned int ButtonPause[0x1AE9];
extern unsigned int PreviousButton[0x9C4];
extern unsigned int NextButton[0x9C4];
extern unsigned int VolumeDown[0x170];
extern unsigned int VolumeUp[0x3B8];

int x, y; // Variables for the coordinates where the display has been pressed
char currentPage, playStatus;
int iV = 15;
int trackNum = 1;
int b = 16;
int aHours = 0;
int aMinutes = 0;
boolean alarmNotSet = true;
String alarmString = "";
float currentTemperature, temperature;
static word totalTime, elapsedTime, playback, minutes, seconds, lastSeconds, minutesR, secondsR;
String currentClock, currentHours, currentMinutes, currentSeconds, currentDate;
String timeString, hoursString, minutesString, secondsString, hoursS, minutesS, secondsS, dateS;

void setup() {
  // Initiate display
  myGLCD.InitLCD();
  myGLCD.clrScr();
  myTouch.InitTouch();
  myTouch.setPrecision(PREC_MEDIUM);

  // Initialize the rtc object
  rtc.begin();

  // Music
  Serial.begin(9600);  // set serial monitor baud rate to Arduino IDE
  mp3Serial.begin(9600);  // BY8001 set to 9600 baud (required)
  mp3.setup(mp3Serial); // tell BY8001 library which serial port to use.
  delay(800);  // allow time for BY8001 cold boot; may adjust depending on flash storage size

  drawHomeScreen();  // Draws the Home Screen
  currentPage = '0'; // Indicates that we are at Home Screen
  playStatus = '0';

  mp3.setVolume(15);
  delay(100);
  currentTemperature = rtc.getTemp();
  currentDate = rtc.getDateStr();
  currentClock = rtc.getTimeStr();
  timeString = rtc.getTimeStr();
  currentHours = timeString.substring(0, 2);
  currentMinutes = timeString.substring(3, 5);
  currentSeconds = timeString.substring(6, 8);
}


void loop() {
  // Homes Screen
  if (currentPage == '0') {
    // Checks for change of the clock
    if ( currentClock != rtc.getTimeStr()) {
      timeString = rtc.getTimeStr();
      hoursS = timeString.substring(0, 2);
      minutesS = timeString.substring(3, 5);
      secondsS = timeString.substring(6, 8);

      myGLCD.setFont(SevenSegNumFont);
      myGLCD.setColor(0, 255, 0);

      myGLCD.print(secondsS, 224, 50);

      if ( currentMinutes != minutesS ) {
        myGLCD.print(minutesS, 128, 50);
        currentMinutes = minutesS;
      }
      if ( currentHours != hoursS ) {
        myGLCD.print(hoursS, 32, 50);
        currentHours = hoursS;
      }
      // Checks for change of the date
      dateS = rtc.getDateStr();
      delay(10);
      if ( currentDate != dateS){
          myGLCD.setColor(255, 255, 255); // Sets color to white
          myGLCD.setFont(BigFont); // Sets font to big
          myGLCD.print(rtc.getDateStr(), 153, 7);
        }
      // Checks for change of the temperature
      temperature = rtc.getTemp();
      delay(10);
      if ( currentTemperature != temperature ){
        myGLCD.setColor(255, 255, 255); // Sets color to white
        myGLCD.setFont(BigFont); // Sets font to big
        myGLCD.printNumI(temperature, 39, 7);
        currentTemperature = temperature;
      }
      delay(10);
      currentClock = rtc.getTimeStr();
    }
    // Checks whether the screen has been touched
    if (myTouch.dataAvailable()) {
      myTouch.read();
      x = myTouch.getX(); // X coordinate where the screen has been pressed
      y = myTouch.getY(); // Y coordinates where the screen has been pressed
      // If we press the Music Player Button
      if ((x >= 55) && (x <= 120) && (y >= 125) && (y <= 190)) {
          drawFrame(87, 157, 33);
          currentPage = '1';
          myGLCD.clrScr();
          delay(100);
          drawMusicPlayerScreen();
          delay(100);
        }
      // If we press the Alarm Button
      if ((x >= 195) && (x <= 260) && (y >= 125) && (y <= 190)) {
          drawFrame(227, 160, 29);
          currentPage = '2';
          myGLCD.clrScr();
        }
    }
  }

  // Music Player Screen
  if (currentPage == '1') {
    if (myTouch.dataAvailable()) {
      myTouch.read();
      x = myTouch.getX(); // X coordinate where the screen has been pressed
      y = myTouch.getY(); // Y coordinates where the screen has been pressed
      // If we press the Play Button
      if ((x >= 116) && (x <= 204) && (y >= 77) && (y <= 165)) {
        if (playStatus == '0') {
          drawFrame(159, 121, 42);
          drawPauseButton();
          mp3.playTrackFromFolder(00, 001);
          delay(100);
          playStatus = '2';
          return;
        }
        if (playStatus == '1') {
          drawFrame(159, 121, 42);
          drawPauseButton();
          mp3.play();
          delay(100);
          playStatus = '2';
          return;
        }
        if (playStatus == '2') {
          drawFrame(159, 121, 42);
          drawPlayButton();
          mp3.pause();
          delay(100);
          playStatus = '1';
          return;
        }
      }
      // If we press the Previous Button
      if ((x >= 45) && (x <= 95) && (y >= 97) && (y <= 147)) {
        drawFrame(70, 121, 26);
        mp3.previousTrack();
        delay(100);
        drawTrackBar();
      }
      // If we press the Next Button
      if ((x >= 227) && (x <= 277) && (y >= 97) && (y <= 147)) {
        drawFrame(252, 122, 26);
        mp3.nextTrack();
        delay(100);
        drawTrackBar();
      }
      // If we press the VolumeDown Button
      if ((x >= 35) && (x <= 75) && (y >= 165) && (y <= 209)) {
        drawUnderline(45, 205, 65, 205);
        if (iV >= 0 & iV <= 30) {
          iV--;
          drawVolume(iV);
        }
        mp3.decreaseVolume();
        delay(100);
      }
      // If we press the VolumeUp Button
      if ((x >= 230) && (x <= 280) && (y >= 165) && (y <= 209)) {
        drawUnderline(235, 205, 275, 205);
        if (iV >= 0 & iV <= 30) {
          iV++;
          drawVolume(iV);
        }
        mp3.increaseVolume();
        delay(100);
      }
      // If we press the MENU Button
      if ((x >= 0) && (x <= 75) && (y >= 0) && (y <= 30)) {
        myGLCD.clrScr();
        drawHomeScreen();  // Draws the Home Screen
        currentPage = '0';
        return;
      }
    }
    // Updates the track bar
    if (playStatus == '1' || playStatus == '2') {
      trackPlayTime();
    }
    // Printing the clock in the upper right corner
    myGLCD.setFont(BigFont);
    myGLCD.setColor(255, 255, 255);
    printClock(187, 5);
  }
  // Alarm Clock Screen
  if (currentPage == '2') {
    myGLCD.setFont(BigFont);
    myGLCD.setColor(255, 255, 255);
    myGLCD.print("MENU", 5, 5);
    myGLCD.print("Set Alarm", CENTER, 20);

    // Draws a colon between the hours and the minutes
    myGLCD.setColor(0, 255, 0);
    myGLCD.fillCircle (112, 65, 4);
    myGLCD.setColor(0, 255, 0);
    myGLCD.fillCircle (112, 85, 4);

    myGLCD.setFont(SevenSegNumFont);
    myGLCD.setColor(0, 255, 0);
    myGLCD.printNumI(aHours, 32, 50, 2, '0');
    myGLCD.printNumI(aMinutes, 128, 50, 2, '0');
    myGLCD.setColor(255, 255, 255);
    myGLCD.drawRoundRect (42, 115, 82, 145);
    myGLCD.drawRoundRect (138, 115, 178, 145);
    myGLCD.setFont(BigFont);
    myGLCD.print("H", 54, 122);
    myGLCD.print("M", 150, 122);

    myGLCD.drawRoundRect (215, 60, 303, 90);
    myGLCD.print("SET", 236, 67);
    myGLCD.drawRoundRect (215, 115, 303, 145);
    myGLCD.print("CLEAR", 220, 122);

    alarmNotSet = true;

    while (alarmNotSet){
      if (myTouch.dataAvailable()) {
        myTouch.read();
        x = myTouch.getX(); // X coordinate where the screen has been pressed
        y = myTouch.getY(); // Y coordinates where the screen has been pressed
        //Set hours button
        if ((x >= 42) && (x <= 82) && (y >= 115) && (y <= 145)) {
          drawRectFrame(42, 115, 82, 145);
          aHours++;
          if(aHours >=24){
            aHours = 0;
          }
          myGLCD.setFont(SevenSegNumFont);
          myGLCD.setColor(0, 255, 0);
          myGLCD.printNumI(aHours, 32, 50, 2, '0');
        }
        // Set minutes buttons
        if ((x >= 138) && (x <= 178) && (y >= 115) && (y <= 145)) {
          drawRectFrame(138, 115, 178, 145);
          aMinutes++;
          if(aMinutes >=60){
            aMinutes = 0;
          }
          myGLCD.setFont(SevenSegNumFont);
          myGLCD.setColor(0, 255, 0);
          myGLCD.printNumI(aMinutes, 128, 50, 2, '0');
      }
      // Set alarm button
      if ((x >= 215) && (x <= 303) && (y >= 60) && (y <= 80)) {
        drawRectFrame(215, 60, 303, 90);
        if (aHours < 10 && aMinutes < 10){
          alarmString = "0"+(String)aHours + ":" + "0"+ (String)aMinutes + ":" + "00";
        }
        else if (aHours < 10 && aMinutes > 9){
          alarmString = "0"+(String)aHours + ":" + (String)aMinutes + ":" + "00";
        }
        else if (aHours > 9 && aMinutes < 10){
          alarmString = (String)aHours + ":" + "0"+ (String)aMinutes + ":" + "00";
        }
        else {
          alarmString = (String)aHours + ":" + (String)aMinutes + ":" + "00";
        }
        myGLCD.setFont(BigFont);
        myGLCD.print("Alarm set for:", CENTER, 165);
        myGLCD.print(alarmString, CENTER, 191);

      }
      // Clear alarm button
      if ((x >= 215) && (x <= 303) && (y >= 115) && (y <= 145)) {
        drawRectFrame(215, 115, 303, 145);
        alarmString="";
        myGLCD.setColor(0, 0, 0);
        myGLCD.fillRect(45, 165, 275, 210);
      }
      // If we press the MENU Button
      if ((x >= 0) && (x <= 75) && (y >= 0) && (y <= 30)) {
        alarmNotSet = false;
        currentPage = '0';
        myGLCD.clrScr();
        drawHomeScreen();  // Draws the Home Screen
      }
      }
    }

    }
    // Alarm activation
    if (alarmNotSet == false) {
      if (alarmString == rtc.getTimeStr()){
        myGLCD.clrScr();
        mp3.setVolume(25);
        mp3.playTrackByIndexNumber(1);
        delay(100);
        myGLCD.setFont(BigFont);
        myGLCD.setColor(255, 255, 255);
        myGLCD.print("ALARM", CENTER, 90);
        myGLCD.drawBitmap (127, 10, 65, 64, AlarmButton);
        myGLCD.print(alarmString, CENTER, 114);
        myGLCD.drawRoundRect (94, 146, 226, 170);
        myGLCD.print("DISMISS", CENTER, 150);
        boolean alarmOn = true;
        while (alarmOn){
          if (myTouch.dataAvailable()) {
          myTouch.read();
          x = myTouch.getX(); // X coordinate where the screen has been pressed
          y = myTouch.getY(); // Y coordinates where the screen has been pressed

          // Stop alarm button
          if ((x >= 94) && (x <= 226) && (y >= 146) && (y <= 170)) {
          drawRectFrame(94, 146, 226, 170);
          alarmOn = false;
          alarmString="";
          myGLCD.clrScr();
          mp3.stopPlayback();
          delay(100);
          currentPage = '0';
          playStatus = '0';
          mp3.setVolume(15);
          drawHomeScreen();
          }

      }
        }
      }
    }
}

void drawHomeScreen() {
  myGLCD.setBackColor(0, 0, 0); // Sets the background color of the area where the text will be printed to black
  myGLCD.setColor(255, 255, 255); // Sets color to white
  myGLCD.setFont(BigFont); // Sets font to big
  myGLCD.print(rtc.getDateStr(), 153, 7);
  myGLCD.print("T:", 7, 7);
  myGLCD.printNumI(rtc.getTemp(), 39, 7);
  myGLCD.print("C", 82, 7);
  myGLCD.setFont(SmallFont);
  myGLCD.print("o", 74, 5);
  if (alarmString == "" ) {
    myGLCD.setColor(255, 255, 255);
    myGLCD.print("by www.HowToMechatronics.com", CENTER, 215);
  }
  else {
    myGLCD.setColor(255, 255, 255);
    myGLCD.print("Alarm set for: ", 68, 215);
    myGLCD.print(alarmString, 188, 215);
  }
  drawMusicPlayerButton();
  drawAlarmButton();
  drawHomeClock();
}

void drawMusicPlayerScreen() {
  // Title
  myGLCD.setBackColor(0, 0, 0); // Sets the background color of the area where the text will be printed to black
  myGLCD.setColor(255, 255, 255); // Sets color to white
  myGLCD.setFont(BigFont); // Sets font to big
  myGLCD.print("MENU", 5, 5); // Prints the string on the screen
  myGLCD.setColor(255, 0, 0); // Sets color to red
  myGLCD.drawLine(0, 26, 319, 26); // Draws the red line

  myGLCD.setColor(255, 255, 255); // Sets color to white
  myGLCD.setFont(SmallFont); // Sets font to big
  myGLCD.print("by www.HowToMechatronics.com", CENTER, 215); // Prints the string on the screen

  // Volume Bar
  myGLCD.setColor(255, 255, 255);
  myGLCD.fillRect (78, 184, 78 + 150, 184 + 8);
  myGLCD.setColor(240, 196, 30);
  myGLCD.fillRect (78, 184, 78 + 75, 184 + 8);

  // Track Bar
  myGLCD.setColor(255, 255, 255);
  myGLCD.fillRect (48, 50, 48 + 224, 50 + 8);
  myGLCD.setFont(SmallFont);
  myGLCD.setColor(255, 255, 255);
  myGLCD.print("0:00", 8, 48);
  myGLCD.print("-0:00", 276, 48);

  drawPlayButton();
  if (playStatus == '2') {
    drawPauseButton();
  }
  drawPreviousButton();
  drawNextButton();
  drawVolumeDown();
  drawVolumeUp();
}

void drawMusicPlayerButton() {
  myGLCD.drawBitmap (55, 125, 65, 64, MusicPlayerButton);
}
void drawAlarmButton() {
  myGLCD.drawBitmap (195, 125, 65, 64, AlarmButton);
}
void drawPlayButton() {
  myGLCD.drawBitmap (118, 79, 83, 83, ButtonPlay);
}
void drawPauseButton() {
  myGLCD.drawBitmap (118, 79, 83, 83, ButtonPause);
}
void drawNextButton() {
  myGLCD.drawBitmap (227, 97, 50, 50, NextButton);
}
void drawPreviousButton() {
  myGLCD.drawBitmap (45, 97, 50, 50, PreviousButton);
}
void drawVolumeDown() {
  myGLCD.drawBitmap (50, 177, 16, 23, VolumeDown);
}
void drawVolumeUp() {
  myGLCD.drawBitmap (241, 175, 34, 28, VolumeUp);
}
// check for if Mp3 Player is stopped
bool checkFor_mp3IsStopped() {
  if (mp3Serial.available() > 0) {
    if (mp3.getPlaybackStatus() == 0) {
      return true;
    }
  }
  else return false;
}

// Highlights the button when pressed
void drawFrame(int x, int y, int r) {
  myGLCD.setColor(255, 0, 0);
  myGLCD.drawCircle (x, y, r);
  while (myTouch.dataAvailable())
    myTouch.read();
  myGLCD.setColor(0, 0, 0);
  myGLCD.drawCircle (x, y, r);
}
void drawRectFrame(int x1, int y1, int x2, int y2) {
  myGLCD.setColor(255, 0, 0);
  myGLCD.drawRoundRect (x1, y1, x2, y2);
  while (myTouch.dataAvailable())
    myTouch.read();
  myGLCD.setColor(255, 255, 255);
  myGLCD.drawRoundRect (x1, y1, x2, y2);
}
void drawUnderline(int x1, int y1, int x2, int y2) {
  myGLCD.setColor(255, 0, 0);
  myGLCD.drawLine (x1, y1, x2, y2);
  while (myTouch.dataAvailable())
    myTouch.read();
  myGLCD.setColor(0, 0, 0);
  myGLCD.drawLine (x1, y1, x2, y2);
}

// Sound bar
void drawVolume(int x) {
  myGLCD.setColor(255, 255, 255);
  myGLCD.fillRect (78 + 5 * x, 184, 78 + 150, 184 + 8);
  myGLCD.setColor(240, 196, 30);
  myGLCD.fillRect (78, 184, 78 + 5 * x, 184 + 8);
}

// Clears the track bar
void drawTrackBar() {
  myGLCD.setColor(255, 255, 255);
  myGLCD.fillRect (48, 50, 48 + 224, 50 + 8);
}
// Updates the track bar
void trackPlayTime() {
  totalTime = mp3.getTotalTrackPlaybackTime();
  delay(10);
  elapsedTime = mp3.getElapsedTrackPlaybackTime();
  delay(10);
  minutes = (int)elapsedTime / 60;
  seconds = (((float)elapsedTime / 60) - minutes) * 60;
  playback = totalTime - elapsedTime;
  minutesR = (int)playback / 60;
  secondsR = (((float)playback / 60) - minutesR) * 60;

  myGLCD.setFont(SmallFont);
  myGLCD.setColor(255, 255, 255);
  myGLCD.printNumI(minutes, 8, 48);

  myGLCD.print(":", 16, 48);
  myGLCD.printNumI((int)seconds, 24, 48, 2, '0');

  myGLCD.print("-", 276, 48);
  myGLCD.printNumI(minutesR, 284, 48);
  myGLCD.print(":", 292, 48);
  myGLCD.printNumI((int)secondsR, 300, 48, 2, '0');

  int trackBarX = map(elapsedTime, 0, totalTime, 0, 224);
  myGLCD.setColor(255, 0, 0);
  myGLCD.fillRect (48, 50, 48 + trackBarX, 50 + 8);

  if (totalTime == elapsedTime) {
    mp3.nextTrack();
    delay(30);
    myGLCD.setColor(255, 255, 255);
    myGLCD.fillRect (48, 50, 48 + 224, 50 + 8);
  }
}

void printClock(int x, int y) {
  if ( currentClock != rtc.getTimeStr()) {
    myGLCD.print(rtc.getTimeStr(), x, y);
    currentClock = rtc.getTimeStr();
  }
}

void drawColon() {
  myGLCD.setColor(0, 255, 0);
  myGLCD.fillCircle (112, 65, 4);
  myGLCD.setColor(0, 255, 0);
  myGLCD.fillCircle (112, 85, 4);

  myGLCD.setColor(0, 255, 0);
  myGLCD.fillCircle (208, 65, 4);
  myGLCD.setColor(0, 255, 0);
  myGLCD.fillCircle (208, 85, 4);
}
void drawHomeClock() {
  timeString = rtc.getTimeStr();
  currentHours = timeString.substring(0, 2);
  currentMinutes = timeString.substring(3, 5);
  currentSeconds = timeString.substring(6, 8);
  myGLCD.setFont(SevenSegNumFont);
  myGLCD.setColor(0, 255, 0);
  myGLCD.print(currentSeconds, 224, 50);
  myGLCD.print(currentMinutes, 128, 50);
  myGLCD.print(currentHours, 32, 50);
  drawColon();
}

【Arduino 动手做】Arduino触摸屏音乐播放器和闹钟项目
项目链接：https://howtomechatronics.com/projects/arduino-touch-screen-music-player-alarm-clock-project/
https://blogdaichan.hatenablog.com/entry/2019/04/17/193255
项目作者：Dejan
项目参考：https://blogdaichan.hatenablog.com/entry/2019/04/17/193255
参考视频 ：https://arduinointro.com/openvideo/video/hsIsMhcyzZu
项目视频：https://www.youtube.com/watch?v=0H55LnimobM
项目代码：https://howtomechatronics.com/projects/arduino-touch-screen-music-player-alarm-clock-project/（底部）
3D 文件：https://howtomechatronics.com/download/music-player-alarm-clock-3d-model/?wpdmdl=3422&_wpdmkey=6855bbe317add&subscriber=NX1KuCDb7u8o8WvHX5ushOCrSjt7x2SR967wXMfMScfb36OrGmvvCMDu7qU4CcoY5TnE54ypTAakEYHEhHw5VA


Makelog作者原创文章，未经授权禁止转载。
#Arduino#其他主题#Arduino 动手做#触摸屏音乐播放器和闹钟项目

评论

user-avatar
驴友花雕
驴友花雕2019.05.06
icon
创造力70174
icon
项目文章1154

爱好中国极地探险，二次徒步穿越雅鲁藏布江大峡谷核心无人区域，成功穿越了中国三大沙漠、四大无人区及三江源等中国境内最困难的地方。攀登三座八千米级雪山，组织驼峰搜寻队二次深入高黎贡山核心无人区搜寻驼峰航线坠机，骑行美国66号公路徒步北极等。完成十余项极地摄影专题，累计拍摄相关照片近十万张，在重庆科技馆举办过《花雕中国极地摄影展》。中国探险协会理事，入选“中国国家旅游首席旅行家”、《中国十大徒步人物》和《中国当代徐霞客》。

icon 他的勋章
    展开更多

    你可能感兴趣的
