37款传感器与执行器的提法，在网络上广泛流传，其实Arduino能够兼容的传感器模块肯定是不止这37种的。鉴于本人手头积累了一些传感器和执行器模块，依照实践出真知（一定要动手做）的理念，以学习和交流为目的，这里准备逐一动手尝试系列实验，不管成功（程序走通）与否，都会记录下来—小小的进步或是搞不掂的问题，希望能够抛砖引玉。

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

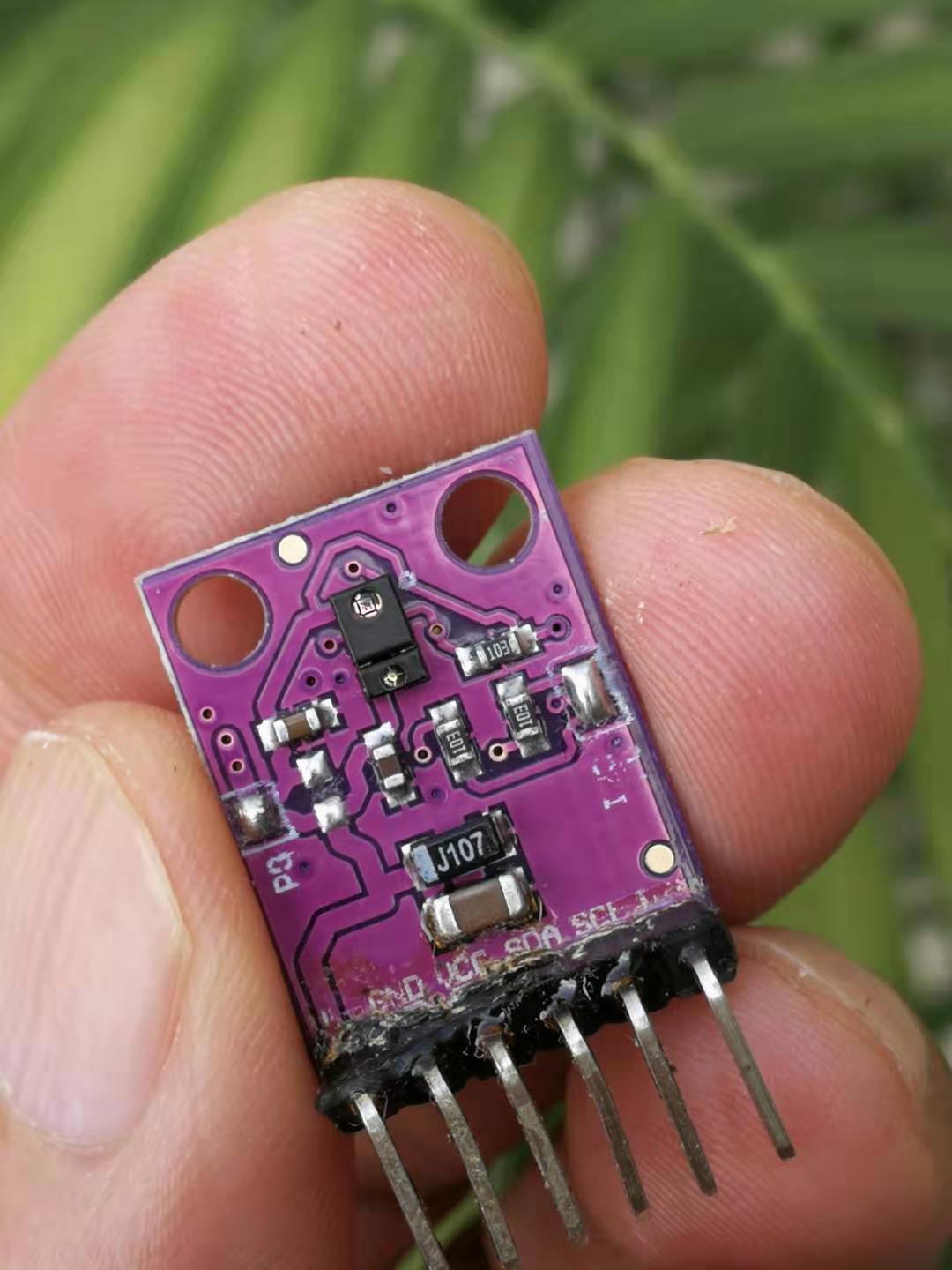

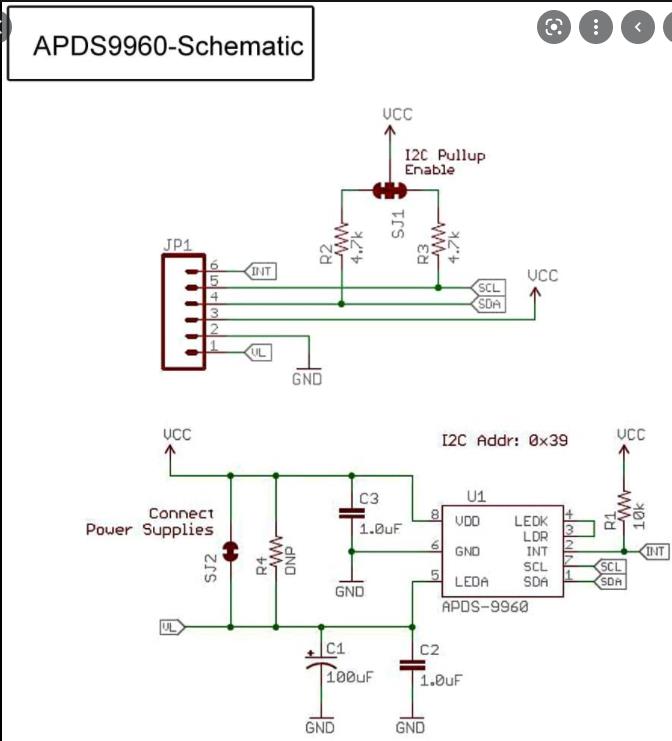

实验九十五：APDS-9960 GY-9960-3.3 RGB红外手势传感器方向识别模块

手势检测
APDS-9960是一款集成 ALS红外 LED 和接近检测器的光学模块和环境亮度感测 (ALS, Ambient Light Sensing)的环境亮度传感器，使用双光二极管来近似 0.01 lux 照度近似人眼的视觉反应，带有上限和下限阈值的可编程中断功能，高达16位分辨率，即使在深色玻璃后也能高灵活运作，接近传感器经过完全调校可进行100毫米物体检测，免除终端设备和次组件的工厂校准需求。环境光动态范围也从之前大10K lux增大到30K lux，太阳光校准大增至50K lux，大大提升了灵敏度并避免了强光干扰。可以在大1.0mm的Air Gap下精准工作，不用做外部隔离处理，极大的方便了客户的结构设计。其等待状态功耗 - 90µA 典型值，睡眠模式功率 - 2.2µA 典型值，更能节省能源；高达 400kHz (I²C 快速模式)专用中断引脚，提供 I²C 接口兼容，可以适应所有手机硬件平台和接口电压，全集成方案，方便结构和电路设计。

APDS-9960 中文资料（P39）

https://wenku.baidu.com/view/2b2 ... 4ae45c3b35c27b.html

https://max.book118.com/html/2017/0905/131913559.shtm

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

实验九十五：APDS-9960 GY-9960-3.3 RGB红外手势传感器方向识别模块

项目：Arduino环境光检测实验开源代码

Arduino实验开源代码

代码

/*
【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

实验九十九：APDS-9960 GY-9960-3.3 RGB红外手势传感器 方向识别模块

1、工具-管理库-搜索“SparkFun_APDS-9960”库-安装

2、项目：Arduino环境光

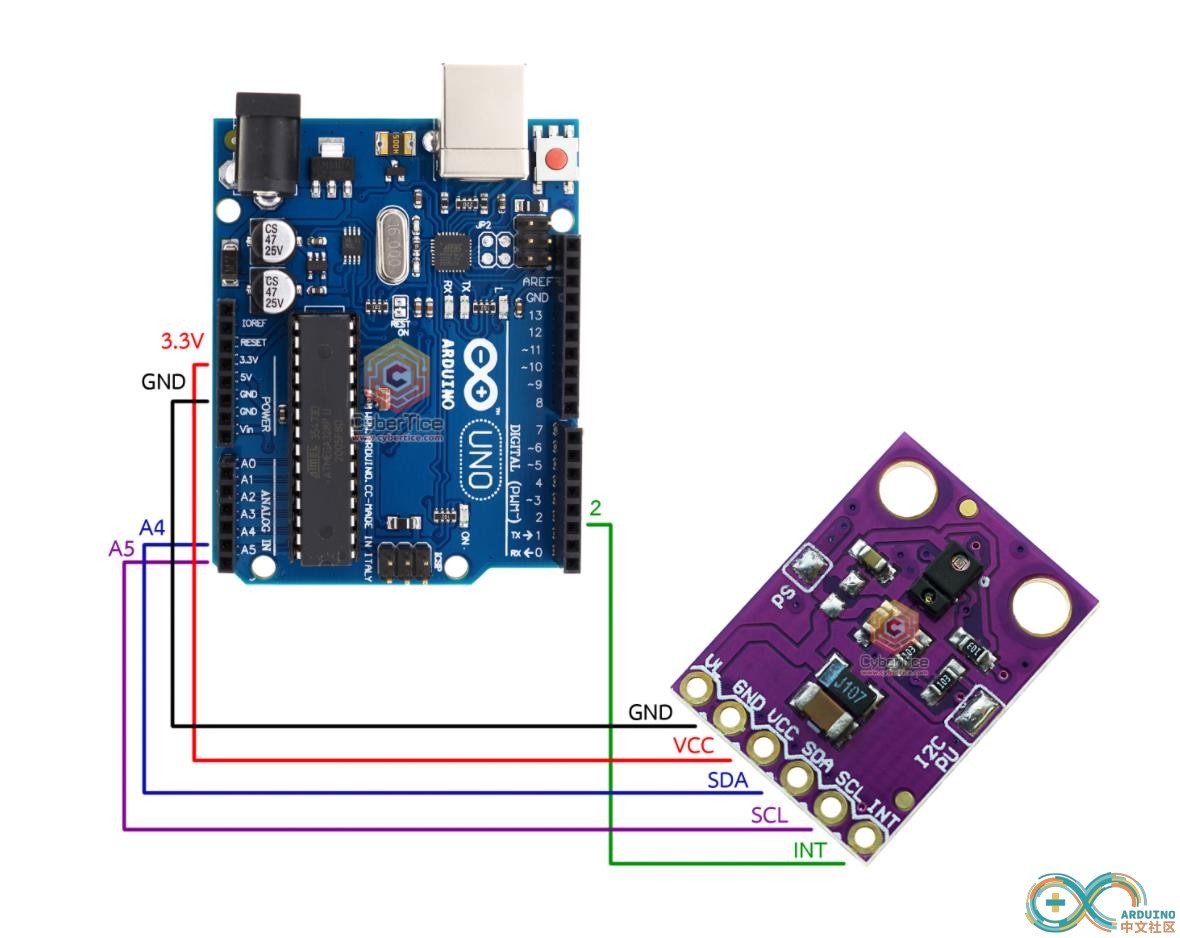

3、实验接脚

SDA = A4

SCL = A5

GND = GND

VCC = 3.3V

*/

#include <Wire.h>
#include <SparkFun_APDS9960.h>

// Pins
#define APDS9960_INT    2  // Needs to be an interrupt pin
#define LED_PIN         13 // LED for showing interrupt

// Constants
#define LIGHT_INT_HIGH  1000 // High light level for interrupt
#define LIGHT_INT_LOW   10   // Low light level for interrupt

// Global variables
SparkFun_APDS9960 apds = SparkFun_APDS9960();
uint16_t ambient_light = 0;
uint16_t red_light = 0;
uint16_t green_light = 0;
uint16_t blue_light = 0;
int isr_flag = 0;
uint16_t threshold = 0;

void setup() {

  // Set LED as output
  pinMode(LED_PIN, OUTPUT);
  pinMode(APDS9960_INT, INPUT);

  // Initialize Serial port
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("-------------------------------------"));
  Serial.println(F("SparkFun APDS-9960 - Light Interrupts"));
  Serial.println(F("-------------------------------------"));

  // Initialize interrupt service routine
  attachInterrupt(0, interruptRoutine, FALLING);

  // Initialize APDS-9960 (configure I2C and initial values)
  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Set high and low interrupt thresholds
  if ( !apds.setLightIntLowThreshold(LIGHT_INT_LOW) ) {
    Serial.println(F("Error writing low threshold"));
  }
  if ( !apds.setLightIntHighThreshold(LIGHT_INT_HIGH) ) {
    Serial.println(F("Error writing high threshold"));
  }

  // Start running the APDS-9960 light sensor (no interrupts)
  if ( apds.enableLightSensor(false) ) {
    Serial.println(F("Light sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during light sensor init!"));
  }

  // Read high and low interrupt thresholds
  if ( !apds.getLightIntLowThreshold(threshold) ) {
    Serial.println(F("Error reading low threshold"));
  } else {
    Serial.print(F("Low Threshold: "));
    Serial.println(threshold);
  }
  if ( !apds.getLightIntHighThreshold(threshold) ) {
    Serial.println(F("Error reading high threshold"));
  } else {
    Serial.print(F("High Threshold: "));
    Serial.println(threshold);
  }

  // Enable interrupts
  if ( !apds.setAmbientLightIntEnable(1) ) {
    Serial.println(F("Error enabling interrupts"));
  }

  // Wait for initialization and calibration to finish
  delay(500);
}

void loop() {

  // If interrupt occurs, print out the light levels
  if ( isr_flag == 1 ) {

    // Read the light levels (ambient, red, green, blue) and print
    if (  !apds.readAmbientLight(ambient_light) ||
          !apds.readRedLight(red_light) ||
          !apds.readGreenLight(green_light) ||
          !apds.readBlueLight(blue_light) ) {
      Serial.println("Error reading light values");
    } else {
      Serial.print("Interrupt! Ambient: ");
      Serial.print(ambient_light);
      Serial.print(" R: ");
      Serial.print(red_light);
      Serial.print(" G: ");
      Serial.print(green_light);
      Serial.print(" B: ");
      Serial.println(blue_light);
    }

    // Turn on LED for a half a second
    digitalWrite(LED_PIN, HIGH);
    delay(500);
    digitalWrite(LED_PIN, LOW);

    // Reset flag and clear APDS-9960 interrupt (IMPORTANT!)
    isr_flag = 0;
    if ( !apds.clearAmbientLightInt() ) {
      Serial.println("Error clearing interrupt");
    }

  }
}

void interruptRoutine() {
  isr_flag = 1;
}

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

实验九十五：APDS-9960 GY-9960-3.3 RGB红外手势传感器方向识别模块

项目：Arduino颜色检测

Arduino实验开源代码

代码

/*
【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
实验九十九：APDS-9960 GY-9960-3.3 RGB红外手势传感器 方向识别模块
1、工具-管理库-搜索“SparkFun_APDS-9960”库-安装
2、项目：Arduino颜色检测
3、实验接脚
SDA = A4
SCL = A5
GND = GND
VCC = 3.3V
*/

#include <Wire.h>
#include <SparkFun_APDS9960.h>

// Global Variables
SparkFun_APDS9960 apds = SparkFun_APDS9960();
uint16_t ambient_light = 0;
uint16_t red_light = 0;
uint16_t green_light = 0;
uint16_t blue_light = 0;

void setup() {

  // Initialize Serial port
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("--------------------------------"));
  Serial.println(F("SparkFun APDS-9960 - ColorSensor"));
  Serial.println(F("--------------------------------"));

  // Initialize APDS-9960 (configure I2C and initial values)
  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Start running the APDS-9960 light sensor (no interrupts)
  if ( apds.enableLightSensor(false) ) {
    Serial.println(F("Light sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during light sensor init!"));
  }

  // Wait for initialization and calibration to finish
  delay(500);
}

void loop() {

  // Read the light levels (ambient, red, green, blue)
  if (  !apds.readAmbientLight(ambient_light) ||
        !apds.readRedLight(red_light) ||
        !apds.readGreenLight(green_light) ||
        !apds.readBlueLight(blue_light) ) {
    Serial.println("Error reading light values");
  } else {
    Serial.print("Ambient: ");
    Serial.print(ambient_light);
    Serial.print(" Red: ");
    Serial.print(red_light);
    Serial.print(" Green: ");
    Serial.print(green_light);
    Serial.print(" Blue: ");
    Serial.println(blue_light);
  }

  // Wait 1 second before next reading
  delay(1000);
}

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

实验九十五：APDS-9960 GY-9960-3.3 RGB红外手势传感器方向识别模块

APDS9960 手势检测

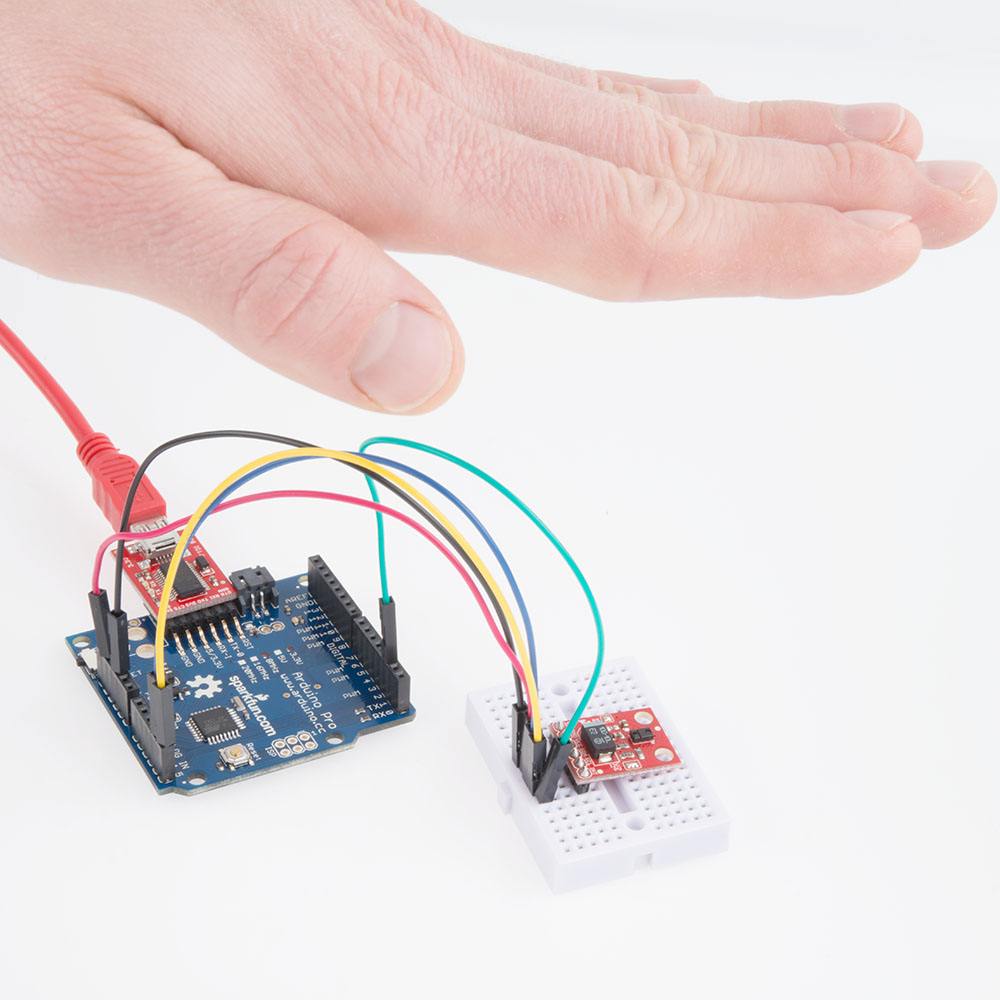

Arduino实验场景图

代码

/*
【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
实验九十九：APDS-9960 GY-9960-3.3 RGB红外手势传感器 方向识别模块
1、工具-管理库-搜索“SparkFun_APDS-9960”库-安装
2、项目：APDS9960 手势检测

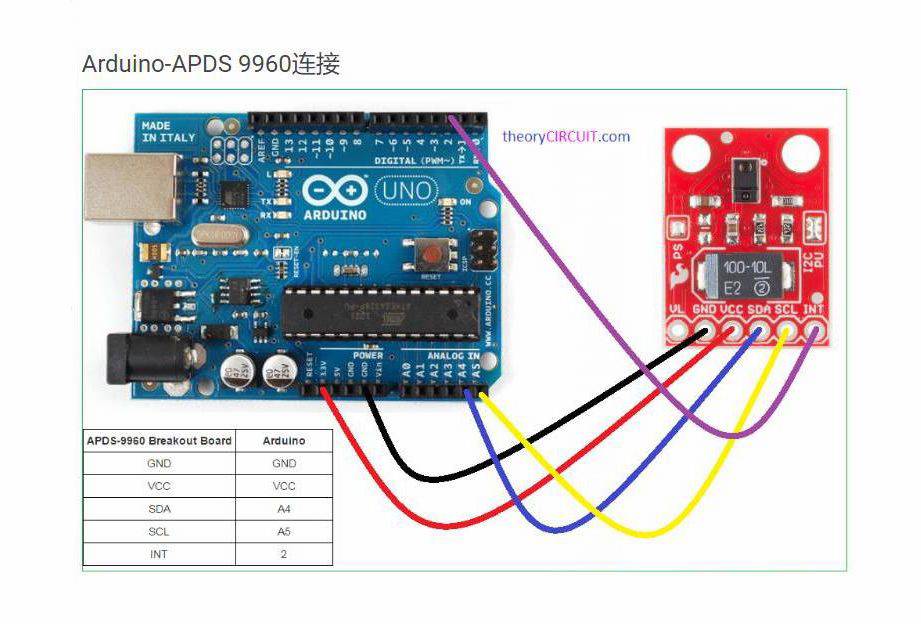

3、实验接脚
SDA = A4
SCL = A5
GND = GND
VCC = 3.3V
*/

#include <Wire.h>
#include <SparkFun_APDS9960.h>

// Pins
#define APDS9960_INT    2 // Needs to be an interrupt pin

// Constants

// Global Variables
SparkFun_APDS9960 apds = SparkFun_APDS9960();
int isr_flag = 0;

void setup() {

  // Set interrupt pin as input
  pinMode(APDS9960_INT, INPUT);

  // Initialize Serial port
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("--------------------------------"));
  Serial.println(F("SparkFun APDS-9960 - GestureTest"));
  Serial.println(F("--------------------------------"));

  // Initialize interrupt service routine
  attachInterrupt(0, interruptRoutine, FALLING);

  // Initialize APDS-9960 (configure I2C and initial values)
  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Start running the APDS-9960 gesture sensor engine
  if ( apds.enableGestureSensor(true) ) {
    Serial.println(F("Gesture sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during gesture sensor init!"));
  }
}

void loop() {
  if( isr_flag == 1 ) {
    detachInterrupt(0);
    handleGesture();
    isr_flag = 0;
    attachInterrupt(0, interruptRoutine, FALLING);
  }
}

void interruptRoutine() {
  isr_flag = 1;
}

void handleGesture() {
    if ( apds.isGestureAvailable() ) {
    switch ( apds.readGesture() ) {
      case DIR_UP:
        Serial.println("UP");
        break;
      case DIR_DOWN:
        Serial.println("DOWN");
        break;
      case DIR_LEFT:
        Serial.println("LEFT");
        break;
      case DIR_RIGHT:
        Serial.println("RIGHT");
        break;
      case DIR_NEAR:
        Serial.println("NEAR");
        break;
      case DIR_FAR:
        Serial.println("FAR");
        break;
      default:
        Serial.println("NONE");
    }
  }
}

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

实验九十五：APDS-9960 GY-9960-3.3 RGB红外手势传感器方向识别模块

项目：APDS9960 接近中断

Arduino实验开源代码

代码

/*
【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
实验九十九：APDS-9960 GY-9960-3.3 RGB红外手势传感器 方向识别模块
1、工具-管理库-搜索“SparkFun_APDS-9960”库-安装
2、项目：APDS9960 接近中断
3、实验接脚
SDA = A4
SCL = A5
GND = GND
VCC = 3.3V
*/

#include <Wire.h>
#include <SparkFun_APDS9960.h>

// Pins
#define APDS9960_INT    2  // Needs to be an interrupt pin
#define LED_PIN         13 // LED for showing interrupt

// Constants
#define PROX_INT_HIGH   50 // Proximity level for interrupt
#define PROX_INT_LOW    0  // No far interrupt

// Global variables
SparkFun_APDS9960 apds = SparkFun_APDS9960();
uint8_t proximity_data = 0;
int isr_flag = 0;

void setup() {

  // Set LED as output
  pinMode(LED_PIN, OUTPUT);
  pinMode(APDS9960_INT, INPUT);

  // Initialize Serial port
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("---------------------------------------"));
  Serial.println(F("SparkFun APDS-9960 - ProximityInterrupt"));
  Serial.println(F("---------------------------------------"));

  // Initialize interrupt service routine
  attachInterrupt(0, interruptRoutine, FALLING);

  // Initialize APDS-9960 (configure I2C and initial values)
  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Adjust the Proximity sensor gain
  if ( !apds.setProximityGain(PGAIN_2X) ) {
    Serial.println(F("Something went wrong trying to set PGAIN"));
  }

  // Set proximity interrupt thresholds
  if ( !apds.setProximityIntLowThreshold(PROX_INT_LOW) ) {
    Serial.println(F("Error writing low threshold"));
  }
  if ( !apds.setProximityIntHighThreshold(PROX_INT_HIGH) ) {
    Serial.println(F("Error writing high threshold"));
  }

  // Start running the APDS-9960 proximity sensor (interrupts)
  if ( apds.enableProximitySensor(true) ) {
    Serial.println(F("Proximity sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during sensor init!"));
  }
}

void loop() {

  // If interrupt occurs, print out the proximity level
  if ( isr_flag == 1 ) {

    // Read proximity level and print it out
    if ( !apds.readProximity(proximity_data) ) {
      Serial.println("Error reading proximity value");
    } else {
      Serial.print("Proximity detected! Level: ");
      Serial.println(proximity_data);
    }

    // Turn on LED for a half a second
    digitalWrite(LED_PIN, HIGH);
    delay(500);
    digitalWrite(LED_PIN, LOW);

    // Reset flag and clear APDS-9960 interrupt (IMPORTANT!)
    isr_flag = 0;
    if ( !apds.clearProximityInt() ) {
      Serial.println("Error clearing interrupt");
    }

  }
}

void interruptRoutine() {
  isr_flag = 1;
}
