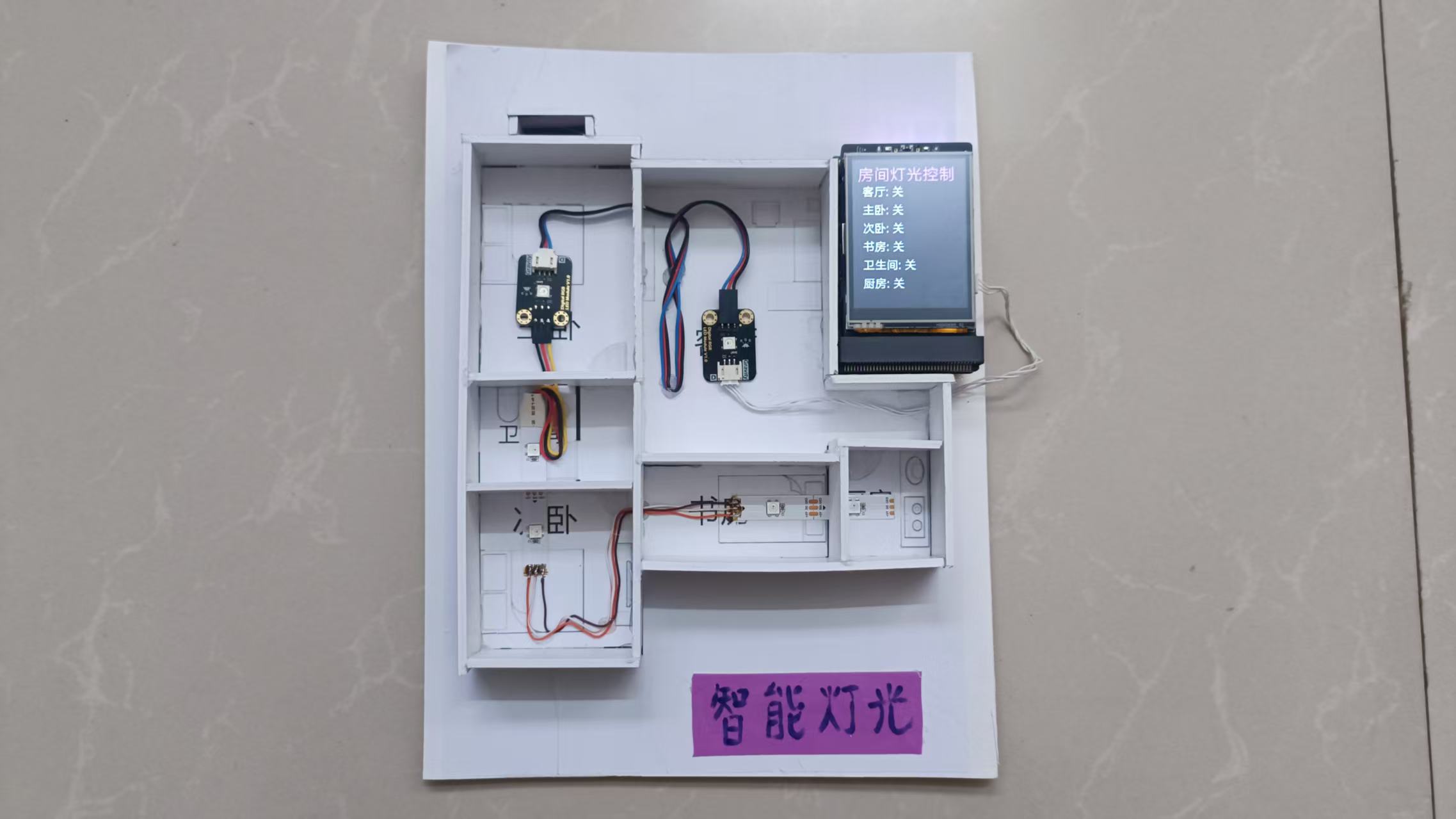

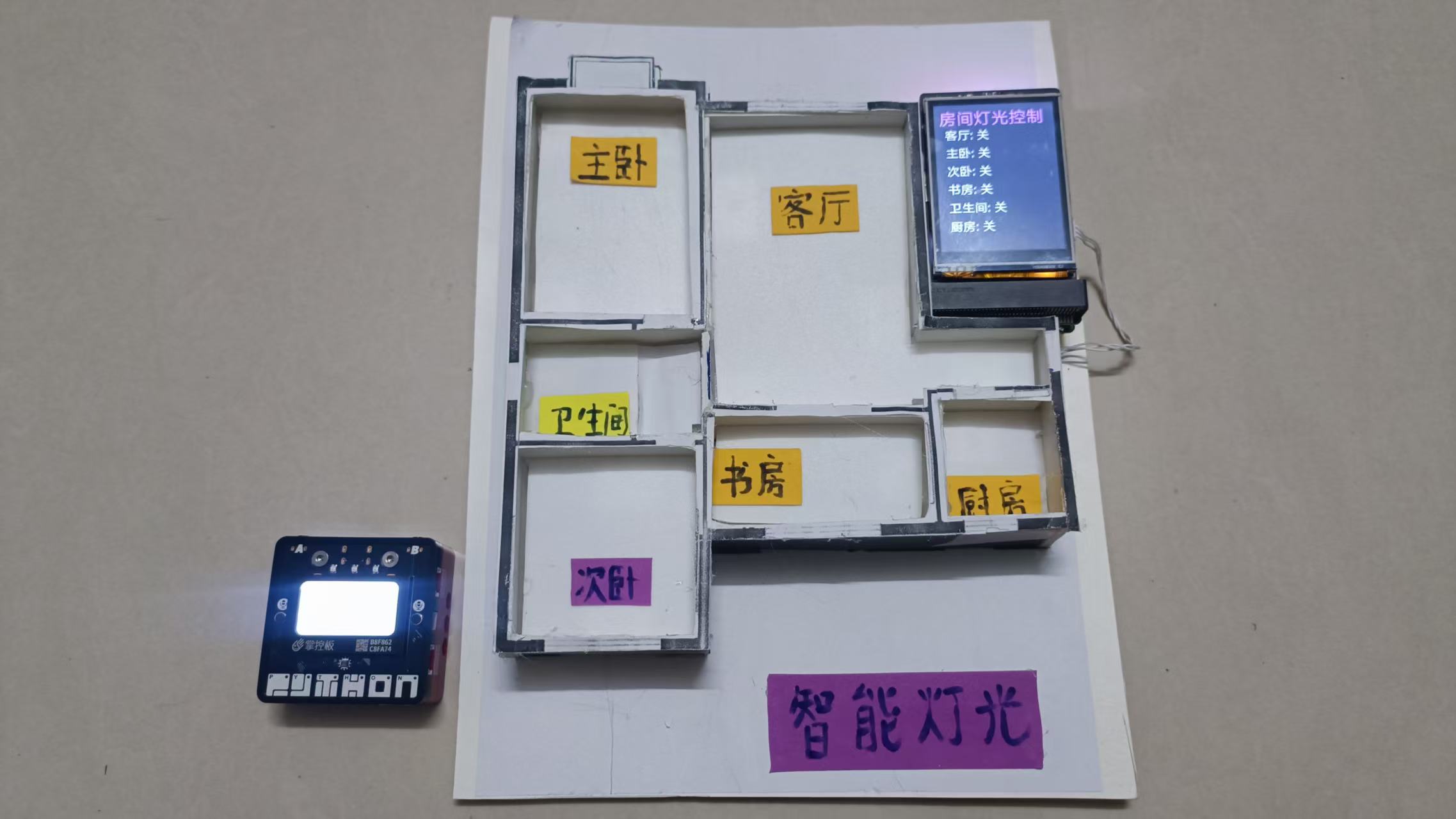

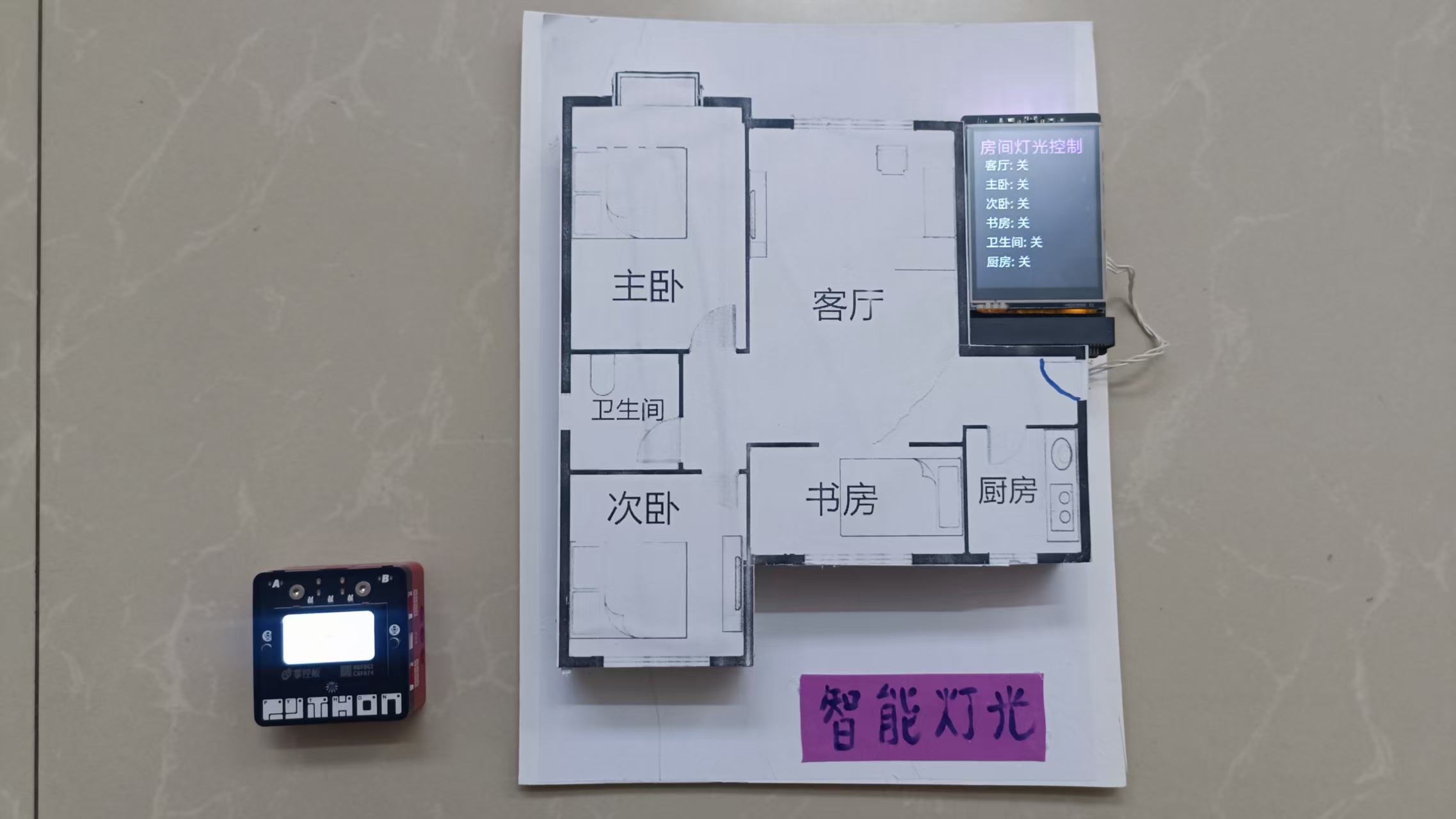

小智AI控制房间模型RGB灯光（MCP） 简单

# move.py
# MCP服务器设备控制工具
# 最终版

from mcp.server.fastmcp import FastMCP
import logging

# 配置日志
logger = logging.getLogger('RoomLightServer')
mcp = FastMCP("RoomLightServer")

# 房间列表
ROOMS = ["客厅", "主卧", "次卧", "书房", "卫生间","厨房"]

# 设备控制工具
@mcp.tool()
def set_light_on(room: str) -> dict:
    """点亮指定房间的灯，房间包括：客厅、主卧、次卧、书房、卫生间、厨房。灯色设为白色，亮度100。"""
    if room not in ROOMS:
        return {"success": False, "result": f"无效的房间: {room}"}
    return {"success": True, "result": f"已点亮{room}的灯（白色, 亮度100）"}

@mcp.tool()
def set_light_off(room: str) -> dict:
    """熄灭指定房间的灯，房间包括：客厅、主卧、次卧、书房、卫生间、厨房。"""
    if room not in ROOMS:
        return {"success": False, "result": f"无效的房间: {room}"}
    return {"success": True, "result": f"已熄灭{room}的灯"}

@mcp.tool()
def set_light_color(room: str, color: str) -> dict:
    """设置指定房间灯的颜色，支持: 红色、绿色，蓝色，黄色，紫色，青色，白色"""
    if room not in ROOMS:
        return {"success": False, "result": f"无效的房间: {room}"}
    valid_colors = ["红色", "绿色", "蓝色", "黄色", "紫色", "青色", "白色"]
    if color not in valid_colors:
        return {"success": False, "result": f"无效的颜色: {color}"}
    return {"success": True, "result": f"已设置{room}的颜色为{color}"}

@mcp.tool()
def set_light_brightness(room: str, brightness: int) -> dict:
    """设置指定房间灯的亮度(0-255)"""
    if room not in ROOMS:
        return {"success": False, "result": f"无效的房间: {room}"}
    # 自动修正亮度值到0-255范围
    brightness = max(0, min(brightness, 255))
    return {"success": True, "result": f"已设置{room}的亮度为{brightness}"}

# 启动服务器
if __name__ == "__main__":
    mcp.run(transport="stdio")

# mcp_pipe.py
# 连接MCP服务器并通过WebSocket传输输入输出
# 最终稳定版

from unihiker import GUI
import asyncio
import websockets
import subprocess
import logging
import signal
import sys
import random
from pinpong.board import Board, Pin, NeoPixel
import json
import os
import re

# 初始化硬件
Board().begin()
u_gui = GUI()
pin1 = Pin(Pin.P21)
np1 = NeoPixel(pin1, 6)  # 6个灯对应6个房间
np1.brightness(100)

# 房间与灯索引映射
ROOM_MAP = {
    "客厅": 0,
    "主卧": 1,
    "次卧": 3,
    "书房": 4,
    "卫生间": 2,
    "厨房": 5
}

# 颜色映射
COLOR_MAP = {
    "红色": (255, 0, 0),
    "绿色": (0, 255, 0),
    "蓝色": (0, 0, 255),
    "黄色": (255, 255, 0),
    "紫色": (128, 0, 128),
    "青色": (0, 255, 255),
    "白色": (255, 255, 255)
}

# 确保背景图片存在
if not os.path.exists("back.png"):
    # 创建默认黑色背景
    u_gui.fill_rect(x=0, y=0, w=240, h=320, color="#000000")
else:
    u_gui.draw_image(image="back.png", x=0, y=0)

# 配置日志
logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(name)s - %(levelname)s - %(message)s')
logger = logging.getLogger('MCP_PIPE')

# 重连设置
INITIAL_BACKOFF, MAX_BACKOFF = 1, 600
reconnect_attempt, backoff = 0, INITIAL_BACKOFF

# 房间状态跟踪
room_states = {
    "客厅": {"on": False, "color": "白色", "brightness": 100},
    "主卧": {"on": False, "color": "白色", "brightness": 100},
    "次卧": {"on": False, "color": "白色", "brightness": 100},
    "书房": {"on": False, "color": "白色", "brightness": 100},
    "卫生间": {"on": False, "color": "白色", "brightness": 100},
    "厨房": {"on": False, "color": "白色", "brightness": 100}
}

# UI文本对象存储
ui_texts = {
    "客厅": None,
    "主卧": None,
    "次卧": None,
    "书房": None,
    "卫生间": None,
    "厨房": None
}

# 状态显示位置（垂直排列，字体大小18）
ROOM_POSITIONS = {
    "客厅": (20, 50),
    "主卧": (20, 90),
    "次卧": (20, 130),
    "书房": (20, 170),
    "卫生间": (20, 210),
    "厨房":(20, 250)
}

def init_ui():
    """初始化用户界面"""
    # 清除屏幕
    if os.path.exists("back.png"):
        u_gui.draw_image(image="back.png", x=0, y=0)
    else:
        u_gui.fill_rect(x=0, y=0, w=240, h=320, color="#000000")

    # 标题
    u_gui.draw_text(text="房间灯光控制", x=10, y=5, font_size=25, color="#FF00FF")

    # 创建房间状态文本（字体大小18）
    for room, pos in ROOM_POSITIONS.items():
        color = "#FFFFFF"
        ui_texts[room] = u_gui.draw_text(text=f"{room}: 关", x=pos[0], y=pos[1], font_size=18, color=color)

def update_ui(room):
    """更新单个房间的UI显示 - 使用重绘方法"""
    # 清除旧文本
    if ui_texts[room]:
        # 用背景色覆盖旧文本
        pos = ROOM_POSITIONS[room]
        u_gui.fill_rect(x=pos[0]-5, y=pos[1]-5, w=150, h=30, color="#000000")

    # 绘制新文本（字体大小18）
    color = "#FFFF00" if room_states[room]["on"] else "#FFFFFF"
    status = "开" if room_states[room]["on"] else "关"
    pos = ROOM_POSITIONS[room]
    ui_texts[room] = u_gui.draw_text(text=f"{room}: {status}", x=pos[0], y=pos[1], font_size=18, color=color)

def update_room_light(room, action, color=None, brightness=None):
    """更新房间灯光状态并控制硬件"""
    idx = ROOM_MAP[room]

    if action == "on":
        # 点亮房间灯
        color_rgb = COLOR_MAP[room_states[room]["color"]]
        np1[idx] = color_rgb
        room_states[room]["on"] = True
        logger.info(f"{room}灯已点亮 ({room_states[room]['color']}, 亮度{room_states[room]['brightness']})")
    elif action == "off":
        # 熄灭房间灯
        np1[idx] = (0, 0, 0)
        room_states[room]["on"] = False
        logger.info(f"{room}灯已熄灭")
    elif action == "color" and color:
        # 设置房间灯颜色
        room_states[room]["color"] = color
        if room_states[room]["on"]:
            np1[idx] = COLOR_MAP[color]
        logger.info(f"{room}灯颜色设置为{color}")
    elif action == "brightness" and brightness is not None:
        # 设置房间灯亮度
        room_states[room]["brightness"] = brightness

        # 重要：更新全局亮度（NeoPixel只能设置全局亮度）
        np1.brightness(brightness)
        logger.info(f"{room}灯亮度设置为{brightness}")

    # 更新UI显示
    update_ui(room)

async def connect_with_retry(uri):
    """带重连机制的WebSocket连接"""
    global reconnect_attempt, backoff
    while True:
        try:
            if reconnect_attempt > 0:
                wait_time = min(backoff * (1 + random.random() * 0.1), MAX_BACKOFF)
                logger.info(f"等待 {wait_time:.2f}秒后重试...")
                await asyncio.sleep(wait_time)

            await connect_to_server(uri)
        except Exception as e:
            reconnect_attempt += 1
            backoff = min(backoff * 2, MAX_BACKOFF)
            logger.warning(f"连接关闭 (尝试: {reconnect_attempt}): {e}")

async def connect_to_server(uri):
    """连接到WebSocket服务器"""
    global reconnect_attempt, backoff
    try:
        logger.info("连接WebSocket服务器...")
        async with websockets.connect(uri) as websocket:
            logger.info("WebSocket连接成功")
            reconnect_attempt, backoff = 0, INITIAL_BACKOFF

            process = subprocess.Popen(
                ['python', mcp_script],
                stdin=subprocess.PIPE,
                stdout=subprocess.PIPE,
                stderr=subprocess.PIPE,
                encoding='utf-8',
                text=True
            )
            logger.info(f"启动 {mcp_script} 进程")

            await asyncio.gather(
                pipe_websocket_to_process(websocket, process),
                pipe_process_to_websocket(process, websocket),
                pipe_process_stderr_to_terminal(process)
            )
    except websockets.exceptions.ConnectionClosed as e:
        logger.error(f"WebSocket连接关闭: {e}")
        raise
    except Exception as e:
        logger.error(f"连接错误: {e}")
        raise
    finally:
        if 'process' in locals():
            logger.info(f"终止 {mcp_script} 进程")
            try:
                process.terminate()
                process.wait(timeout=5)
            except subprocess.TimeoutExpired:
                process.kill()

async def pipe_websocket_to_process(websocket, process):
    """WebSocket到进程的管道"""
    try:
        while True:
            message = await websocket.recv()
            logger.debug(f"<< {message[:120]}...")
            process.stdin.write(message + '\n')
            process.stdin.flush()
    except Exception as e:
        logger.error(f"WebSocket到进程错误: {e}")
        raise
    finally:
        if not process.stdin.closed:
            process.stdin.close()

async def pipe_process_to_websocket(process, websocket):
    """进程到WebSocket的管道"""
    try:
        while True:
            data = await asyncio.get_event_loop().run_in_executor(None, process.stdout.readline)
            if not data:
                break

            logger.debug(f">> {data[:120]}...")
            await handle_device_commands(data, websocket)
    except Exception as e:
        logger.error(f"进程到WebSocket错误: {e}")
        raise

async def handle_device_commands(data, websocket):
    """处理设备控制命令 - 确保正确返回结果给MCP服务器"""
    try:
        # 解析JSON数据
        json_data = json.loads(data)
        logger.debug(f"收到MCP消息: {json_data}")

        # 确保正确处理工具调用结果
        if 'id' in json_data and 'result' in json_data:
            # 检查是否包含内容数据
            result = json_data['result']

            # 直接转发结果给MCP服务器
            await websocket.send(data)

            # 检查是否包含内容数据
            if 'content' in result and isinstance(result['content'], list) and len(result['content']) > 0:
                first_content = result['content'][0]

                # 检查是否包含文本内容
                if 'text' in first_content:
                    text_content = first_content['text']

                    # 尝试解析文本内容为JSON
                    try:
                        content_data = json.loads(text_content)
                    except json.JSONDecodeError:
                        content_data = text_content

                    # 检查是否是成功的结果
                    if isinstance(content_data, dict) and 'success' in content_data and content_data['success']:
                        cmd_result = content_data['result']

                        # 处理房间灯光控制命令
                        if any(room in cmd_result for room in ROOM_MAP):
                            handle_room_light_control(cmd_result)
                    else:
                        logger.debug(f"非成功结果: {content_data}")
                else:
                    logger.debug(f"内容不包含文本: {first_content}")
            else:
                logger.debug(f"结果不包含有效内容: {result}")
        else:
            # 转发其他类型消息
            await websocket.send(data)
            logger.debug(f"转发非结果消息: {json_data}")

    except Exception as e:
        logger.error(f"命令处理错误: {e}")
        logger.error(f"原始数据: {data}")
        # 确保即使出错也转发数据
        await websocket.send(data)

def handle_room_light_control(cmd_result):
    """处理房间灯光控制命令"""
    # 识别房间
    room = None
    for room_name in ROOM_MAP:
        if room_name in cmd_result:
            room = room_name
            break

    if not room:
        logger.warning(f"未识别到房间: {cmd_result}")
        return

    # 解析操作
    if "点亮" in cmd_result or "开启" in cmd_result or "打开" in cmd_result:
        update_room_light(room, "on")
    elif "熄灭" in cmd_result or "关闭" in cmd_result or "关掉" in cmd_result:
        update_room_light(room, "off")
    elif "设置颜色" in cmd_result or "颜色" in cmd_result or "设为" in cmd_result:
        # 解析颜色
        color = None
        for color_name in COLOR_MAP:
            if color_name in cmd_result:
                color = color_name
                break
        if color:
            update_room_light(room, "color", color=color)
            logger.info(f"设置{room}颜色为: {color}")
        else:
            logger.warning(f"未识别颜色: {cmd_result}")
    elif "设置亮度" in cmd_result or "亮度" in cmd_result or "调至" in cmd_result:
        # 解析亮度值
        try:
            # 使用正则表达式提取数字
            match = re.search(r'\d+', cmd_result)
            if match:
                brightness = int(match.group())
                brightness = max(0, min(brightness, 255))
                update_room_light(room, "brightness", brightness=brightness)
                logger.info(f"设置{room}亮度为: {brightness}")
            else:
                logger.warning(f"未找到亮度值: {cmd_result}")
        except ValueError:
            logger.warning(f"无效的亮度值: {cmd_result}")
    else:
        logger.info(f"未识别操作: {cmd_result}")

async def pipe_process_stderr_to_terminal(process):
    """进程错误输出到终端"""
    try:
        while True:
            data = await asyncio.get_event_loop().run_in_executor(None, process.stderr.readline)
            if not data: break
            sys.stderr.write(data)
            sys.stderr.flush()
    except Exception as e:
        logger.error(f"错误输出处理错误: {e}")

def signal_handler(sig, frame):
    """中断信号处理"""
    logger.info("收到中断信号，正在关闭...")
    sys.exit(0)

if __name__ == "__main__":
    signal.signal(signal.SIGINT, signal_handler)
    mcp_script = "move.py"
    endpoint_url = "wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjIxNjQzNywiYWdlbnRJZCI6NDYwNjExLCJlbmRwb2ludElkIjoiYWdlbnRfNDYwNjExIiwicHVycG9zZSI6Im1jcC1lbmRwb2ludCIsImlhdCI6MTc1MjU0NjM1OH0.7y6CVkzE2dqILqBBoImu0qenKuPhMy27Yi-95lCawmXU_tSGaHcF5f8k6Vbp6kWYLjwVe6v2M-0TBOeoRVxzvQ"

    # 初始化UI
    init_ui()

    try:
        asyncio.run(connect_with_retry(endpoint_url))
    except KeyboardInterrupt:
        logger.info("用户中断程序")
    except Exception as e:
        logger.error(f"程序执行错误: {e}")
