【花雕动手做】Kitronik 可编程游戏开发板基于 ARCADE MakeCode之平台跳跃游戏 简单

头像 驴友花雕 2025.09.24 12 0

00 (2).jpg

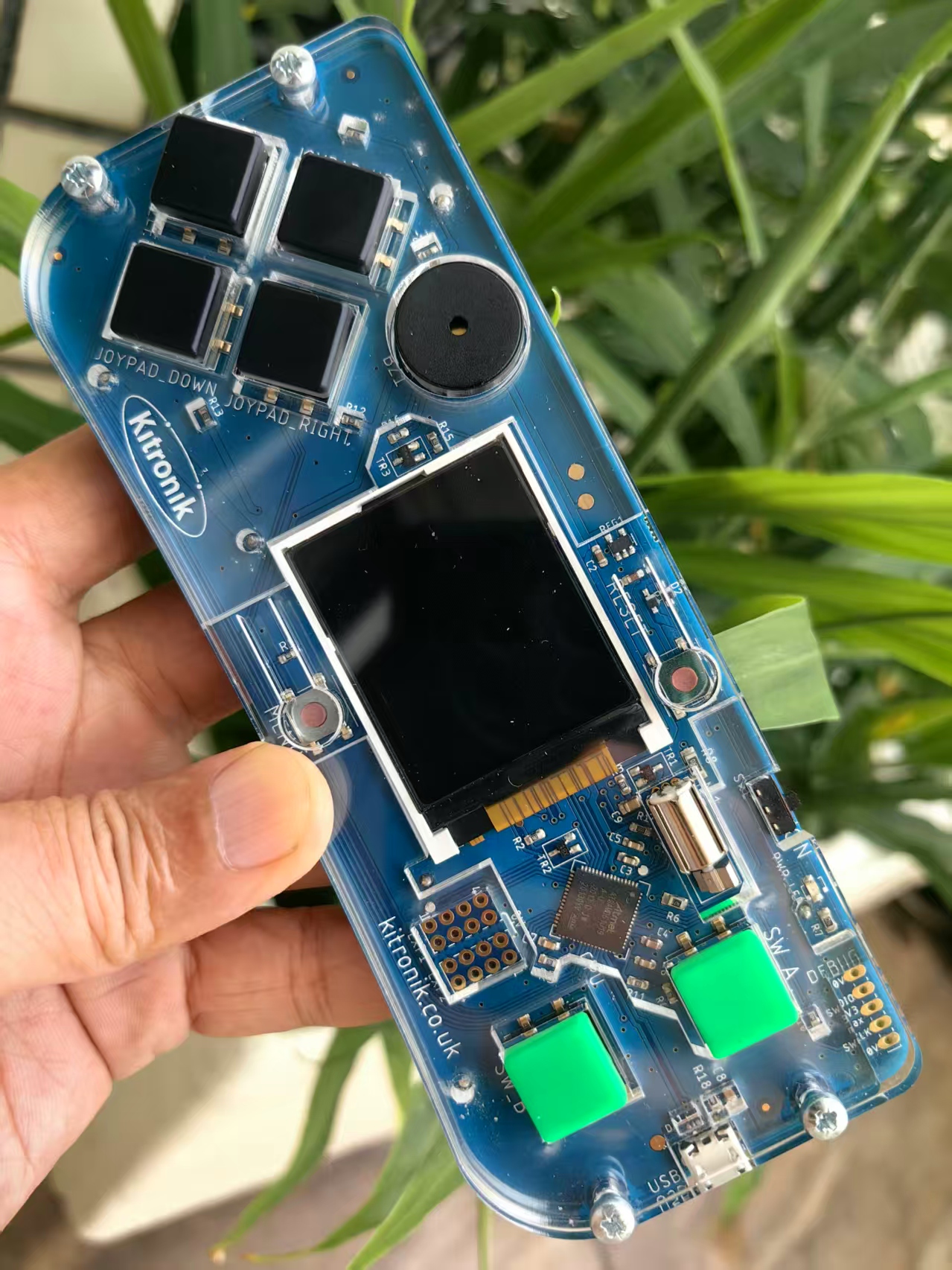

Kitronik ARCADE 是一款由英国教育科技公司 Kitronik 精心打造的可编程游戏机开发板，专为编程教学与创客实践而设计。该设备原生支持微软的 MakeCode Arcade 平台，用户可通过图形化或 JavaScript 编程方式，轻松创建、下载并运行复古风格的街机游戏。

它集成了彩色 LCD 显示屏、方向控制键、功能按键、蜂鸣器和震动马达等交互组件，提供完整的游戏输入输出体验。无论是初学者进行编程启蒙，还是创客群体开发交互式作品，Kitronik ARCADE 都能作为理想的硬件载体，助力创意实现。

凭借其开源友好、易于上手、兼容性强等特点，该开发板广泛应用于中小学编程课程、创客工作坊、游戏开发教学以及个人项目原型设计，深受教育者与技术爱好者的喜爱。



00 (4).jpg

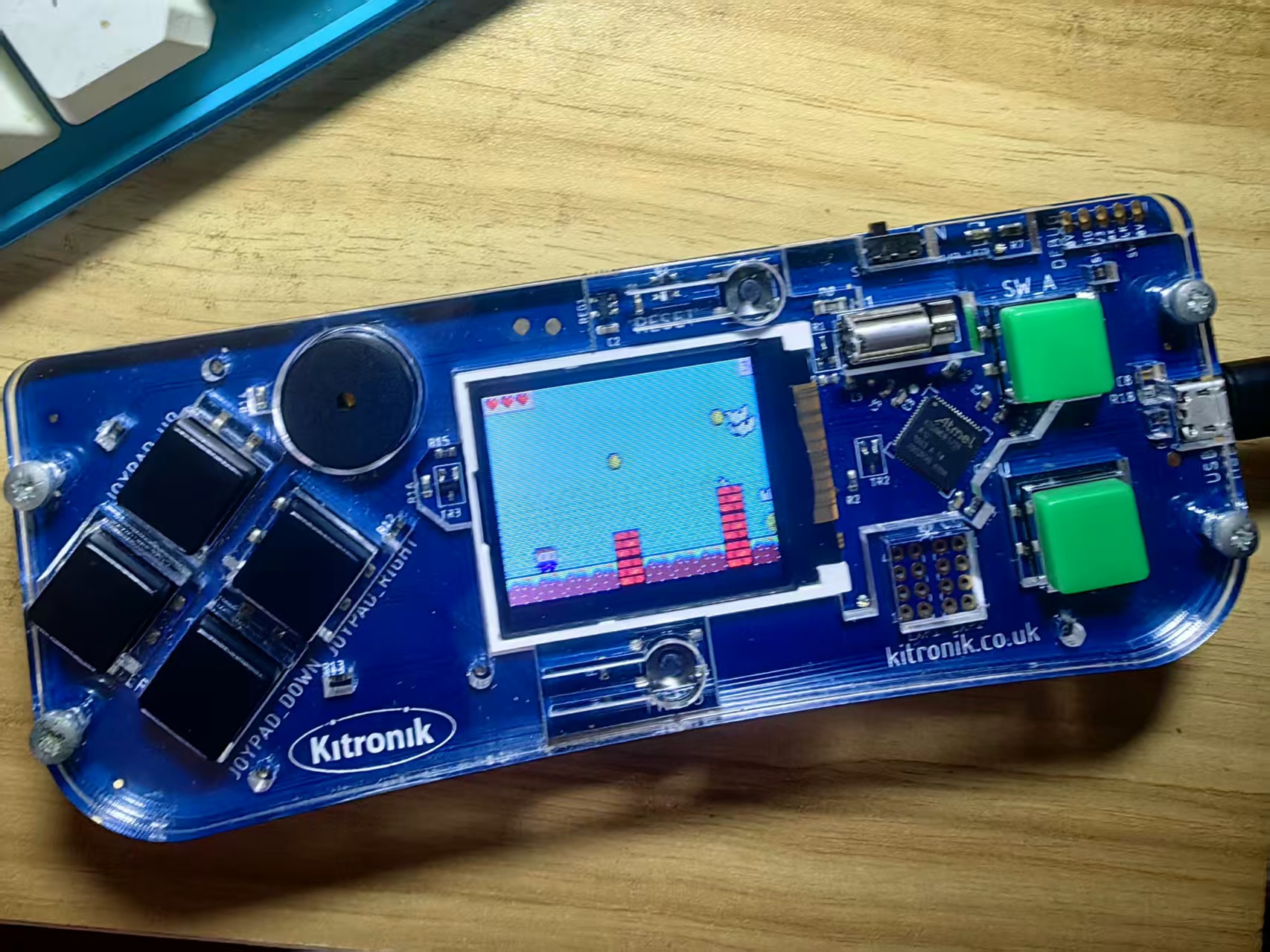

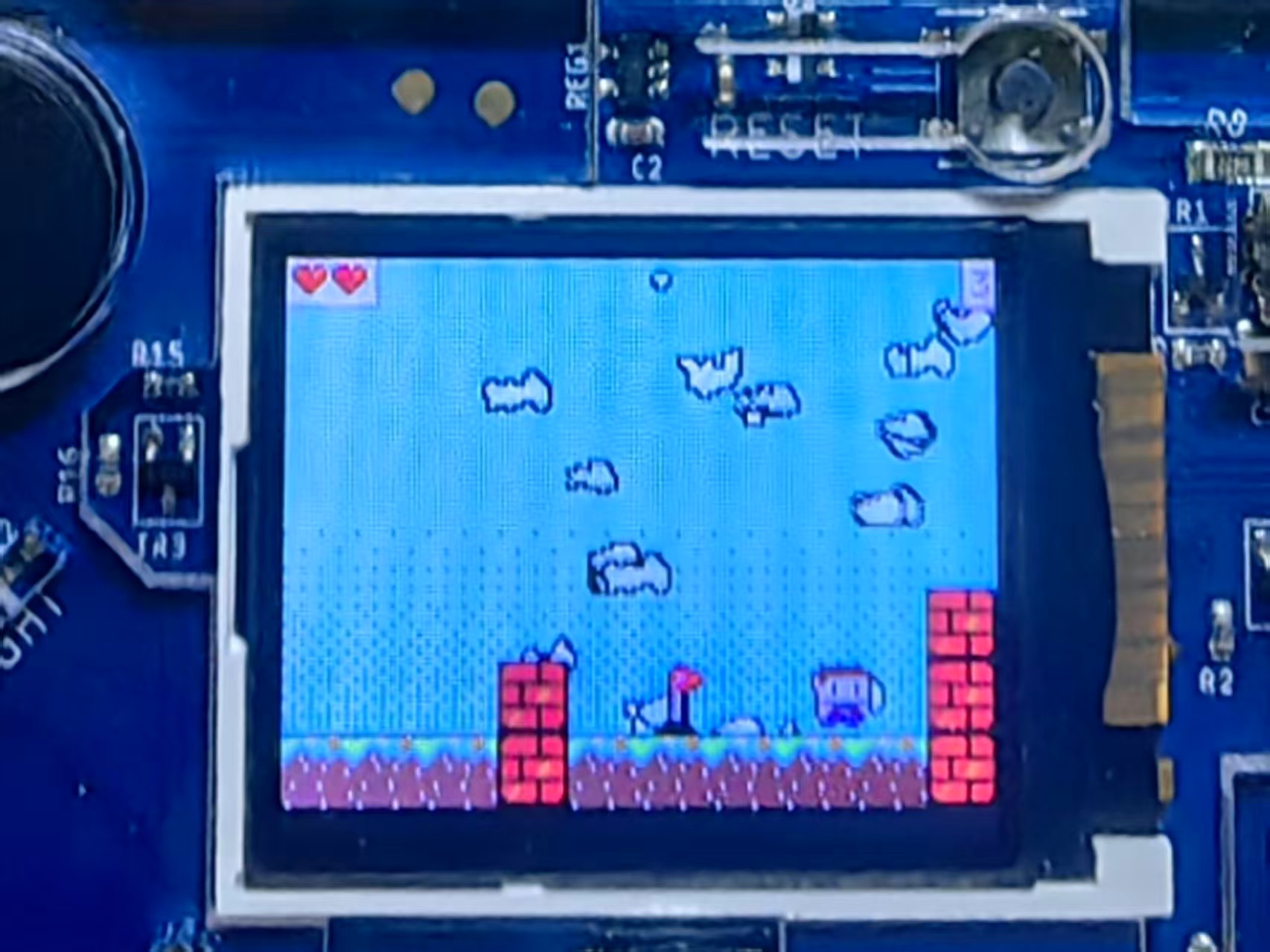

作为学习、练习与尝试，这里创建一个平台跳跃的小游戏。

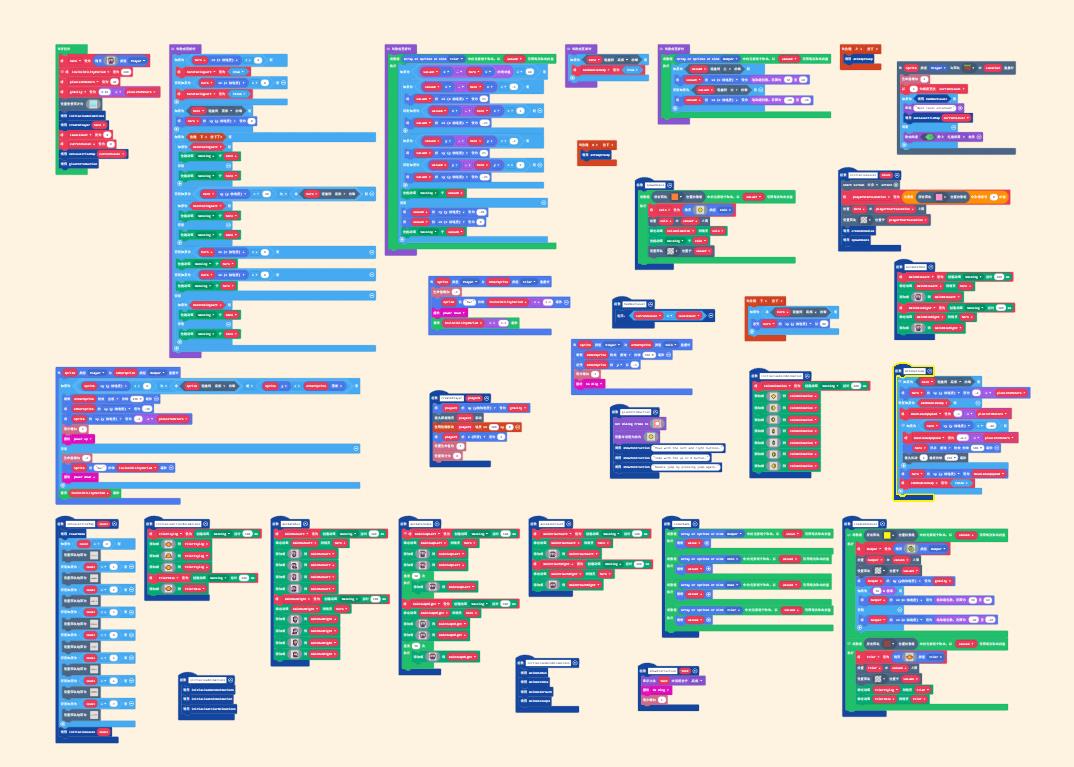

打开网页版：https://arcade.makecode.com/，设置项目名称：平台跳跃

MicroPython实验代码



代码
class ActionKind(Enum):
    RunningLeft = 0
    RunningRight = 1
    Idle = 2
    IdleLeft = 3
    IdleRight = 4
    JumpingLeft = 5
    JumpingRight = 6
    CrouchLeft = 7
    CrouchRight = 8
    Flying = 9
    Walking = 10
    Jumping = 11
@namespace
class SpriteKind:
    Bumper = SpriteKind.create()
    Goal = SpriteKind.create()
    Coin = SpriteKind.create()
    Flier = SpriteKind.create()

def on_on_overlap(sprite, otherSprite):
    if sprite.vy > 0 and not (sprite.is_hitting_tile(CollisionDirection.BOTTOM)) or sprite.y < otherSprite.top:
        otherSprite.destroy(effects.ashes, 250)
        otherSprite.vy = -50
        sprite.vy = -2 * pixelsToMeters
        info.change_score_by(1)
        music.power_up.play()
    else:
        info.change_life_by(-1)
        sprite.say("Ow!", invincibilityPeriod)
        music.power_down.play()
    pause(invincibilityPeriod)
sprites.on_overlap(SpriteKind.player, SpriteKind.Bumper, on_on_overlap)

def initializeAnimations():
    initializeHeroAnimations()
    initializeCoinAnimation()
    initializeFlierAnimations()
def giveIntroduction():
    game.set_dialog_frame(img("""
        . 2 2 2 2 2 2 2 2 2 2 2 2 2 . .
        2 2 1 1 1 1 1 1 1 1 1 1 1 2 2 .
        2 1 1 2 2 2 2 2 2 2 2 2 1 1 2 .
        2 1 2 2 1 1 1 1 1 1 1 2 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 1 1 1 1 1 1 1 1 1 2 1 2 .
        2 1 2 2 1 1 1 1 1 1 1 2 2 1 2 .
        2 1 1 2 2 2 2 2 2 2 2 2 1 1 2 .
        2 2 1 1 1 1 1 1 1 1 1 1 1 2 2 .
        . 2 2 2 2 2 2 2 2 2 2 2 2 2 . .
        . . . . . . . . . . . . . . . .
        """))
    game.set_dialog_cursor(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f . . . . . .
        . . . . f f 5 5 5 5 f f . . . .
        . . . . f 5 5 5 5 5 5 f . . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . . f 5 5 5 5 5 5 f . . . .
        . . . . f f 5 5 5 5 f f . . . .
        . . . . . . f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))

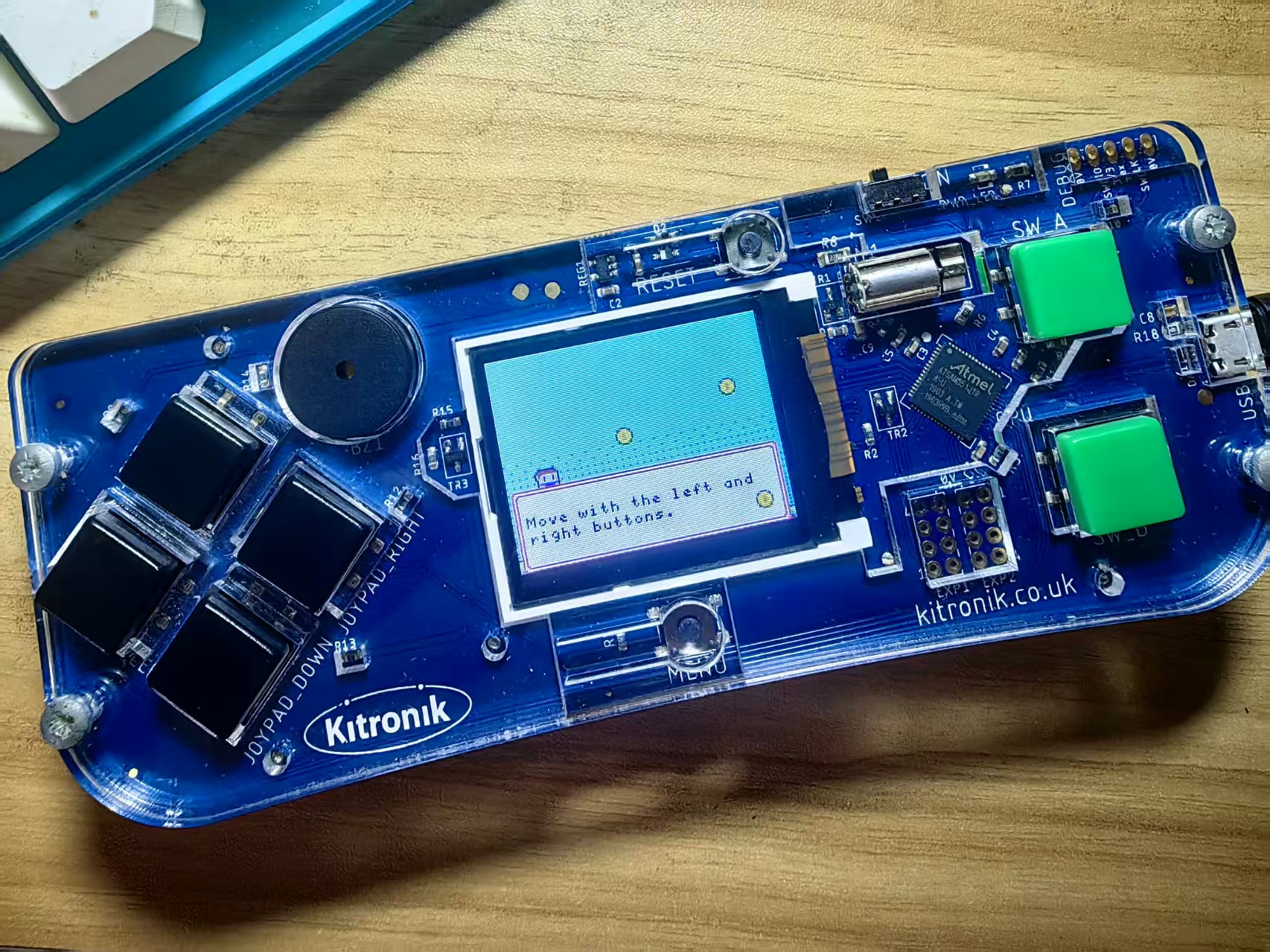

    showInstruction("Move with the left and right buttons.")
    showInstruction("Jump with the up or A button.")
    showInstruction("Double jump by pressing jump again.")
def initializeCoinAnimation():
    global coinAnimation
    coinAnimation = animation.create_animation(ActionKind.Walking, 200)
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f . . . . . .
        . . . . f f 5 5 5 5 f f . . . .
        . . . . f 5 5 5 5 5 5 f . . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . f 5 5 5 4 4 5 5 5 f . . .
        . . . . f 5 5 5 5 5 5 f . . . .
        . . . . f f 5 5 5 5 f f . . . .
        . . . . . . f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . f f f f f f . . . . . .
        . . . f f 5 f 5 5 5 f . . . . .
        . . . f 5 f 5 5 5 5 5 f . . . .
        . . f 5 f 5 5 5 4 5 5 f . . . .
        . . f 5 f 5 5 5 4 4 5 5 f . . .
        . . f 5 f 5 5 5 4 4 5 5 f . . .
        . . f 5 f 5 5 5 4 5 5 f . . . .
        . . . f 5 f 5 5 5 5 5 f . . . .
        . . . . f 5 f 5 5 5 f . . . . .
        . . . . f f f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . f f f f f . . . . . .
        . . . . f f 5 f 5 f f . . . . .
        . . . f f 5 f 5 5 5 f . . . . .
        . . . f 5 f 5 5 5 5 f f . . . .
        . . . f 5 f 5 5 4 5 5 f . . . .
        . . . f 5 f 5 5 4 5 5 f . . . .
        . . . f 5 f 5 5 5 5 f f . . . .
        . . . f f 5 f 5 5 5 f . . . . .
        . . . . f f 5 f 5 f f . . . . .
        . . . . . f f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f . . . . . .
        . . . . . f f f f f . . . . . .
        . . . . . f 5 f 5 f f . . . . .
        . . . . . f 5 f 5 5 f . . . . .
        . . . . . f 5 f 5 5 f . . . . .
        . . . . . f 5 f 5 5 f . . . . .
        . . . . . f 5 f 5 5 f . . . . .
        . . . . . f 5 f 5 f f . . . . .
        . . . . . f f f f f . . . . . .
        . . . . . . f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f . . . . . .
        . . . . . . f f f f f . . . . .
        . . . . . f f 5 f 5 f . . . . .
        . . . . . f 5 5 f 5 f . . . . .
        . . . . . f 5 5 f 5 f . . . . .
        . . . . . f 5 5 f 5 f . . . . .
        . . . . . f 5 5 f 5 f . . . . .
        . . . . . f f 5 f 5 f . . . . .
        . . . . . . f f f f f . . . . .
        . . . . . . f f f f . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f . . . . .
        . . . . . f f 5 f 5 f f . . . .
        . . . . . f 5 5 5 f 5 f f . . .
        . . . . f f 5 5 5 5 f 5 f . . .
        . . . . f 5 5 4 5 5 f 5 f . . .
        . . . . f 5 5 4 5 5 f 5 f . . .
        . . . . f f 5 5 5 5 f 5 f . . .
        . . . . . f 5 5 5 f 5 f f . . .
        . . . . . f f 5 f 5 f f . . . .
        . . . . . . f f f f f . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    coinAnimation.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f f . . . .
        . . . . . f 5 5 5 f 5 f f . . .
        . . . . f 5 5 5 5 5 f 5 f . . .
        . . . . f 5 5 4 5 5 5 f 5 f . .
        . . . f 5 5 4 4 5 5 5 f 5 f . .
        . . . f 5 5 4 4 5 5 5 f 5 f . .
        . . . . f 5 5 4 5 5 5 f 5 f . .
        . . . . f 5 5 5 5 5 f 5 f . . .
        . . . . . f 5 5 5 f 5 f . . . .
        . . . . . . f f f f f f . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))

def on_on_overlap2(sprite2, otherSprite2):
    otherSprite2.destroy(effects.trail, 250)
    otherSprite2.y += -3
    info.change_score_by(3)
    music.ba_ding.play()
sprites.on_overlap(SpriteKind.player, SpriteKind.Coin, on_on_overlap2)

def attemptJump():
    global doubleJumpSpeed, canDoubleJump
    # else if: either fell off a ledge, or double jumping
    if hero.is_hitting_tile(CollisionDirection.BOTTOM):
        hero.vy = -4 * pixelsToMeters
    elif canDoubleJump:
        doubleJumpSpeed = -3 * pixelsToMeters
        # Good double jump
        if hero.vy >= -40:
            doubleJumpSpeed = -4.5 * pixelsToMeters
            hero.start_effect(effects.trail, 500)
            scene.camera_shake(2, 250)
        hero.vy = doubleJumpSpeed
        canDoubleJump = False

def on_up_pressed():
    attemptJump()
controller.up.on_event(ControllerButtonEvent.PRESSED, on_up_pressed)

def animateIdle():
    global mainIdleLeft, mainIdleRight
    mainIdleLeft = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainIdleLeft)
    mainIdleLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d d d d d d d d d e e d f .
        . f d d f d d d d f d d e d f .
        . f d d f d d d d f d d d e f .
        . f d d f d d d d f d d d f . .
        . f d d d d d d d d d d d f . .
        . f a c c c c c c c c a b f . .
        . f d d c c c c c c d d d f . .
        . f d f f f b b f f f d d f . .
        . . f a a a a a a a a a b f . .
        . . . f a a b f f a a b f . . .
        . . . f a a b f f a a b f . . .
        . . . . f f f . . f f f . . . .
        """))
    mainIdleRight = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainIdleRight)
    mainIdleRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d e e d d d d d d d d d f .
        . f d e d d f d d d d f d d f .
        . f e d d d f d d d d f d d f .
        . . f d d d f d d d d f d d f .
        . . f d d d d d d d d d d d f .
        . . f b a c c c c c c c c a f .
        . . f d d d c c c c c c d d f .
        . . f d d f f f b b f f f d f .
        . . f b a a a a a a a a a f . .
        . . . f b a a f f b a a f . . .
        . . . f b a a f f b a a f . . .
        . . . . f f f . . f f f . . . .
        """))

def on_down_pressed():
    if not (hero.is_hitting_tile(CollisionDirection.BOTTOM)):
        hero.vy += 80
controller.down.on_event(ControllerButtonEvent.PRESSED, on_down_pressed)

def setLevelTileMap(level: number):
    clearGame()
    if level == 0:
        tiles.set_tilemap(tilemap("""
            level
            """))
    elif level == 1:
        tiles.set_tilemap(tilemap("""
            level_0
            """))
    elif level == 2:
        tiles.set_tilemap(tilemap("""
            level_1
            """))
    elif level == 3:
        tiles.set_tilemap(tilemap("""
            level_2
            """))
    elif level == 4:
        tiles.set_tilemap(tilemap("""
            level_3
            """))
    elif level == 5:
        tiles.set_tilemap(tilemap("""
            level_4
            """))
    elif level == 6:
        tiles.set_tilemap(tilemap("""
            level_5
            """))
    elif level == 7:
        tiles.set_tilemap(tilemap("""
            level_6
            """))
    initializeLevel(level)
def initializeFlierAnimations():
    global flierFlying, flierIdle
    flierFlying = animation.create_animation(ActionKind.Walking, 100)
    flierFlying.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . f f f f f f f . . . .
        . . . . f 4 4 4 4 4 4 4 f . . .
        . . . f 4 5 5 4 4 4 5 5 4 f . .
        . f . f 4 4 4 5 4 5 4 4 4 f . f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . . . f 4 4 5 5 5 5 5 4 4 f . .
        . . . . f 4 5 4 4 4 5 4 f . . .
        . . . . . f f f f f f f . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    flierFlying.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . f f f f f f f . . . .
        . . . . f 4 4 4 4 4 4 4 f . . .
        . . . f 4 5 5 4 4 4 5 5 4 f . .
        . . . f 4 4 4 5 4 5 4 4 4 f . .
        . . f 4 4 4 4 4 4 4 4 4 4 4 f .
        . . f 4 4 4 4 5 4 5 4 4 4 4 f .
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f 4 4 4 4 4 4 4 4 4 4 4 4 4 f
        . f 4 f 4 4 5 5 5 5 5 4 4 f 4 f
        . f f . f 4 5 4 4 4 5 4 f . f f
        . f . . . f f f f f f f . . . f
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    flierFlying.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . f f f f f f f . . . .
        . . . . f 4 4 4 4 4 4 4 f . . .
        . . . f 4 5 5 4 4 4 5 5 4 f . .
        . f . f 4 4 4 5 4 5 4 4 4 f . f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . . . f 4 4 5 5 5 5 5 4 4 f . .
        . . . . f 4 5 4 4 4 5 4 f . . .
        . . . . . f f f f f f f . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
    flierIdle = animation.create_animation(ActionKind.Walking, 100)
    flierIdle.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . f f f f f f f . . . .
        . . . . f 4 4 4 4 4 4 4 f . . .
        . . . f 4 5 5 4 4 4 5 5 4 f . .
        . f . f 4 4 4 5 4 5 4 4 4 f . f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
        . f f 4 4 4 4 4 4 4 4 4 4 4 f f
        . . . f 4 4 5 5 5 5 5 4 4 f . .
        . . . . f 4 5 4 4 4 5 4 f . . .
        . . . . . f f f f f f f . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        """))
def animateRun():
    global mainRunLeft, mainRunRight
    mainRunLeft = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainRunLeft)
    mainRunLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f . . . . . .
        . . f e e e e e e e f . . . . .
        . f e e e e e e e e e f . . . .
        . f d d d d e d d e e f . . . .
        . f d d f d d e d e e f . . . .
        . f d d f d d d e e e f . . . .
        . f d d f d d d d d d f . . . .
        . f d d d d d d d d d f . . . .
        . . f c c c a a c c b f . . . .
        . . f c c d d d c c b f . . . .
        . . f b f f d d f f f f . . . .
        . . f a a a a a a a b f . . . .
        . . . f a a a a b f f . . . . .
        . . . f a a a a b f . . . . . .
        . . . . f f f f f . . . . . . .
        """))
    mainRunLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f . . . . . .
        . . f e e e e e e e f . . . . .
        . f e e e e e e e e e f . . . .
        . f d d d d e d d e e f . . . .
        . f d d f d d e d e e f . . . .
        . f d d f d d d e e e f . . . .
        . f d d f d d d d d d f . . . .
        . f d d d d d d d d d f . . . .
        . . f c c c c a a c b f . . . .
        . . f c c c c d d c b f . . . .
        . . f b f f d d d f f f f . . .
        . . f a a a a a a a a b f f . .
        . . . f a a b f f a a a f f . .
        . . . . f f f . f f f f f . . .
        """))
    mainRunLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f . . . . . .
        . . f e e e e e e e f . . . . .
        . f e e e e e e e e e f . . . .
        . f d d d d e d d e e f . . . .
        . f d d f d d e d e e f . . . .
        . f d d f d d d e e e f . . . .
        . f d d f d d d d d d f . . . .
        . f d d d d d d d d d f . . . .
        . . f c c c a a c c b f . . . .
        . . f c c d d d c c b f . . . .
        . . f b f f d d f f f f . . . .
        . . f a a a a a a a b f . . . .
        . . . f a a a a b f f . . . . .
        . . . f a a a a b f . . . . . .
        . . . . f f f f f . . . . . . .
        """))
    mainRunLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f . . . . . .
        . . f e e e e e e e f . . . . .
        . f e e e e e e e e e f . . . .
        . f d d d d e d d e e f . . . .
        . f d d f d d e d e e f . . . .
        . f d d f d d d e e e f . . . .
        . f d d f d d d d d d f . . . .
        . f d d d d d d d d d f . . . .
        . . f c a a c c c c b f . . . .
        . f d d d b c c c c b f . . . .
        f f f d d f f f f f f f . . . .
        f f f a a a a a a a b f . . . .
        . f a a b f a a b f f . . . . .
        . f f f f . f f f . . . . . . .
        """))
    mainRunRight = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainRunRight)
    mainRunRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f f f . . .
        . . . . . f e e e e e e e f . .
        . . . . f e e e e e e e e e f .
        . . . . f e e d d e d d d d f .
        . . . . f e e d e d d f d d f .
        . . . . f e e e d d d f d d f .
        . . . . f d d d d d d f d d f .
        . . . . f d d d d d d d d d f .
        . . . . f b c c a a c c c f . .
        . . . . f b c c d d d c c f . .
        . . . . f f f f d d f f b f . .
        . . . . f b a a a a a a a f . .
        . . . . . f f b a a a a f . . .
        . . . . . . f b a a a a f . . .
        . . . . . . . f f f f f . . . .
        """))
    mainRunRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f f f . . .
        . . . . . f e e e e e e e f . .
        . . . . f e e e e e e e e e f .
        . . . . f e e d d e d d d d f .
        . . . . f e e d e d d f d d f .
        . . . . f e e e d d d f d d f .
        . . . . f d d d d d d f d d f .
        . . . . f d d d d d d d d d f .
        . . . . f b c a a c c c c f . .
        . . . . f b c d d c c c c f . .
        . . . f f f f d d d f f b f . .
        . . f f b a a a a a a a a f . .
        . . f f a a a f f b a a f . . .
        . . . f f f f . . f f f . . . .
        """))
    mainRunRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f f f . . .
        . . . . . f e e e e e e e f . .
        . . . . f e e e e e e e e e f .
        . . . . f e e d d e d d d d f .
        . . . . f e e d e d d f d d f .
        . . . . f e e e d d d f d d f .
        . . . . f d d d d d d f d d f .
        . . . . f d d d d d d d d d f .
        . . . . f b c c a a c c c f . .
        . . . . f b c c d d d c c f . .
        . . . . f f f f d d f f b f . .
        . . . . f b a a a a a a a f . .
        . . . . . f f b a a a a f . . .
        . . . . . . f b a a a a f . . .
        . . . . . . . f f f f f . . . .
        """))
    mainRunRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . f f f f f f f . . .
        . . . . . f e e e e e e e f . .
        . . . . f e e e e e e e e e f .
        . . . . f e e d d e d d d d f .
        . . . . f e e d e d d f d d f .
        . . . . f e e e d d d f d d f .
        . . . . f d d d d d d f d d f .
        . . . . f d d d d d d d d d f .
        . . . . f b c c c c a a c f . .
        . . . . f b c c c c b d d d f .
        . . . . f f f f f f f d d f f f
        . . . . f b a a a a a a a f f f
        . . . . . f f b a a f b a a f .
        . . . . . . . f f f . f f f . .
        """))

def on_a_pressed():
    attemptJump()
controller.A.on_event(ControllerButtonEvent.PRESSED, on_a_pressed)

def animateJumps():
    global mainJumpLeft, mainJumpRight
    # Because there isn't currently an easy way to say "play this animation a single time
    # and stop at the end", this just adds a bunch of the same frame at the end to accomplish
    # the same behavior
    mainJumpLeft = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainJumpLeft)
    mainJumpLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d d d d d d d d d e e d f .
        . f d d f d d d d f d d e d f .
        . f d d f d d d d f d d d e f .
        . f d d f d d d d f d d d f . .
        . f d d d d d d d d d d d f . .
        . f a c c c c c c c c a b f . .
        . f d d c c c c c c d d d f . .
        . f d f f f b b f f f d d f . .
        . . f a a a a a a a a a b f . .
        . . . f a a b f f a a b f . . .
        . . . f a a b f f a a b f . . .
        . . . . f f f . . f f f . . . .
        """))
    mainJumpLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d d d d d d d d d e e d f .
        . f d d f d d d d f d d e d f .
        . f d d f d d d d f d d d e f .
        . f d d f d d d d f d d d f . .
        . f d d d d d d d d d d d f . .
        . f a c c c c c c c c a b f . .
        . f d d c c c c c c d d d f . .
        . f d f f f b b f f f d d f . .
        . . f a a a a a a a a a b f . .
        . . . f a a b f f a a b f . . .
        . . . . f f f . . f f f . . . .
        . . . . . . . . . . . . . . . .
        """))
    for index in range(30):
        mainJumpLeft.add_animation_frame(img("""
            . . . . . . . . . . . . . . . .
            . . . f f f f f f f f f f . . .
            . . f e e e e e e e e e e f . .
            . f e e e e e e e e e e e e f .
            . f d d d d d d d d d e e d f .
            . f d d f d d d d f d d e d f .
            . f d d f d d d d f d d d e f .
            . f d d f d d d d f d d d f . .
            . f d d d d d d d d d d d f f .
            . d a b c c c c c c c c b a d .
            . d a c c c c c c c c c c a d .
            . f f f f f b b f f f f f f f .
            . . f a a a a a a a a a b f . .
            . . . f a a b f f a a b f . . .
            . . . . f f f . . f f f . . . .
            . . . . . . . . . . . . . . . .
            """))
    mainJumpRight = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainJumpRight)
    mainJumpRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d e e d d d d d d d d d f .
        . f d e d d f d d d d f d d f .
        . f e d d d f d d d d f d d f .
        . . f d d d f d d d d f d d f .
        . . f d d d d d d d d d d d f .
        . . f b a c c c c c c c c a f .
        . . f d d d c c c c c c d d f .
        . . f d d f f f b b f f f d f .
        . . f b a a a a a a a a a f . .
        . . . f b a a f f b a a f . . .
        . . . f b a a f f b a a f . . .
        . . . . f f f . . f f f . . . .
        """))
    mainJumpRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d e e d d d d d d d d d f .
        . f d e d d f d d d d f d d f .
        . f e d d d f d d d d f d d f .
        . . f d d d f d d d d f d d f .
        . . f d d d d d d d d d d d f .
        . . f b a c c c c c c c c a f .
        . . f d d d c c c c c c d d f .
        . . f d d f f f b b f f f d f .
        . . f b a a a a a a a a a f . .
        . . . f b a a f f b a a f . . .
        . . . . f f f . . f f f . . . .
        . . . . . . . . . . . . . . . .
        """))
    for index2 in range(30):
        mainJumpRight.add_animation_frame(img("""
            . . . . . . . . . . . . . . . .
            . . . f f f f f f f f f f . . .
            . . f e e e e e e e e e e f . .
            . f e e e e e e e e e e e e f .
            . f d e e d d d d d d d d d f .
            . f d e d d f d d d d f d d f .
            . f e d d d f d d d d f d d f .
            . . f d d d f d d d d f d d f .
            . f f d d d d d d d d d d d f .
            . d a b c c c c c c c c b a d .
            . d a c c c c c c c c c c a d .
            . f f f f f f f b b f f f f f .
            . . f b a a a a a a a a a f . .
            . . . f b a a f f b a a f . . .
            . . . . f f f . . f f f . . . .
            . . . . . . . . . . . . . . . .
            """))
def animateCrouch():
    global mainCrouchLeft, mainCrouchRight
    mainCrouchLeft = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainCrouchLeft)
    mainCrouchLeft.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d d d d d d d d d e e d f .
        . f d d f d d d d f d d e d f .
        . f d d f d d d d f d d d e f .
        . f d d f d d d d f d d d f . .
        . f d d d d d d d d d d d f . .
        . f a c c c c c c c c a b f . .
        . f d c c c c c c c c c d d f .
        f d d f f f b b f f f f d d f .
        . f f a a a a a a a a a b f . .
        . . . f f f f . f f f f f . . .
        """))
    mainCrouchRight = animation.create_animation(ActionKind.Walking, 100)
    animation.attach_animation(hero, mainCrouchRight)
    mainCrouchRight.add_animation_frame(img("""
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d e e d d d d d d d d d f .
        . f d e d d f d d d d f d d f .
        . f e d d d f d d d d f d d f .
        . . f d d d f d d d d f d d f .
        . . f d d d d d d d d d d d f .
        . . f b a c c c c c c c c a f .
        . f d d c c c c c c c c c d f .
        . f d d f f f f b b f f f d d f
        . . f b a a a a a a a a a f f .
        . . . f f f f f . f f f f . . .
        """))
def clearGame():
    for value in sprites.all_of_kind(SpriteKind.Bumper):
        value.destroy()
    for value2 in sprites.all_of_kind(SpriteKind.Coin):
        value2.destroy()
    for value3 in sprites.all_of_kind(SpriteKind.Goal):
        value3.destroy()
    for value4 in sprites.all_of_kind(SpriteKind.Flier):
        value4.destroy()

def on_overlap_tile(sprite3, location):
    global currentLevel
    info.change_life_by(1)
    currentLevel += 1
    if hasNextLevel():
        game.splash("Next level unlocked!")
        setLevelTileMap(currentLevel)
    else:
        game.over(True, effects.confetti)
scene.on_overlap_tile(SpriteKind.player,
    assets.tile("""
        tile1
        """),
    on_overlap_tile)

def on_on_overlap3(sprite4, otherSprite3):
    info.change_life_by(-1)
    sprite4.say("Ow!", invincibilityPeriod * 1.5)
    music.power_down.play()
    pause(invincibilityPeriod * 1.5)
sprites.on_overlap(SpriteKind.player, SpriteKind.Flier, on_on_overlap3)

def createEnemies():
    global bumper, flier
    # enemy that moves back and forth
    for value5 in tiles.get_tiles_by_type(assets.tile("""
        tile4
        """)):
        bumper = sprites.create(img("""
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . f f f f f f . . . . . .
                . . . f 7 2 7 7 7 2 f . . . . .
                . . f 7 7 7 2 7 2 7 7 f . . . .
                . . f 7 7 7 7 7 7 7 7 7 f . . .
                . f 7 7 7 2 7 7 7 2 7 7 f . . .
                . f 7 7 7 2 7 7 7 2 7 7 7 f . .
                . f 7 7 7 7 7 7 7 7 7 7 7 7 f .
                . f 7 7 7 7 2 2 2 7 7 7 7 7 f .
                . . f 7 7 2 2 7 2 2 7 7 7 7 f .
                . . f 7 7 2 7 7 7 2 2 7 7 7 f .
                . . . f 7 7 7 7 7 7 7 7 7 7 f .
                . . . . f f 7 7 7 7 7 7 7 f . .
                . . . . . . f f f f f f f . . .
                . . . . . . . . . . . . . . . .
                """),
            SpriteKind.Bumper)
        tiles.place_on_tile(bumper, value5)
        tiles.set_tile_at(value5, assets.tile("""
            tile0
            """))
        bumper.ay = gravity
        if Math.percent_chance(50):
            bumper.vx = Math.random_range(30, 60)
        else:
            bumper.vx = Math.random_range(-60, -30)
    # enemy that flies at player
    for value6 in tiles.get_tiles_by_type(assets.tile("""
        tile7
        """)):
        flier = sprites.create(img("""
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . f f f f f f f . . . .
                . . . . f 4 4 4 4 4 4 4 f . . .
                . . . f 4 5 5 4 4 4 5 5 4 f . .
                . f . f 4 4 4 5 4 5 4 4 4 f . f
                . f f 4 4 4 4 4 4 4 4 4 4 4 f f
                . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
                . f 4 4 4 4 4 5 4 5 4 4 4 4 4 f
                . f f 4 4 4 4 4 4 4 4 4 4 4 f f
                . . . f 4 4 5 5 5 5 5 4 4 f . .
                . . . . f 4 5 4 4 4 5 4 f . . .
                . . . . . f f f f f f f . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                """),
            SpriteKind.Flier)
        tiles.place_on_tile(flier, value6)
        tiles.set_tile_at(value6, assets.tile("""
            tile0
            """))
        animation.attach_animation(flier, flierFlying)
        animation.attach_animation(flier, flierIdle)
def showInstruction(text: str):
    game.show_long_text(text, DialogLayout.BOTTOM)
    music.ba_ding.play()
    info.change_score_by(1)
def initializeHeroAnimations():
    animateRun()
    animateIdle()
    animateCrouch()
    animateJumps()
def createPlayer(player2: Sprite):
    player2.ay = gravity
    scene.camera_follow_sprite(player2)
    controller.move_sprite(player2, 100, 0)
    player2.z = 5
    info.set_life(3)
    info.set_score(0)
def initializeLevel(level2: number):
    global playerStartLocation
    effects.clouds.start_screen_effect()
    playerStartLocation = tiles.get_tiles_by_type(assets.tile("""
        tile6
        """))[0]
    tiles.place_on_tile(hero, playerStartLocation)
    tiles.set_tile_at(playerStartLocation, assets.tile("""
        tile0
        """))
    createEnemies()
    spawnGoals()
def hasNextLevel():
    return currentLevel != levelCount
def spawnGoals():
    global coin
    for value7 in tiles.get_tiles_by_type(assets.tile("""
        tile5
        """)):
        coin = sprites.create(img("""
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . f f f f . . . . . .
                . . . . f f 5 5 5 5 f f . . . .
                . . . . f 5 5 5 5 5 5 f . . . .
                . . . f 5 5 5 4 4 5 5 5 f . . .
                . . . f 5 5 5 4 4 5 5 5 f . . .
                . . . f 5 5 5 4 4 5 5 5 f . . .
                . . . f 5 5 5 4 4 5 5 5 f . . .
                . . . . f 5 5 5 5 5 5 f . . . .
                . . . . f f 5 5 5 5 f f . . . .
                . . . . . . f f f f . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                . . . . . . . . . . . . . . . .
                """),
            SpriteKind.Coin)
        tiles.place_on_tile(coin, value7)
        animation.attach_animation(coin, coinAnimation)
        animation.set_action(coin, ActionKind.Walking)
        tiles.set_tile_at(value7, assets.tile("""
            tile0
            """))
heroFacingLeft = False
coin: Sprite = None
playerStartLocation: tiles.Location = None
flier: Sprite = None
bumper: Sprite = None
mainCrouchRight: animation.Animation = None
mainCrouchLeft: animation.Animation = None
mainJumpRight: animation.Animation = None
mainJumpLeft: animation.Animation = None
mainRunRight: animation.Animation = None
mainRunLeft: animation.Animation = None
flierIdle: animation.Animation = None
flierFlying: animation.Animation = None
mainIdleRight: animation.Animation = None
mainIdleLeft: animation.Animation = None
doubleJumpSpeed = 0
canDoubleJump = False
coinAnimation: animation.Animation = None
currentLevel = 0
levelCount = 0
gravity = 0
pixelsToMeters = 0
invincibilityPeriod = 0
hero: Sprite = None
hero = sprites.create(img("""
        . . . . . . . . . . . . . . . .
        . . . f f f f f f f f f f . . .
        . . f e e e e e e e e e e f . .
        . f e e e e e e e e e e e e f .
        . f d e e d d d d d d d d d f .
        . f d e d d f d d d d f d d f .
        . f e d d d f d d d d f d d f .
        . . f d d d f d d d d f d d f .
        . . f d d d d d d d d d d d f .
        . . f b a c c c c c c c c a f .
        . . f d d d c c c c c c d d f .
        . . f d d f f f b b f f f d f .
        . . f b a a a a a a a a a f . .
        . . . f b a a f f b a a f . . .
        . . . f b a a f f b a a f . . .
        . . . . f f f . . f f f . . . .
        """),
    SpriteKind.player)
# how long to pause between each contact with a
# single enemy
invincibilityPeriod = 600
pixelsToMeters = 30
gravity = 9.81 * pixelsToMeters
scene.set_background_image(img("""
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989998999899989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998999899989998999899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    9989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989898999898989998989899989998999899989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999989999999899999998999999999999999999999999999999
    8989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989898989
    9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
    """))
initializeAnimations()
createPlayer(hero)
levelCount = 8
currentLevel = 0
setLevelTileMap(currentLevel)
giveIntroduction()
# set up hero animations

def on_on_update():
    global heroFacingLeft
    if hero.vx < 0:
        heroFacingLeft = True
    elif hero.vx > 0:
        heroFacingLeft = False
    if hero.is_hitting_tile(CollisionDirection.TOP):
        hero.vy = 0
    if controller.down.is_pressed():
        if heroFacingLeft:
            animation.set_action(hero, ActionKind.Walking)
        else:
            animation.set_action(hero, ActionKind.Walking)
    elif hero.vy < 20 and not (hero.is_hitting_tile(CollisionDirection.BOTTOM)):
        if heroFacingLeft:
            animation.set_action(hero, ActionKind.Walking)
        else:
            animation.set_action(hero, ActionKind.Walking)
    elif hero.vx < 0:
        animation.set_action(hero, ActionKind.Walking)
    elif hero.vx > 0:
        animation.set_action(hero, ActionKind.Walking)
    else:
        if heroFacingLeft:
            animation.set_action(hero, ActionKind.Walking)
        else:
            animation.set_action(hero, ActionKind.Walking)
game.on_update(on_on_update)

# Flier movement

def on_on_update2():
    for value8 in sprites.all_of_kind(SpriteKind.Flier):
        if abs(value8.x - hero.x) < 60:
            if value8.x - hero.x < -5:
                value8.vx = 25
            elif value8.x - hero.x > 5:
                value8.vx = -25
            if value8.y - hero.y < -5:
                value8.vy = 25
            elif value8.y - hero.y > 5:
                value8.vy = -25
            animation.set_action(value8, ActionKind.Walking)
        else:
            value8.vy = -20
            value8.vx = 0
            animation.set_action(value8, ActionKind.Walking)
game.on_update(on_on_update2)

# Reset double jump when standing on wall

def on_on_update3():
    global canDoubleJump
    if hero.is_hitting_tile(CollisionDirection.BOTTOM):
        canDoubleJump = True
game.on_update(on_on_update3)

# bumper movement

def on_on_update4():
    for value9 in sprites.all_of_kind(SpriteKind.Bumper):
        if value9.is_hitting_tile(CollisionDirection.LEFT):
            value9.vx = Math.random_range(30, 60)
        elif value9.is_hitting_tile(CollisionDirection.RIGHT):
            value9.vx = Math.random_range(-60, -30)
game.on_update(on_on_update4)

这是一个基于ARCADE MakeCode的平台跳跃游戏代码。

游戏概述
这是一个经典的2D平台跳跃游戏，玩家控制一个角色在不同关卡中跳跃、收集金币、躲避敌人，最终到达终点。

代码结构分析
1. 枚举定义
python
class ActionKind(Enum):
   # 定义角色各种动作状态
   RunningLeft = 0
   RunningRight = 1
   Idle = 2
   # ... 其他动作状态
定义了角色可能的所有动作状态，用于动画管理。

2. 精灵种类定义
python
class SpriteKind:
   Bumper = SpriteKind.create()  # 碰撞敌人
   Goal = SpriteKind.create()    # 目标/终点
   Coin = SpriteKind.create()    # 金币
   Flier = SpriteKind.create()   # 飞行敌人

3. 核心游戏机制

跳跃系统
python
def attemptJump():
   if hero.is_hitting_tile(CollisionDirection.BOTTOM):
       hero.vy = -4 * pixelsToMeters  # 普通跳跃
   elif canDoubleJump:
       hero.vy = -3 * pixelsToMeters  # 二段跳
       canDoubleJump = False
支持二段跳机制，玩家可以在空中再次跳跃。

物理系统
python
pixelsToMeters = 30
gravity = 9.81 * pixelsToMeters  # 模拟真实重力
使用真实物理计算，让跳跃感觉更自然。

4. 动画系统
游戏包含丰富的动画：
奔跑动画：左右方向的奔跑帧
跳跃动画：跳跃和下落状态
下蹲动画：下蹲状态
闲置动画：站立状态
金币动画：旋转的金币效果
飞行敌人动画：翅膀扇动效果

5. 敌人系统
两种敌人类型：
Bumper（碰撞敌人）：在地面来回移动
Flier（飞行敌人）：会追踪玩家位置

6. 关卡系统
python
def setLevelTileMap(level: number):
   if level == 0:
       tiles.set_tilemap(tilemap("level"))
   elif level == 1:
       tiles.set_tilemap(tilemap("level_0"))
   # ... 最多8个关卡
支持多个关卡，玩家完成一关后进入下一关。

图形编程参考实验程序





通过模拟器，调试与模拟运行

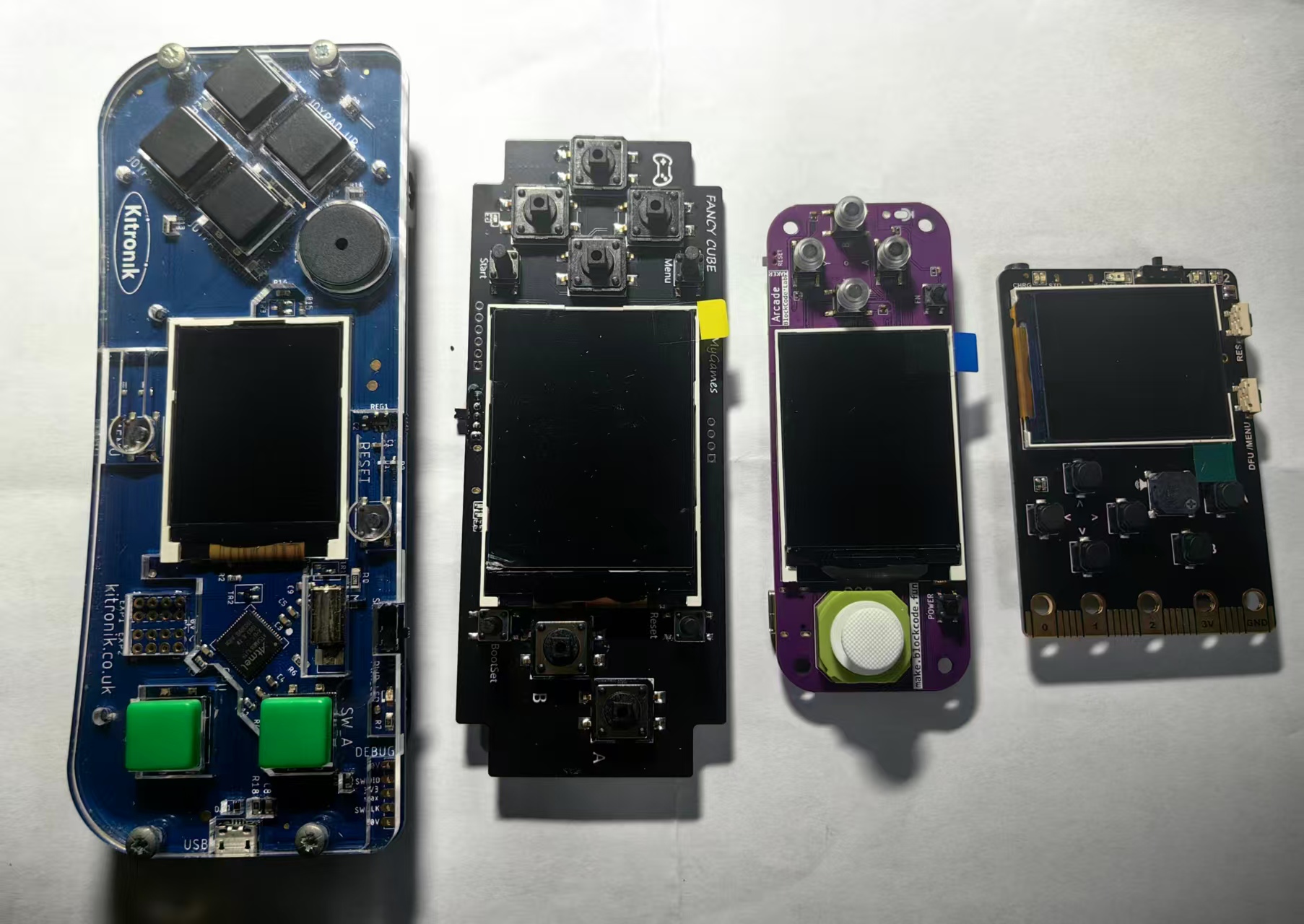

实验场景记录



170 (1).jpg
170 (2).jpg
170 (3).jpg

Makelog作者原创文章，未经授权禁止转载。
#Python#游戏#ARCADE MakeCode#Kitronik 可编程游戏开发板#平台跳跃游戏

评论

user-avatar
驴友花雕
驴友花雕2019.05.06
icon
创造力46487
icon
项目文章1410

爱好中国极地探险，二次徒步穿越雅鲁藏布江大峡谷核心无人区域，成功穿越了中国三大沙漠、四大无人区及三江源等中国境内最困难的地方。攀登三座八千米级雪山，组织驼峰搜寻队二次深入高黎贡山核心无人区搜寻驼峰航线坠机，骑行美国66号公路徒步北极等。完成十余项极地摄影专题，累计拍摄相关照片近十万张，在重庆科技馆举办过《花雕中国极地摄影展》。中国探险协会理事，入选“中国国家旅游首席旅行家”、《中国十大徒步人物》和《中国当代徐霞客》。

icon 他的勋章
    展开更多

    你可能感兴趣的
